![ferrari 412 (coachwork) rear boot lid (variations) parts diagram](/img/ixEAAMTaOW7uBoPVblkufVdSBGWIRqFBqutpLv-4yETTcYAsNY1tAwM%3D/ferrari-412-(coachwork)-part-diagram-008a.webp)

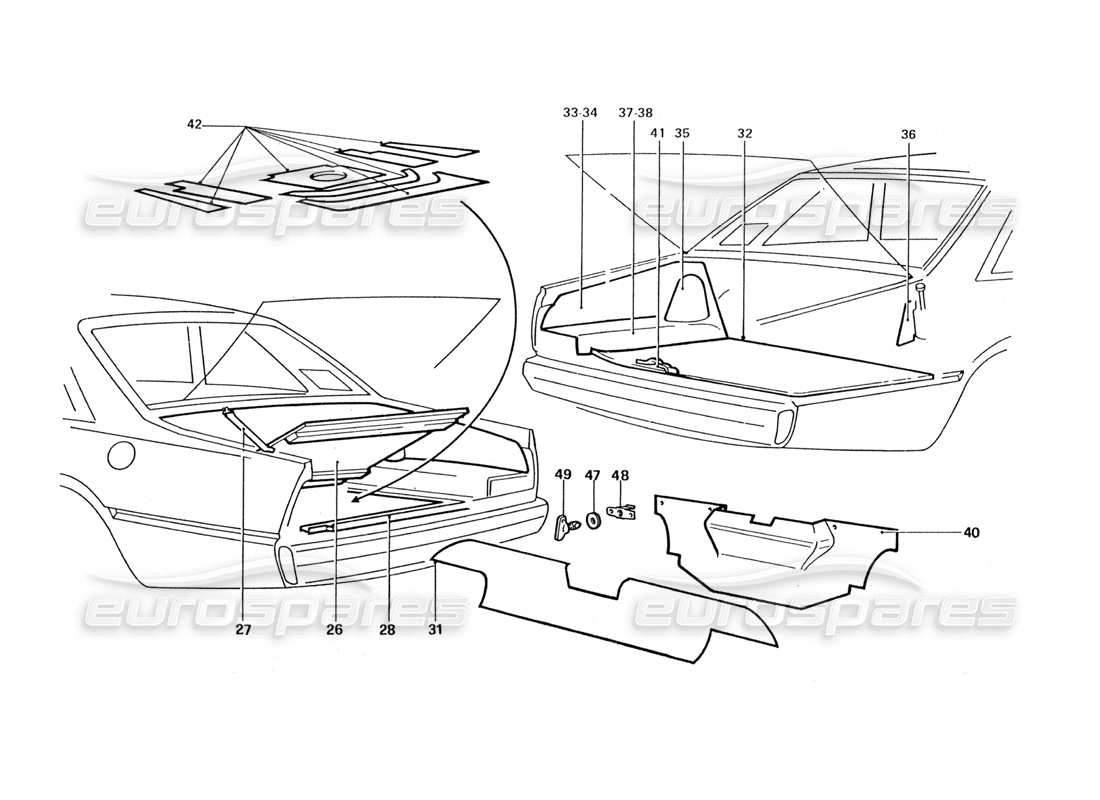

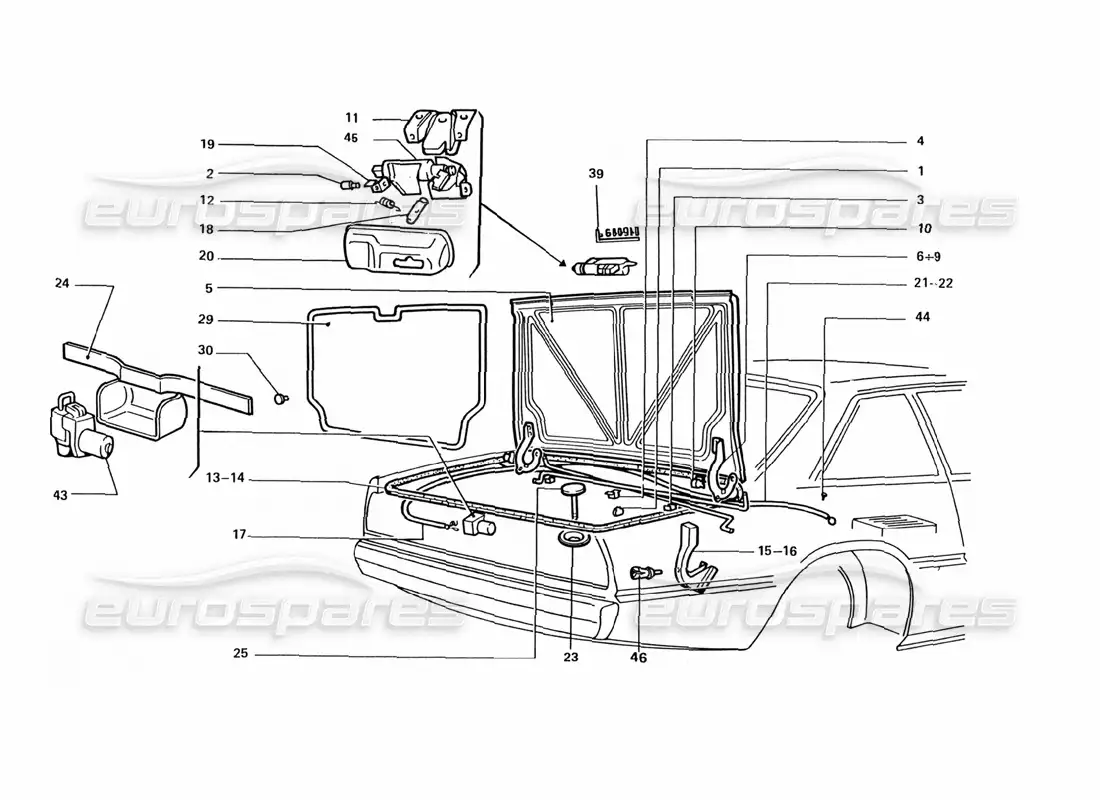

008A - Rear boot Lid (Variations)
Ferrari 412 (Coachwork) Rear boot Lid (Variations) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 026
MPN: 257-34-620-00
PIANETTO TONDO BAULE CONFEZIONATO
Specify the color
# 027
MPN: 257-34-634-00
CINGHIETTO PER AGGANCIO LATERALE PIANETTO
Specify the color
from £17.97
from £17.97
# 028
MPN: 255-34-647-06
TRAVERSA POSTERIORE APPOGGIO PIANETTO
# 031
MPN: 257-34-784-10
TAPPETO COLLEG. POSTER.
Specify the color
# 032
MPN: 255-34-800-10
TAPPETO PER FONDO BAULE
Specify the color
from £72.30
from £72.30
# 033
MPN: 257-34-810-10
R. FENDER MAT.
Specify the color
# 034
MPN: 257-34-811-10
TAPPETO PER PARAFANGO 'S.
Specify the color
# 035
MPN: 255-34-850-10
RICOPRIMENTO VASCHETTA CARBURANTE - CONFEZIONATO
Specify the color
from £86.87
from £86.87
# 036
MPN: 255-34-860-10
RICOPRIMENTO ANTENNA RADIO - CONFEZIONATO
Specify the color
from £67.43
from £67.43
# 037
MPN: 257-34-870-10
FUEL TANK COVER R.
Specify the color
from £202.28
from £202.28
# 038
MPN: 257-34-871-20
FUEL TANK COVER S.
Specify the color
# 040
MPN: 257-35-890-10
REAR AIR CONDITIONER SHELTER - PACKAGED
Specify the color
from £591.04
from £591.04
# 041
MPN: 802-60-380-10
MANIGLIA PIANETTO FONDO BAULE
# 042
MPN: 257-62-320-00
COMPLETE SET OF INSULATORS UNDER FUEL TANK
from £151.66
from £151.66
# 047
MPN: 267-80-088-00
GASKET OR SEAL
D.V.N.1811 (Rich. Ferrari)
from £0.47
from £0.47
# 048
MPN: 267-88-086-01
HOLLETTA FISSAGGIO RIPARO
D.V.N.1811(Rich.Ferrari)
# 049
MPN: 267-88-084-01
GUARD FIXING STEM
D.V.N.1311(Rich.Ferrari)
from £27.05
from £27.05
