102 - Electrical System, Fuses and Relays

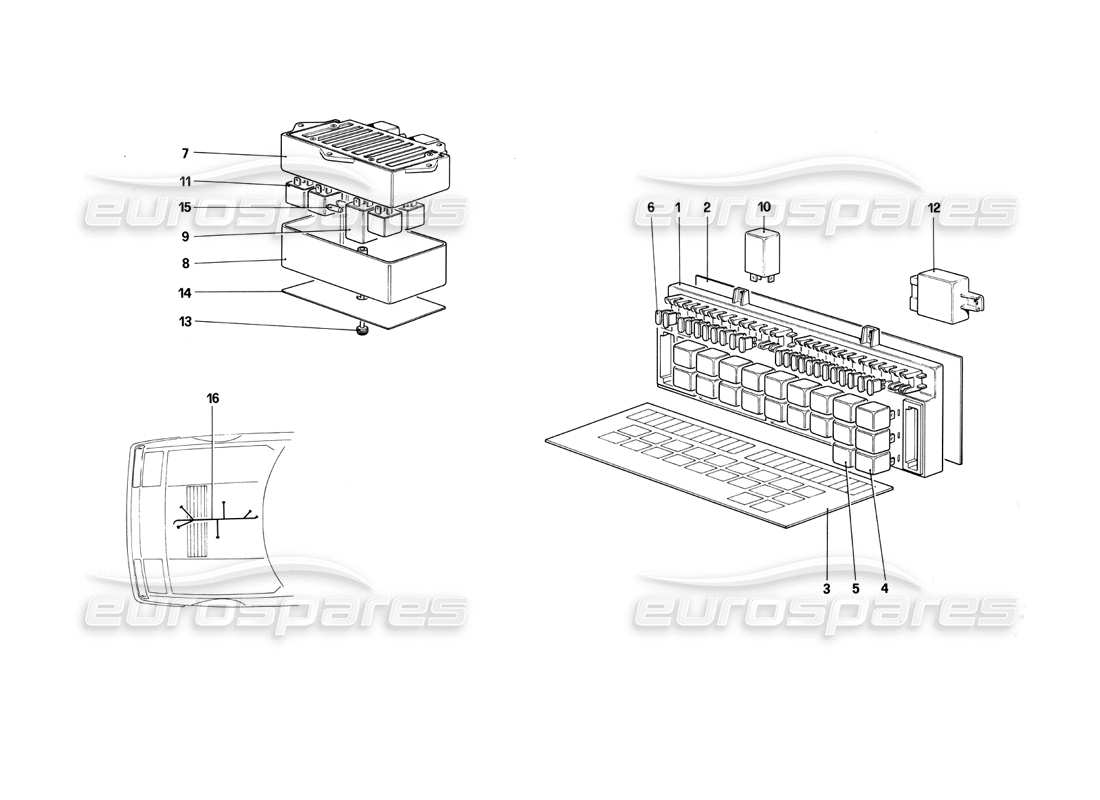

Ferrari 412 (Mechanical) Electrical System, Fuses and Relays Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 118873
PLATE
Supersession
Supersession
# 001
MPN: 128739
ELECTRIC BOAD COMPLETE
# 002
MPN: 116055
REAR COVER
# 003
MPN: 128740
DATA PLATE
Supersession
Supersession
# 004
MPN: 40130106
RELAY
from £10.40
from £10.40
This part replaces part number 110355
# 005
MPN: 40130007
RELAY
0332209151
from £16.10
from £16.10
This part replaces part number 110356 - and 1 more. Click to view details
# 006
MPN: 11054790
5 AMP. FUSE
from £0.71
from £0.71
# 006
MPN: 125240
7,5 AMP. FUSE
from £0.47
from £0.47
This part replaces part number 11054890 - and 1 more. Click to view details
# 006
MPN: 125241
10 AMP. FUSE
from £0.47
from £0.47
This part replaces part number 11054990 - and 1 more. Click to view details
# 006
MPN: 125242
15 AMP. FUSE
from £0.47
from £0.47
This part replaces part number 11055090 - and 1 more. Click to view details
# 006
MPN: 125243
20 AMP. FUSE
from £0.47
from £0.47
This part replaces part number 11055190 - and 1 more. Click to view details
# 006
MPN: 126031
25 AMP. FUSE
from £0.47
from £0.47
This part replaces part number MC3742/5
# 007
MPN: 127078
SECONDARY ELECTRIC BOARD COMPLETE
from £512.04
from £512.04
# 008
MPN: 127081
COVER
from £19.02
from £19.02
# 009
MPN: 61048000
SIGNAL INDICATOR RELAY AND HAZARD
from £107.87
from £107.87
This part replaces part number 111754
# 010
MPN: 60870200
TIMER FOR INTERIOR LIGHTS
from £101.61
from £101.61
# 011
MPN: 40130007
RELAY
0332209151
from £16.23
from £16.23
This part replaces part number 110356 - and 1 more. Click to view details
# 012
MPN: 257-80-162-00
WINDSHIELD WIPER RELAY
from £93.20
from £93.20
# 013
MPN: 116138
SCREW
from £4.78
from £4.78
# 014
MPN: 127822
DATA PLATE
from £30.30
from £30.30
# 015
MPN: 11048990
FUSE 16 AMP CERAMIC
from £0.47
from £0.47
This part replaces part number 95403002
# 016
MPN: 127075
ENGINE CABLE
from £267.55
from £267.55
