ferrari f430 scuderia spider 16m (europe) front suspension - arms parts diagram

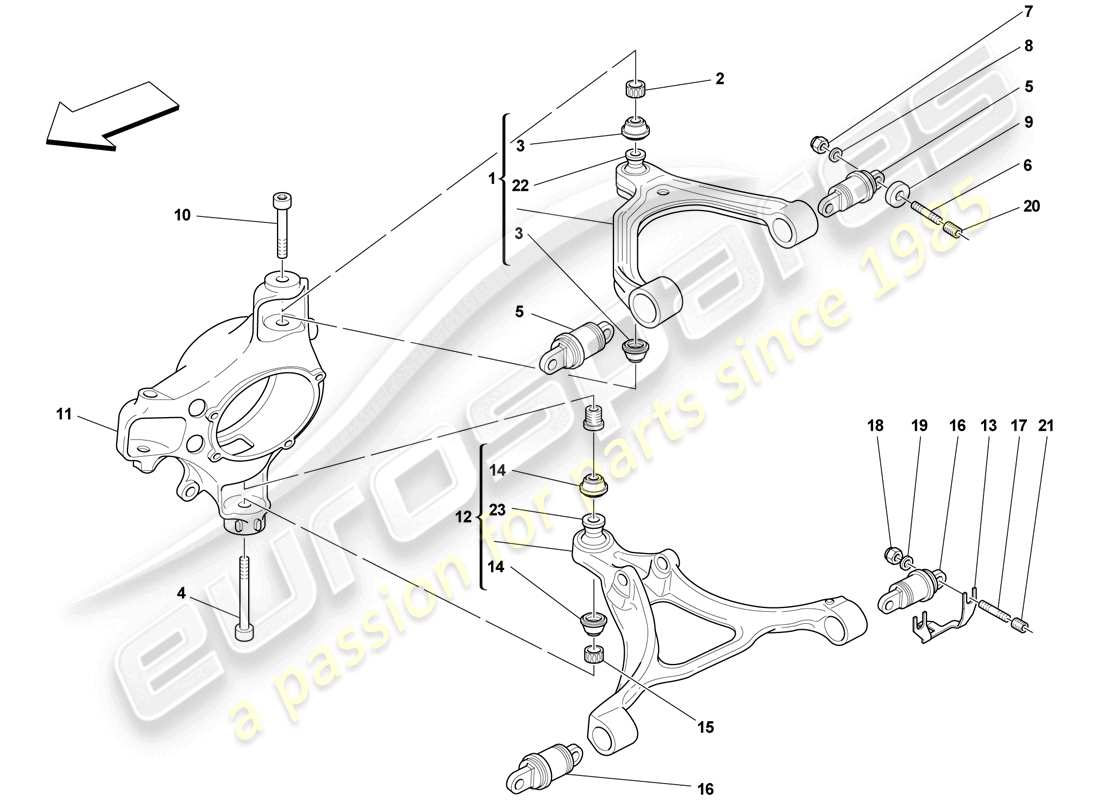

0046 - FRONT SUSPENSION - ARMS

Ferrari F430 Scuderia Spider 16M (Europe) FRONT SUSPENSION - ARMS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 002
                                          MPN: 179555
                                          COMPENSATOR RING
                                          from £3.22
                                          from £3.22
                                          RING Genuine Ferrari Part - New In stock
                                          COMPENSATOR RING. (179555) Genuine Maserati Part - New (to order)
                                          # 003
                                          MPN: 171848
                                          GAITER
                                          from £40.56
                                          from £40.56
                                          SEEGER WITH COVER (171848) Eurospares Approved Part - New In stock
                                          SEEGER WITH COVER Genuine Ferrari Part - New In stock
                                          # 004
                                          MPN: 181598
                                          SCREW
                                          from £40.83
                                          from £40.83
                                          This part replaces part number 178941
                                          SCREW Genuine Ferrari Part - New (to order)
                                          # 005
                                          MPN: 209167
                                          FLANBLOC
                                          from £96.56
                                          from £96.56
                                          This part replaces part number 194801
                                          FLAMBLOC D.30mm (209167) Eurospares Approved Part - New In stock
                                          FLAMBLOC D.30mm Genuine Ferrari Part - New In stock
                                          # 006
                                          MPN: 170155
                                          THREADED ROD
                                          from £9.06
                                          from £9.06
                                          STUD Genuine Ferrari Part - New In stock
                                          # 007
                                          MPN: 104030
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 16104125
                                          NUT Genuine Ferrari Part - New In stock
                                          DADO E NYLON STOP M 8X9,5 (104030) Genuine Maserati Part - New (to order)
                                          # 008
                                          MPN: 14496524
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14496525 - and 1 more. Click to view details
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER (14496524) Genuine Maserati Part - New In stock
                                          # 009
                                          MPN: 219344
                                          WASHER
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 010
                                          MPN: 179556
                                          SCREW
                                          from £28.48
                                          from £28.48
                                          SCREW Genuine Ferrari Part - New In stock
                                          # 011
                                          MPN: 236923
                                          RH FRONT STUB AXLE
                                          from £356.07
                                          from £356.07
                                          RH FRONT STEERING KNUCKLE Genuine Ferrari Part - New In stock
                                          RH FRONT STEERING KNUCKLE Genuine Ferrari Part - Used In stock
                                          # 011
                                          MPN: 236929
                                          LH FRONT STUB AXLE
                                          from £356.07
                                          from £356.07
                                          LH FRONT STEERING KNUCKLE Genuine Ferrari Part - New In stock
                                          LH FRONT STEERING KNUCKLE Genuine Ferrari Part - Used In stock
                                          # 012
                                          MPN: 200940
                                          LH/RH LOWER LEVER
                                          from £452.08
                                          from £452.08
                                          This part replaces part number 177659 which we have in stock - and 9 more. Click to view details
                                          LOWER LEVER Genuine Ferrari Part - New In stock
                                          LOWER LEVER Genuine Ferrari Part - Used In stock
                                          # 013
                                          MPN: 178851
                                          ADJUSTMENT PLATE
                                          -Th. 1 mm- -Installed if necessary-
                                          from £7.28
                                          from £7.28
                                          CAMBER PLATE SP=1 Genuine Ferrari Part - New In stock
                                          # 013
                                          MPN: 178852
                                          ADJUSTMENT PLATE
                                          -Th. 2 mm- -Installed if necessary-
                                          from £8.46
                                          from £8.46
                                          CAMBER PLATE SP=2 Genuine Ferrari Part - New In stock
                                          # 013
                                          MPN: 178853
                                          ADJUSTMENT PLATE
                                          -Th. 3 mm- -Installed if necessary-
                                          from £8.86
                                          from £8.86
                                          CAMBER PLATE SP=3 Genuine Ferrari Part - New In stock
                                          # 013
                                          MPN: 178940
                                          ADJUSTMENT PLATE
                                          -Th. 4 mm- -Installed if necessary-
                                          from £10.32
                                          from £10.32
                                          CAMBER PLATE SP=4 Genuine Ferrari Part - New In stock
                                          # 013
                                          MPN: 186943
                                          ADJUSTMENT PLATE
                                          -Th. 1.5 mm- -Installed if necessary-
                                          from £4.53
                                          from £4.53
                                          ADJUSTING PLATE. Genuine Ferrari Part - New In stock
                                          # 013
                                          MPN: 186944
                                          ADJUSTMENT PLATE
                                          -Th. 2.5 mm- -Installed if necessary-
                                          from £2.18
                                          from £2.18
                                          ADJUSTING PLATE. Genuine Ferrari Part - New In stock
                                          # 014
                                          MPN: 171847
                                          GAITER
                                          from £51.40
                                          from £51.40
                                          SEEGER WITH COVER (171847) Eurospares Approved Part - New In stock
                                          SEEGER WITH COVER Genuine Ferrari Part - New In stock
                                          # 015
                                          MPN: 179554
                                          LOWER ARM COMPENSATOR RING
                                          from £3.32
                                          from £3.32
                                          RING Genuine Ferrari Part - New In stock
                                          # 016
                                          MPN: 209166
                                          FLANBLOC
                                          from £111.04
                                          from £111.04
                                          This part replaces part number 194800
                                          FLANBLOC D.33mm (209166) Eurospares Approved Part - New In stock
                                          FLANBLOC D.33mm Genuine Ferrari Part - New In stock
                                          # 017
                                          MPN: 170154
                                          THREADED ROD
                                          -No longer supplied- -Replaced by 241298-
                                          from £1.49
                                          from £1.49
                                          STUD. Genuine Ferrari Part - New In stock
                                          # 017
                                          MPN: 241298
                                          THREADED ROD
                                          from £49.65
                                          from £49.65
                                          BARRA FILETTATA M10X1,25 Genuine Ferrari Part - New In stock
                                          # 018
                                          MPN: 104114
                                          NUT
                                          Supersession
                                          Supersession
                                          This part replaces part number 15503711 - and 1 more. Click to view details
                                          Genuine Ferrari Part (no longer available to order)
                                          Genuine Maserati Part (no longer available to order)
                                          # 019
                                          MPN: 14496624
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14496601 - and 2 more. Click to view details
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER (14496624) Genuine Maserati Part - New (to order)
                                          # 020
                                          MPN: 13582210
                                          THREADED INSERT
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 021
                                          MPN: 13582310
                                          THREADED INSERT
                                          from £6.66
                                          from £6.66
                                          THREADED INSERT. Genuine Ferrari Part - New (to order)
                                          # 022
                                          MPN: 203633
                                          BALL-JOINT
                                          from £140.03
                                          from £140.03
                                          UPPER BALL JOINT (203633) Eurospares Approved Part - New (to order)
                                          UPPER BALL JOINT Genuine Ferrari Part - New In stock
                                          # 023
                                          MPN: 203632
                                          BALL-JOINT
                                          from £156.95
                                          from £156.95
                                          This part replaces part number 178928 - and 1 more. Click to view details
                                          Lower Ball Joint (203632) Eurospares Approved Part - New (to order)
                                          LOWER BALL JOINT Genuine Ferrari Part - New In stock
