0123 - DOORS - SUBSTRUCTURE AND TRIM

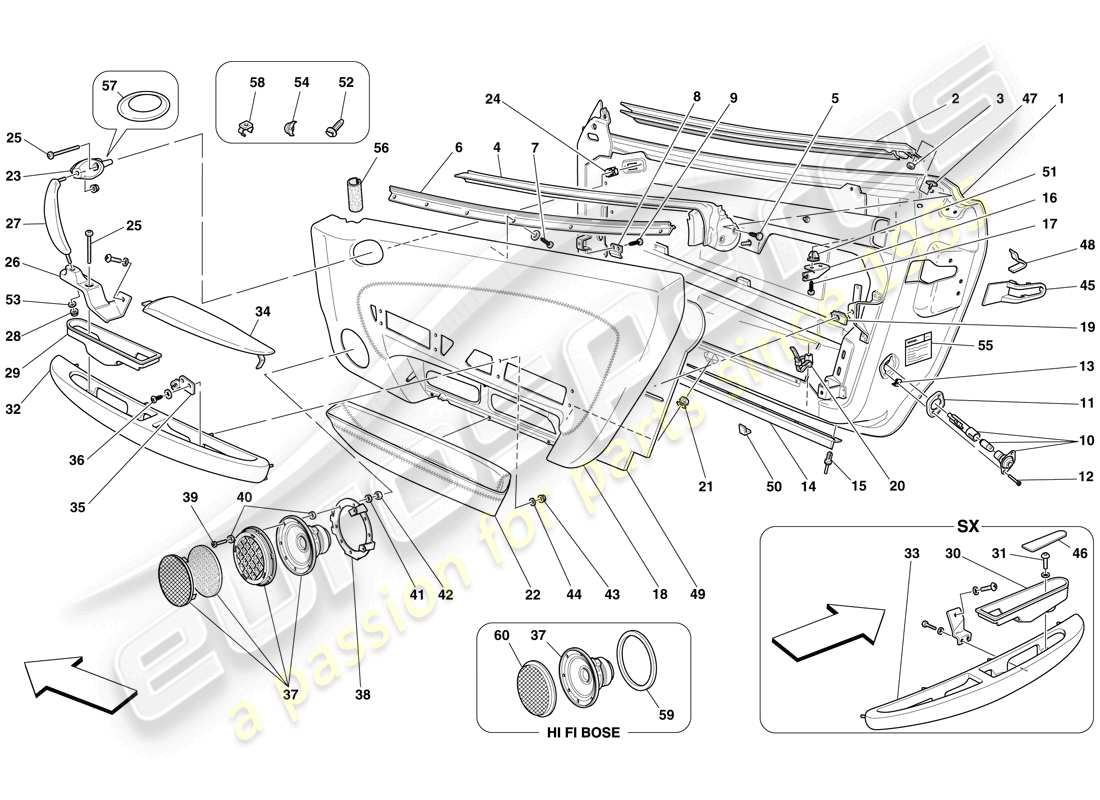

Ferrari F430 Spider (USA) DOORS - SUBSTRUCTURE AND TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 68489211
LH DOOR BODYWORK
-Not for GD-
from £2,047.50
from £2,047.50
This part replaces part number 68489200 - and 2 more. Click to view details
# 001
MPN: 68489211
LH DOOR BODYWORK
-Applicable for GD- -Applicable up to Ass. No. 74919-
from £2,047.50
from £2,047.50
This part replaces part number 68489200 - and 2 more. Click to view details
# 001
MPN: 68489311
RH DOOR BODYWORK
-Applicable for GD-
from £2,089.50
from £2,089.50
This part replaces part number 68489300 - and 2 more. Click to view details
# 001
MPN: 68489311
RH DOOR BODYWORK
-Not for GD- -Applicable up to Ass. No. 74919-
from £2,089.50
from £2,089.50
This part replaces part number 68489300 - and 2 more. Click to view details
# 001
MPN: 69996811
RH DOOR BODYWORK
-Without knob- -Not for GD- -Applicable from Ass. No. 74920-
from £3,948.77
from £3,948.77
This part replaces part number 69996800
# 001
MPN: 69996911
LH DOOR BODYWORK
-Without knob- -Applicable for GD- -Applicable from Ass. No. 74920-
from £4,328.27
from £4,328.27
# 002
MPN: 65164400
EXTERNAL RH WINDOW SCRAPER SEAL
from £153.09
from £153.09
# 002
MPN: 65164500
LH EXTERNAL WINDOW SCRAPER SEAL
from £153.09
from £153.09
# 003
MPN: 14042077
NUT
from £0.53
from £0.53
# 004
MPN: 65544600
RH INTERNAL WINDOW SCRAPER SEAL
from £217.49
from £217.49
# 004
MPN: 65544700
LH INTERNAL WINDOW SCRAPER SEAL
from £217.39
from £217.39
# 005
MPN: 14591687
FASTENING BUTTON
from £0.29
from £0.29
This part replaces part number 69767700 - and 1 more. Click to view details
# 006
MPN: 65013000
RH MOULDING
from £33.08
from £33.08
# 006
MPN: 65546200
LH MOULDING
from £30.00
from £30.00
# 007
MPN: 16082901
SCREW
from £0.47
from £0.47
# 008
MPN: 64595200
FASTENER CLIP
from £18.24
from £18.24
# 009
MPN: 16082901
SCREW
from £0.47
from £0.47
# 010
MPN: 184786
OPEN-DOOR LIGHT
from £32.61
from £32.61
This part replaces part number 178262 which we have in stock - and 1 more. Click to view details
# 011
MPN: 140576
GASKET
from £8.02
from £8.02
This part replaces part number 61647000
# 012
MPN: 15901570
SCREW
from £0.47
from £0.47
# 013
MPN: 61828500
FASTENER CLIP
from £0.47
from £0.47
# 014
MPN: 64855600
GASKET
from £34.55
from £34.55
# 015
MPN: 62764000
RIVET
from £0.47
from £0.47
# 016
MPN: 65546400
RH BRACKET
from £1.65
from £1.65
# 016
MPN: 65547800
LH BRACKET
from £1.65
from £1.65
# 017
MPN: 15644075
SCREW
-No longer supplied- -Replaced by 15903975-
from £1.02
from £1.02
This part replaces part number 15644078
# 017
MPN: 15903975
SCREW
from £0.53
from £0.53
This part replaces part number 15903978
# 018
MPN: 681693..
RH TRIMMED DOOR PANEL
-Not for GD-
from £1,464.75
from £1,464.75
# 018
MPN: 681694..
LH TRIMMED DOOR PANEL
-Not for GD-
from £1,464.75
from £1,464.75
# 018
MPN: 684137..
RH TRIMMED DOOR PANEL
-Applicable for GD-
Supersession
Supersession
# 018
MPN: 684139..
LH TRIMMED DOOR PANEL
-Applicable for GD-
Supersession
Supersession
# 019
MPN: 14190290
NUT
from £0.68
from £0.68
# 020
MPN: 177553
CLAMP
from £0.47
from £0.47
# 021
MPN: 14201980
BLOCK
from £0.47
from £0.47
# 022
MPN: 678055..
COMPL. TRIMMED RH ODDMENT POCKET
Supersession
Supersession
# 022
MPN: 678392..
TRIMMED LH ODDMENT POCKET
Supersession
Supersession
# 023
MPN: 65157600
UPPER FASTENER FOR RH GRAB-HANDLE
-Not for GD-
from £29.38
from £29.38
# 023
MPN: 65159000
UPPER LH GRAB HANDLE MOUNTING
-Applicable for GD-
from £6.23
from £6.23
# 024
MPN: 14190190
NUT
from £1.14
from £1.14
# 025
MPN: 68854100
SCREW
from £0.47
from £0.47
# 026
MPN: 65157500
LOWER FASTENER FOR RH GRAB-HANDLE
-Not for GD-
from £29.38
from £29.38
# 026
MPN: 65158900
LOWER FASTENER FOR LH GRAB-HANDLE
-Applicable for GD-
from £80.54
from £80.54
# 027
MPN: 651594..
RH GRAB-HANDLE GRIP
-Not for GD-
from £96.60
from £96.60
# 027
MPN: 651595..
LH GRAB-HANDLE GRIP
-Applicable for GD-
Supersession
Supersession
# 028
MPN: 14137721
NUT
from £0.64
from £0.64
# 029
MPN: 65011500
SURROUND FOR RH HANDLE
from £50.86
from £50.86
# 030
MPN: 67958300
SURROUND FOR LH HANDLE
from £50.86
from £50.86
# 031
MPN: 13276077
SCREW
from £0.47
from £0.47
# 032
MPN: 678044..
RH ARMREST
-Not for GD-
Supersession
Supersession
# 032
MPN: 684138..
RH ARMREST
-Applicable for GD-
Supersession
Supersession
# 033
MPN: 678381..
LH ARMREST
-Not for GD-
Supersession
Supersession
# 033
MPN: 684141..
LH ARMREST
-Applicable for GD-
Supersession
Supersession
# 034
MPN: 678061..
RH ARMREST INSERT
Supersession
Supersession
# 034
MPN: 678398..
LH ARMREST INSERT
Supersession
Supersession
# 035
MPN: 65075100
RH BRACKET
from £1.02
from £1.02
# 035
MPN: 65702800
LH BRACKET
from £0.85
from £0.85
# 036
MPN: 16082901
SCREW
from £0.47
from £0.47
# 037
MPN: 188607
WOOFER
-Applicable for vehicles with radio amplifier-
from £236.25
from £236.25
# 037
MPN: 238666
SPEAKER
-Applicable for high power Bose Hi-Fi- -No longer supplied- -Replaced by 80199700-
Supersession
Supersession
# 037
MPN: 65865100
WOOFER
-Not for vehicles with radio amplifier-
from £105.29
from £105.29
# 037
MPN: 80199700
SPEAKER
-Applicable for high power Bose Hi-Fi-
from £77.80
from £77.80
This part replaces part number 238666
# 038
MPN: 67941700
RH SPEAKER BRACKET
from £101.64
from £101.64
# 038
MPN: 67960500
LH SPEAKER BRACKET
from £184.80
from £184.80
# 038
MPN: 80293300
RH SPEAKER BRACKET
-Applicable for high power Bose Hi-Fi-
from £41.48
from £41.48
# 038
MPN: 80322400
LH SPEAKER BRACKET
-Applicable for high power Bose Hi-Fi-
from £41.48
from £41.48
# 039
MPN: 10444887
SCREW
from £0.47
from £0.47
# 040
MPN: 14497701
WASHER
from £0.47
from £0.47
# 041
MPN: 12601074
WASHER
from £0.53
from £0.53
This part replaces part number 12601070 which we have in stock
# 042
MPN: 10721911
NUT
from £0.52
from £0.52
# 043
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 044
MPN: 12638104
WASHER
from £0.47
from £0.47
# 045
MPN: 68640600
RH SEAT BELT SLOT SURROUND
from £4.08
from £4.08
# 045
MPN: 68640700
LH SEAT BELT SLOT SURROUND
from £4.08
from £4.08
# 046
MPN: 679602..
COVER
Supersession
Supersession
# 047
MPN: 67194200
PLATE
from £2.00
from £2.00
This part replaces part number 65949800
# 048
MPN: 65705300
CLIP
from £0.47
from £0.47
# 049
MPN: 68643600
RH WATERPROOF MEMBRANE
from £133.87
from £133.87
# 049
MPN: 68643700
LH WATERPROOF MEMBRANE
from £133.87
from £133.87
# 050
MPN: 67111400
RUBBER PAD
Supersession
Supersession
# 051
MPN: 14201980
BLOCK
from £0.47
from £0.47
# 052
MPN: 66805100
PIN
-No longer supplied- -Replaced by 68297800-
from £0.70
from £0.70
# 052
MPN: 68297800
PIN
from £0.71
from £0.71
# 053
MPN: 12648221
WASHER
from £0.47
from £0.47
# 054
MPN: 69724300
CAP
from £0.82
from £0.82
# 055
MPN: 199130
MERCURY CONTENT LABEL
-Applicable for USA, CDN-
from £5.74
from £5.74
# 056
MPN: 179309
ADHESIVE FOAM
-100 x 50 mm-
from £2.20
from £2.20
# 056
MPN: 198916
ADHESIVE FOAM
-150 x 50 mm-
from £1.60
from £1.60
# 057
MPN: 67958000
FIXING PLATE
-Not for GD-
from £217.70
from £217.70
# 057
MPN: 68379400
FIXING PLATE
-Applicable for GD-
from £119.74
from £119.74
# 058
MPN: 14372574
BRACKET
from £0.69
from £0.69
# 059
MPN: 80619900
GASKET
-Applicable for high power Bose Hi-Fi-
from £19.91
from £19.91
# 060
MPN: 80620000
FIXING PLATE
-Applicable for high power Bose Hi-Fi-
from £110.97
from £110.97
-part-diagram-0124.webp "FERRARI F430 SPIDER (USA) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 SPIDER (USA) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 SPIDER (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI F430 SPIDER (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 SPIDER (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 SPIDER (USA) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 SPIDER (USA) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 SPIDER (USA) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 SPIDER (USA) RACING SEAT- OPTIONAL PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 SPIDER (USA) RACING SEAT- OPTIONAL PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 SPIDER (USA) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 SPIDER (USA) REAR ODDMENT STORAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 SPIDER (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 SPIDER (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 SPIDER (USA) AIRBAGS PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 SPIDER (USA) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 SPIDER (USA) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 SPIDER (USA) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 SPIDER (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 SPIDER (USA) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 SPIDER (USA) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 SPIDER (USA) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0146.webp "FERRARI F430 SPIDER (USA) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0147.webp "FERRARI F430 SPIDER (USA) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0148.webp "FERRARI F430 SPIDER (USA) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0149.webp "FERRARI F430 SPIDER (USA) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0150.webp "FERRARI F430 SPIDER (USA) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0151.webp "FERRARI F430 SPIDER (USA) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0152.webp "FERRARI F430 SPIDER (USA) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0153.webp "FERRARI F430 SPIDER (USA) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0154.webp "FERRARI F430 SPIDER (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 SPIDER (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 SPIDER (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 SPIDER (USA) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 SPIDER (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 SPIDER (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 SPIDER (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 SPIDER (USA) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 SPIDER (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 SPIDER (USA) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 SPIDER (USA) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 SPIDER (USA) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 SPIDER (USA) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 SPIDER (USA) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 SPIDER (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 SPIDER (USA) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 SPIDER (USA) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 SPIDER (USA) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 SPIDER (USA) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 SPIDER (USA) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 SPIDER (USA) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 SPIDER (USA) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 SPIDER (USA) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 SPIDER (USA) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 SPIDER (USA) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 SPIDER (USA) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 SPIDER (USA) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 SPIDER (USA) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 SPIDER (USA) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 SPIDER (USA) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 SPIDER (USA) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 SPIDER (USA) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 SPIDER (USA) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 SPIDER (USA) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 SPIDER (USA) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 SPIDER (USA) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 SPIDER (USA) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 SPIDER (USA) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 SPIDER (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 SPIDER (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 SPIDER (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 SPIDER (USA) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 SPIDER (USA) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 SPIDER (USA) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 SPIDER (USA) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 SPIDER (USA) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 SPIDER (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 SPIDER (USA) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 SPIDER (USA) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 SPIDER (USA) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 SPIDER (USA) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 SPIDER (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 SPIDER (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 SPIDER (USA) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 SPIDER (USA) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 SPIDER (USA) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 SPIDER (USA) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 SPIDER (USA) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 SPIDER (USA) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 SPIDER (USA) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 SPIDER (USA) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 SPIDER (USA) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 SPIDER (USA) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 SPIDER (USA) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 SPIDER (USA) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 SPIDER (USA) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 SPIDER (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 SPIDER (USA) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 SPIDER (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 SPIDER (USA) ROOF CANVAS - SEALS - MOULDINGS PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 SPIDER (USA) ROOF TRIM AND TUB PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 SPIDER (USA) ROOF LINKAGES AND MECHANISM PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 SPIDER (USA) FRONT ROOF LATCH PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 SPIDER (USA) ROOF KINEMATICS - UPPER PART PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 SPIDER (USA) ROOF KINEMATICS - LOWER PART PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 SPIDER (USA) ROOF CONTROL AND FLAPS PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 SPIDER (USA) ROOF MICROSWITCHES AND ECU PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 SPIDER (USA) HYDRAULIC SYSTEM AND ELECTROHYDRAULIC PUMP UNIT PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 SPIDER (USA) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 SPIDER (USA) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 SPIDER (USA) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
