064 - Air Conditioning System -Valid Till Ass. Nr. 20878

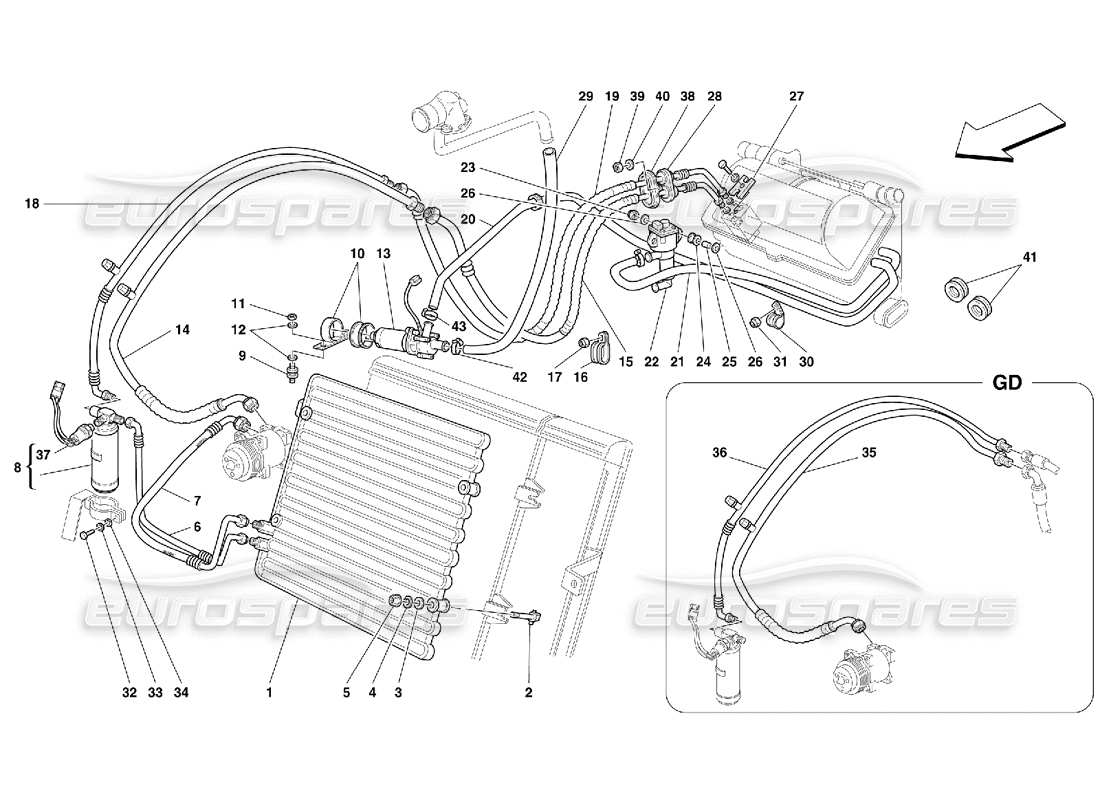

Ferrari 456 GT/GTA Air Conditioning System -Valid Till Ass. Nr. 20878 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 155240
AC CONDENSER
from £3,054.12
from £3,054.12
# 002
MPN: 14663195
SCREW
from £1.22
from £1.22
# 003
MPN: 12646601
WASHER
from £0.71
from £0.71
# 004
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 005
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 006
MPN: 63933800
PIPE FROM CONDENSER TO FILTER
from £243.96
from £243.96
# 007
MPN: 63933700
PIPE FROM COMPRESSOR TO CONDENSER
from £103.07
from £103.07
# 008
MPN: 63934300
DEHYDRATOR FILTER WITH PRESSURE SWITCH
from £117.39
from £117.39
# 009
MPN: 142202
ANTI-VIBRATION SUPPORT
from £14.21
from £14.21
# 010
MPN: 63994900
COMPLETE BRACKET
from £4.30
from £4.30
This part replaces part number 64246500
# 011
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 012
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 013
MPN: 70000900
PUMP
from £201.58
from £201.58
This part replaces part number 61787900
Alternative (#70000900/A) WATER PUMP KIT (Note: OUTLET PORTS NEED SWITCHING FROM OLD UNIT TO FIT) Genuine Ferrari Part - New (to order)
OUTLET PORTS NEED SWITCHING FROM OLD UNIT TO FIT
OUTLET PORTS NEED SWITCHING FROM OLD UNIT TO FIT
# 014
MPN: 63933600
PIPE FROM HOSE TO COMPRESSOR
- Not for GD
from £941.49
from £941.49
# 015

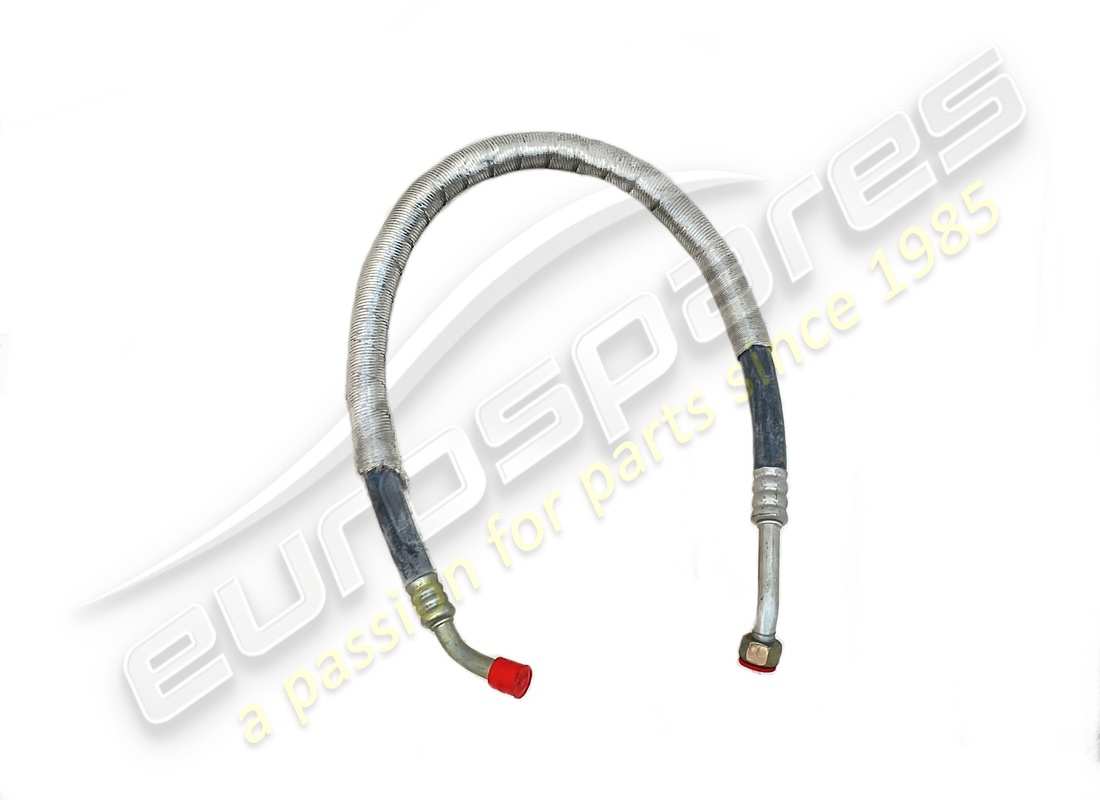

MPN: 63933500
HOSE FROM EVAPORATOR TO PIPE
- Not for GD
from £341.25
from £341.25
# 015
MPN: 64238500
HOSE FROM EVAPORATOR TO PIPE
- Valid for GD
from £114.19
from £114.19
# 016
MPN: 61712500
BRACKET WITH SHEATH
from £1.09
from £1.09
# 017
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 018
MPN: 63933900
PIPE FROM DHEYDRATOR FILTER TO HOSE
- Not for GD
from £378.98
from £378.98
# 019
MPN: 63934000
HOSE FROM PIPE TO EVAPORATOR
- Not for GD
from £302.00
from £302.00
# 019
MPN: 64238600
HOSE FROM PIPE TO EVAPORATOR
- Valid for GD
from £103.81
from £103.81
# 020
MPN: 63940400
DELIVERY TUBE FROMP WATER PUMP
- Not for GD - Valid till Ass. Nr. 23534
Supersession
Supersession
# 020
MPN: 64247200
DELIVERY TUBE FROMP WATER PUMP
- Valid for GD - Valid till Ass. Nr. 23534
Supersession
Supersession
# 020
MPN: 65294600
DELIVERY TUBE FROMP WATER PUMP
- Not for GD - Valid from Ass. Nr. 23535
from £152.53
from £152.53
This part replaces part number 63940400
# 020
MPN: 65294800
DELIVERY TUBE FROMP WATER PUMP
- Valid for GD - Valid from Ass. Nr. 23535
Supersession
Supersession
This part replaces part number 64247200
# 021
MPN: 63940500
RETURN TUBE FROM HEATER TO VALVE
- Not for GD - Valid till Ass. Nr. 32534
Supersession
Supersession
# 021
MPN: 64247300
RETURN TUBE FROM HEATER TO VALVE
- Valid for GD - Valid till Ass. Nr. 23534
Supersession
Supersession
# 021
MPN: 65294700
RETURN TUBE FROM HEATER TO VALVE
- Not for GD - Valid from Ass. Nr. 32535
Supersession
Supersession
This part replaces part number 63940500
# 021
MPN: 65294900
RETURN TUBE FROM HEATER TO VALVE
- Valid for GD - Valid from Ass. Nr. 23535
Supersession
Supersession
This part replaces part number 64247300
# 022
MPN: 61079000
ELECTRO-MAGNETIC VALVE
from £1,697.63
from £1,697.63
This part replaces part number 63241600
# 023
MPN: 12574115
NUT
from £1.12
from £1.12
# 024
MPN: 103549
CABLE GROMMET
from £0.72
from £0.72
# 025
MPN: 103550
SPACER
from £11.49
from £11.49
This part replaces part number 4130913
# 026
MPN: 12638101
WASHER
from £0.71
from £0.71
# 027
MPN: 64281500
FLANGE
from £2.30
from £2.30
This part replaces part number 67592000
# 028
MPN: 63961800
RUBBER GASKET
- Valid till engine Nr. 36344
from £17.30
from £17.30
# 029
MPN: 63940200
DELIVERY TUBE FROM ENGINE TO PUMP - L=1050MM
- Not for GD - Valid from engine Nr. 36345
from £321.27
from £321.27
# 029
MPN: 64374000
DELIVERY TUBE FROM ENGINE TO PUMP - L=450MM
- Valid for GD
from £206.88
from £206.88
# 030
MPN: 61712600
CLAMP
from £1.02
from £1.02
# 031
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 032
MPN: 10902324
SCREW
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 033
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 034
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 4 more. Click to view details
# 035
MPN: 64238700
PIPE FROM HOSE TO COMPRESSOR
- Valid for GD
from £103.81
from £103.81
# 036
MPN: 64238800
PIPE FROM DHEYDRATOR FILTER TO HOSE
- Valid for GD
from £62.28
from £62.28
# 037
MPN: 64278900
PRESSOSTAT
from £47.09
from £47.09
# 038
MPN: 63961900
FRAME FOR PIPE BUSHING
from £5.92
from £5.92
# 039
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 040
MPN: 12638124
WASHER
from £0.54
from £0.54
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 041
MPN: 10396980
CABLE GROMMET
