ferrari 456 m gt/m gta lh cylinder head parts diagram

005 - LH cylinder head

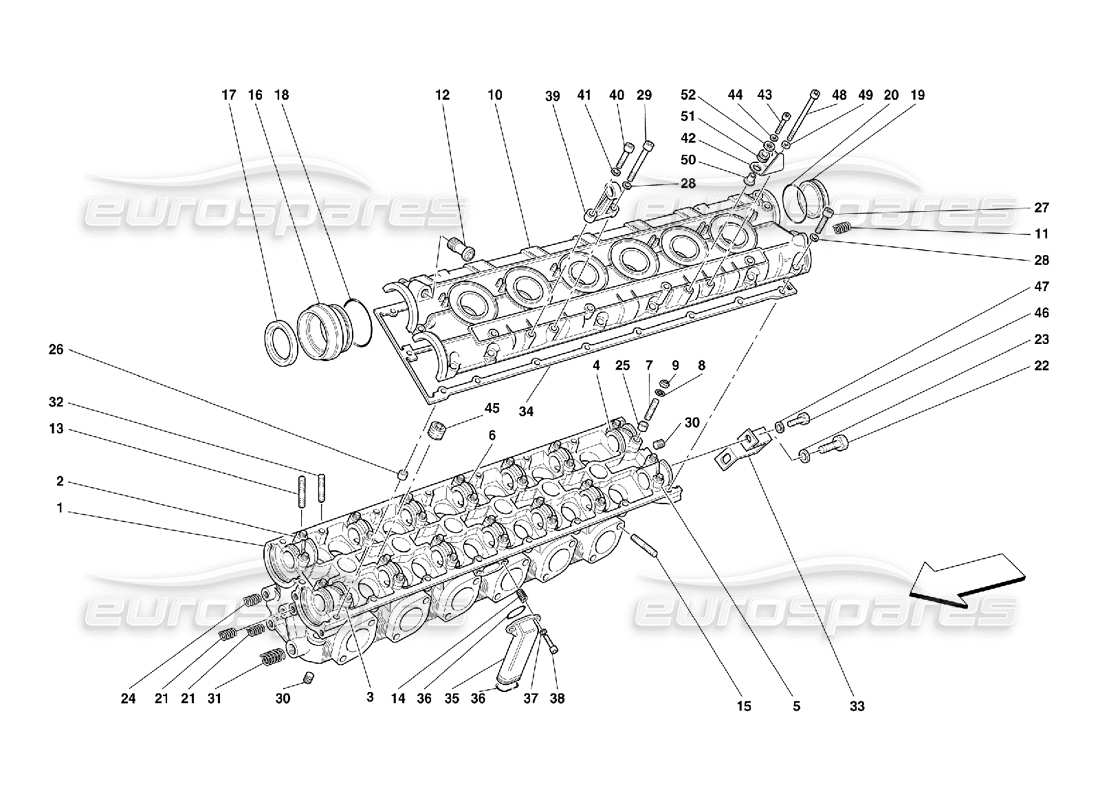

Ferrari 456 M GT/M GTA L.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 000
                                                                                          MPN: 178849
                                                                                          COMPLETE LH CYLINDERS HEAD
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 178794
                                                                                          # 001
                                                                                          MPN: 178794
                                                                                          LH HEAD
                                                                                          - Not as spare part - With complete cylinders head
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 002
                                                                                          MPN: 149864
                                                                                          RIGHT FRONT CAP
                                                                                          - Not as spare part - With complete cylinders head
                                                                                          # 003
                                                                                          MPN: 149862
                                                                                          LEFT FRONT CAP
                                                                                          - Not as spare part - With complete cylinders head
                                                                                          # 004
                                                                                          MPN: 149829
                                                                                          RIGHT REAR CAP
                                                                                          - Not as spare part - With complete cylinders head
                                                                                          # 005
                                                                                          MPN: 149844
                                                                                          LEFT REAR CAP
                                                                                          - Not as spare part - With complete cylinders head
                                                                                          # 006
                                                                                          MPN: 152505
                                                                                          INTERMEDIATE CAP
                                                                                          - Not as spare part - With complete cylinders head
                                                                                          # 007
                                                                                          MPN: 13541424
                                                                                          STUD
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 13541421
                                                                                          # 008
                                                                                          MPN: 11197774
                                                                                          WASHER
                                                                                          from £0.50
                                                                                          from £0.50
                                                                                          This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                          # 009
                                                                                          MPN: 15896214
                                                                                          NUT
                                                                                          from £0.50
                                                                                          from £0.50
                                                                                          This part replaces part number 15896211
                                                                                          # 010
                                                                                          MPN: 151676
                                                                                          LH CYLINDERS HEAD COVER
                                                                                          - Not as spare part - With complete cylinders head
                                                                                          from £495.00
                                                                                          from £495.00
                                                                                          # 011
                                                                                          MPN: 13525470
                                                                                          THREADED INSERT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 107333
                                                                                          # 012
                                                                                          MPN: 154525
                                                                                          UNION
                                                                                          from £24.94
                                                                                          from £24.94
                                                                                          # 013
                                                                                          MPN: 13541124
                                                                                          STUD
                                                                                          from £11.62
                                                                                          from £11.62
                                                                                          This part replaces part number 13541121
                                                                                          # 014
                                                                                          MPN: 13525170
                                                                                          THREADED INSERT
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          # 015
                                                                                          MPN: 13516824
                                                                                          STUD
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          This part replaces part number 13516821
                                                                                          # 016
                                                                                          MPN: 148022
                                                                                          FRONT COVER
                                                                                          from £24.78
                                                                                          from £24.78
                                                                                          # 017
                                                                                          MPN: 163987
                                                                                          SEALING RING
                                                                                          from £9.95
                                                                                          from £9.95
                                                                                          This part replaces part number 136526
                                                                                          # 018
                                                                                          MPN: 117275
                                                                                          O.R. GASKET
                                                                                          from £2.93
                                                                                          from £2.93
                                                                                          # 019
                                                                                          MPN: 148023
                                                                                          REAR SMALL COVER
                                                                                          from £6.82
                                                                                          from £6.82
                                                                                          REAR COVER Genuine Ferrari Part - Used In stock
                                                                                          from a 355 5.2 Engine number 48537
                                                                                          # 020
                                                                                          MPN: 117275
                                                                                          O.R. GASKET
                                                                                          from £2.93
                                                                                          from £2.93
                                                                                          # 021
                                                                                          MPN: 13525770
                                                                                          THREADED INSERT
                                                                                          from £1.54
                                                                                          from £1.54
                                                                                          This part replaces part number 103830
                                                                                          # 022
                                                                                          MPN: 16043124
                                                                                          SCREW
                                                                                          from £0.30
                                                                                          from £0.30
                                                                                          This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                                          SCREW Genuine Ferrari Part - Used In stock
                                                                                          Removed from 458 engine 178999
                                                                                          # 023
                                                                                          MPN: 127496
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                          # 024
                                                                                          MPN: 13525870
                                                                                          THREADED INSERT
                                                                                          from £1.90
                                                                                          from £1.90
                                                                                          This part replaces part number 105510
                                                                                          # 025
                                                                                          MPN: 102725
                                                                                          DOWEL
                                                                                          from £0.59
                                                                                          from £0.59
                                                                                          # 026
                                                                                          MPN: 102725
                                                                                          DOWEL
                                                                                          from £0.64
                                                                                          from £0.64
                                                                                          # 027
                                                                                          MPN: 156834
                                                                                          SCREW
                                                                                          from £1.54
                                                                                          from £1.54
                                                                                          # 028
                                                                                          MPN: 12601274
                                                                                          WASHER
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                          # 029
                                                                                          MPN: 156835
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 030
                                                                                          MPN: 14326150
                                                                                          PLUG
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          This part replaces part number 12326150
                                                                                          # 031
                                                                                          MPN: 13524670
                                                                                          THREADED INSERT
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 032
                                                                                          MPN: 11500224
                                                                                          STUD
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                          # 033
                                                                                          MPN: 157910
                                                                                          BRACKET
                                                                                          from £19.39
                                                                                          from £19.39
                                                                                          # 034
                                                                                          MPN: 140753
                                                                                          COVER GASKET
                                                                                          from £26.66
                                                                                          from £26.66
                                                                                          # 034
                                                                                          MPN: FCCG016
                                                                                          CAM COVER GASKET SET
                                                                                          (140753 x2 - 140787 x2)
                                                                                          from £75.00
                                                                                          from £75.00
                                                                                          # 035
                                                                                          MPN: 154647
                                                                                          OIL EXHAUST DUCTING
                                                                                          from £27.93
                                                                                          from £27.93
                                                                                          # 036
                                                                                          MPN: 142599
                                                                                          O.R. GASKET
                                                                                          from £0.66
                                                                                          from £0.66
                                                                                          # 037
                                                                                          MPN: 12601179
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12601171 which we have in stock - and 1 more. Click to view details
                                                                                          # 038
                                                                                          MPN: 14304224
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 039
                                                                                          MPN: 151687
                                                                                          FRONT SUPPORT FOR ACCELERATOR CABLE
                                                                                          from £38.71
                                                                                          from £38.71
                                                                                          # 040
                                                                                          MPN: 14305224
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 041
                                                                                          MPN: 12604274
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                          # 042
                                                                                          MPN: 177396
                                                                                          REAR SUPPORT FOR ACCELERATOR CABLE
                                                                                          from £66.50
                                                                                          from £66.50
                                                                                          # 043
                                                                                          MPN: 14304324
                                                                                          SCREW
                                                                                          from £0.79
                                                                                          from £0.79
                                                                                          # 044
                                                                                          MPN: 12604174
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12604179 - and 1 more. Click to view details
                                                                                          # 045
                                                                                          MPN: 127635
                                                                                          THREADED PLUG
                                                                                          from £1.47
                                                                                          from £1.47
                                                                                          This part replaces part number 183447
                                                                                          # 046
                                                                                          MPN: 10977524
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 047
                                                                                          MPN: 127494
                                                                                          WASHER
                                                                                          (minimum order quantity = 20)
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                          # 048
                                                                                          MPN: 177579
                                                                                          SCREW
                                                                                          from £1.15
                                                                                          from £1.15
                                                                                          # 049
                                                                                          MPN: 12601274
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                          # 050
                                                                                          MPN: 149707
                                                                                          SPACER
                                                                                          from £0.78
                                                                                          from £0.78
                                                                                          # 051
                                                                                          MPN: 177576
                                                                                          CABLE GROMMET
                                                                                          from £1.48
                                                                                          from £1.48
                                                                                          # 052
                                                                                          MPN: 12643724
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 109684 - and 3 more. Click to view details
