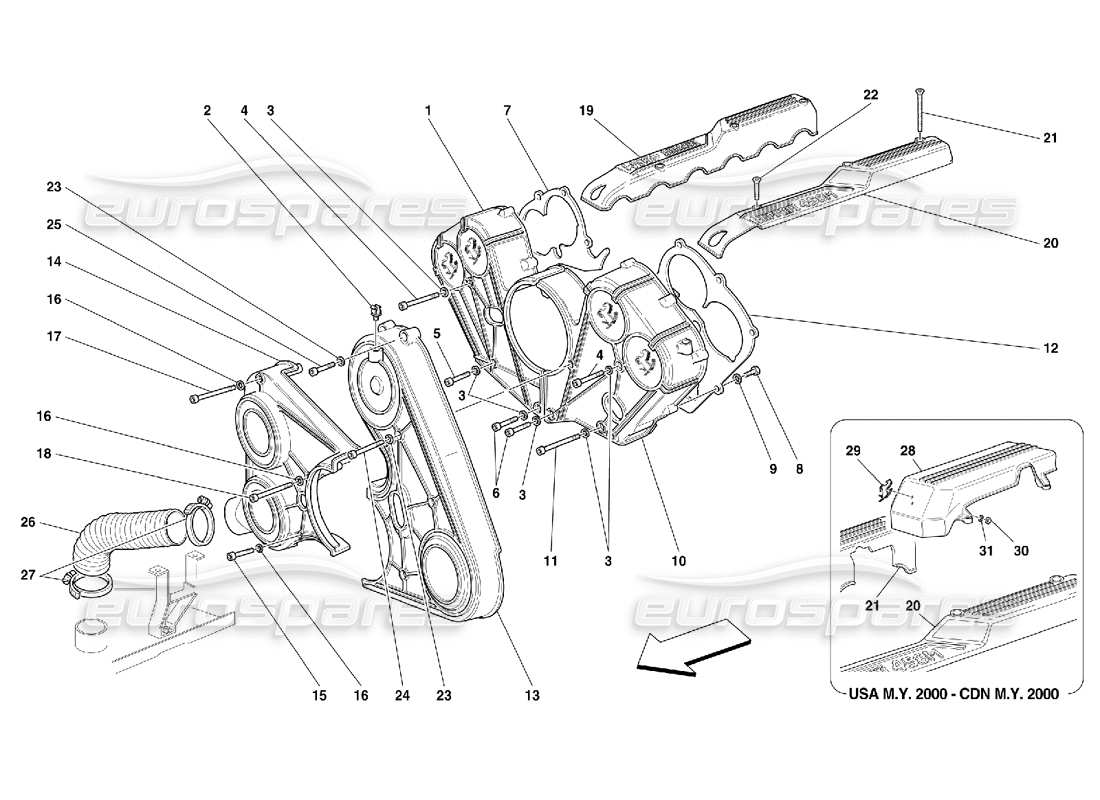

Ferrari 456 M GT/M GTA Engine Covers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 155422
                                                    RH COVER
                                                    from £122.43
                                                    from £122.43
                                                    # 002
                                                    MPN: 14573987
                                                    CLIP
                                                    from £0.47
                                                    from £0.47
                                                    # 003
                                                    MPN: 12604274
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12604271 - and 1 more. Click to view details
                                                    # 004
                                                    MPN: 175732
                                                    SCREW
                                                    from £4.13
                                                    from £4.13
                                                    This part replaces part number 156829
                                                    # 005
                                                    MPN: 156828
                                                    SCREW
                                                    from £1.59
                                                    from £1.59
                                                    This part replaces part number 14306024
                                                    # 006
                                                    MPN: 156830
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 007
                                                    MPN: 155819
                                                    RH PROTECTION
                                                    from £22.68
                                                    from £22.68
                                                    # 008
                                                    MPN: 10977724
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10977711
                                                    # 009
                                                    MPN: 12637824
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12637801 - and 1 more. Click to view details
                                                    # 010
                                                    MPN: 155479
                                                    LH COVER
                                                    from £248.70
                                                    from £248.70
                                                    # 011
                                                    MPN: 156839
                                                    SCREW
                                                    from £10.26
                                                    from £10.26
                                                    # 012
                                                    MPN: 155820
                                                    LH PROTECTION
                                                    from £20.79
                                                    from £20.79
                                                    # 013
                                                    MPN: 155576
                                                    GUARD FOR BELT PROTECTION
                                                    from £196.72
                                                    from £196.72
                                                    # 014
                                                    MPN: 166919
                                                    GUARD FOR BELT PROTECTION
                                                    from £81.04
                                                    from £81.04
                                                    This part replaces part number 156331 - and 1 more. Click to view details
                                                    # 015
                                                    MPN: 156830
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 016
                                                    MPN: 12604274
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12604271 - and 1 more. Click to view details
                                                    # 017
                                                    MPN: 156832
                                                    SCREW
                                                    from £2.59
                                                    from £2.59
                                                    # 018
                                                    MPN: 175732
                                                    SCREW
                                                    from £4.13
                                                    from £4.13
                                                    This part replaces part number 156829
                                                    # 019
                                                    MPN: 178241
                                                    RH PROTECTION
                                                    - Not for USA M.Y. 2000 and CDN M.Y. 2000
                                                    from £61.23
                                                    from £61.23
                                                    # 019
                                                    MPN: 182205
                                                    RH PROTECTION
                                                    - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                    from £94.46
                                                    from £94.46
                                                    # 020
                                                    MPN: 178242
                                                    LH PROTECTION
                                                    - Not for USA M.Y. 2000 and CDN M.Y. 2000
                                                    from £63.71
                                                    from £63.71
                                                    # 020
                                                    MPN: 182206
                                                    LH PROTECTION
                                                    - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                    from £94.46
                                                    from £94.46
                                                    # 021
                                                    MPN: 13302577
                                                    SCREW
                                                    from £0.54
                                                    from £0.54
                                                    # 022
                                                    MPN: 13301977
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 023
                                                    MPN: 12604274
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12604271 - and 1 more. Click to view details
                                                    # 024
                                                    MPN: 156831
                                                    SCREW
                                                    from £1.38
                                                    from £1.38
                                                    # 025
                                                    MPN: 156830
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 026
                                                    MPN: 158233
                                                    CONVEYOR TUBE
                                                    from £84.38
                                                    from £84.38
                                                    # 027
                                                    MPN: 13000890
                                                    SCREW COLLAR
                                                    from £0.63
                                                    from £0.63
                                                    This part replaces part number 12173290 - and 2 more. Click to view details
                                                    # 028
                                                    MPN: 182240
                                                    EXCHANGERS COVER
                                                    - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                    from £2,350.74
                                                    from £2,350.74
                                                    # 029
                                                    MPN: 182551
                                                    CAVALLINO RAMPANTE
                                                    - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                    # 030
                                                    MPN: 61002200
                                                    NUT
                                                    - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                    from £1.11
                                                    from £1.11
                                                    # 031
                                                    MPN: 14496101
                                                    WASHER
                                                    - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                    from £0.47
                                                    from £0.47
                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
