ferrari 456 m gt/m gta fuel tank -valid for usa m.y. 2000 and cdn m.y. 2000 parts diagram

013 - Fuel Tank -Valid for USA M.Y. 2000 and CDN M.Y. 2000

Ferrari 456 M GT/M GTA Fuel Tank -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Parts Diagram

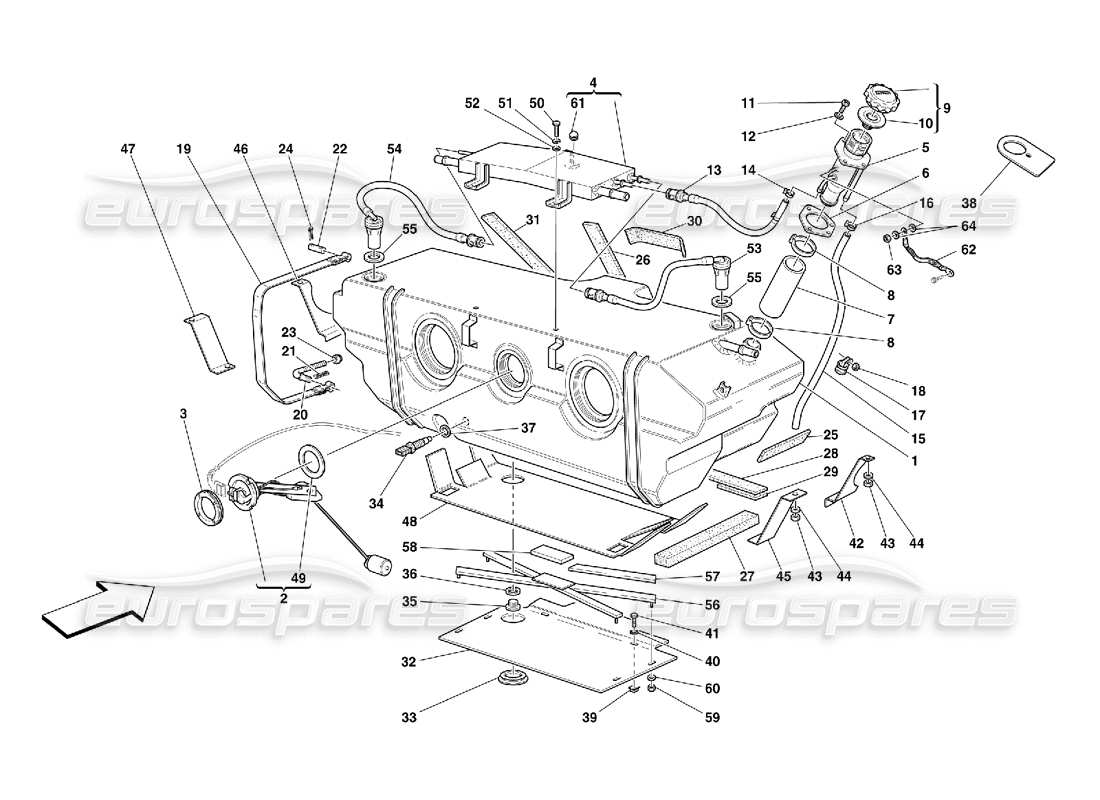

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                            #
                                                                                                                            Part number
                                                                                                                            Description
                                                                                                                            Price
                                                                                                                            # 001
                                                                                                                            MPN: 183826
                                                                                                                            FUEL TANK
                                                                                                                            from £3,168.61
                                                                                                                            from £3,168.61
                                                                                                                            This part replaces part number 182032
                                                                                                                            # 002
                                                                                                                            MPN: 154556

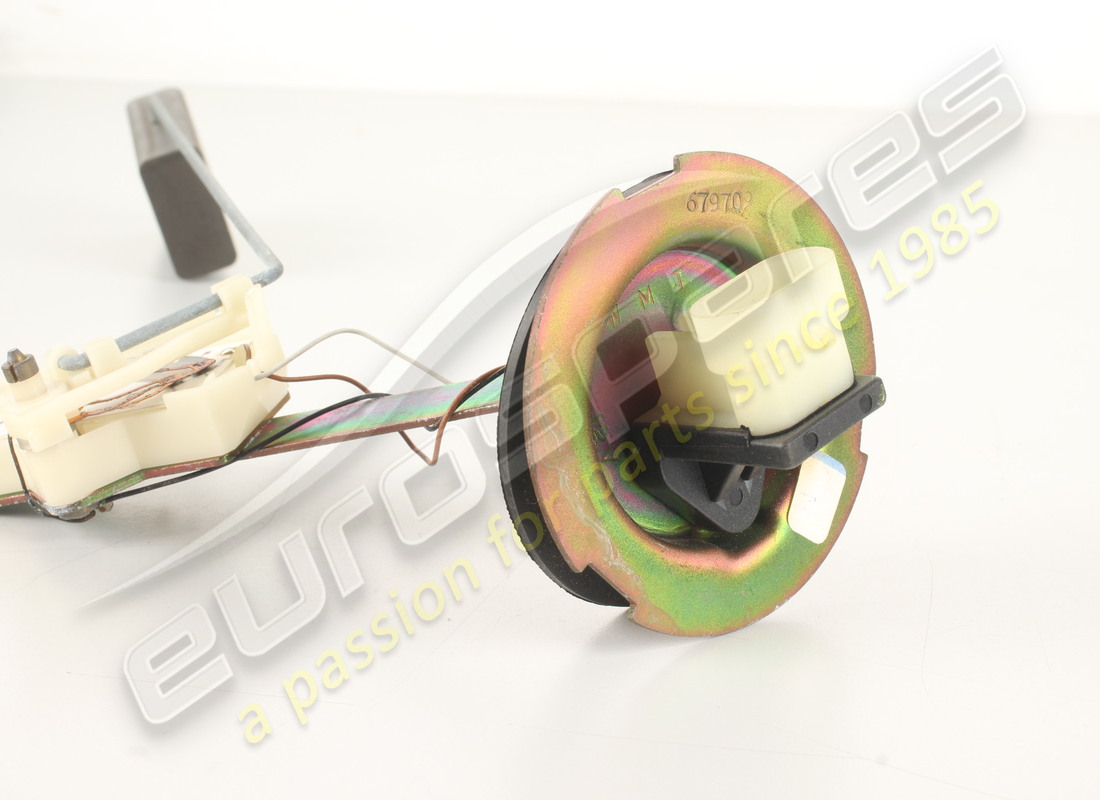

                                                                                                                            FUEL LEVEL INDICATOR
                                                                                                                            from £400.00
                                                                                                                            from £400.00
                                                                                                                            # 003
                                                                                                                            MPN: 121435
                                                                                                                            RING NUT
                                                                                                                            from £44.76
                                                                                                                            from £44.76
                                                                                                                            This part replaces part number 116012 - and 5 more. Click to view details
                                                                                                                            # 004
                                                                                                                            MPN: 182049
                                                                                                                            FUEL DISAREATOR
                                                                                                                            # 005
                                                                                                                            MPN: 182050
                                                                                                                            UNION
                                                                                                                            from £85.98
                                                                                                                            from £85.98
                                                                                                                            # 006
                                                                                                                            MPN: 182403
                                                                                                                            GASKET
                                                                                                                            from £14.30
                                                                                                                            from £14.30
                                                                                                                            # 007
                                                                                                                            MPN: 180498
                                                                                                                            UNION-TANK CONNECTING PIPE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 008
                                                                                                                            MPN: 170127
                                                                                                                            COLLAR FOR SLEEVE
                                                                                                                            from £0.99
                                                                                                                            from £0.99
                                                                                                                            # 009
                                                                                                                            MPN: 180321
                                                                                                                            COMPLETE PLUG
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            This part replaces part number 175706
                                                                                                                            # 011
                                                                                                                            MPN: 13274472
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 13274411 - and 1 more. Click to view details
                                                                                                                            # 012
                                                                                                                            MPN: 12601174
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                            # 013
                                                                                                                            MPN: 182397
                                                                                                                            VAPOR EXHAUST PIPE
                                                                                                                            from £75.00
                                                                                                                            from £75.00
                                                                                                                            # 014
                                                                                                                            MPN: 13432070
                                                                                                                            COLLAR FOR SLEEVE
                                                                                                                            from £0.53
                                                                                                                            from £0.53
                                                                                                                            This part replaces part number 13125570
                                                                                                                            # 015
                                                                                                                            MPN: 180067
                                                                                                                            VENT PIPE
                                                                                                                            from £19.38
                                                                                                                            from £19.38
                                                                                                                            # 017
                                                                                                                            MPN: 10441990
                                                                                                                            BRACKET WITH SHEATH
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 018
                                                                                                                            MPN: 102948
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                                            # 019
                                                                                                                            MPN: 181365
                                                                                                                            FUEL TANK FASTENER
                                                                                                                            from £68.76
                                                                                                                            from £68.76
                                                                                                                            # 020
                                                                                                                            MPN: 127529
                                                                                                                            TIE ROD
                                                                                                                            from £121.96
                                                                                                                            from £121.96
                                                                                                                            This part replaces part number 12311271 - and 15 more. Click to view details
                                                                                                                            # 021
                                                                                                                            MPN: 10796440
                                                                                                                            SPLIT PIN
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            This part replaces part number 264555
                                                                                                                            # 022
                                                                                                                            MPN: 103447
                                                                                                                            PIN
                                                                                                                            from £12.86
                                                                                                                            from £12.86
                                                                                                                            # 023
                                                                                                                            MPN: 104030
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 16104125
                                                                                                                            # 024
                                                                                                                            MPN: 10796440
                                                                                                                            SPLIT PIN
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            This part replaces part number 264555
                                                                                                                            # 025
                                                                                                                            MPN: 156679
                                                                                                                            RUBBER THICKNESS
                                                                                                                            from £0.73
                                                                                                                            from £0.73
                                                                                                                            # 026
                                                                                                                            MPN: 156680
                                                                                                                            RUBBER THICKNESS
                                                                                                                            from £1.77
                                                                                                                            from £1.77
                                                                                                                            # 027
                                                                                                                            MPN: 159146
                                                                                                                            RUBBER THICKNESS
                                                                                                                            from £2.27
                                                                                                                            from £2.27
                                                                                                                            # 028
                                                                                                                            MPN: 156682
                                                                                                                            RUBBER THICKNESS
                                                                                                                            from £12.62
                                                                                                                            from £12.62
                                                                                                                            # 029
                                                                                                                            MPN: 159147
                                                                                                                            RUBBER THICKNESS
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 030
                                                                                                                            MPN: 157411
                                                                                                                            RUBBER THICKNESS
                                                                                                                            from £1.08
                                                                                                                            from £1.08
                                                                                                                            # 031
                                                                                                                            MPN: 157412
                                                                                                                            RUBBER THICKNESS
                                                                                                                            from £1.88
                                                                                                                            from £1.88
                                                                                                                            # 032
                                                                                                                            MPN: 65971000
                                                                                                                            LOWER SHIELD
                                                                                                                            # 033
                                                                                                                            MPN: 63965800
                                                                                                                            PLUG
                                                                                                                            from £3.87
                                                                                                                            from £3.87
                                                                                                                            # 034
                                                                                                                            MPN: 125769
                                                                                                                            TEMPERATURE SENSOR
                                                                                                                            from £18.81
                                                                                                                            from £18.81
                                                                                                                            # 035
                                                                                                                            MPN: 148045
                                                                                                                            OUTLET PLUG
                                                                                                                            from £9.18
                                                                                                                            from £9.18
                                                                                                                            # 036
                                                                                                                            MPN: 123622
                                                                                                                            GASKET
                                                                                                                            from £0.79
                                                                                                                            from £0.79
                                                                                                                            # 037
                                                                                                                            MPN: 179321
                                                                                                                            GASKET
                                                                                                                            from £6.29
                                                                                                                            from £6.29
                                                                                                                            # 038
                                                                                                                            MPN: 62943200
                                                                                                                            RUBBER PROTECTION
                                                                                                                            Alternative use : 60134202
                                                                                                                            from £14.54
                                                                                                                            from £14.54
                                                                                                                            This part replaces part number 60134202
                                                                                                                            # 039
                                                                                                                            MPN: 65774200
                                                                                                                            NUT WITH CAGE
                                                                                                                            from £0.51
                                                                                                                            from £0.51
                                                                                                                            # 040
                                                                                                                            MPN: 14488670
                                                                                                                            WASHER
                                                                                                                            (minimum order quantity = 20)
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 041
                                                                                                                            MPN: 10902124
                                                                                                                            SCREW
                                                                                                                            from £0.50
                                                                                                                            from £0.50
                                                                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                            # 042
                                                                                                                            MPN: 64337500
                                                                                                                            RH FRONT HEAT SHIELD
                                                                                                                            from £34.03
                                                                                                                            from £34.03
                                                                                                                            # 043
                                                                                                                            MPN: 169180
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12574121
                                                                                                                            # 044
                                                                                                                            MPN: 12638124
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                                                            # 045
                                                                                                                            MPN: 64337700
                                                                                                                            RH REAR HEAT SHIELD
                                                                                                                            from £18.90
                                                                                                                            from £18.90
                                                                                                                            # 046
                                                                                                                            MPN: 64337600
                                                                                                                            LH FRONT HEAT SHIELD
                                                                                                                            from £34.03
                                                                                                                            from £34.03
                                                                                                                            # 047
                                                                                                                            MPN: 64337800
                                                                                                                            LH REAR HEAT SHIELD
                                                                                                                            from £19.74
                                                                                                                            from £19.74
                                                                                                                            # 048
                                                                                                                            MPN: 65460500
                                                                                                                            SHIELD FOR TANK PROTECTION
                                                                                                                            from £125.88
                                                                                                                            from £125.88
                                                                                                                            # 049
                                                                                                                            MPN: 154802
                                                                                                                            GASKET
                                                                                                                            from £17.11
                                                                                                                            from £17.11
                                                                                                                            This part replaces part number 116792 - and 2 more. Click to view details
                                                                                                                            # 050
                                                                                                                            MPN: 10977524
                                                                                                                            SCREW
                                                                                                                            from £0.53
                                                                                                                            from £0.53
                                                                                                                            # 051
                                                                                                                            MPN: 127494
                                                                                                                            WASHER
                                                                                                                            (minimum order quantity = 20)
                                                                                                                            from £0.53
                                                                                                                            from £0.53
                                                                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                            # 052
                                                                                                                            MPN: 14499324
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 14499301 which we have in stock
                                                                                                                            # 053
                                                                                                                            MPN: 181180
                                                                                                                            RH VALVE
                                                                                                                            from £115.56
                                                                                                                            from £115.56
                                                                                                                            # 054
                                                                                                                            MPN: 181183
                                                                                                                            LH FLOAT VALVE
                                                                                                                            from £115.56
                                                                                                                            from £115.56
                                                                                                                            # 055
                                                                                                                            MPN: 195049
                                                                                                                            GASKET
                                                                                                                            from £2.40
                                                                                                                            from £2.40
                                                                                                                            This part replaces part number 169938
                                                                                                                            # 056
                                                                                                                            MPN: 66212600
                                                                                                                            REINFORCEMENT BRACKET
                                                                                                                            from £112.81
                                                                                                                            from £112.81
                                                                                                                            # 057
                                                                                                                            MPN: 184274
                                                                                                                            THICKNESS
                                                                                                                            from £1.95
                                                                                                                            from £1.95
                                                                                                                            # 058
                                                                                                                            MPN: 184275
                                                                                                                            THICKNESS
                                                                                                                            from £2.75
                                                                                                                            from £2.75
                                                                                                                            # 059
                                                                                                                            MPN: 102741
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                            # 060
                                                                                                                            MPN: 14496429
                                                                                                                            WASHER
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 061
                                                                                                                            MPN: 14622387
                                                                                                                            PLUG
                                                                                                                            from £1.83
                                                                                                                            from £1.83
                                                                                                                            # 062
                                                                                                                            MPN: 184206
                                                                                                                            GROUND CABLE
                                                                                                                            from £3.32
                                                                                                                            from £3.32
                                                                                                                            # 063
                                                                                                                            MPN: 113647
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 064
                                                                                                                            MPN: 12637824
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12637801 - and 1 more. Click to view details
