ferrari 456 m gt/m gta antievaporation device -valid for usa, cdn and aus-not for usa m.y. 2000 and cdn m.y. 2000 parts diagram

015 - Antievaporation Device -Valid for USA, CDN and AUS-Not for USA M.Y. 2000 and CDN M.Y. 2000

Ferrari 456 M GT/M GTA Antievaporation Device -Valid for USA, CDN and AUS-Not for USA M.Y. 2000 and CDN M.Y. 2000 Parts Diagram

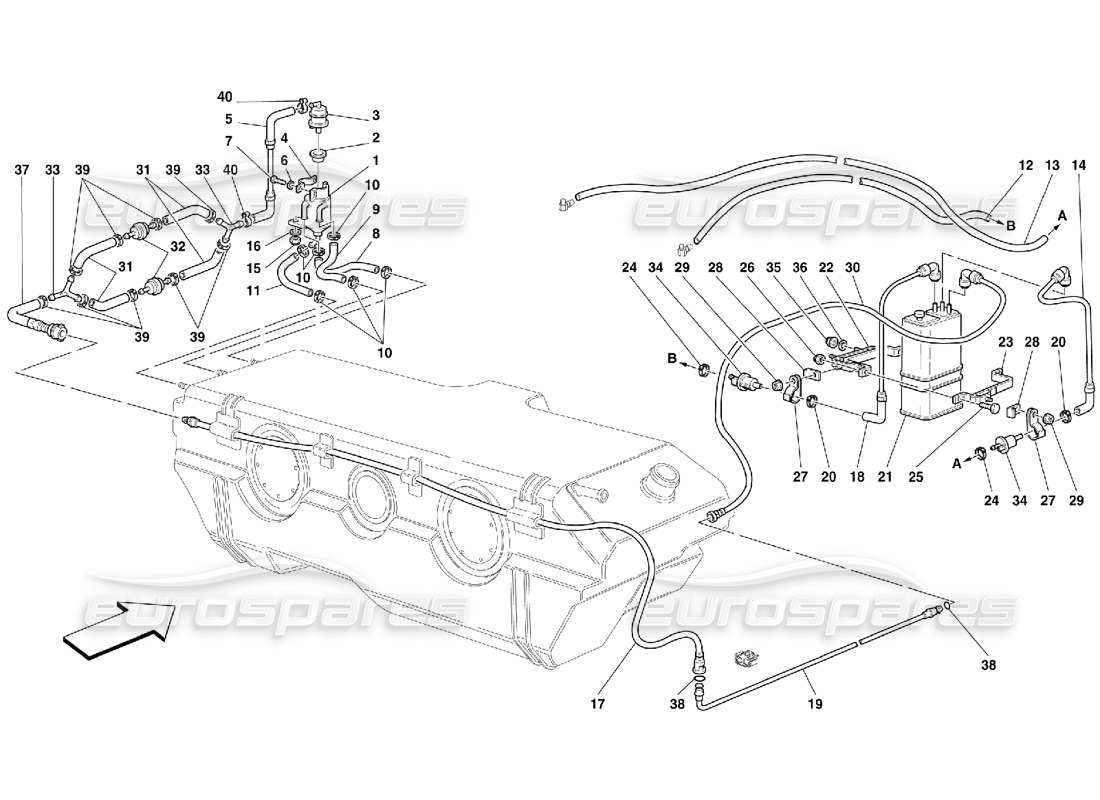

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 155407
                                                                                  DISAREATOR
                                                                                  from £90.76
                                                                                  from £90.76
                                                                                  # 002
                                                                                  MPN: 155313
                                                                                  SEAL RING
                                                                                  from £22.01
                                                                                  from £22.01
                                                                                  # 003
                                                                                  MPN: 124193
                                                                                  ANTI FLOWING BACK VALVE
                                                                                  from £44.90
                                                                                  from £44.90
                                                                                  This part replaces part number 114843 - and 1 more. Click to view details
                                                                                  # 004
                                                                                  MPN: 155405
                                                                                  BRACKET
                                                                                  from £12.13
                                                                                  from £12.13
                                                                                  # 005
                                                                                  MPN: 174945
                                                                                  PIPE FROM ANTI-FLOWING BACK VALVE TO VENTILATION VALVE
                                                                                  from £61.38
                                                                                  from £61.38
                                                                                  # 006
                                                                                  MPN: 14496324
                                                                                  WASHER
                                                                                  from £1.39
                                                                                  from £1.39
                                                                                  This part replaces part number 14496301 which we have in stock
                                                                                  # 007
                                                                                  MPN: 13273911
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 008
                                                                                  MPN: 116764
                                                                                  FRONT PIPE FROM FUEL TANK TO DISAERATOR
                                                                                  from £13.99
                                                                                  from £13.99
                                                                                  This part replaces part number 105492 - and 3 more. Click to view details
                                                                                  # 009
                                                                                  MPN: 154709
                                                                                  CENTRAL PIPE FROM FUEL TANK TO DISAERATOR
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 120441 - and 1 more. Click to view details
                                                                                  # 010
                                                                                  MPN: 13000190
                                                                                  SCREW COLLAR
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                  # 011
                                                                                  MPN: 114880
                                                                                  PIPE
                                                                                  from £24.42
                                                                                  from £24.42
                                                                                  This part replaces part number 106202 - and 1 more. Click to view details
                                                                                  # 012
                                                                                  MPN: 114888
                                                                                  PIPE FROM RH UNION TO ANTIEVAPORATION VALVE
                                                                                  from £88.90
                                                                                  from £88.90
                                                                                  # 013
                                                                                  MPN: 116774
                                                                                  PIPE FROM LH UNION TO ANTIEVAPORATION VALVE
                                                                                  from £75.23
                                                                                  from £75.23
                                                                                  This part replaces part number 114961
                                                                                  # 014
                                                                                  MPN: 174786
                                                                                  PIPE FROM VAPOR FILTER TO OUTER VALVE
                                                                                  from £102.27
                                                                                  from £102.27
                                                                                  # 015
                                                                                  MPN: 102948
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                  # 016
                                                                                  MPN: 14496424
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                  # 017
                                                                                  MPN: 174947
                                                                                  PIPE FROM VALVE TO INTERMEDIATE PIPE
                                                                                  from £91.43
                                                                                  from £91.43
                                                                                  # 018
                                                                                  MPN: 174787
                                                                                  PIPE FROM VAPOR FILTER TO REAR VALVE
                                                                                  from £96.52
                                                                                  from £96.52
                                                                                  # 019
                                                                                  MPN: 155763
                                                                                  INTERMEDIATE PIPE
                                                                                  from £41.50
                                                                                  from £41.50
                                                                                  # 020
                                                                                  MPN: 13000190
                                                                                  SCREW COLLAR
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                  # 021
                                                                                  MPN: 174782
                                                                                  FUEL VAPOR FILTER
                                                                                  from £232.04
                                                                                  from £232.04
                                                                                  # 022
                                                                                  MPN: 156452
                                                                                  FRAME FASTENING FILTER BRACKET
                                                                                  from £9.60
                                                                                  from £9.60
                                                                                  # 023
                                                                                  MPN: 138496
                                                                                  COMPLETE BRACKET
                                                                                  from £8.85
                                                                                  from £8.85
                                                                                  This part replaces part number 147268 - and 1 more. Click to view details
                                                                                  # 024
                                                                                  MPN: 157934
                                                                                  SCREW COLLAR
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 12179190
                                                                                  # 025
                                                                                  MPN: 10902124
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                  # 026
                                                                                  MPN: 102948
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                  # 027
                                                                                  MPN: 164437
                                                                                  FIXING BRACKET
                                                                                  from £1.77
                                                                                  from £1.77
                                                                                  # 028
                                                                                  MPN: 137716
                                                                                  PLATE
                                                                                  from £10.26
                                                                                  from £10.26
                                                                                  # 029
                                                                                  MPN: 14058411
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 030
                                                                                  MPN: 179176
                                                                                  PIPE CONNECTING INTERMEDIATE PIPE TO VAPOR FILTER
                                                                                  from £74.17
                                                                                  from £74.17
                                                                                  This part replaces part number 174785
                                                                                  # 031
                                                                                  MPN: 116761
                                                                                  RUBBER HOSE
                                                                                  from £56.45
                                                                                  from £56.45
                                                                                  This part replaces part number 116760
                                                                                  # 032
                                                                                  MPN: 174594
                                                                                  TANK VENTILATION VALVE
                                                                                  from £7.31
                                                                                  from £7.31
                                                                                  # 033
                                                                                  MPN: 105495
                                                                                  UNION
                                                                                  from £1.32
                                                                                  from £1.32
                                                                                  # 035
                                                                                  MPN: 102948
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                  # 036
                                                                                  MPN: 14499324
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 14499301 which we have in stock
                                                                                  # 037
                                                                                  MPN: 175610
                                                                                  UNION WITH SLEEVE
                                                                                  from £30.61
                                                                                  from £30.61
                                                                                  # 038
                                                                                  MPN: 133956
                                                                                  O.R. GASKET
                                                                                  from £0.78
                                                                                  from £0.78
                                                                                  # 039
                                                                                  MPN: 13434670
                                                                                  COLLAR
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 040
                                                                                  MPN: 13434670
                                                                                  COLLAR
                                                                                  from £0.47
                                                                                  from £0.47
