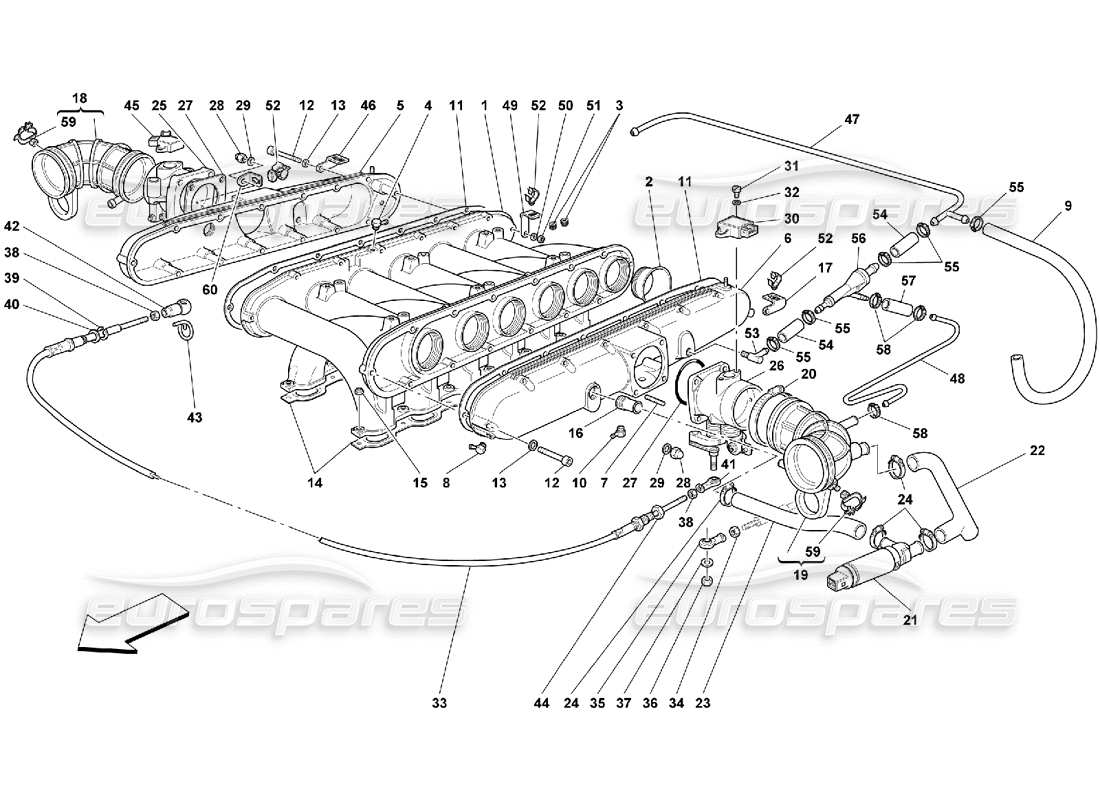

020 - Air Intake Manifolds

Ferrari 456 M GT/M GTA Air Intake Manifolds Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 000
                                                                                                      MPN: 178856
                                                                                                      COMPLETE SUCTION MANIFOLDS
                                                                                                      from £3,560.78
                                                                                                      from £3,560.78
                                                                                                      This part replaces part number 176751
                                                                                                      # 000
                                                                                                      MPN: 178859
                                                                                                      COMPLETE RH SUCTION MANIFOLDS COVER
                                                                                                      - Not for USA, CDN and AUS
                                                                                                      from £648.38
                                                                                                      from £648.38
                                                                                                      This part replaces part number 178516
                                                                                                      # 000
                                                                                                      MPN: 178860
                                                                                                      COMPLETE LH SUCTION MANIFOLDS COVER
                                                                                                      - Not for USA, CDN and AUS
                                                                                                      from £303.73
                                                                                                      from £303.73
                                                                                                      This part replaces part number 178517
                                                                                                      # 000
                                                                                                      MPN: 178861
                                                                                                      COMPLETE RH SUCTION MANIFOLDS COVER
                                                                                                      - Valid for USA, CDN and AUS
                                                                                                      from £502.00
                                                                                                      from £502.00
                                                                                                      This part replaces part number 178518
                                                                                                      # 000
                                                                                                      MPN: 178862
                                                                                                      COMPLETE LH SUCTION MANIFOLDS COVER
                                                                                                      - Valid for USA, CDN and AUS
                                                                                                      from £418.35
                                                                                                      from £418.35
                                                                                                      This part replaces part number 178519
                                                                                                      # 001
                                                                                                      MPN: 176751
                                                                                                      SUCTION MANIFOLDS
                                                                                                      - Not as spare part - With complete suction manifolds
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 002
                                                                                                      MPN: 154245
                                                                                                      END MANIFOLD
                                                                                                      from £35.30
                                                                                                      from £35.30
                                                                                                      # 003
                                                                                                      MPN: 13525570
                                                                                                      THREADED INSERT
                                                                                                      from £3.26
                                                                                                      from £3.26
                                                                                                      This part replaces part number 109668
                                                                                                      # 004
                                                                                                      MPN: 128016
                                                                                                      UNION
                                                                                                      from £5.52
                                                                                                      from £5.52
                                                                                                      # 005
                                                                                                      MPN: 178516
                                                                                                      RH SUCTION MANIFOLDS COVER
                                                                                                      - Not as spare part - With complete cover - Not for USA, CDN and AUS
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 005
                                                                                                      MPN: 178518
                                                                                                      RH SUCTION MANIFOLDS COVER
                                                                                                      - Not as spare part - With complete cover - Valid for USA, CDN and AUS
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 006
                                                                                                      MPN: 178517
                                                                                                      LH SUCTION MANIFOLDS COVER
                                                                                                      - Not as spare part - With complete cover - Not for USA, CDN and AUS
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 006
                                                                                                      MPN: 178519
                                                                                                      LH SUCTION MANIFOLDS COVER
                                                                                                      - Not as spare part - With complete cover - Valid for USA, CDN and AUS
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 007
                                                                                                      MPN: 13541324
                                                                                                      STUD
                                                                                                      from £0.94
                                                                                                      from £0.94
                                                                                                      This part replaces part number 13541321
                                                                                                      # 008
                                                                                                      MPN: 128016
                                                                                                      UNION
                                                                                                      from £5.52
                                                                                                      from £5.52
                                                                                                      # 009
                                                                                                      MPN: 173842
                                                                                                      BRAKE BOOSTER
                                                                                                      from £44.17
                                                                                                      from £44.17
                                                                                                      This part replaces part number 200012
                                                                                                      # 010
                                                                                                      MPN: 128016
                                                                                                      UNION
                                                                                                      - Not for USA, CDN and AUS
                                                                                                      from £5.52
                                                                                                      from £5.52
                                                                                                      # 010
                                                                                                      MPN: 174818
                                                                                                      UNION
                                                                                                      - Valid for USA, CDN and AUS
                                                                                                      from £8.99
                                                                                                      from £8.99
                                                                                                      # 011
                                                                                                      MPN: 154562
                                                                                                      GASKET
                                                                                                      from £8.06
                                                                                                      from £8.06
                                                                                                      # 012
                                                                                                      MPN: 156828
                                                                                                      SCREW
                                                                                                      from £1.59
                                                                                                      from £1.59
                                                                                                      This part replaces part number 14306024
                                                                                                      # 013
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 014
                                                                                                      MPN: 324050
                                                                                                      INLET GASKET
                                                                                                      from £5.98
                                                                                                      from £5.98
                                                                                                      This part replaces part number 225462
                                                                                                      # 015
                                                                                                      MPN: 159601
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12578121
                                                                                                      # 016
                                                                                                      MPN: 143286
                                                                                                      UNION
                                                                                                      from £2.55
                                                                                                      from £2.55
                                                                                                      # 017
                                                                                                      MPN: 178556
                                                                                                      LH BRACKET
                                                                                                      from £3.19
                                                                                                      from £3.19

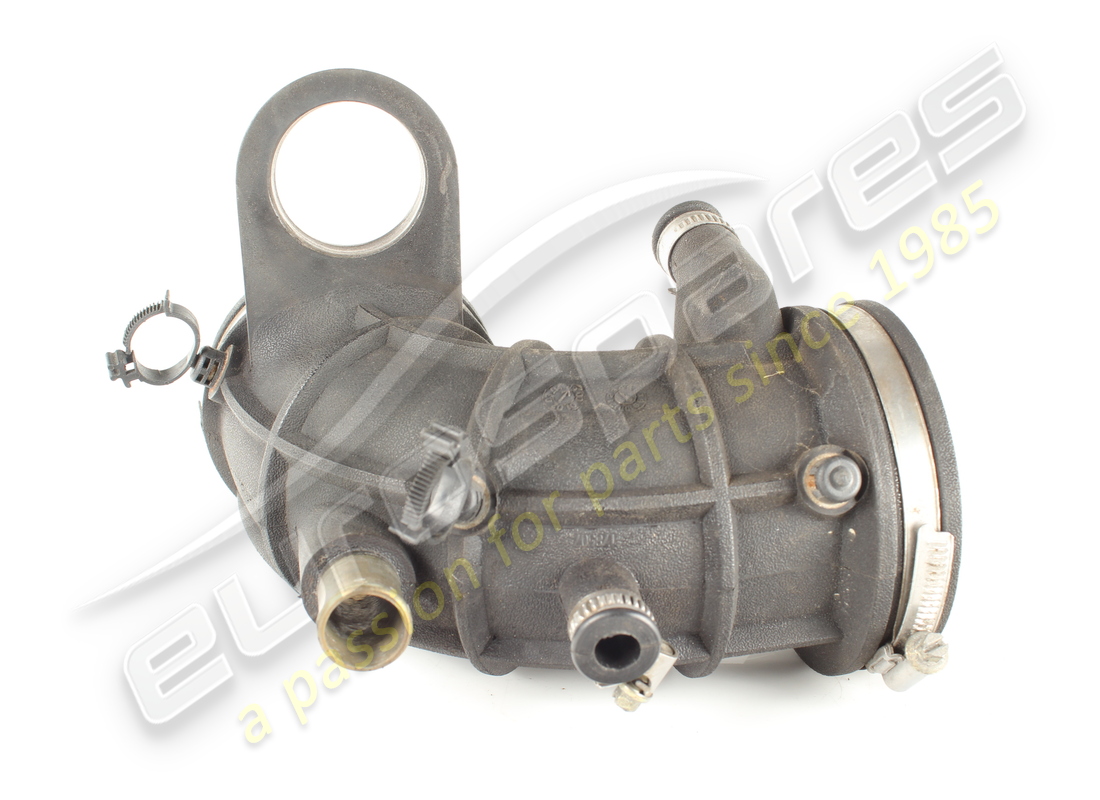

                                                                                                      # 018
                                                                                                      MPN: 178507
                                                                                                      RH SLEEVE
                                                                                                      - Valid till car Ass. Nr. 32095
                                                                                                      from £90.63
                                                                                                      from £90.63
                                                                                                      # 018
                                                                                                      MPN: 180142
                                                                                                      RH SLEEVE
                                                                                                      - Valid from car Ass. Nr. 32096
                                                                                                      from £129.39
                                                                                                      from £129.39

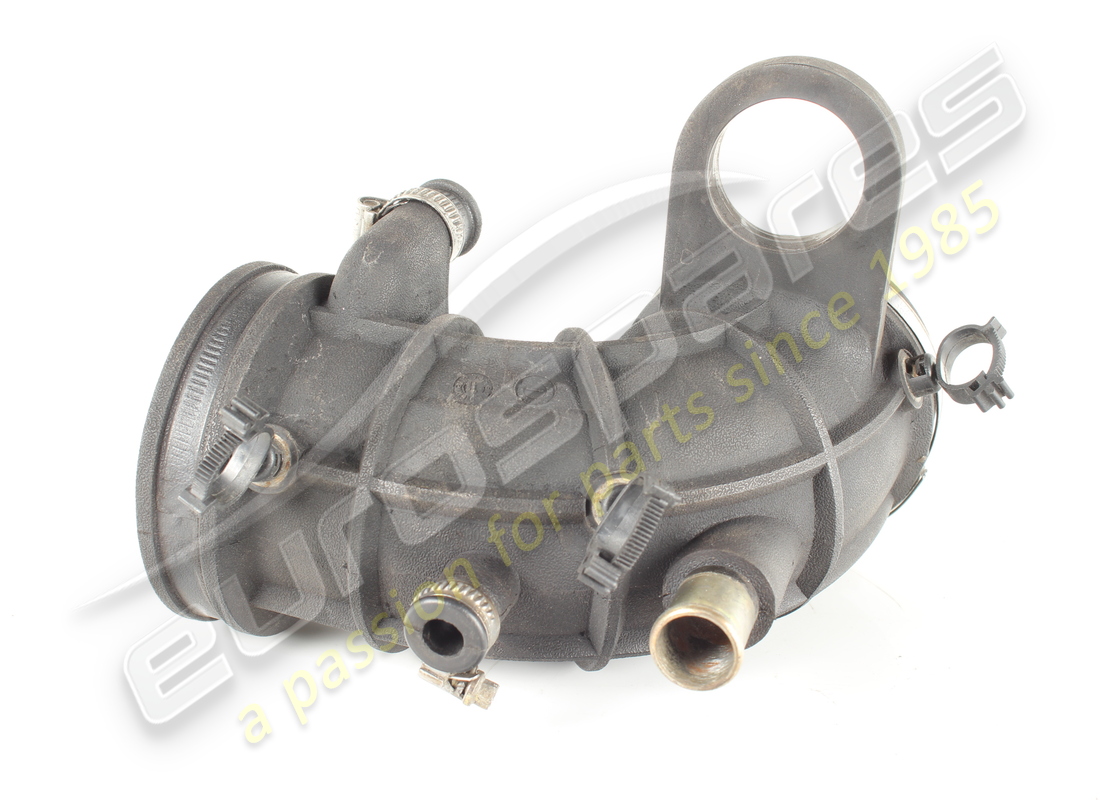

                                                                                                      # 019
                                                                                                      MPN: 178508
                                                                                                      LH SLEEVE
                                                                                                      - Valid till car Ass. Nr. 32095
                                                                                                      from £141.74
                                                                                                      from £141.74
                                                                                                      # 019
                                                                                                      MPN: 180143
                                                                                                      LH SLEEVE
                                                                                                      - Valid from car Ass. Nr. 32096
                                                                                                      from £91.21
                                                                                                      from £91.21
                                                                                                      # 020
                                                                                                      MPN: 13001190
                                                                                                      SCREW COLLAR
                                                                                                      from £0.62
                                                                                                      from £0.62
                                                                                                      # 021
                                                                                                      MPN: 142432
                                                                                                      REGULATOR FOR IDLE ADJUSTMENT
                                                                                                      from £189.00
                                                                                                      from £189.00
                                                                                                      # 022
                                                                                                      MPN: 159120
                                                                                                      PIPE FROM REGULATOR TO SLEEVE
                                                                                                      from £103.14
                                                                                                      from £103.14
                                                                                                      This part replaces part number 154440 - and 3 more. Click to view details

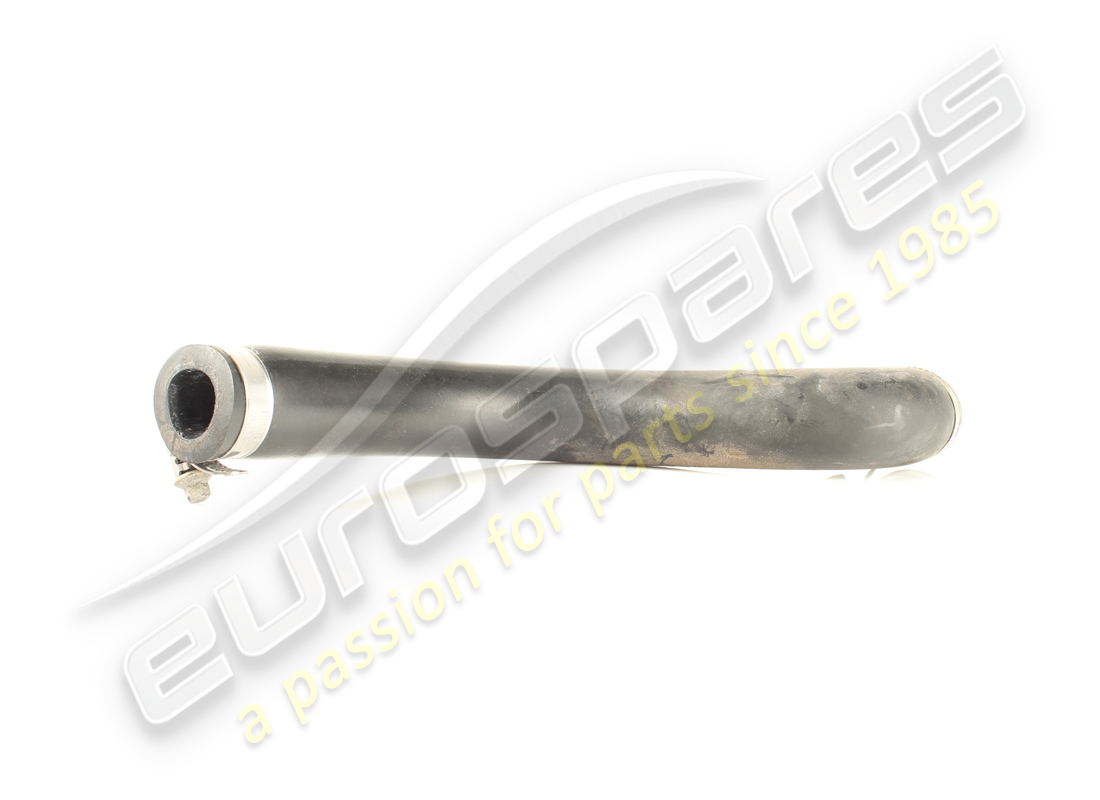

                                                                                                      # 023
                                                                                                      MPN: 171759
                                                                                                      PIPE FROM REGULATOR TO PLENUM CHAMBER
                                                                                                      from £43.44
                                                                                                      from £43.44
                                                                                                      This part replaces part number 154441 which we have in stock

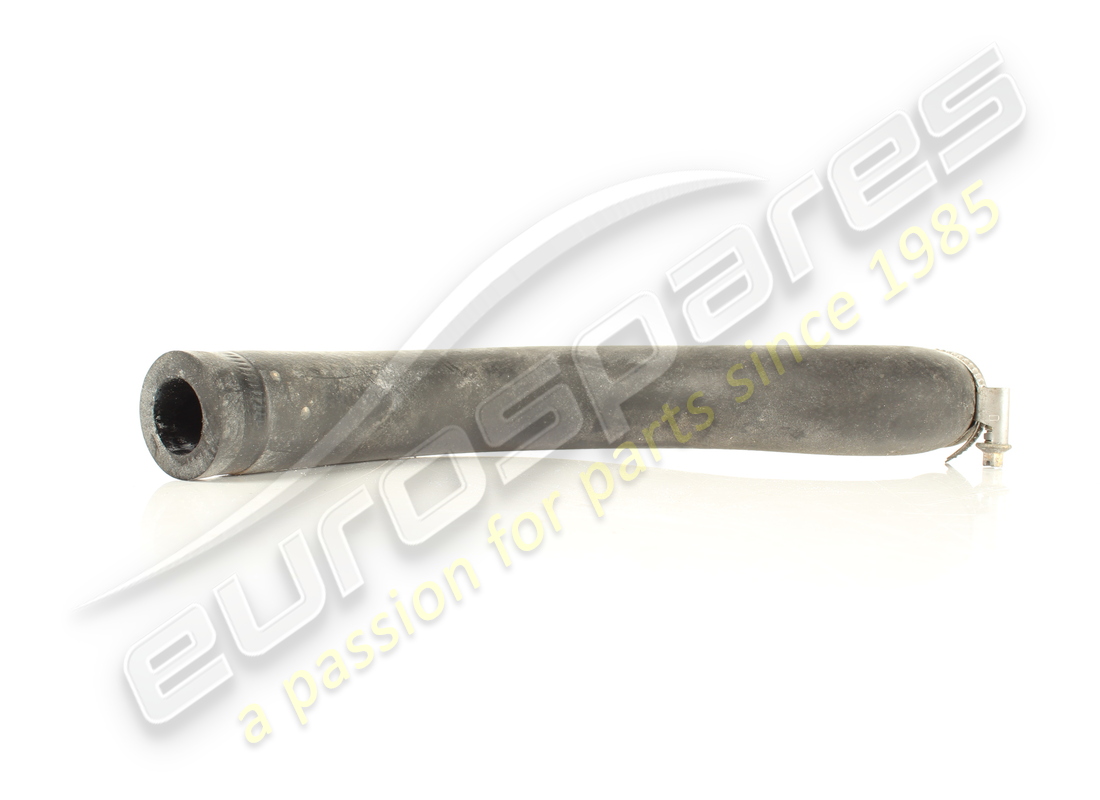

                                                                                                      # 024
                                                                                                      MPN: 13000490
                                                                                                      SCREW COLLAR
                                                                                                      from £0.48
                                                                                                      from £0.48
                                                                                                      This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                      # 025
                                                                                                      MPN: 175085
                                                                                                      COMPLETE RH THROTTLE HOLDER
                                                                                                      from £863.69
                                                                                                      from £863.69
                                                                                                      # 026
                                                                                                      MPN: 148833
                                                                                                      COMPLETE LH THROTTLE HOLDER WITH POTENTIOMETER
                                                                                                      from £291.71
                                                                                                      from £291.71
                                                                                                      # 027
                                                                                                      MPN: 142934
                                                                                                      GASKET
                                                                                                      from £6.20
                                                                                                      from £6.20
                                                                                                      This part replaces part number 147901
                                                                                                      # 028
                                                                                                      MPN: 101239
                                                                                                      CAP NUT
                                                                                                      from £1.60
                                                                                                      from £1.60
                                                                                                      # 029
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 030
                                                                                                      MPN: 158170
                                                                                                      POTENTIOMETER FOR LH THROTTLE VALVE
                                                                                                      from £121.39
                                                                                                      from £121.39
                                                                                                      This part replaces part number 142434 - and 1 more. Click to view details
                                                                                                      # 031
                                                                                                      MPN: 10444521
                                                                                                      SCREW
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 032
                                                                                                      MPN: 12601074
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 12601070 which we have in stock

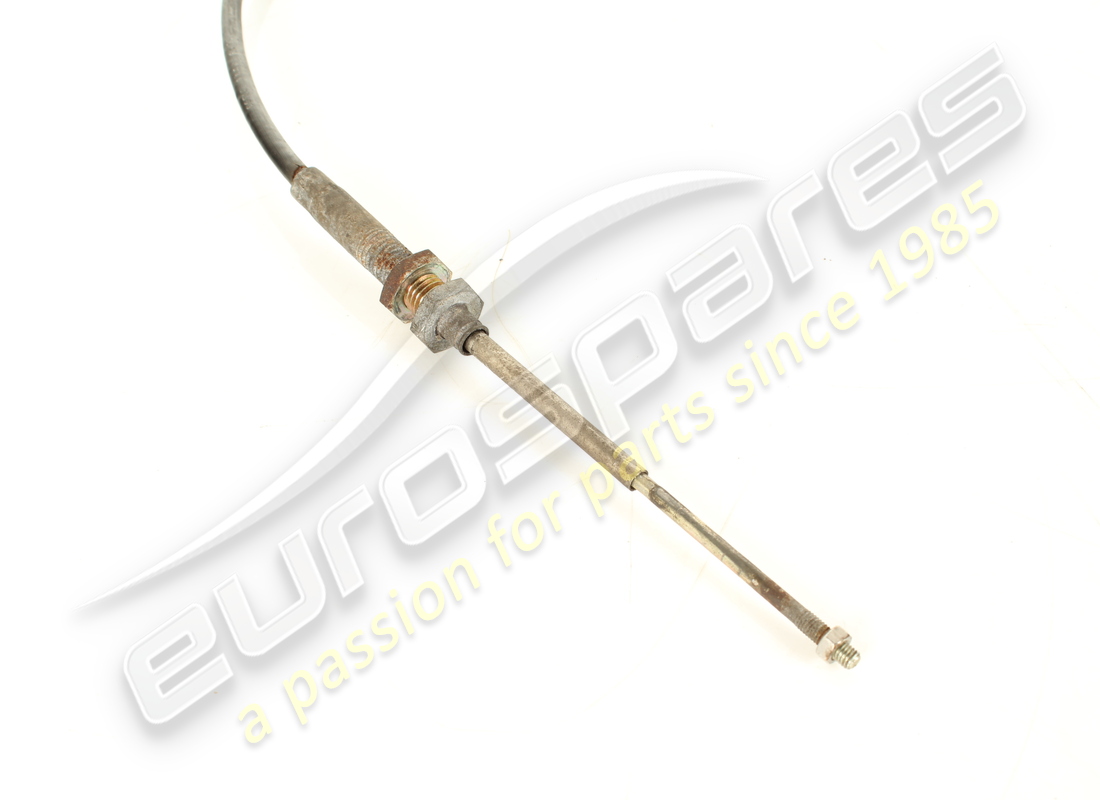

                                                                                                      # 033
                                                                                                      MPN: 178200
                                                                                                      PUSH-PULL CABLE
                                                                                                      from £79.29
                                                                                                      from £79.29
                                                                                                      This part replaces part number 155543
                                                                                                      # 034
                                                                                                      MPN: 15896470
                                                                                                      NUT
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.79
                                                                                                      from £0.79
                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                      # 035
                                                                                                      MPN: 111530
                                                                                                      TIE ROD
                                                                                                      from £24.67
                                                                                                      from £24.67
                                                                                                      # 036
                                                                                                      MPN: 113647
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 037
                                                                                                      MPN: 14496324
                                                                                                      WASHER
                                                                                                      from £1.43
                                                                                                      from £1.43
                                                                                                      This part replaces part number 14496301
                                                                                                      # 038
                                                                                                      MPN: 15896470
                                                                                                      NUT
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.79
                                                                                                      from £0.79
                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                      # 039
                                                                                                      MPN: 16160976
                                                                                                      FLEXIBLE RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 040
                                                                                                      MPN: 12638624
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 041
                                                                                                      MPN: 111530
                                                                                                      TIE ROD
                                                                                                      from £24.67
                                                                                                      from £24.67
                                                                                                      # 042
                                                                                                      MPN: 173999
                                                                                                      RH THREAD THROTTLE BALL JOINT
                                                                                                      from £2.48
                                                                                                      from £2.48
                                                                                                      This part replaces part number 105617 - and 2 more. Click to view details
                                                                                                      # 043
                                                                                                      MPN: 174001
                                                                                                      RETAINER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10124776 - and 1 more. Click to view details
                                                                                                      # 044
                                                                                                      MPN: 16102314
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 16102311 - and 1 more. Click to view details
                                                                                                      # 045
                                                                                                      MPN: 172750
                                                                                                      POTENTIOMETER FOR RH THROTTLE VALVE
                                                                                                      from £302.08
                                                                                                      from £302.08
                                                                                                      # 046
                                                                                                      MPN: 178555
                                                                                                      RH BRACKET
                                                                                                      from £5.89
                                                                                                      from £5.89
                                                                                                      # 047
                                                                                                      MPN: 178541
                                                                                                      PIPE NONRETURN VALVE/ BRAKE BOOSTER
                                                                                                      - Not for GD
                                                                                                      from £46.15
                                                                                                      from £46.15
                                                                                                      # 047
                                                                                                      MPN: 178648
                                                                                                      PIPE NONRETURN VALVE/ BRAKE BOOSTER
                                                                                                      - Valid for GD
                                                                                                      from £76.76
                                                                                                      from £76.76
                                                                                                      # 048
                                                                                                      MPN: 178542
                                                                                                      PIPE FROM NONRETURN VALVE TO RH SLEEVE
                                                                                                      from £29.23
                                                                                                      from £29.23
                                                                                                      # 048
                                                                                                      MPN: 178543
                                                                                                      PIPE FROM NONRETURN VALVE TO LH SLEEVE
                                                                                                      from £30.15
                                                                                                      from £30.15
                                                                                                      # 049
                                                                                                      MPN: 177977
                                                                                                      SMALL PLATE
                                                                                                      from £12.06
                                                                                                      from £12.06
                                                                                                      # 050
                                                                                                      MPN: 14499324
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 14499301 which we have in stock
                                                                                                      # 051
                                                                                                      MPN: 102948
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                      # 052
                                                                                                      MPN: 164565
                                                                                                      CLIP
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 053
                                                                                                      MPN: 175207
                                                                                                      UNION
                                                                                                      from £4.26
                                                                                                      from £4.26
                                                                                                      # 054
                                                                                                      MPN: 171972
                                                                                                      RUBBER HOSE
                                                                                                      from £3.27
                                                                                                      from £3.27
                                                                                                      # 055
                                                                                                      MPN: 13433570
                                                                                                      COLLAR FOR SLEEVE
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 056
                                                                                                      MPN: 293058
                                                                                                      BRAKE DEPRESSURE VALVE
                                                                                                      from £43.07
                                                                                                      from £43.07
                                                                                                      This part replaces part number 178529
                                                                                                      # 057
                                                                                                      MPN: 146969
                                                                                                      RUBBER HOSE
                                                                                                      from £2.46
                                                                                                      from £2.46
                                                                                                      # 058
                                                                                                      MPN: 13432270
                                                                                                      COLLAR FOR SLEEVE
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 059
                                                                                                      MPN: 180139
                                                                                                      CLIP
                                                                                                      - Valid from car Ass. Nr. 32096
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 060
                                                                                                      MPN: 178317
