021 - AIR INTAKE

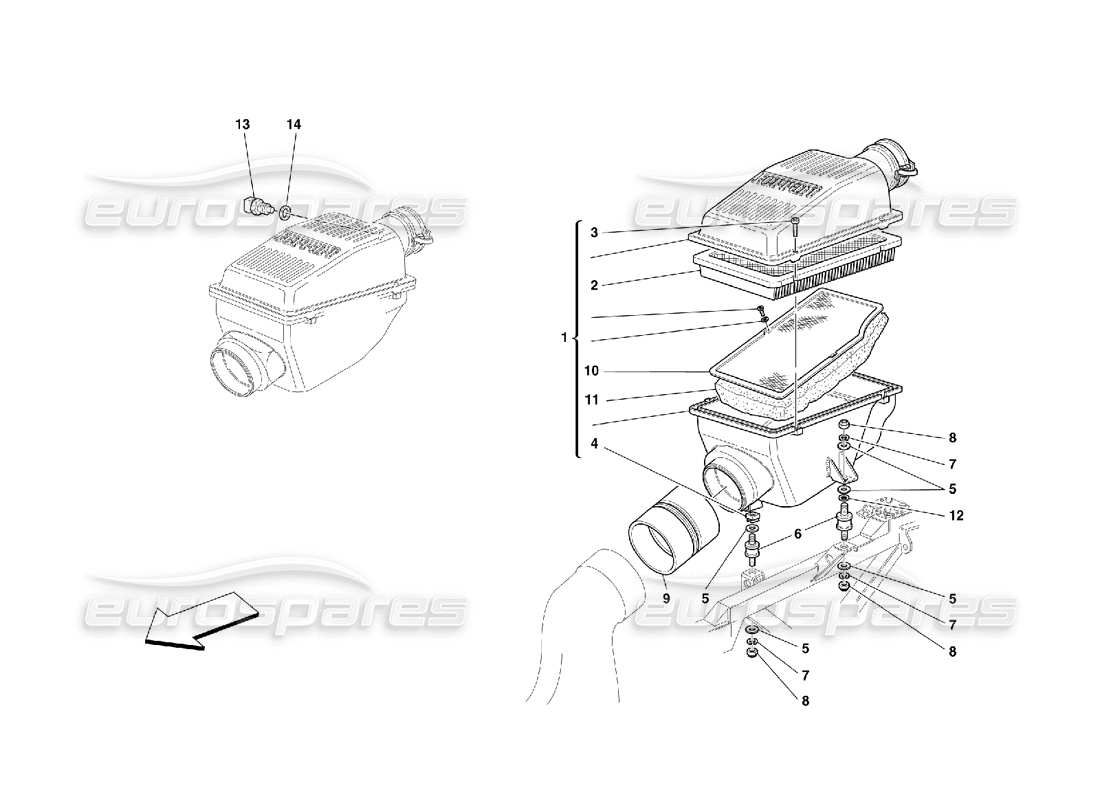

Ferrari 456 M GT/M GTA Air Intake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 171998
                            COMPLETE RH AIR INTAKE
                            from £751.18
                            from £751.18
                            # 001
                            MPN: 171999
                            COMPLETE LH AIR INTAKE
                            from £751.18
                            from £751.18
                            # 002
                            MPN: 151562
                            AIR FILTER
                            from £33.45
                            from £33.45
                            # 003
                            MPN: 157757/A
                            SCREW
                            from £8.99
                            from £8.99
                            # 004
                            MPN: 14074790
                            NUT
                            from £1.31
                            from £1.31
                            # 005
                            MPN: 12643724
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 109684 - and 3 more. Click to view details
                            # 006
                            MPN: 142202
                            ANTI-VIBRATION SUPPORT
                            from £14.37
                            from £14.37
                            # 007
                            MPN: 127494
                            WASHER
                            (minimum order quantity = 20)
                            from £0.51
                            from £0.51
                            This part replaces part number 10516470 - and 4 more. Click to view details
                            # 008
                            MPN: 15896214
                            NUT
                            from £0.53
                            from £0.53
                            This part replaces part number 15896211
                            # 009
                            MPN: 155975
                            SLEEVE FOR AIR INTAKE
                            from £39.22
                            from £39.22
                            # 010
                            MPN: 152579
                            AIR INTAKE SHIELD
                            from £38.52
                            from £38.52
                            # 011
                            MPN: 152578
                            FILTER
                            from £112.68
                            from £112.68
                            # 012
                            MPN: 12640624
                            WASHER
                            from £0.54
                            from £0.54
                            This part replaces part number 12640601 - and 1 more. Click to view details
                            # 014
                            MPN: 10296160
                            GASKET
                            from £0.47
                            from £0.47
