ferrari 456 m gt/m gta complete gearbox -valid for 456m gta parts diagram

032 - Complete Gearbox -Valid for 456M GTA

Ferrari 456 M GT/M GTA Complete Gearbox -Valid for 456M GTA Parts Diagram

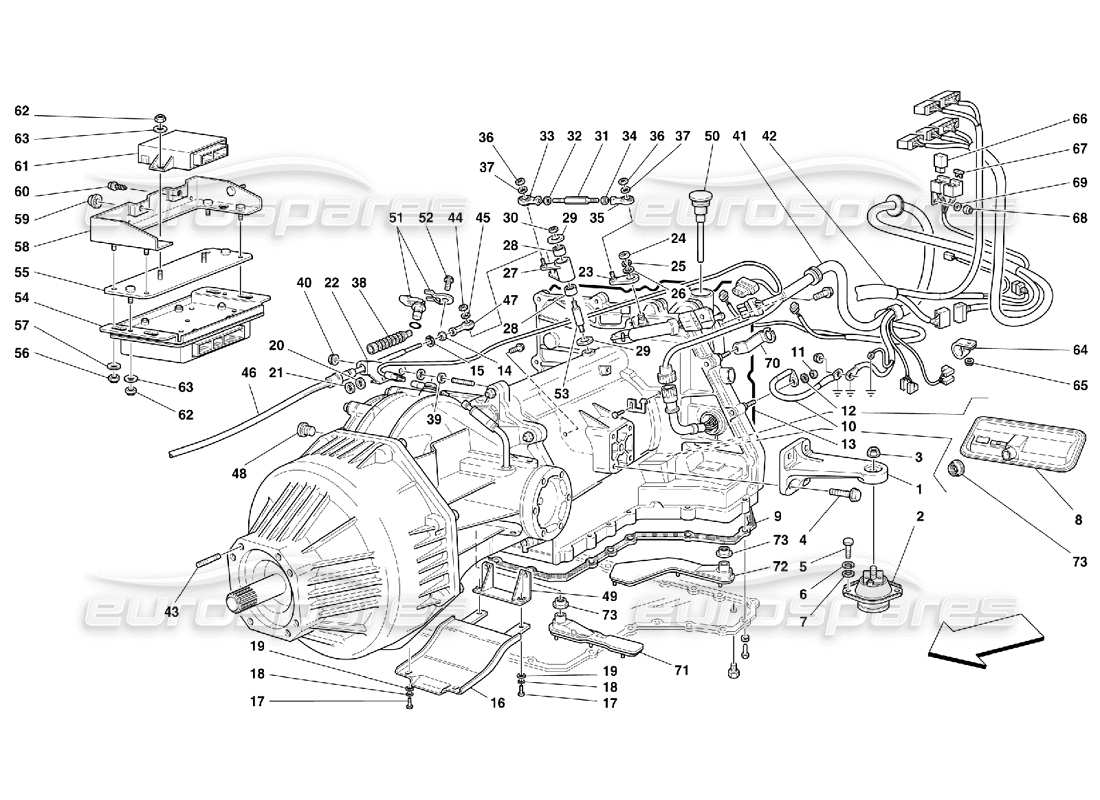

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                          #
                                                                                                                                          Part number
                                                                                                                                          Description
                                                                                                                                          Price
                                                                                                                                          # 000
                                                                                                                                          MPN: 164018
                                                                                                                                          COMPLETE AUTOMATIC GEARBOX
                                                                                                                                          from £9,595.05
                                                                                                                                          from £9,595.05
                                                                                                                                          # 001
                                                                                                                                          MPN: 176952
                                                                                                                                          GEARBOX FIXING SUPPORT
                                                                                                                                          from £180.60
                                                                                                                                          from £180.60
                                                                                                                                          # 002
                                                                                                                                          MPN: 176995
                                                                                                                                          FLEXIBLE PAD
                                                                                                                                          from £154.12
                                                                                                                                          from £154.12
                                                                                                                                          # 003
                                                                                                                                          MPN: 177018
                                                                                                                                          NUT
                                                                                                                                          from £0.66
                                                                                                                                          from £0.66
                                                                                                                                          # 004
                                                                                                                                          MPN: 16288534
                                                                                                                                          SCREW
                                                                                                                                          from £2.43
                                                                                                                                          from £2.43
                                                                                                                                          # 005
                                                                                                                                          MPN: 15970634
                                                                                                                                          SCREW
                                                                                                                                          from £1.55
                                                                                                                                          from £1.55
                                                                                                                                          # 006
                                                                                                                                          MPN: 127497
                                                                                                                                          WASHER
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                                          # 007
                                                                                                                                          MPN: 14496624
                                                                                                                                          WASHER
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 14496601 - and 2 more. Click to view details
                                                                                                                                          # 008
                                                                                                                                          MPN: 178164
                                                                                                                                          REAR FILTER
                                                                                                                                          from £175.90
                                                                                                                                          from £175.90
                                                                                                                                          This part replaces part number 177199
                                                                                                                                          # 009
                                                                                                                                          MPN: 177298
                                                                                                                                          LOWER GASKET
                                                                                                                                          from £56.77
                                                                                                                                          from £56.77
                                                                                                                                          This part replaces part number 177190
                                                                                                                                          # 010
                                                                                                                                          MPN: 155918
                                                                                                                                          GROUND CABLE
                                                                                                                                          from £7.36
                                                                                                                                          from £7.36
                                                                                                                                          # 011
                                                                                                                                          MPN: 16100814
                                                                                                                                          NUT
                                                                                                                                          from £0.71
                                                                                                                                          from £0.71
                                                                                                                                          This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                                                          # 012
                                                                                                                                          MPN: 10615674
                                                                                                                                          WASHER
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          This part replaces part number 10615670 which we have in stock - and 2 more. Click to view details
                                                                                                                                          # 013
                                                                                                                                          MPN: 178158
                                                                                                                                          REAR GASKET
                                                                                                                                          from £219.96
                                                                                                                                          from £219.96
                                                                                                                                          This part replaces part number 177198
                                                                                                                                          # 013
                                                                                                                                          MPN: 178158
                                                                                                                                          REAR GASKET
                                                                                                                                          from £219.96
                                                                                                                                          from £219.96
                                                                                                                                          This part replaces part number 177198
                                                                                                                                          # 014
                                                                                                                                          MPN: 10725914
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 10725911 - and 1 more. Click to view details
                                                                                                                                          # 015
                                                                                                                                          MPN: 11088076
                                                                                                                                          FLEXIBLE RING
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 016
                                                                                                                                          MPN: 65293600
                                                                                                                                          AIR CONVEYOR
                                                                                                                                          from £18.52
                                                                                                                                          from £18.52
                                                                                                                                          This part replaces part number 65093600 - and 1 more. Click to view details
                                                                                                                                          # 017
                                                                                                                                          MPN: 10902124
                                                                                                                                          SCREW
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                                          # 018
                                                                                                                                          MPN: 149951
                                                                                                                                          WASHER
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                                                                          # 019
                                                                                                                                          MPN: 12638178
                                                                                                                                          WASHER
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                                          # 020
                                                                                                                                          MPN: 171188
                                                                                                                                          SPACER
                                                                                                                                          from £2.65
                                                                                                                                          from £2.65
                                                                                                                                          # 021
                                                                                                                                          MPN: 171189
                                                                                                                                          SPACER
                                                                                                                                          from £6.72
                                                                                                                                          from £6.72
                                                                                                                                          # 022
                                                                                                                                          MPN: 171202
                                                                                                                                          BRACKET
                                                                                                                                          from £15.45
                                                                                                                                          from £15.45
                                                                                                                                          # 023
                                                                                                                                          MPN: 170753
                                                                                                                                          SMALL LEVER
                                                                                                                                          from £46.55
                                                                                                                                          from £46.55
                                                                                                                                          # 024
                                                                                                                                          MPN: 10788711
                                                                                                                                          NUT
                                                                                                                                          from £0.39
                                                                                                                                          from £0.39
                                                                                                                                          This part replaces part number 100965 which we have in stock - and 1 more. Click to view details
                                                                                                                                          # 025
                                                                                                                                          MPN: 12646821
                                                                                                                                          WASHER
                                                                                                                                          (minimum order quantity = 30)
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 026
                                                                                                                                          MPN: 12604579
                                                                                                                                          WASHER
                                                                                                                                          from £0.70
                                                                                                                                          from £0.70
                                                                                                                                          This part replaces part number 12604571
                                                                                                                                          # 027
                                                                                                                                          MPN: 170758
                                                                                                                                          ROCKER
                                                                                                                                          from £278.28
                                                                                                                                          from £278.28
                                                                                                                                          # 028
                                                                                                                                          MPN: 171186
                                                                                                                                          ROLLER CASING
                                                                                                                                          from £5.28
                                                                                                                                          from £5.28
                                                                                                                                          # 029
                                                                                                                                          MPN: 170757
                                                                                                                                          WASHER
                                                                                                                                          from £1.97
                                                                                                                                          from £1.97
                                                                                                                                          # 030
                                                                                                                                          MPN: 14058511
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 031
                                                                                                                                          MPN: 164011
                                                                                                                                          PIN
                                                                                                                                          from £28.11
                                                                                                                                          from £28.11
                                                                                                                                          # 032
                                                                                                                                          MPN: 15896470
                                                                                                                                          NUT
                                                                                                                                          (minimum order quantity = 20)
                                                                                                                                          from £0.78
                                                                                                                                          from £0.78
                                                                                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                                          # 033
                                                                                                                                          MPN: 111530
                                                                                                                                          BALL JOINT
                                                                                                                                          from £24.67
                                                                                                                                          from £24.67
                                                                                                                                          # 034
                                                                                                                                          MPN: 10790215
                                                                                                                                          NUT
                                                                                                                                          from £1.08
                                                                                                                                          from £1.08
                                                                                                                                          # 035
                                                                                                                                          MPN: 111529
                                                                                                                                          BALL JOINT
                                                                                                                                          from £65.37
                                                                                                                                          from £65.37
                                                                                                                                          # 036
                                                                                                                                          MPN: 113647
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 037
                                                                                                                                          MPN: 10730014
                                                                                                                                          WASHER
                                                                                                                                          from £0.51
                                                                                                                                          from £0.51
                                                                                                                                          # 038
                                                                                                                                          MPN: 173604
                                                                                                                                          RUBBER BOOT
                                                                                                                                          from £33.34
                                                                                                                                          from £33.34
                                                                                                                                          # 039
                                                                                                                                          MPN: 125516
                                                                                                                                          WASHER
                                                                                                                                          from £2.53
                                                                                                                                          from £2.53
                                                                                                                                          # 040
                                                                                                                                          MPN: 14058411
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 041
                                                                                                                                          MPN: 174491
                                                                                                                                          AUTOMATIC GEARBOX CONNECTING CABLES
                                                                                                                                          - Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD
                                                                                                                                          from £886.93
                                                                                                                                          from £886.93
                                                                                                                                          # 041
                                                                                                                                          MPN: 179859
                                                                                                                                          AUTOMATIC GEARBOX CONNECTING CABLES
                                                                                                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                                                                                                          from £326.54
                                                                                                                                          from £326.54
                                                                                                                                          # 042
                                                                                                                                          MPN: 178353
                                                                                                                                          REAR CABLES
                                                                                                                                          - Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD
                                                                                                                                          from £601.85
                                                                                                                                          from £601.85
                                                                                                                                          # 042
                                                                                                                                          MPN: 179856
                                                                                                                                          REAR CABLES
                                                                                                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                                                                                                          from £545.19
                                                                                                                                          from £545.19
                                                                                                                                          # 043
                                                                                                                                          MPN: 13546334
                                                                                                                                          STUD
                                                                                                                                          from £0.62
                                                                                                                                          from £0.62
                                                                                                                                          This part replaces part number 13546331
                                                                                                                                          # 044
                                                                                                                                          MPN: 102741
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                          # 045
                                                                                                                                          MPN: 10519424
                                                                                                                                          WASHER
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                                          # 046
                                                                                                                                          MPN: 175123
                                                                                                                                          GEARBOX CONTROL CABLE
                                                                                                                                          from £250.11
                                                                                                                                          from £250.11
                                                                                                                                          # 047
                                                                                                                                          MPN: 171200
                                                                                                                                          BALL JOINT
                                                                                                                                          from £9.66
                                                                                                                                          from £9.66
                                                                                                                                          # 048
                                                                                                                                          MPN: 177194
                                                                                                                                          PLUG
                                                                                                                                          from £9.65
                                                                                                                                          from £9.65
                                                                                                                                          # 049
                                                                                                                                          MPN: 177193
                                                                                                                                          BRACKET
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 050
                                                                                                                                          MPN: 177187
                                                                                                                                          LEVEL ROD
                                                                                                                                          from £518.82
                                                                                                                                          from £518.82
                                                                                                                                          # 051
                                                                                                                                          MPN: 177195
                                                                                                                                          SPEED SENSOR
                                                                                                                                          from £789.48
                                                                                                                                          from £789.48
                                                                                                                                          # 052
                                                                                                                                          MPN: 177196
                                                                                                                                          SCREW
                                                                                                                                          from £34.95
                                                                                                                                          from £34.95
                                                                                                                                          # 053
                                                                                                                                          MPN: 177197
                                                                                                                                          PIN
                                                                                                                                          from £123.34
                                                                                                                                          from £123.34
                                                                                                                                          # 054
                                                                                                                                          MPN: 175093

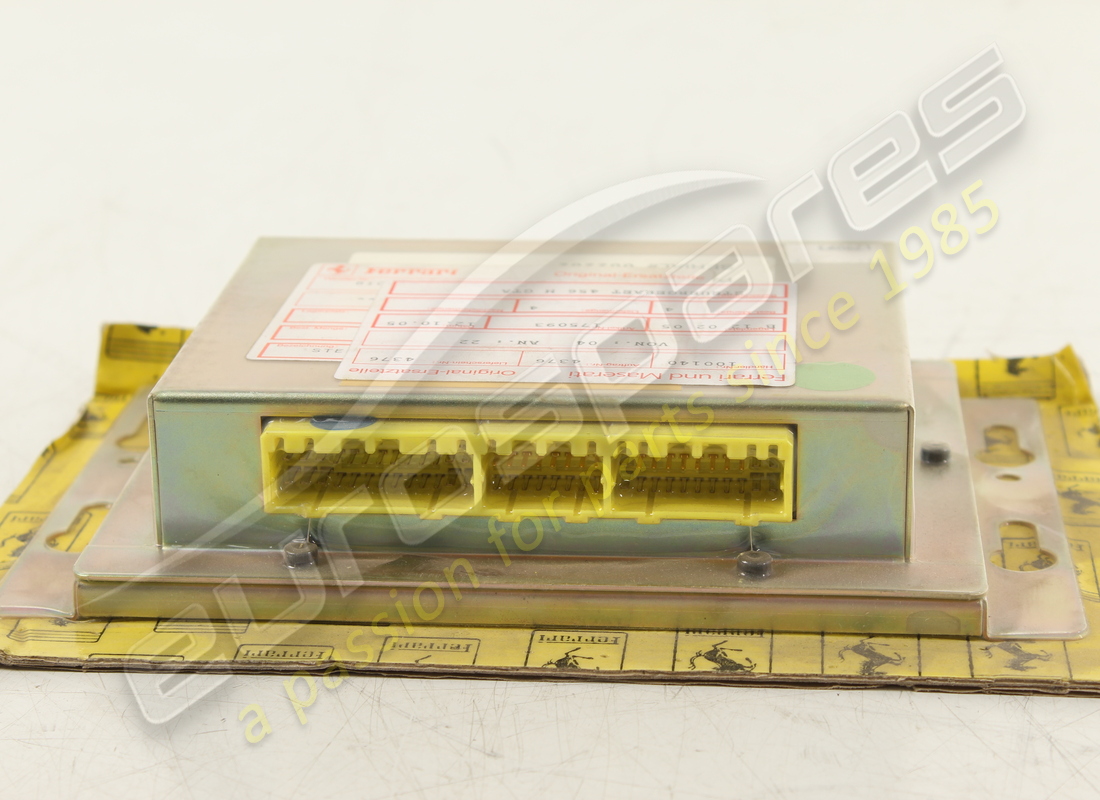

                                                                                                                                          ELECTRONIC CONTROL STATION FOR AUTOMATIC GEARBOX
                                                                                                                                          - Not for USA and CDN
                                                                                                                                          from £1,252.86
                                                                                                                                          from £1,252.86
                                                                                                                                          # 054
                                                                                                                                          MPN: 175832
                                                                                                                                          ELECTRONIC CONTROL STATION FOR AUTOMATIC GEARBOX
                                                                                                                                          - Valid for USA and CDN
                                                                                                                                          from £2,277.92
                                                                                                                                          from £2,277.92
                                                                                                                                          # 055
                                                                                                                                          MPN: 175678
                                                                                                                                          BRACKET
                                                                                                                                          from £16.38
                                                                                                                                          from £16.38
                                                                                                                                          # 056
                                                                                                                                          MPN: 102741
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                          # 057
                                                                                                                                          MPN: 12643724
                                                                                                                                          WASHER
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                          # 058
                                                                                                                                          MPN: 175090
                                                                                                                                          BRACKET
                                                                                                                                          from £35.74
                                                                                                                                          from £35.74
                                                                                                                                          # 059
                                                                                                                                          MPN: 13832101
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 060
                                                                                                                                          MPN: 62771900
                                                                                                                                          SCREW
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          This part replaces part number 68391900
                                                                                                                                          # 061
                                                                                                                                          MPN: 174937
                                                                                                                                          CONTROL STATION FOR GEARBOX SECURITY
                                                                                                                                          from £661.94
                                                                                                                                          from £661.94
                                                                                                                                          # 062
                                                                                                                                          MPN: 113647
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 063
                                                                                                                                          MPN: 12637824
                                                                                                                                          WASHER
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                                                          # 065
                                                                                                                                          MPN: 14058411
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 066
                                                                                                                                          MPN: 161590
                                                                                                                                          MICRO-RELAY SWITCH 20 A.
                                                                                                                                          - Valid till stock exhaustion
                                                                                                                                          from £13.19
                                                                                                                                          from £13.19
                                                                                                                                          # 066
                                                                                                                                          MPN: 184102
                                                                                                                                          MICRO-RELAY SWITCH 20 A.
                                                                                                                                          - Valid after stock exhaustion of 161590
                                                                                                                                          from £3.78
                                                                                                                                          from £3.78
                                                                                                                                          # 067
                                                                                                                                          MPN: 125242
                                                                                                                                          FUSE 15 AMP.
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 11055090 - and 1 more. Click to view details
                                                                                                                                          # 068
                                                                                                                                          MPN: 113647
                                                                                                                                          NUT
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          # 069
                                                                                                                                          MPN: 14496324
                                                                                                                                          WASHER
                                                                                                                                          from £1.40
                                                                                                                                          from £1.40
                                                                                                                                          This part replaces part number 14496301
                                                                                                                                          # 070
                                                                                                                                          MPN: 154742
                                                                                                                                          BRACKET
                                                                                                                                          from £14.90
                                                                                                                                          from £14.90
                                                                                                                                          This part replaces part number 150814
                                                                                                                                          # 071
                                                                                                                                          MPN: 178159
                                                                                                                                          LOWER FRONT FILTER
                                                                                                                                          from £64.85
                                                                                                                                          from £64.85
                                                                                                                                          # 072
                                                                                                                                          MPN: 178162
                                                                                                                                          LOWER CENTRAL FILTER
                                                                                                                                          from £77.04
                                                                                                                                          from £77.04
                                                                                                                                          # 073
                                                                                                                                          MPN: 178100
                                                                                                                                          RUBBER BUSHING
                                                                                                                                          from £12.13
                                                                                                                                          from £12.13
