ferrari 456 m gt/m gta differential and axle shaft -not for 456m gta parts diagram

041 - Differential and Axle Shaft -Not for 456M GTA

Ferrari 456 M GT/M GTA Differential and Axle Shaft -Not for 456M GTA Parts Diagram

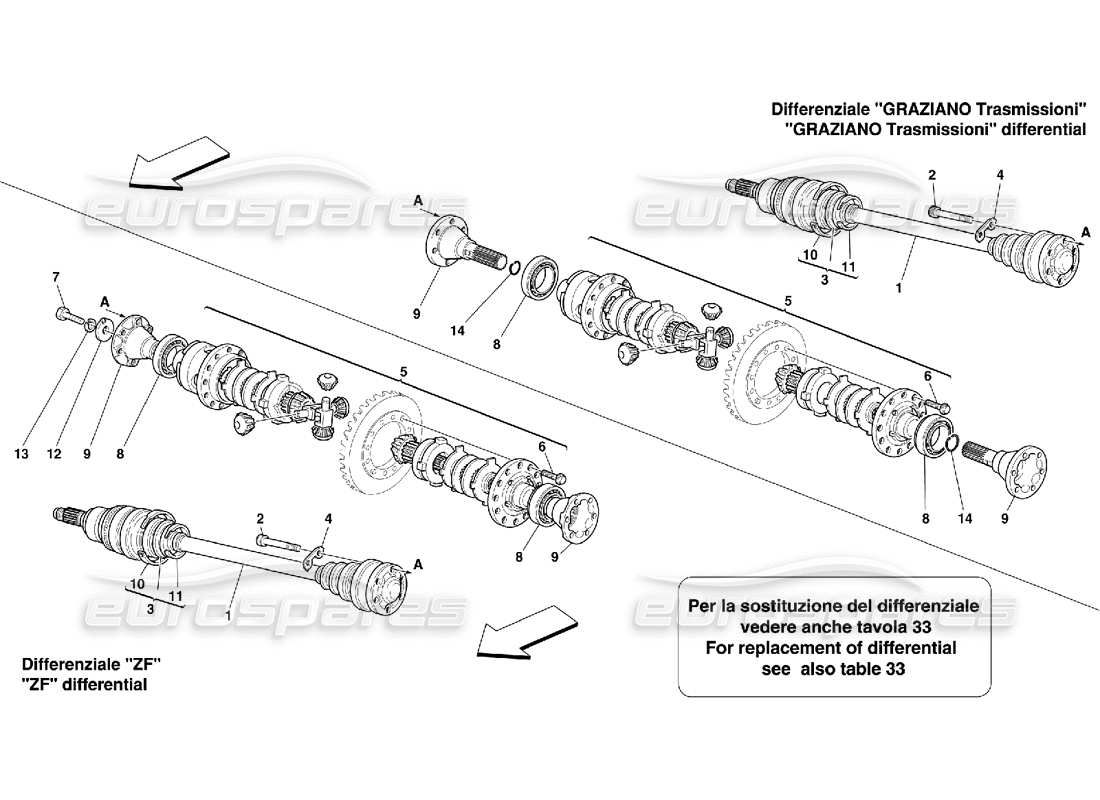

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 165072
              AXLE SHAFT
              from £357.53
              from £357.53
              This part replaces part number 143103 - and 1 more. Click to view details
              # 002
              MPN: 223916
              SCREW
              from £1.32
              from £1.32
              This part replaces part number 181910
              # 002
              MPN: 223916
              SCREW
              from £1.32
              from £1.32
              This part replaces part number 181910
              # 003
              MPN: 70000868
              PROTECTION REPLACEMENT SET
              - Wheel/gearbox side - Not as spare part now - Replaced by 70000868
              from £68.66
              from £68.66
              This part replaces part number 70000782
              # 003
              MPN: 70000868
              PROTECTION REPLACEMENT SET
              - Wheel/gearbox side
              from £68.66
              from £68.66
              This part replaces part number 70000782
              # 003
              MPN: 70006022
              PROTECTION REPLACEMENT SET
              - Gearbox side
              from £54.95
              from £54.95
              This part replaces part number 70000867
              # 004
              MPN: 149415
              SCRAPING PLATE
              from £1.00
              from £1.00
              # 005
              MPN: 162924
              DIFFERENTIAL COMPLETE
              - Valid for ZF differential
              from £3,914.14
              from £3,914.14
              This part replaces part number 155018
              # 005
              MPN: 183908
              DIFFERENTIAL COMPLETE
              - Valid for GRAZIANO Trasmissioni differential
              from £1,430.93
              from £1,430.93
              # 006
              MPN: 162920
              SCREW
              - Valid for ZF differential
              from £1.60
              from £1.60
              # 006
              MPN: 183909
              SCREW
              - Valid for GRAZIANO Trasmissioni differential
              from £3.36
              from £3.36
              # 007
              MPN: 153589
              SCREW
              - Valid for ZF differential
              from £3.10
              from £3.10
              This part replaces part number 11399121 which we have in stock
              # 008
              MPN: 125390
              BEARING
              from £96.46
              from £96.46
              # 009
              MPN: 139898
              FLANGE FOR AXLE COUPLING
              - Valid for ZF differential
              from £69.77
              from £69.77
              # 009
              MPN: 181615
              FLANGE FOR AXLE COUPLING
              - Valid for GRAZIANO Trasmissioni differential
              from £86.69
              from £86.69
              # 010
              MPN: 172347
              BIG CLAMP
              from £4.09
              from £4.09
              This part replaces part number 154214 - and 1 more. Click to view details
              # 010
              MPN: 172347
              BIG CLAMP
              from £4.09
              from £4.09
              This part replaces part number 154214 - and 1 more. Click to view details
              # 011
              MPN: 154213
              LITTLE CLAMP
              from £2.25
              from £2.25
              This part replaces part number 167570
              # 012
              MPN: 153591
              SPACER
              - Valid for ZF differential
              from £6.09
              from £6.09
              # 013
              MPN: 153590
              RING
              - Valid for ZF differential
              from £2.07
              from £2.07
              This part replaces part number 10517070 which we have in stock
              # 014
              MPN: 181616
              FLEXIBLE RING
              - Valid for GRAZIANO Trasmissioni differential
              from £1.11
              from £1.11
