046 - Pedals and Accelerator Control -Valid for GD

Ferrari 456 M GT/M GTA Pedals and Accelerator Control -Valid for GD Parts Diagram

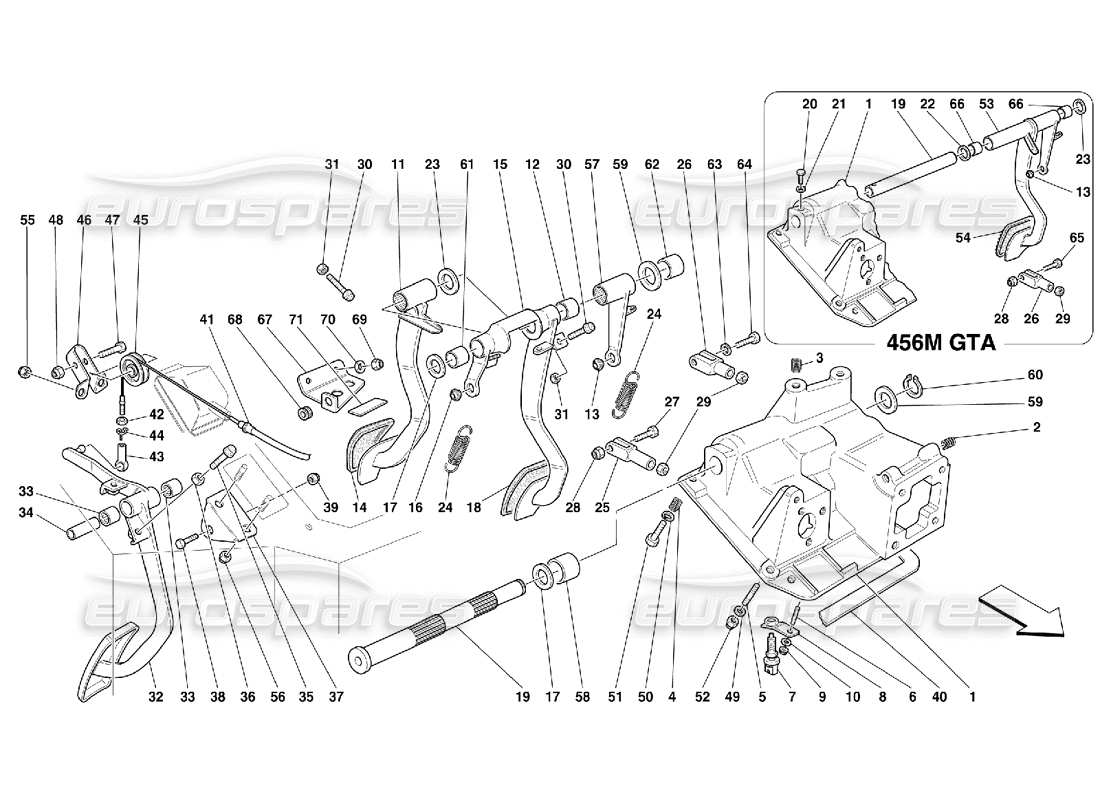

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 000
                                                                              MPN: 179933

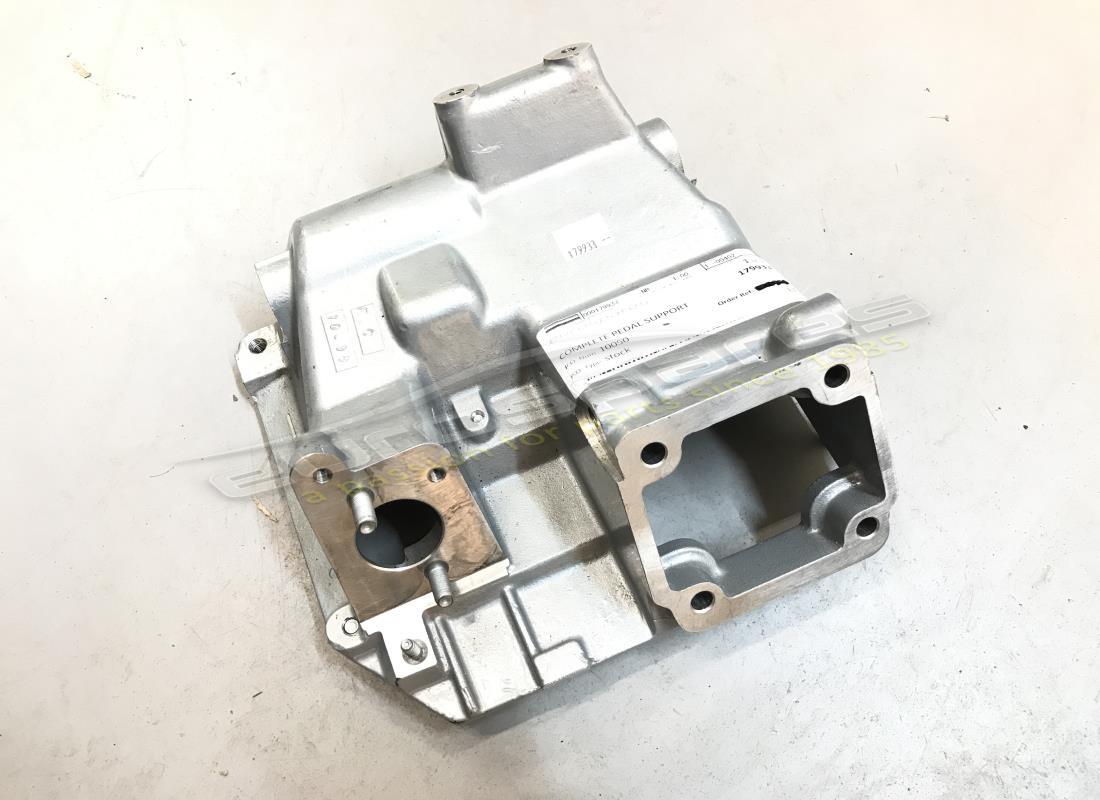

                                                                              COMPLETE PEDAL SUPPORT
                                                                              - Not for 456M GTA
                                                                              from £546.07
                                                                              from £546.07
                                                                              This part replaces part number 176297 - and 1 more. Click to view details
                                                                              # 000
                                                                              MPN: 179934
                                                                              COMPLETE PEDAL SUPPORT
                                                                              - Valid for 456M GTA
                                                                              from £546.07
                                                                              from £546.07
                                                                              This part replaces part number 176296 - and 1 more. Click to view details
                                                                              # 001
                                                                              MPN: 176296
                                                                              PEDAL SUPPORT
                                                                              - Valid for 456M GTA - Not as spare part - With complete pedal support
                                                                              Supersession
                                                                              Supersession
                                                                              # 001
                                                                              MPN: 176297
                                                                              PEDAL SUPPORT
                                                                              - Not for 456M GTA - Not as spare part - With complete pedal support
                                                                              Supersession
                                                                              Supersession
                                                                              # 002
                                                                              MPN: 13525770
                                                                              THREADED INSERT
                                                                              from £1.55
                                                                              from £1.55
                                                                              This part replaces part number 103830
                                                                              # 003
                                                                              MPN: 13525470
                                                                              THREADED INSERT
                                                                              from £0.48
                                                                              from £0.48
                                                                              This part replaces part number 107333
                                                                              # 004
                                                                              MPN: 13525770
                                                                              THREADED INSERT
                                                                              from £1.55
                                                                              from £1.55
                                                                              This part replaces part number 103830
                                                                              # 005
                                                                              MPN: 13516824
                                                                              STUD
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 13516821
                                                                              # 006
                                                                              MPN: 11500224
                                                                              STUD
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 11500221 - and 1 more. Click to view details
                                                                              # 007
                                                                              MPN: 133555
                                                                              STOP LIGHT SWITCH
                                                                              from £18.84
                                                                              from £18.84
                                                                              # 008
                                                                              MPN: 152310
                                                                              SMALL PLATE
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 009
                                                                              MPN: 14058411
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 010
                                                                              MPN: 12646601
                                                                              WASHER
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 011
                                                                              MPN: 176275
                                                                              BRAKE PEDAL
                                                                              - Not for 456M GTA
                                                                              from £434.80
                                                                              from £434.80
                                                                              # 012
                                                                              MPN: 103163
                                                                              BUSHING
                                                                              - Not for 456M GTA
                                                                              from £2.87
                                                                              from £2.87
                                                                              # 013
                                                                              MPN: 109407
                                                                              BALL JOINT
                                                                              from £22.04
                                                                              from £22.04
                                                                              # 014
                                                                              MPN: 132819
                                                                              PEDAL RUBBER
                                                                              - Not for 456M GTA
                                                                              from £5.16
                                                                              from £5.16
                                                                              # 015
                                                                              MPN: 176294
                                                                              CLUTCH PEDAL
                                                                              - Not for 456M GTA
                                                                              from £684.73
                                                                              from £684.73
                                                                              # 016
                                                                              MPN: 109407
                                                                              BALL JOINT
                                                                              - Not for 456M GTA
                                                                              from £22.04
                                                                              from £22.04
                                                                              # 017
                                                                              MPN: 112125
                                                                              WASHER
                                                                              - Not for 456M GTA
                                                                              from £1.04
                                                                              from £1.04
                                                                              # 018
                                                                              MPN: 132818
                                                                              PEDAL RUBBER
                                                                              - Not for 456M GTA
                                                                              from £6.71
                                                                              from £6.71
                                                                              # 019
                                                                              MPN: 151979
                                                                              PEDALS SUPPORT PIN
                                                                              - Valid for 456M GTA
                                                                              from £40.49
                                                                              from £40.49
                                                                              # 019
                                                                              MPN: 176290
                                                                              PEDALS SUPPORT PIN
                                                                              - Not for 456M GTA
                                                                              from £696.05
                                                                              from £696.05
                                                                              # 020
                                                                              MPN: 10902224
                                                                              SCREW
                                                                              - Valid for 456M GTA
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 021
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              - Valid for 456M GTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 022
                                                                              MPN: 106083
                                                                              SPACER WASHER
                                                                              - Valid for 456M GTA
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 023
                                                                              MPN: 106083
                                                                              WASHER THINCKNESS MM.1.0
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 023
                                                                              MPN: 113833
                                                                              DITTO THICKNESS MM. 1.1
                                                                              - Possible fitting
                                                                              from £1.86
                                                                              from £1.86
                                                                              # 023
                                                                              MPN: 113834
                                                                              DITTO THICKNESS MM. 1.2
                                                                              - Possible fitting
                                                                              from £2.10
                                                                              from £2.10
                                                                              # 023
                                                                              MPN: 113835
                                                                              DITTO THICKNESS MM. 1.3
                                                                              - Possible fitting
                                                                              from £1.86
                                                                              from £1.86
                                                                              # 023
                                                                              MPN: 113836
                                                                              DITTO THICKNESS MM. 1.4
                                                                              - Possible fitting
                                                                              from £2.33
                                                                              from £2.33
                                                                              # 024
                                                                              MPN: 101305
                                                                              SPRING
                                                                              - For 456M GTA Q.ty 1
                                                                              from £8.18
                                                                              from £8.18
                                                                              This part replaces part number 660343
                                                                              # 025
                                                                              MPN: 164393
                                                                              FORK FOR CLUTCH LEVER
                                                                              - Not for 456M GTA
                                                                              from £30.77
                                                                              from £30.77
                                                                              # 026
                                                                              MPN: 10007871
                                                                              FORK FOR BRAKE LEVER
                                                                              - Valid for 456M GTA
                                                                              from £5.83
                                                                              from £5.83
                                                                              # 026
                                                                              MPN: 176291
                                                                              FORK FOR BRAKE LEVER
                                                                              - Not for 456M GTA
                                                                              from £51.36
                                                                              from £51.36
                                                                              # 027
                                                                              MPN: 16043621
                                                                              SCREW
                                                                              - Not for 456M GTA
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 029
                                                                              MPN: 16102314
                                                                              NUT
                                                                              - For 456M GTA Q.ty 1
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16102311 - and 1 more. Click to view details
                                                                              # 030
                                                                              MPN: 144011
                                                                              PIN
                                                                              - Not for 456M GTA
                                                                              Supersession
                                                                              Supersession
                                                                              # 031
                                                                              MPN: 16102314
                                                                              NUT
                                                                              - Not for 456M GTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16102311 - and 1 more. Click to view details
                                                                              # 032
                                                                              MPN: 176300
                                                                              Accelerator Pedal
                                                                              from £73.50
                                                                              from £73.50
                                                                              # 033
                                                                              MPN: 101677
                                                                              ROLLER BEARING
                                                                              from £2.05
                                                                              from £2.05
                                                                              # 034
                                                                              MPN: 138219
                                                                              CARRIER BUSH
                                                                              from £58.51
                                                                              from £58.51
                                                                              # 035
                                                                              MPN: 123961
                                                                              PIN
                                                                              from £2.48
                                                                              from £2.48
                                                                              # 036
                                                                              MPN: 16102314
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16102311 - and 1 more. Click to view details
                                                                              # 037
                                                                              MPN: 176299
                                                                              ACCELERATOR SUPPORT
                                                                              from £13.85
                                                                              from £13.85
                                                                              # 038
                                                                              MPN: 10903621
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 039
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 040
                                                                              MPN: 176330
                                                                              GASKET
                                                                              from £5.90
                                                                              from £5.90
                                                                              # 041
                                                                              MPN: 156123
                                                                              RHD ACCELERATOR CABLE
                                                                              from £14.42
                                                                              from £14.42
                                                                              # 042
                                                                              MPN: 15896470
                                                                              NUT
                                                                              (minimum order quantity = 20)
                                                                              from £0.78
                                                                              from £0.78
                                                                              This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                              # 043
                                                                              MPN: 173999
                                                                              RH THREAD THROTTLE BALL JOINT
                                                                              from £4.18
                                                                              from £4.18
                                                                              This part replaces part number 105617
                                                                              # 044
                                                                              MPN: 174001
                                                                              CLIP
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10124776 - and 1 more. Click to view details
                                                                              # 045
                                                                              MPN: 157557
                                                                              PULLEY
                                                                              from £11.42
                                                                              from £11.42
                                                                              This part replaces part number 105665 - and 3 more. Click to view details
                                                                              # 046
                                                                              MPN: 152377
                                                                              SUPPORT
                                                                              from £22.23
                                                                              from £22.23
                                                                              # 047
                                                                              MPN: 10902624
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10902621
                                                                              # 048
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 049
                                                                              MPN: 14499401
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 050
                                                                              MPN: 127496
                                                                              WASHER
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 10516671 - and 2 more. Click to view details
                                                                              # 051
                                                                              MPN: 16043324
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16043321
                                                                              # 052
                                                                              MPN: 104030
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16104125
                                                                              # 053
                                                                              MPN: 176298
                                                                              BRAKE PEDAL
                                                                              - Valid for 456M GTA
                                                                              from £462.20
                                                                              from £462.20
                                                                              # 054
                                                                              MPN: 144237
                                                                              PEDAL RUBBER
                                                                              - Valid for 456M GTA
                                                                              from £56.32
                                                                              from £56.32
                                                                              # 055
                                                                              MPN: 102948
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12574211 - and 4 more. Click to view details
                                                                              # 056
                                                                              MPN: 104030
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16104125
                                                                              # 057
                                                                              MPN: 176281
                                                                              BRAKE CONTROL LEVER
                                                                              - Not for 456M GTA
                                                                              from £133.54
                                                                              from £133.54
                                                                              # 058
                                                                              MPN: 101314
                                                                              BUSHING
                                                                              - Not for 456M GTA
                                                                              from £2.18
                                                                              from £2.18
                                                                              This part replaces part number 660867
                                                                              # 059
                                                                              MPN: 112127
                                                                              DITTO THICKNESS MM. 0.9
                                                                              - Possible fitting - Not for 456M GTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 059
                                                                              MPN: 112128
                                                                              DITTO THICKNESS MM. 1.0
                                                                              - Possible fitting - Not for 456M GTA
                                                                              from £24.44
                                                                              from £24.44
                                                                              # 059
                                                                              MPN: 112129
                                                                              DITTO THICKNESS MM. 1.1
                                                                              - Possible fitting - Not for 456M GTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 059
                                                                              MPN: 112130
                                                                              DITTO THICKNESS MM. 1.2
                                                                              - Possible fitting - Not for 456M GTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 059
                                                                              MPN: 112131
                                                                              DITTO THICKNESS MM. 1.3
                                                                              - Possible fitting - Not for 456M GTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 059
                                                                              MPN: 171351
                                                                              WASHER THINCKNESS MM. 0,8
                                                                              - Not for 456M GTA
                                                                              from £7.15
                                                                              from £7.15
                                                                              # 060
                                                                              MPN: 11066676
                                                                              FLEXIBLE RING
                                                                              - Not for 456M GTA
                                                                              from £0.51
                                                                              from £0.51
                                                                              This part replaces part number 11066675
                                                                              # 061
                                                                              MPN: 101314
                                                                              BUSHING
                                                                              - Not for 456M GTA
                                                                              from £2.18
                                                                              from £2.18
                                                                              This part replaces part number 660867
                                                                              # 062
                                                                              MPN: 112153
                                                                              BUSHING
                                                                              - Not for 456M GTA
                                                                              from £1.86
                                                                              from £1.86
                                                                              # 063
                                                                              MPN: 127496
                                                                              WASHER
                                                                              - Not for 456M GTA
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 10516671 - and 2 more. Click to view details
                                                                              # 064
                                                                              MPN: 15115721
                                                                              SCREW
                                                                              - Not for 456M GTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 065
                                                                              MPN: 130926
                                                                              SCREW
                                                                              - Valid for 456M GTA
                                                                              from £3.70
                                                                              from £3.70
                                                                              # 066
                                                                              MPN: 103163
                                                                              BUSHING
                                                                              - Valid for 456M GTA
                                                                              from £2.87
                                                                              from £2.87
                                                                              # 067
                                                                              MPN: 178812
                                                                              BRACKET
                                                                              from £6.63
                                                                              from £6.63
                                                                              # 068
                                                                              MPN: 103549
                                                                              RUBBER BUSH
                                                                              from £0.70
                                                                              from £0.70
                                                                              # 069
                                                                              MPN: 102948
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12574211 - and 4 more. Click to view details
                                                                              # 070
                                                                              MPN: 12644477
                                                                              WASHER
                                                                              from £0.71
                                                                              from £0.71
                                                                              This part replaces part number 12644406
                                                                              # 071
                                                                              MPN: 178895
                                                                              PROTECTION
                                                                              from £0.68
                                                                              from £0.68
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
