048 - Brake System -Valid for GD

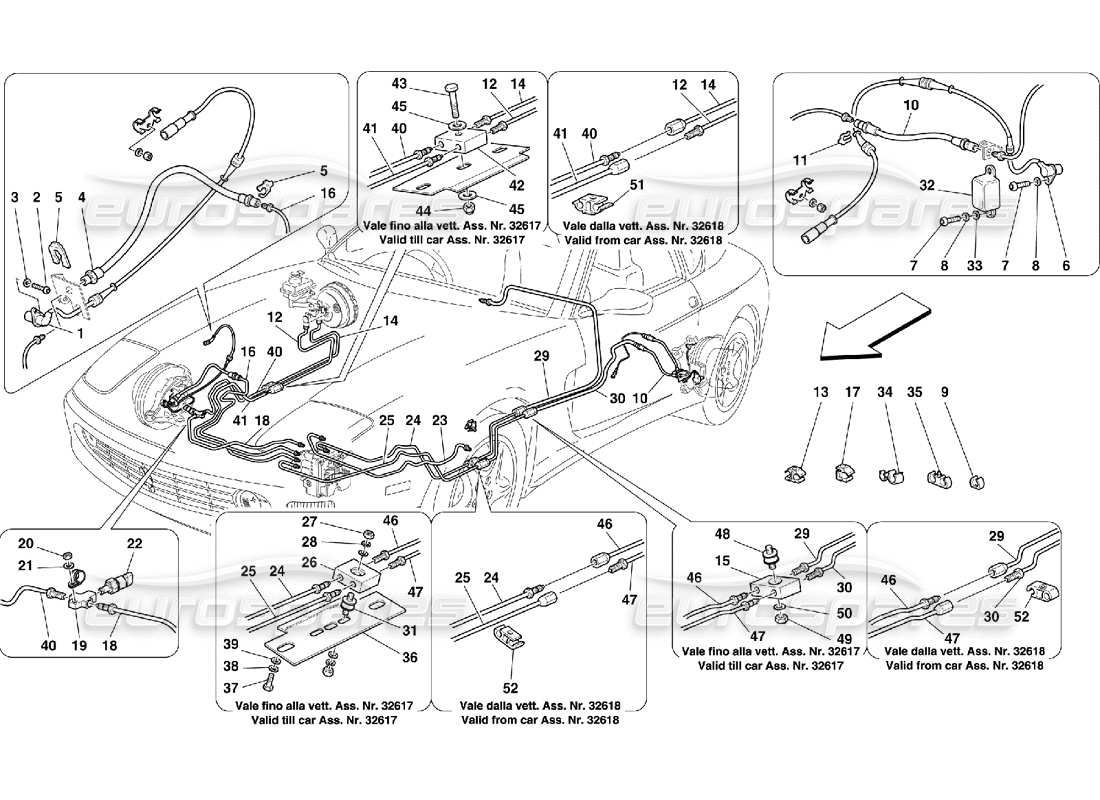

Ferrari 456 M GT/M GTA Brake System -Valid for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 163145
FRONT TOOTHED WHEEL SENSOR
from £82.19
from £82.19
# 002
MPN: 60909500
SCREW
from £1.26
from £1.26
# 003
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 004
MPN: 137313
HOSE
from £45.00
from £45.00
# 005
MPN: 116374
FIXING CLIP
from £1.16
from £1.16
# 006
MPN: 163146
REAR TOOTHED WHEEL SENSOR
from £46.77
from £46.77
# 007
MPN: 60909500
SCREW
from £1.26
from £1.26
# 008
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 009
MPN: 169477
CLIP
from £1.20
from £1.20
# 010
MPN: 137313
REAR HOSE
from £45.00
from £45.00
# 011
MPN: 116374
FIXING CLIP
from £1.16
from £1.16
# 012
MPN: 176876
BRAKE PIPE (FRONT) FROM PUMP TO RH FRONT UNION
- Valid till car Ass. Nr. 32617
from £9.64
from £9.64
# 012
MPN: 179826
BRAKE PIPE (FRONT) FROM PUMP TO RH JOINT
- Valid from car Ass. Nr. 32618
from £8.77
from £8.77
# 013
MPN: 143055
FIXING CLIP
from £0.47
from £0.47
# 014
MPN: 176874
BRAKE PIPE (REAR) FROM PUMP TO RH FRONT UNION
- Valid till car Ass. Nr. 32617
from £298.92
from £298.92
# 014
MPN: 179825
BRAKE PIPE (REAR) FROM PUMP TO RH JOINT
- Valid from car Ass. Nr. 32618
from £9.50
from £9.50
# 015
MPN: 169152
UNION
- Valid till car Ass. Nr. 32617
from £137.18
from £137.18
# 016
MPN: 176879
BRAKE PIPE FROM ABS CENTER UNIT TO RH FRONT FLEXIBLE PIPE
from £14.31
from £14.31
# 017
MPN: 141505
FIXING CLIP
from £0.54
from £0.54
# 018
MPN: 176878
BRAKE PIPE FROM PRESSURE SWITCH TO ABS CENTER UNIT
from £6.72
from £6.72
# 019
MPN: 10104661
3-WAY UNION
from £1.63
from £1.63
# 020
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 021
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 022
MPN: 154309
PRESS SWITCH
from £11.68
from £11.68
# 023
MPN: 176880
BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
from £11.28
from £11.28
# 024
MPN: 176881
BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT UNION - RH SIDE
- Valid till car Ass. Nr. 32617
# 024
MPN: 179828
BRAKE PIPE FROM ABS CENTER UNIT TO LH JOINT - RH SIDE
- Valid from car Ass. Nr. 32618
from £9.60
from £9.60
# 025
MPN: 178715
BRAKE PIPE FROM ABS CENTER UNIT TO LH UNION - LH SIDE
- Valid till car Ass. Nr. 32617
from £10.60
from £10.60
# 025
MPN: 179829
BRAKE PIPE FROM ABS CENTER UNIT TO LH JOINT - LH SIDE
- Valid from car Ass. Nr. 32618
from £9.86
from £9.86
# 026
MPN: 169152
UNION
- Valid till car Ass. Nr. 32617
from £137.18
from £137.18
# 027
MPN: 15896470
NUT
- Valid till car Ass. Nr. 32617 - (minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 028
MPN: 127493
WASHER
- Valid till car Ass. Nr. 32617
from £0.47
from £0.47
This part replaces part number 106849 - and 1 more. Click to view details
# 029
MPN: 179550
BRAKE PIPE FROM LH REAR UNION TO RH REAR FLEXIBLE PIPE
- Valid till car Ass. Nr. 32617
from £280.10
from £280.10
# 029
MPN: 179832
BRAKE PIPE FROM LH REAR JOINT TO RH REAR FLEXIBLE PIPE
- Valid from car Ass. Nr. 32618
Supersession
Supersession
# 030
MPN: 179362
BRAKE PIPE FROM LH REAR UNION TO LH REAR FLEXIBLE PIPE
- Valid till car Ass. Nr. 32617
from £12.80
from £12.80
# 031
MPN: 148835
PAD
from £7.66
from £7.66
# 032
MPN: 168148
REAR SENSOR PROTECTION
from £17.01
from £17.01
# 033
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 034
MPN: 150738
CLIP
from £0.47
from £0.47
# 035
MPN: 169476
CLIP
from £1.56
from £1.56
# 036
MPN: 178712
BRAKE PIPES FIXING BRACKET
- Valid till car Ass. Nr. 32617
from £3.97
from £3.97
# 037
MPN: 10902124
SCREW
- Valid till car Ass. Nr. 32617
from £0.47
from £0.47
This part replaces part number 10902111 - and 1 more. Click to view details
# 038
MPN: 12643778
WASHER
- Valid till car Ass. Nr. 32617 - (minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 12643777 - and 1 more. Click to view details
# 039
MPN: 12601274
WASHER
- Valid till car Ass. Nr. 32617
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 040
MPN: 178711
BRAKE PIPE FROM RH UNION TO PRESSURE SWITCH
from £6.18
from £6.18
# 041
MPN: 178710
BRAKE PIPE FROM RH UNION TO ABS CENTER UNIT
- Valid till car Ass. Nr. 32617
from £12.71
from £12.71
# 041
MPN: 179827
BRAKE PIPE FROM RH JOINT TO ABS CENTER UNIT
- Valid from car Ass. Nr. 32618
from £12.06
from £12.06
# 042
MPN: 157719
UNION
- Valid till car Ass. Nr. 32617
from £141.26
from £141.26
# 043
MPN: 10903024
SCREW
- Valid till car Ass. Nr. 32617
from £1.08
from £1.08
This part replaces part number 10903021 - and 1 more. Click to view details
# 044
MPN: 102741
NUT
- Valid till car Ass. Nr. 32617
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 045
MPN: 12639724
WASHER
- Valid till car Ass. Nr. 32617
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 046
MPN: 176882
BRAKE PIPE LH FRONT UNION TO UNDERFLOOR LH UNION - RH SIDE
- Valid till car Ass. Nr. 32617
from £8.70
from £8.70
# 046
MPN: 179831
BRAKE PIPE LH FRONT JOINT TO UNDERFLOOR LH JOINT - RH SIDE
- Valid from car Ass. Nr. 32618
from £8.36
from £8.36
# 047
MPN: 178716
BRAKE PIPE LH FRONT UNION TO UNDERFLOOR LH UNION - LH SIDE
- Valid till car Ass. Nr. 32617
# 047
MPN: 179830
BRAKE PIPE LH FRONT JOINT TO UNDERFLOOR LH JOINT - LH SIDE
- Valid from car Ass. Nr. 32618
from £8.20
from £8.20
# 048
MPN: 148835
PAD
- Valid till car Ass. Nr. 32617
from £7.66
from £7.66
# 049
MPN: 15896470
NUT
- Valid till car Ass. Nr. 32617 - (minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 050
MPN: 127493
WASHER
- Valid till car Ass. Nr. 32617
from £0.47
from £0.47
This part replaces part number 106849 - and 1 more. Click to view details
# 051
MPN: 143055
CLIP
- Valid from car Ass. Nr. 32618
from £0.47
from £0.47
# 052
MPN: 169476
CLIP
- Valid from car Ass. Nr. 32618
from £1.56
from £1.56
