ferrari 456 m gt/m gta hand-brake control -not for 456m gta parts diagram

052 - Hand-Brake Control -Not for 456M GTA

Ferrari 456 M GT/M GTA Hand-Brake Control -Not for 456M GTA Parts Diagram

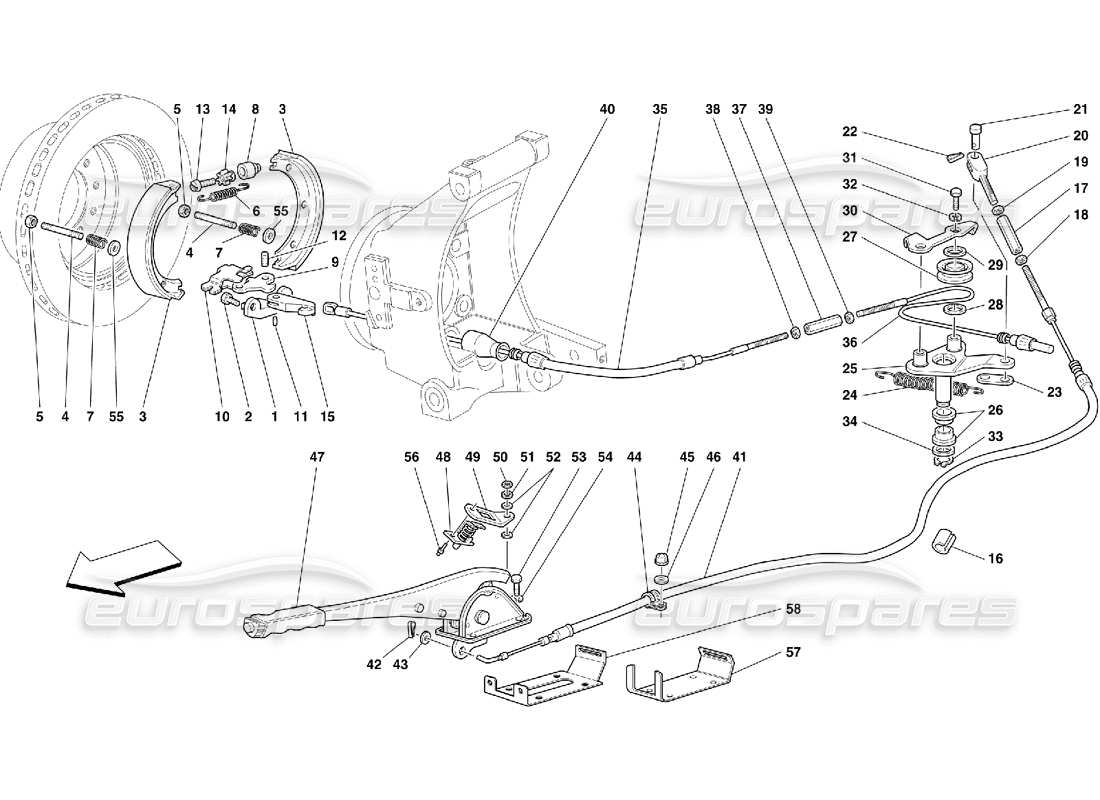

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 142861
                                                                                                          SMALL BLOCK
                                                                                                          from £82.29
                                                                                                          from £82.29
                                                                                                          # 002
                                                                                                          MPN: 142856
                                                                                                          SCREW
                                                                                                          from £2.47
                                                                                                          from £2.47
                                                                                                          # 003
                                                                                                          MPN: 178382
                                                                                                          COMPLETE BRAKE SHOE
                                                                                                          use part number: 170701
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 004
                                                                                                          MPN: 13539224
                                                                                                          STUD
                                                                                                          from £2.48
                                                                                                          from £2.48
                                                                                                          # 005
                                                                                                          MPN: 14058319
                                                                                                          NUT
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 139951 - and 1 more. Click to view details
                                                                                                          # 006
                                                                                                          MPN: 101276
                                                                                                          SPRING
                                                                                                          from £1.53
                                                                                                          from £1.53
                                                                                                          This part replaces part number 680516 - and 6 more. Click to view details
                                                                                                          # 007
                                                                                                          MPN: 177625
                                                                                                          SPRING
                                                                                                          from £65.63
                                                                                                          from £65.63
                                                                                                          # 008
                                                                                                          MPN: 101279
                                                                                                          SCREW SEAT
                                                                                                          from £31.50
                                                                                                          from £31.50
                                                                                                          # 009
                                                                                                          MPN: 101280
                                                                                                          INNER LEVER
                                                                                                          from £26.42
                                                                                                          from £26.42
                                                                                                          This part replaces part number 680538 - and 6 more. Click to view details
                                                                                                          # 010
                                                                                                          MPN: 101281
                                                                                                          OUTER LEVER
                                                                                                          from £34.56
                                                                                                          from £34.56
                                                                                                          This part replaces part number 680539 - and 7 more. Click to view details
                                                                                                          # 011
                                                                                                          MPN: 101282
                                                                                                          PIN
                                                                                                          from £4.02
                                                                                                          from £4.02
                                                                                                          This part replaces part number 680540 - and 1 more. Click to view details
                                                                                                          # 012
                                                                                                          MPN: 101283
                                                                                                          PIN
                                                                                                          from £8.70
                                                                                                          from £8.70
                                                                                                          This part replaces part number 680541 - and 3 more. Click to view details
                                                                                                          # 013
                                                                                                          MPN: 101285
                                                                                                          SCREW
                                                                                                          from £18.13
                                                                                                          from £18.13
                                                                                                          This part replaces part number 680543 - and 8 more. Click to view details
                                                                                                          # 014
                                                                                                          MPN: 101286
                                                                                                          NUT
                                                                                                          from £21.90
                                                                                                          from £21.90
                                                                                                          This part replaces part number 680544 - and 6 more. Click to view details
                                                                                                          # 016
                                                                                                          MPN: 152913
                                                                                                          PIPE
                                                                                                          from £23.81
                                                                                                          from £23.81
                                                                                                          # 017
                                                                                                          MPN: 152302
                                                                                                          ADJUSTMENT SLEEVE
                                                                                                          from £6.55
                                                                                                          from £6.55
                                                                                                          # 018
                                                                                                          MPN: 16102314
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 16102311 - and 1 more. Click to view details
                                                                                                          # 019
                                                                                                          MPN: 16102914
                                                                                                          NUT
                                                                                                          from £1.63
                                                                                                          from £1.63
                                                                                                          This part replaces part number 16102911
                                                                                                          # 020
                                                                                                          MPN: 152301
                                                                                                          FORK
                                                                                                          from £24.70
                                                                                                          from £24.70
                                                                                                          # 021
                                                                                                          MPN: 10050814
                                                                                                          PIN
                                                                                                          from £1.29
                                                                                                          from £1.29
                                                                                                          This part replaces part number 10050811
                                                                                                          # 022
                                                                                                          MPN: 10734201
                                                                                                          SPLIT PIN
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 023
                                                                                                          MPN: 152303
                                                                                                          SMALL PLATE
                                                                                                          from £14.09
                                                                                                          from £14.09
                                                                                                          # 025
                                                                                                          MPN: 152279
                                                                                                          LEVER
                                                                                                          - Not for GD
                                                                                                          from £40.93
                                                                                                          from £40.93
                                                                                                          # 025
                                                                                                          MPN: 156122
                                                                                                          LEVER
                                                                                                          - Valid for GD
                                                                                                          from £57.75
                                                                                                          from £57.75
                                                                                                          # 026
                                                                                                          MPN: 152273
                                                                                                          BUSHING
                                                                                                          from £5.46
                                                                                                          from £5.46
                                                                                                          # 027
                                                                                                          MPN: 175780
                                                                                                          PULLEY
                                                                                                          from £7.01
                                                                                                          from £7.01
                                                                                                          This part replaces part number 152274
                                                                                                          # 028
                                                                                                          MPN: 152617
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 029
                                                                                                          MPN: 109483
                                                                                                          WASHER
                                                                                                          from £0.92
                                                                                                          from £0.92
                                                                                                          # 030
                                                                                                          MPN: 152299
                                                                                                          SMALL PLATE
                                                                                                          - Not for GD
                                                                                                          from £3.99
                                                                                                          from £3.99
                                                                                                          # 030
                                                                                                          MPN: 158694
                                                                                                          SMALL PLATE
                                                                                                          - Valid for GD
                                                                                                          from £5.88
                                                                                                          from £5.88
                                                                                                          # 031
                                                                                                          MPN: 10977524
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 032
                                                                                                          MPN: 11193274
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          This part replaces part number 11193279 which we have in stock
                                                                                                          # 033
                                                                                                          MPN: 11066476
                                                                                                          SEEGER RING
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 034
                                                                                                          MPN: 152300
                                                                                                          WASHER
                                                                                                          from £0.92
                                                                                                          from £0.92
                                                                                                          # 035
                                                                                                          MPN: 152297
                                                                                                          RH REAR CABLE
                                                                                                          from £118.14
                                                                                                          from £118.14
                                                                                                          # 036
                                                                                                          MPN: 152298
                                                                                                          L. H. REAR CABLE
                                                                                                          from £64.98
                                                                                                          from £64.98
                                                                                                          # 037
                                                                                                          MPN: 10091014
                                                                                                          SLEEVE
                                                                                                          from £46.19
                                                                                                          from £46.19
                                                                                                          This part replaces part number 10091011
                                                                                                          # 038
                                                                                                          MPN: 10727314
                                                                                                          NUT
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          This part replaces part number 10727311
                                                                                                          # 039
                                                                                                          MPN: 10725914
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 10725911 - and 1 more. Click to view details
                                                                                                          # 040
                                                                                                          MPN: 143938
                                                                                                          STOP LIMIT FOR HAND BRAKE SHEATH
                                                                                                          from £16.37
                                                                                                          from £16.37
                                                                                                          # 041
                                                                                                          MPN: 154180
                                                                                                          HAND-BRAKE CONTROL CABLE
                                                                                                          from £58.38
                                                                                                          from £58.38
                                                                                                          # 042
                                                                                                          MPN: 10796440
                                                                                                          SPLIT PIN
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 264555
                                                                                                          # 043
                                                                                                          MPN: 10519624
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                          # 044
                                                                                                          MPN: 10441290
                                                                                                          BRACKET WITH SHEATH
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 045
                                                                                                          MPN: 102741
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                          # 046
                                                                                                          MPN: 12639724
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                          # 047
                                                                                                          MPN: 154095
                                                                                                          HAND BRAKE LEVER
                                                                                                          - Without lining
                                                                                                          from £242.19
                                                                                                          from £242.19
                                                                                                          This part replaces part number 141460 - and 2 more. Click to view details
                                                                                                          # 047
                                                                                                          MPN: 657538..
                                                                                                          LINING
                                                                                                          - See relevant table for leather colours
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 049
                                                                                                          MPN: 169291
                                                                                                          SUPPORT BRACKET
                                                                                                          from £1.55
                                                                                                          from £1.55
                                                                                                          # 050
                                                                                                          MPN: 15896470
                                                                                                          NUT
                                                                                                          (minimum order quantity = 20)
                                                                                                          from £0.78
                                                                                                          from £0.78
                                                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                          # 051
                                                                                                          MPN: 12605274
                                                                                                          WASHER
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                                          # 053
                                                                                                          MPN: 10902124
                                                                                                          SCREW
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                          # 054
                                                                                                          MPN: 127494
                                                                                                          WASHER
                                                                                                          (minimum order quantity = 20)
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                          # 055
                                                                                                          MPN: 12637824
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                          # 056
                                                                                                          MPN: 50084409
                                                                                                          RIVET
                                                                                                          from £0.93
                                                                                                          from £0.93
                                                                                                          # 057
                                                                                                          MPN: 64051200
                                                                                                          SUPPORT
                                                                                                          from £8.50
                                                                                                          from £8.50
                                                                                                          # 058
                                                                                                          MPN: 65562800
                                                                                                          BRACKET
                                                                                                          from £7.94
                                                                                                          from £7.94
                                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
