053 - Hand-Brake Control -Valid for 456M GTA

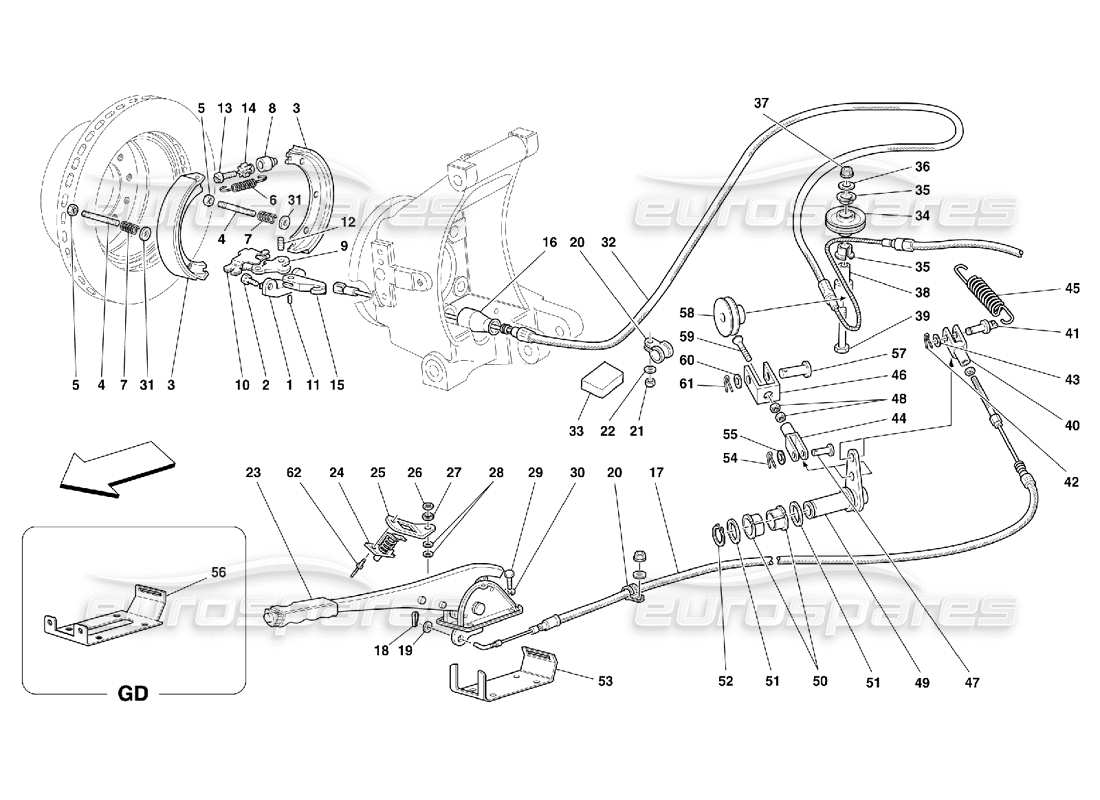

Ferrari 456 M GT/M GTA Hand-Brake Control -Valid for 456M GTA Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 142861
SMALL BLOCK
from £147.71
from £147.71
# 002
MPN: 142856
SCREW
from £3.01
from £3.01
# 003
MPN: 178382
COMPLETE BRAKE SHOE
use part number: 170701
Supersession
Supersession
# 004
MPN: 13539224
STUD
from £3.79
from £3.79
# 005
MPN: 14058319
NUT
from £0.53
from £0.53
This part replaces part number 139951 - and 1 more. Click to view details
# 006
MPN: 101276
SPRING
from £1.51
from £1.51
This part replaces part number 680516 - and 5 more. Click to view details
# 007
MPN: 177625
SPRING
from £65.63
from £65.63
# 008
MPN: 101279
SCREW SEAT
from £31.50
from £31.50
# 009
MPN: 101280
INNER LEVER
from £26.09
from £26.09
This part replaces part number 680538 - and 6 more. Click to view details
# 010
MPN: 101281
OUTER LEVER
from £34.13
from £34.13
This part replaces part number 680539 - and 7 more. Click to view details
# 011
MPN: 101282
PIN
from £8.00
from £8.00
This part replaces part number 680540
# 012
MPN: 101283
PIN
from £8.82
from £8.82
This part replaces part number 680541 - and 1 more. Click to view details
# 013
MPN: 101285
SCREW
from £17.70
from £17.70
This part replaces part number 680543 - and 9 more. Click to view details
# 014
MPN: 101286
NUT
from £21.62
from £21.62
This part replaces part number 680544 - and 5 more. Click to view details
# 015
MPN: 105270
FORK
from £14.71
from £14.71
# 016
MPN: 143938
STOP LIMIT FOR HAND BRAKE SHEATH
from £16.25
from £16.25
# 017
MPN: 172908
HAND-BRAKE CONTROL FRONT CABLE
from £12.75
from £12.75
# 018
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 019
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 020
MPN: 10441290
BRACKET WITH SHEATH
from £0.50
from £0.50
# 021
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 022
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 023
MPN: 154095
HAND BRAKE LEVER
- Without lining
from £240.29
from £240.29
This part replaces part number 141460 - and 2 more. Click to view details
# 023
MPN: 657538..
LINING
- See relevant table for leather colours
Supersession
Supersession
# 024
MPN: 169292
SWITCH
from £0.68
from £0.68
# 025
MPN: 169291
BRACKET
from £1.55
from £1.55
# 026
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 027
MPN: 12605274
WASHER
from £0.71
from £0.71
This part replaces part number 12605270 - and 1 more. Click to view details
# 028
MPN: 63622400
WASHER
from £24.26
from £24.26
# 029
MPN: 10902124
SCREW
from £0.51
from £0.51
This part replaces part number 10902111 - and 1 more. Click to view details
# 030
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 031
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 032
MPN: 172909
HAND-BRAKE CONTROL REAR CABLE
from £18.70
from £18.70
# 033
MPN: 158346
RUBBER THICKNESS
from £0.79
from £0.79
# 034
MPN: 175781
PULLEY
from £29.17
from £29.17
This part replaces part number 163188 - and 3 more. Click to view details
# 035
MPN: 163501
BUSHING
from £3.01
from £3.01
# 036
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 037
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 038
MPN: 163182
PIN
from £5.48
from £5.48
# 039
MPN: 10903421
SCREW
from £1.08
from £1.08
# 040
MPN: 10007871
FORK
from £6.02
from £6.02
# 041
MPN: 168954
PIN
from £17.64
from £17.64
# 042
MPN: 10734301
SPLIT PIN
from £0.53
from £0.53
# 043
MPN: 107618
WASHER
from £1.12
from £1.12
# 044
MPN: 10248271
FORK
from £12.73
from £12.73
# 045
MPN: 104895
SPRING
from £2.94
from £2.94
# 046
MPN: 172906
FORK
from £15.36
from £15.36
# 047
MPN: 10050814
PIN
from £1.34
from £1.34
This part replaces part number 10050811
# 048
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 049
MPN: 163192
BRAKE LEVER CABLE
from £100.34
from £100.34
# 050
MPN: 152273
BUSHING
from £5.39
from £5.39
# 051
MPN: 152300
WASHER
from £0.92
from £0.92
# 052
MPN: 11066476
SEEGER RING
from £0.53
from £0.53
# 053
MPN: 64051200
SUPPORT
from £8.50
from £8.50
# 054
MPN: 10734301
SPLIT PIN
from £0.53
from £0.53
# 055
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 056
MPN: 65562800
BRACKET
- Valid for GD
from £8.20
from £8.20
# 057
MPN: 172907
PIN
from £4.93
from £4.93
# 058
MPN: 175781
PULLEY
from £29.17
from £29.17
This part replaces part number 163188 - and 3 more. Click to view details
# 059
MPN: 14442434
SCREW
from £0.53
from £0.53
# 060
MPN: 14499624
WASHER
from £0.54
from £0.54
# 061
MPN: 10733601
SPLIT PIN
from £0.53
from £0.53
This part replaces part number C1
# 062
MPN: 50084409
RIVET
from £0.93
from £0.93
