054 - Hydraulic Steering Box and Serpentine -Not for GD

Ferrari 456 M GT/M GTA Hydraulic Steering Box and Serpentine -Not for GD Parts Diagram

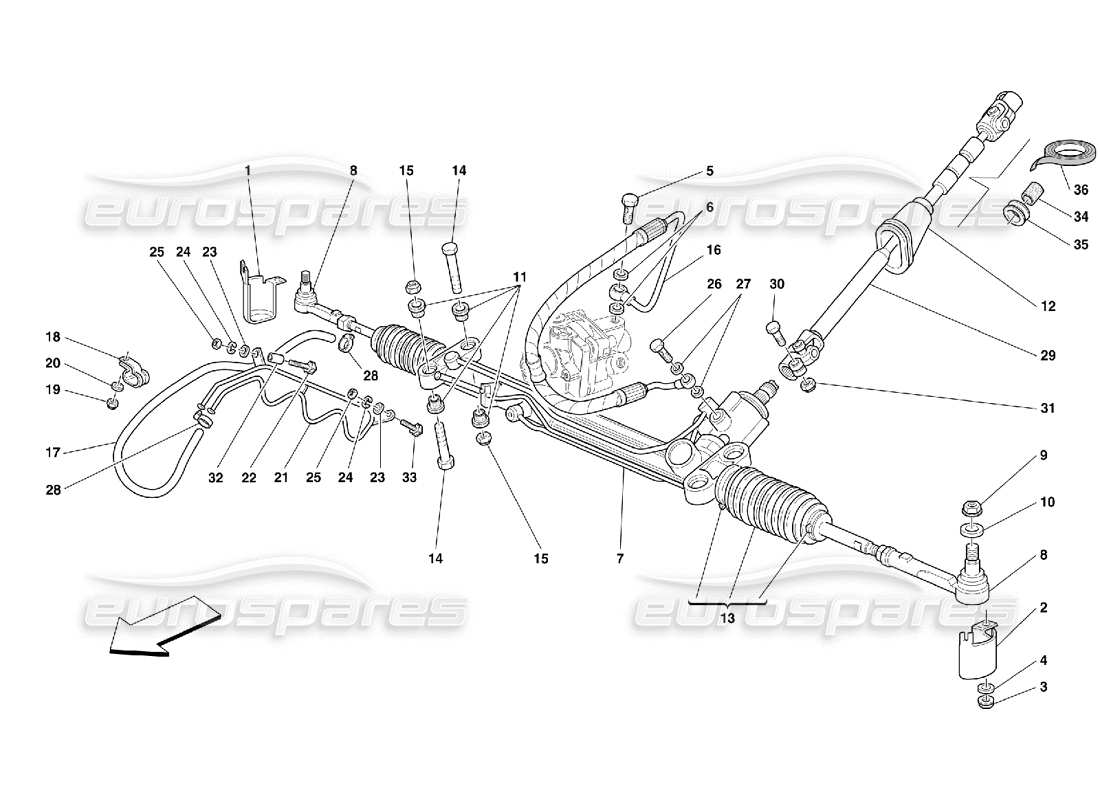

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 150879
                                                                      LH BALL JOINT PROTECTION
                                                                      from £3.84
                                                                      from £3.84
                                                                      # 002
                                                                      MPN: 150878
                                                                      RH BALL JOINT PROTECTION
                                                                      from £5.39
                                                                      from £5.39
                                                                      # 003
                                                                      MPN: 14058319
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 139951 - and 1 more. Click to view details
                                                                      # 004
                                                                      MPN: 62764900
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 006
                                                                      MPN: 10278660
                                                                      GASKET
                                                                      from £0.77
                                                                      from £0.77
                                                                      # 007
                                                                      MPN: 174950
                                                                      Steering box
                                                                      from £4,198.40
                                                                      from £4,198.40
                                                                      # 008
                                                                      MPN: 158016
                                                                      BALL JOINT
                                                                      from £110.00
                                                                      from £110.00
                                                                      # 009
                                                                      MPN: 149807
                                                                      NUT
                                                                      from £0.63
                                                                      from £0.63
                                                                      # 010
                                                                      MPN: 155002
                                                                      WASHER
                                                                      from £6.90
                                                                      from £6.90
                                                                      # 011
                                                                      MPN: 155567
                                                                      SILENT BLOCK
                                                                      from £72.32
                                                                      from £72.32
                                                                      # 012
                                                                      MPN: 167341
                                                                      GASKET FOR SHIELD
                                                                      from £21.87
                                                                      from £21.87
                                                                      This part replaces part number 154807
                                                                      # 013
                                                                      MPN: 171702
                                                                      COMPLETE RUBBER BOOT
                                                                      Supersession
                                                                      Supersession
                                                                      # 014
                                                                      MPN: 175701
                                                                      SCREW
                                                                      from £1.33
                                                                      from £1.33
                                                                      This part replaces part number 16287634 which we have in stock
                                                                      # 015
                                                                      MPN: 175283
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 016
                                                                      MPN: 170860
                                                                      PIPE FROM PUMP TO STEERING BOX
                                                                      from £165.06
                                                                      from £165.06
                                                                      # 017
                                                                      MPN: 155572
                                                                      RUBBER PIPE TO COOLING PIPE
                                                                      Supersession
                                                                      Supersession
                                                                      # 018
                                                                      MPN: 61712500
                                                                      BRACKET WITH SHEATH
                                                                      from £0.88
                                                                      from £0.88
                                                                      # 019
                                                                      MPN: 102948
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                      # 020
                                                                      MPN: 12639724
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12639725 - and 1 more. Click to view details
                                                                      # 021
                                                                      MPN: 156656

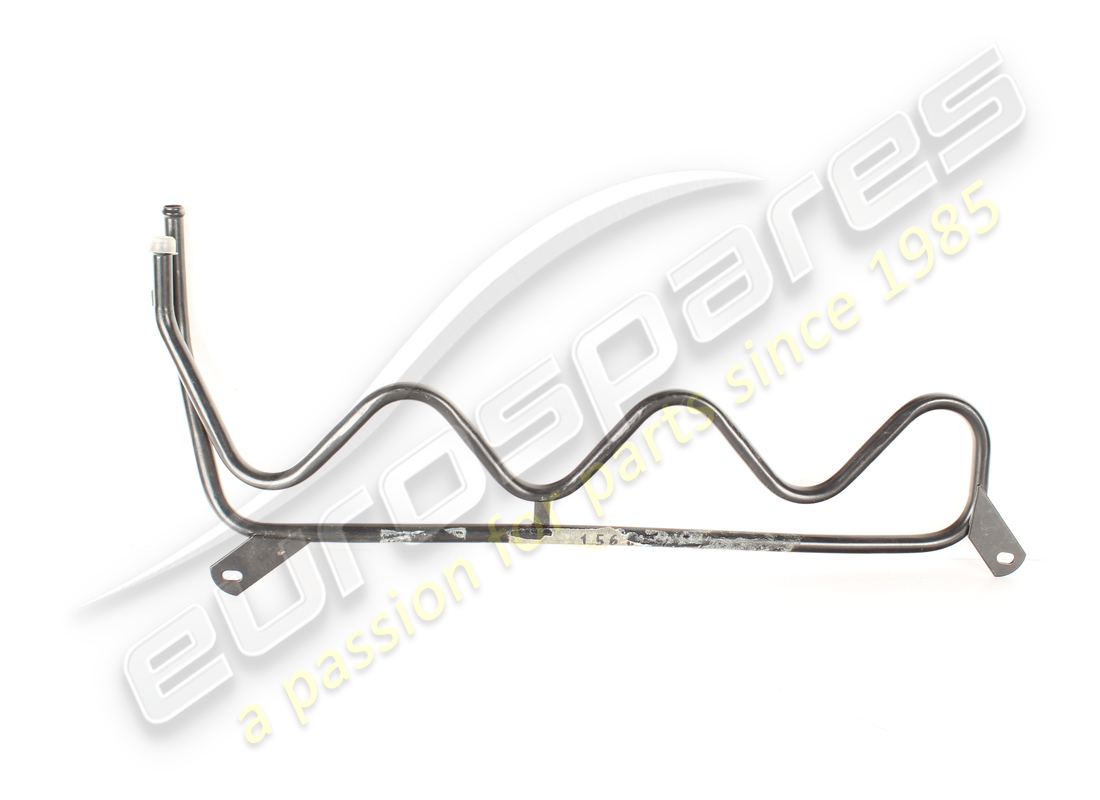

                                                                      REFRIGERATING COIL
                                                                      from £54.14
                                                                      from £54.14
                                                                      # 022
                                                                      MPN: 14662495
                                                                      SCREW
                                                                      - Lower side
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 022
                                                                      MPN: 14663195
                                                                      SCREW
                                                                      - Upper side
                                                                      from £1.04
                                                                      from £1.04
                                                                      # 023
                                                                      MPN: 12646601
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 024
                                                                      MPN: 127494
                                                                      WASHER
                                                                      (minimum order quantity = 20)
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                      # 025
                                                                      MPN: 15896214
                                                                      NUT
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 15896211
                                                                      # 026
                                                                      MPN: 170862
                                                                      UNION
                                                                      from £15.04
                                                                      from £15.04
                                                                      # 027
                                                                      MPN: 10280060
                                                                      GASKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 100501 - and 3 more. Click to view details
                                                                      # 028
                                                                      MPN: 161490
                                                                      SCREW COLLAR
                                                                      from £1.02
                                                                      from £1.02
                                                                      # 029
                                                                      MPN: 174505
                                                                      CARDANIC TRANSMISSION
                                                                      from £844.54
                                                                      from £844.54
                                                                      # 030
                                                                      MPN: 150427
                                                                      SCREW
                                                                      from £3.17
                                                                      from £3.17
                                                                      This part replaces part number 150428 which we have in stock
                                                                      # 031
                                                                      MPN: 150428
                                                                      NUT
                                                                      from £0.42
                                                                      from £0.42
                                                                      # 032
                                                                      MPN: 165878
                                                                      SPACER
                                                                      from £4.20
                                                                      from £4.20
                                                                      # 033
                                                                      MPN: 14664790
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 034
                                                                      MPN: 167379
                                                                      RUBBER HOSE
                                                                      from £6.96
                                                                      from £6.96
                                                                      # 035
                                                                      MPN: 167376
                                                                      SEAL RING
                                                                      from £0.83
                                                                      from £0.83
                                                                      # 036
                                                                      MPN: 179038
                                                                      FILM FOR CARDANIC TRASMISSION
                                                                      Supersession
                                                                      Supersession
