ferrari 456 m gt/m gta hydraulic steering box and serpentine -valid for gd parts diagram

055 - Hydraulic Steering Box and Serpentine -Valid for GD

Ferrari 456 M GT/M GTA Hydraulic Steering Box and Serpentine -Valid for GD Parts Diagram

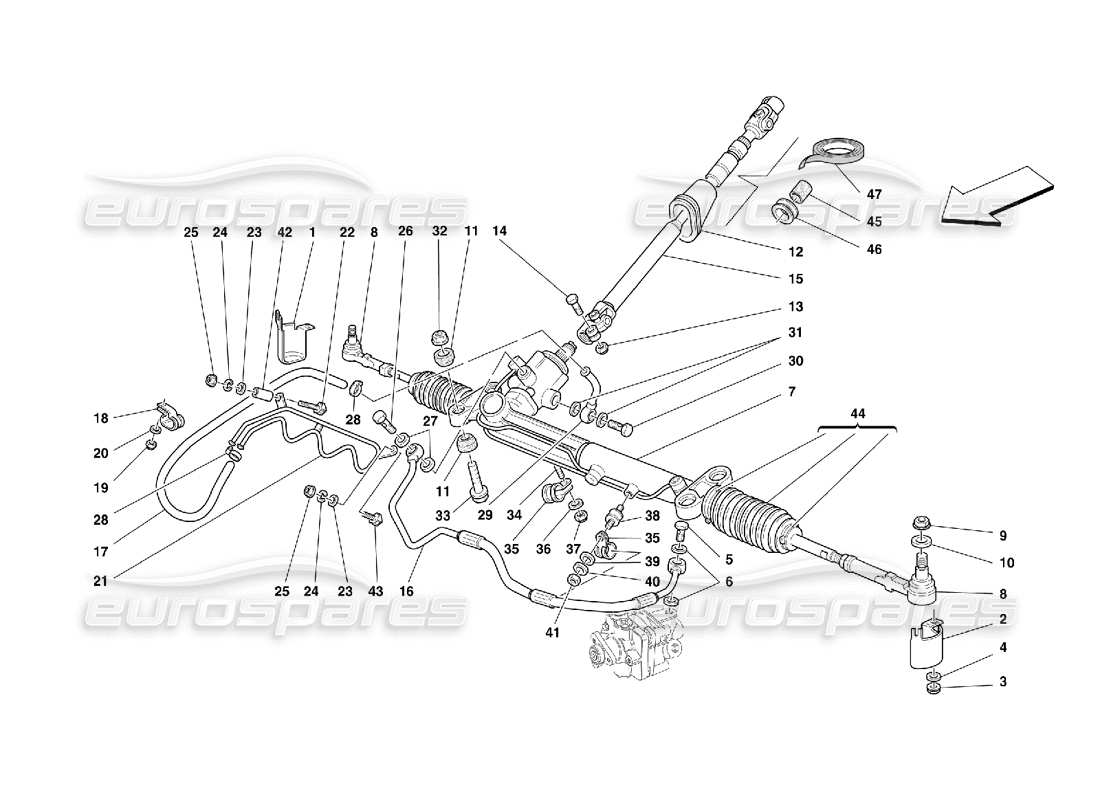

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 150879
                                                                                          LH BALL JOINT PROTECTION
                                                                                          from £3.84
                                                                                          from £3.84
                                                                                          # 002
                                                                                          MPN: 150878
                                                                                          RH BALL JOINT PROTECTION
                                                                                          from £5.39
                                                                                          from £5.39
                                                                                          # 003
                                                                                          MPN: 14058319
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 139951 - and 1 more. Click to view details
                                                                                          # 004
                                                                                          MPN: 62764900
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 006
                                                                                          MPN: 10278660
                                                                                          GASKET
                                                                                          from £0.85
                                                                                          from £0.85
                                                                                          # 007
                                                                                          MPN: 175141

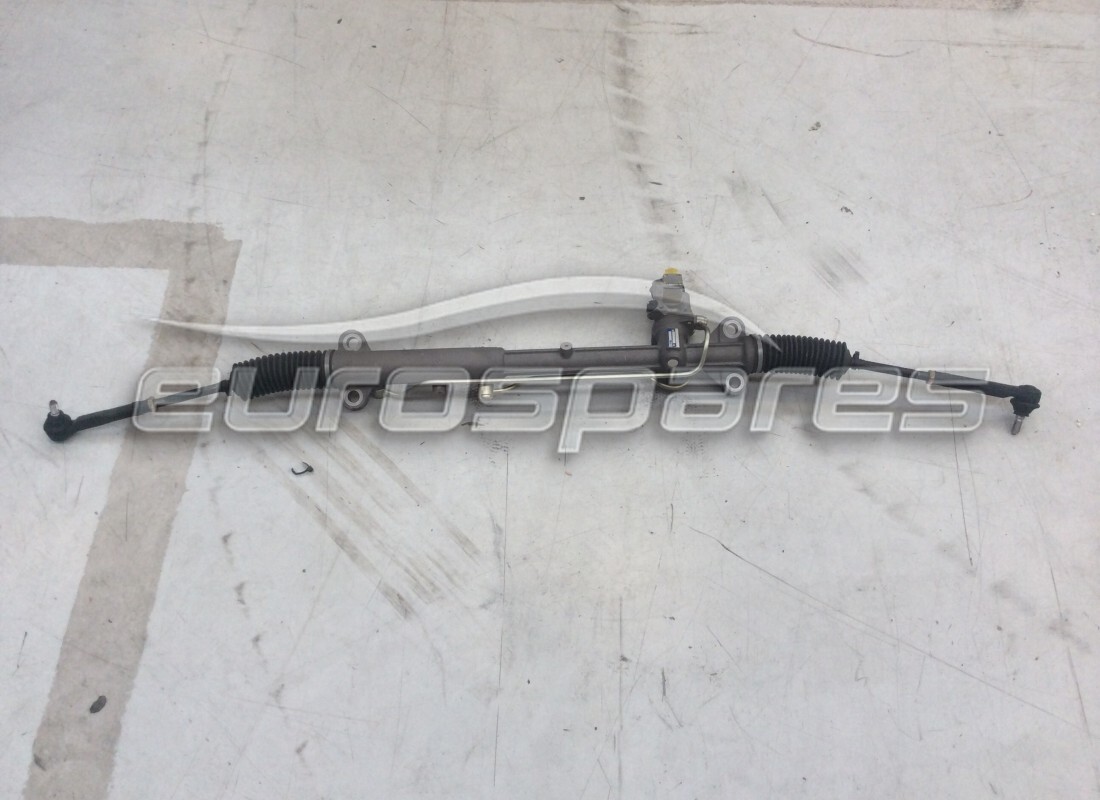

                                                                                          Steering box
                                                                                          from £1,585.48
                                                                                          from £1,585.48
                                                                                          # 008
                                                                                          MPN: 158016
                                                                                          BALL JOINT
                                                                                          from £110.00
                                                                                          from £110.00
                                                                                          # 009
                                                                                          MPN: 149807
                                                                                          NUT
                                                                                          from £0.63
                                                                                          from £0.63
                                                                                          # 010
                                                                                          MPN: 155002
                                                                                          WASHER
                                                                                          from £6.69
                                                                                          from £6.69
                                                                                          # 011
                                                                                          MPN: 155567
                                                                                          PAD
                                                                                          from £72.32
                                                                                          from £72.32
                                                                                          # 012
                                                                                          MPN: 167341
                                                                                          GASKET FOR SHIELD
                                                                                          from £21.87
                                                                                          from £21.87
                                                                                          This part replaces part number 154807
                                                                                          # 013
                                                                                          MPN: 150428
                                                                                          NUT
                                                                                          from £0.42
                                                                                          from £0.42
                                                                                          # 014
                                                                                          MPN: 150427
                                                                                          SCREW
                                                                                          from £3.17
                                                                                          from £3.17
                                                                                          This part replaces part number 150428 which we have in stock
                                                                                          # 015
                                                                                          MPN: 176927
                                                                                          CARDANIC TRANSMISSION
                                                                                          from £404.11
                                                                                          from £404.11
                                                                                          # 016
                                                                                          MPN: 171813
                                                                                          PIPE FROM PUMP TO STEERING BOX
                                                                                          from £407.72
                                                                                          from £407.72
                                                                                          # 017
                                                                                          MPN: 157747
                                                                                          RUBBER PIPE TO COOLING PIPE
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 018
                                                                                          MPN: 139512
                                                                                          BRACKET WITH SHEATH
                                                                                          from £1.20
                                                                                          from £1.20
                                                                                          # 019
                                                                                          MPN: 102948
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                          # 020
                                                                                          MPN: 14499324
                                                                                          WASHER
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          This part replaces part number 14499301 which we have in stock
                                                                                          # 021
                                                                                          MPN: 156656
                                                                                          REFRIGERATING COIL
                                                                                          from £54.14
                                                                                          from £54.14
                                                                                          # 022
                                                                                          MPN: 14662495
                                                                                          SCREW
                                                                                          - Lower side
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 022
                                                                                          MPN: 14663195
                                                                                          SCREW
                                                                                          - Upper side
                                                                                          from £1.04
                                                                                          from £1.04
                                                                                          # 023
                                                                                          MPN: 12646601
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 024
                                                                                          MPN: 127494
                                                                                          WASHER
                                                                                          (minimum order quantity = 20)
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                          # 025
                                                                                          MPN: 15896214
                                                                                          NUT
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 15896211
                                                                                          # 026
                                                                                          MPN: 170862
                                                                                          UNION
                                                                                          from £15.04
                                                                                          from £15.04
                                                                                          # 027
                                                                                          MPN: 10280060
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 100501 - and 3 more. Click to view details
                                                                                          # 028
                                                                                          MPN: 13000390
                                                                                          SCREW COLLAR
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                          # 029
                                                                                          MPN: 159714
                                                                                          UNION
                                                                                          from £13.16
                                                                                          from £13.16
                                                                                          # 030
                                                                                          MPN: 10185111
                                                                                          UNION
                                                                                          from £2.25
                                                                                          from £2.25
                                                                                          # 031
                                                                                          MPN: 10280060
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 100501 - and 3 more. Click to view details
                                                                                          # 032
                                                                                          MPN: 175283
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 033
                                                                                          MPN: 175701
                                                                                          SCREW
                                                                                          from £1.33
                                                                                          from £1.33
                                                                                          This part replaces part number 16287634 which we have in stock
                                                                                          # 034
                                                                                          MPN: 11500124
                                                                                          STUD
                                                                                          from £0.68
                                                                                          from £0.68
                                                                                          This part replaces part number 11500121
                                                                                          # 035
                                                                                          MPN: 10441890
                                                                                          BRACKET WITH SHEATH
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 036
                                                                                          MPN: 14496424
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                          # 037
                                                                                          MPN: 102948
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                          # 039
                                                                                          MPN: 14496424
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                          # 040
                                                                                          MPN: 127494
                                                                                          WASHER
                                                                                          (minimum order quantity = 20)
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                          # 041
                                                                                          MPN: 15896214
                                                                                          NUT
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 15896211
                                                                                          # 042
                                                                                          MPN: 165878
                                                                                          SPACER
                                                                                          from £4.20
                                                                                          from £4.20
                                                                                          # 043
                                                                                          MPN: 14664790
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 044
                                                                                          MPN: 171702
                                                                                          COMPLETE RUBBER BOOT
                                                                                          from £133.04
                                                                                          from £133.04
                                                                                          # 045
                                                                                          MPN: 167379
                                                                                          RUBBER HOSE
                                                                                          from £6.96
                                                                                          from £6.96
                                                                                          # 046
                                                                                          MPN: 167376
                                                                                          SEAL RING
                                                                                          from £0.83
                                                                                          from £0.83
                                                                                          # 047
                                                                                          MPN: 179038
                                                                                          FILM FOR CARDANIC TRASMISSION
                                                                                          Supersession
                                                                                          Supersession
