ferrari 456 m gt/m gta self-levelling suspension system -not for 456m gta parts diagram

058 - Self-Levelling Suspension System -Not for 456M GTA

Ferrari 456 M GT/M GTA Self-Levelling Suspension System -Not for 456M GTA Parts Diagram

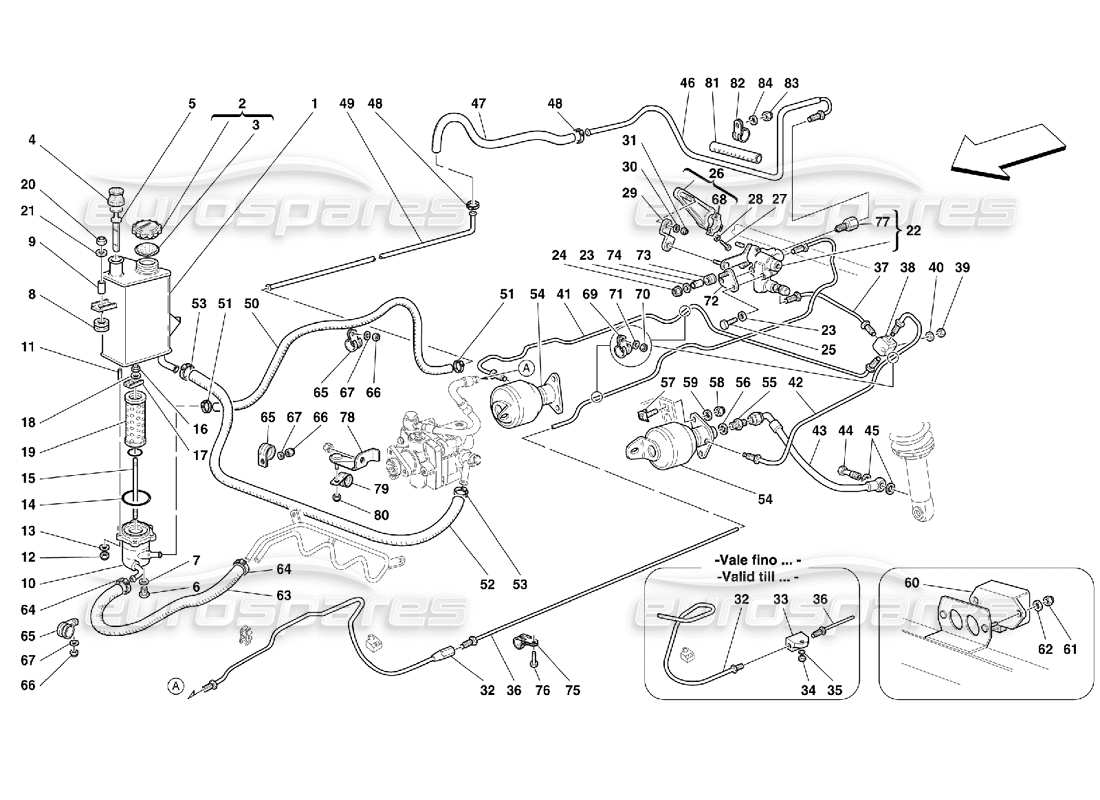

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                            #
                                                                                                                                            Part number
                                                                                                                                            Description
                                                                                                                                            Price
                                                                                                                                            # 001
                                                                                                                                            MPN: 179185
                                                                                                                                            FUEL TANK
                                                                                                                                            from £204.71
                                                                                                                                            from £204.71
                                                                                                                                            This part replaces part number 153642 - and 3 more. Click to view details
                                                                                                                                            # 002
                                                                                                                                            MPN: 180320
                                                                                                                                            FUEL CAP
                                                                                                                                            - Not as spare part now - Replaced by 180590
                                                                                                                                            from £95.00
                                                                                                                                            from £95.00
                                                                                                                                            # 002
                                                                                                                                            MPN: 180590
                                                                                                                                            COMPLETE PLUG
                                                                                                                                            from £43.10
                                                                                                                                            from £43.10
                                                                                                                                            # 003
                                                                                                                                            MPN: 175709
                                                                                                                                            GASKET
                                                                                                                                            - For plug 175708
                                                                                                                                            from £21.92
                                                                                                                                            from £21.92
                                                                                                                                            This part replaces part number 142792
                                                                                                                                            # 003
                                                                                                                                            MPN: 180585
                                                                                                                                            GASKET
                                                                                                                                            - For plug 180590
                                                                                                                                            from £46.53
                                                                                                                                            from £46.53
                                                                                                                                            This part replaces part number 145625
                                                                                                                                            # 004
                                                                                                                                            MPN: 153887
                                                                                                                                            PLUG
                                                                                                                                            from £3.04
                                                                                                                                            from £3.04
                                                                                                                                            # 005
                                                                                                                                            MPN: 154090
                                                                                                                                            OIL LEVEL INDICATOR ROD
                                                                                                                                            from £3.88
                                                                                                                                            from £3.88
                                                                                                                                            # 006
                                                                                                                                            MPN: 11903111
                                                                                                                                            OIL OUTLET PLUG
                                                                                                                                            from £0.57
                                                                                                                                            from £0.57
                                                                                                                                            # 007
                                                                                                                                            MPN: 10260160
                                                                                                                                            GASKET
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 10260170
                                                                                                                                            # 008
                                                                                                                                            MPN: 103549
                                                                                                                                            RUBBER BUSH
                                                                                                                                            from £0.69
                                                                                                                                            from £0.69
                                                                                                                                            # 009
                                                                                                                                            MPN: 103550
                                                                                                                                            SPACER
                                                                                                                                            from £1.14
                                                                                                                                            from £1.14
                                                                                                                                            This part replaces part number 4130913
                                                                                                                                            # 010
                                                                                                                                            MPN: 154089
                                                                                                                                            SPINDLE FOR FUEL TANK
                                                                                                                                            - Not as spare part now - Replaced by 181233
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 010
                                                                                                                                            MPN: 181233
                                                                                                                                            SPINDLE FOR FUEL TANK
                                                                                                                                            from £101.18
                                                                                                                                            from £101.18
                                                                                                                                            This part replaces part number 154089 - and 3 more. Click to view details
                                                                                                                                            # 011
                                                                                                                                            MPN: 13539424
                                                                                                                                            STUD
                                                                                                                                            from £1.18
                                                                                                                                            from £1.18
                                                                                                                                            # 012
                                                                                                                                            MPN: 169180
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12574121
                                                                                                                                            # 013
                                                                                                                                            MPN: 14496324
                                                                                                                                            WASHER
                                                                                                                                            from £1.39
                                                                                                                                            from £1.39
                                                                                                                                            This part replaces part number 14496301 which we have in stock
                                                                                                                                            # 014
                                                                                                                                            MPN: 154691
                                                                                                                                            O.R. GASKET
                                                                                                                                            from £0.88
                                                                                                                                            from £0.88
                                                                                                                                            # 015
                                                                                                                                            MPN: 153646
                                                                                                                                            STUD
                                                                                                                                            from £5.25
                                                                                                                                            from £5.25
                                                                                                                                            # 016
                                                                                                                                            MPN: 102948
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                                            # 017
                                                                                                                                            MPN: 157100
                                                                                                                                            PLATE
                                                                                                                                            from £1.56
                                                                                                                                            from £1.56
                                                                                                                                            # 018
                                                                                                                                            MPN: 14496424
                                                                                                                                            WASHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                                                                            # 019
                                                                                                                                            MPN: 154217
                                                                                                                                            OIL FILTER
                                                                                                                                            from £16.33
                                                                                                                                            from £16.33
                                                                                                                                            # 020
                                                                                                                                            MPN: 102948
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                                            # 021
                                                                                                                                            MPN: 12643724
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 109684 - and 3 more. Click to view details
                                                                                                                                            # 022
                                                                                                                                            MPN: 153814
                                                                                                                                            VALVE
                                                                                                                                            - Not as spare part now - Replaced by 179046
                                                                                                                                            from £657.57
                                                                                                                                            from £657.57
                                                                                                                                            # 022
                                                                                                                                            MPN: 179046
                                                                                                                                            VALVE AND UNION ASSEMBLY
                                                                                                                                            from £590.73
                                                                                                                                            from £590.73
                                                                                                                                            # 023
                                                                                                                                            MPN: 12643724
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 109684 - and 3 more. Click to view details
                                                                                                                                            # 024
                                                                                                                                            MPN: 102948
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                                            # 025
                                                                                                                                            MPN: 10902834
                                                                                                                                            SCREW
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 026
                                                                                                                                            MPN: 156709
                                                                                                                                            LEVER
                                                                                                                                            from £78.90
                                                                                                                                            from £78.90
                                                                                                                                            This part replaces part number 154960 - and 1 more. Click to view details
                                                                                                                                            # 027
                                                                                                                                            MPN: 10978024
                                                                                                                                            SCREW
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 028
                                                                                                                                            MPN: 14496324
                                                                                                                                            WASHER
                                                                                                                                            from £1.39
                                                                                                                                            from £1.39
                                                                                                                                            This part replaces part number 14496301 which we have in stock
                                                                                                                                            # 029
                                                                                                                                            MPN: 153810
                                                                                                                                            SMALL LINK
                                                                                                                                            - Not as spare part now - Replaced by 180857
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 029
                                                                                                                                            MPN: 180857
                                                                                                                                            SMALL LINK
                                                                                                                                            from £67.32
                                                                                                                                            from £67.32
                                                                                                                                            This part replaces part number 153810
                                                                                                                                            # 030
                                                                                                                                            MPN: 10519224
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 10519201 which we have in stock
                                                                                                                                            # 031
                                                                                                                                            MPN: 62790300
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                                                            # 032
                                                                                                                                            MPN: 175639
                                                                                                                                            PIPE FROM HOSE TO TWO-WAY UNION
                                                                                                                                            - Not for GD - Valid till car Ass. Nr. 29770
                                                                                                                                            from £13.98
                                                                                                                                            from £13.98
                                                                                                                                            # 032
                                                                                                                                            MPN: 176971
                                                                                                                                            PIPE FROM HOSE TO TWO-WAY UNION
                                                                                                                                            - Valid for GD - Valid till car Ass. Nr. 29749 GB and till car Ass. Nr. 30156 AUS
                                                                                                                                            from £9.64
                                                                                                                                            from £9.64
                                                                                                                                            # 032
                                                                                                                                            MPN: 178670
                                                                                                                                            PIPE FROM HOSE TO UNION
                                                                                                                                            - Not for GD - Valid from car Ass. Nr. 29771
                                                                                                                                            from £10.55
                                                                                                                                            from £10.55
                                                                                                                                            # 032
                                                                                                                                            MPN: 178672
                                                                                                                                            PIPE FROM HOSE TO UNION
                                                                                                                                            - Valid for GD - Valid from car Ass. Nr. 29750 GB and from car Ass. Nr. 30157 AUS
                                                                                                                                            from £13.28
                                                                                                                                            from £13.28
                                                                                                                                            # 033
                                                                                                                                            MPN: 155215
                                                                                                                                            UNION
                                                                                                                                            - Valid till car Ass. Nr. 29770 GS, till car Ass. Nr. 29749 GB and till car Ass. Nr. 30156 AUS
                                                                                                                                            from £11.34
                                                                                                                                            from £11.34
                                                                                                                                            # 034
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            - Valid till car Ass. Nr. 29770 GS, till car Ass. Nr. 29749 GB and till car Ass. Nr. 30156 AUS
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 035
                                                                                                                                            MPN: 12639724
                                                                                                                                            WASHER
                                                                                                                                            - Valid till car Ass. Nr. 29770 GS, till car Ass. Nr. 29749 GB and till car Ass. Nr. 30156 AUS
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                                                            # 036
                                                                                                                                            MPN: 155446
                                                                                                                                            PIPE FROM UNION TO VALVE
                                                                                                                                            - Valid till car Ass. Nr. 29770 GS, till car Ass. Nr. 29749 GB and till car Ass. Nr. 30156 AUS
                                                                                                                                            from £18.41
                                                                                                                                            from £18.41
                                                                                                                                            # 036
                                                                                                                                            MPN: 178673
                                                                                                                                            PIPE FROM UNION TO VALVE
                                                                                                                                            - Valid from car Ass. Nr. 29771 GS, from car Ass. Nr. 29750 GB and from car Ass. Nr. 30157 AUS
                                                                                                                                            from £7.97
                                                                                                                                            from £7.97
                                                                                                                                            # 037
                                                                                                                                            MPN: 154155
                                                                                                                                            PIPE FROM VALVE TO 3-WAY UNION
                                                                                                                                            from £2.88
                                                                                                                                            from £2.88
                                                                                                                                            # 038
                                                                                                                                            MPN: 154156
                                                                                                                                            3-WAY UNION
                                                                                                                                            from £116.24
                                                                                                                                            from £116.24
                                                                                                                                            # 039
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 040
                                                                                                                                            MPN: 12639724
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                                                            # 041
                                                                                                                                            MPN: 154157
                                                                                                                                            PIPE FROM 3-WAY UNION TO RH ACCUMULATOR
                                                                                                                                            from £119.75
                                                                                                                                            from £119.75
                                                                                                                                            # 042
                                                                                                                                            MPN: 154158
                                                                                                                                            PIPE FROM 3-WAY UNION TO LH ACCUMULATOR
                                                                                                                                            from £77.33
                                                                                                                                            from £77.33
                                                                                                                                            # 043
                                                                                                                                            MPN: 154159
                                                                                                                                            PIPE FROM ACCUMULATOR TO SHOCK ABSORBER
                                                                                                                                            from £89.93
                                                                                                                                            from £89.93
                                                                                                                                            # 044
                                                                                                                                            MPN: 10185111
                                                                                                                                            UNION
                                                                                                                                            from £2.75
                                                                                                                                            from £2.75
                                                                                                                                            # 045
                                                                                                                                            MPN: 11270260
                                                                                                                                            GASKET
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 046
                                                                                                                                            MPN: 154161
                                                                                                                                            RETURN PIPE
                                                                                                                                            from £174.39
                                                                                                                                            from £174.39
                                                                                                                                            # 047
                                                                                                                                            MPN: 155444
                                                                                                                                            RETURN RUBBER PIPE
                                                                                                                                            from £22.05
                                                                                                                                            from £22.05
                                                                                                                                            # 048
                                                                                                                                            MPN: 13000190
                                                                                                                                            SCREW COLLAR
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                                                            # 049
                                                                                                                                            MPN: 155447
                                                                                                                                            INTERMEDIATE BUNDY TUBE
                                                                                                                                            from £18.57
                                                                                                                                            from £18.57
                                                                                                                                            # 050
                                                                                                                                            MPN: 155443
                                                                                                                                            RUBBER PIPE TO TANK
                                                                                                                                            from £40.22
                                                                                                                                            from £40.22
                                                                                                                                            # 051
                                                                                                                                            MPN: 13000190
                                                                                                                                            SCREW COLLAR
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                                                            # 052
                                                                                                                                            MPN: 155442
                                                                                                                                            RUBBER PIPE FROM TANK TO PUMP
                                                                                                                                            - Not as spare part now - Replaced by 179519 + bracket 179086 and fixages - See pos. 78, 79 and 80
                                                                                                                                            from £12.63
                                                                                                                                            from £12.63
                                                                                                                                            # 052
                                                                                                                                            MPN: 179519
                                                                                                                                            RUBBER PIPE FROM TANK TO PUMP
                                                                                                                                            from £59.96
                                                                                                                                            from £59.96
                                                                                                                                            # 053
                                                                                                                                            MPN: 13000390
                                                                                                                                            SCREW COLLAR
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                                            # 054
                                                                                                                                            MPN: 158693
                                                                                                                                            ACCUMULATOR
                                                                                                                                            from £284.98
                                                                                                                                            from £284.98
                                                                                                                                            # 055
                                                                                                                                            MPN: 155129
                                                                                                                                            UNION
                                                                                                                                            from £3.86
                                                                                                                                            from £3.86
                                                                                                                                            # 056
                                                                                                                                            MPN: 10280060
                                                                                                                                            GASKET
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                                                            # 057
                                                                                                                                            MPN: 14664790
                                                                                                                                            SCREW
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 058
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 059
                                                                                                                                            MPN: 14496424
                                                                                                                                            WASHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                                                                            # 060
                                                                                                                                            MPN: 154310
                                                                                                                                            ACCELEROMETER
                                                                                                                                            from £374.83
                                                                                                                                            from £374.83
                                                                                                                                            # 061
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 062
                                                                                                                                            MPN: 12646601
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 063
                                                                                                                                            MPN: 155574
                                                                                                                                            RUBBER PIPE FROM COOLING PIPE TO TANK
                                                                                                                                            - Valid till car Ass. Nr. 30451
                                                                                                                                            from £20.08
                                                                                                                                            from £20.08
                                                                                                                                            This part replaces part number 156270 which we have in stock
                                                                                                                                            # 063
                                                                                                                                            MPN: 179739
                                                                                                                                            RUBBER PIPE FROM COOLING PIPE TO TANK
                                                                                                                                            - Valid from car Ass. Nr. 30452
                                                                                                                                            from £61.06
                                                                                                                                            from £61.06
                                                                                                                                            # 064
                                                                                                                                            MPN: 161490
                                                                                                                                            SCREW COLLAR
                                                                                                                                            from £1.23
                                                                                                                                            from £1.23
                                                                                                                                            # 065
                                                                                                                                            MPN: 10441790
                                                                                                                                            BRACKET WITH SHEATH
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 066
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 067
                                                                                                                                            MPN: 12639724
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                                                            # 068
                                                                                                                                            MPN: 158087
                                                                                                                                            RETAINER
                                                                                                                                            from £29.52
                                                                                                                                            from £29.52
                                                                                                                                            # 069
                                                                                                                                            MPN: 10440890
                                                                                                                                            BRACKET WITH SHEATH
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 070
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 071
                                                                                                                                            MPN: 10519424
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                                                                                            # 072
                                                                                                                                            MPN: 169224
                                                                                                                                            BRACKET
                                                                                                                                            from £5.16
                                                                                                                                            from £5.16
                                                                                                                                            # 073
                                                                                                                                            MPN: 103549
                                                                                                                                            RUBBER BUSH
                                                                                                                                            from £0.69
                                                                                                                                            from £0.69
                                                                                                                                            # 074
                                                                                                                                            MPN: 103550
                                                                                                                                            SPACER
                                                                                                                                            from £1.14
                                                                                                                                            from £1.14
                                                                                                                                            This part replaces part number 4130913
                                                                                                                                            # 075
                                                                                                                                            MPN: 10441490
                                                                                                                                            BRACKET WITH SHEATH
                                                                                                                                            - Valid from car Ass. Nr. 29771 GS, from car Ass. Nr. 29750 GB and from car Ass. Nr. 30157 AUS
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 076
                                                                                                                                            MPN: 10902124
                                                                                                                                            SCREW
                                                                                                                                            - Valid from car Ass. Nr. 29771 GS, from car Ass. Nr. 29750 GB and from car Ass. Nr. 30157 AUS
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                                            # 077
                                                                                                                                            MPN: 180913
                                                                                                                                            UNION
                                                                                                                                            - For valve 179046 Pos. 22
                                                                                                                                            from £16.63
                                                                                                                                            from £16.63
                                                                                                                                            # 078
                                                                                                                                            MPN: 179086
                                                                                                                                            BRACKET
                                                                                                                                            from £22.51
                                                                                                                                            from £22.51
                                                                                                                                            # 079
                                                                                                                                            MPN: 10441990
                                                                                                                                            BRACKET
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            # 080
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 081
                                                                                                                                            MPN: 179319
                                                                                                                                            RUBBER HOSE
                                                                                                                                            # 082
                                                                                                                                            MPN: 10441690
                                                                                                                                            BRACKET WITH SHEATH
                                                                                                                                            from £1.07
                                                                                                                                            from £1.07
                                                                                                                                            This part replaces part number 1044690
                                                                                                                                            # 083
                                                                                                                                            MPN: 102741
                                                                                                                                            NUT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                            # 084
                                                                                                                                            MPN: 10519424
                                                                                                                                            WASHER
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
