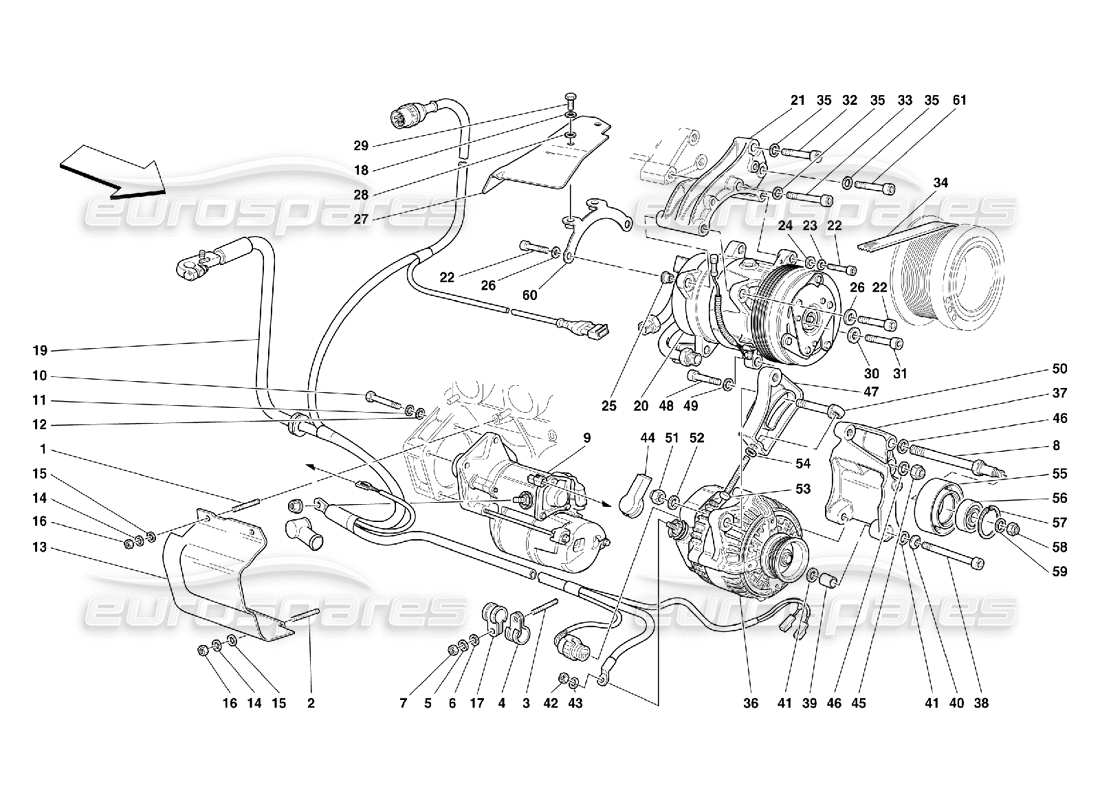

Ferrari 456 M GT/M GTA Alternator Starting Motor and A.C. Compressor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 11500124
STUD
from £0.47
from £0.47
This part replaces part number 11500121
# 002
MPN: 13540824
STUD
from £0.47
from £0.47
This part replaces part number 13540821
# 003
MPN: 13540824
STUD
from £0.47
from £0.47
This part replaces part number 13540821
# 004
MPN: 10441490
BRACKET WITH SHEATH
from £0.47
from £0.47
# 005
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 006
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 007
MPN: 15896214
NUT
from £0.47
from £0.47
This part replaces part number 15896211
# 008
MPN: 153390
PIN
from £32.40
from £32.40
# 009
MPN: 164397
STARTER MOTOR
from £238.19
from £238.19
# 010
MPN: 16044821
SCREW
from £0.47
from £0.47
# 010
MPN: 16044921
SCREW
from £0.51
from £0.51
# 011
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 012
MPN: 11193874
WASHER
from £0.47
from £0.47
This part replaces part number 11193879 which we have in stock
# 013
MPN: 176333
SHIELD FOR STARTER MOTOR PROTECTION
from £100.34
from £100.34
This part replaces part number 165895 which we have in stock - and 1 more. Click to view details
# 014
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 015
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 016
MPN: 15896214
NUT
from £0.47
from £0.47
This part replaces part number 15896211
# 017
MPN: 10441990
BRACKET WITH SHEATH
from £0.47
from £0.47
# 018
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 019
MPN: 176203
CABLES FOR MOTOR DEVICES CONNECTION
- Not for GD - Valid till car Ass. Nr. 32087
from £319.29
from £319.29
# 019
MPN: 177182
CABLES FOR MOTOR DEVICES CONNECTION
- Valid for GD - Valid till car Ass. Nr. 32030
from £1,094.70
from £1,094.70
# 019
MPN: 179241
CABLES FOR MOTOR DEVICES CONNECTION
- Not for GD - Valid from car Ass. Nr. 32088
from £2,901.36
from £2,901.36
# 019
MPN: 179273
CABLES FOR MOTOR DEVICES CONNECTION
- Valid for GD - Valid from car Ass. Nr. 32031
from £212.51
from £212.51
# 020
MPN: 204539
air conditioner compressor
from £1,665.43
from £1,665.43
This part replaces part number 170594 - and 1 more. Click to view details
# 021
MPN: 170595
SUPPORT
from £111.34
from £111.34
This part replaces part number 164503 which we have in stock - and 2 more. Click to view details
# 022
MPN: 14307624
SCREW
from £0.80
from £0.80
# 023
MPN: 106352
WASHER
from £0.47
from £0.47
# 024
MPN: 10569474
WASHER
from £0.47
from £0.47
# 025
MPN: 164538
BUSHING
from £41.42
from £41.42
# 026
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 027
MPN: 176334
SHIELD FOR COMPRESSOR PROTECTION
from £14.54
from £14.54
This part replaces part number 165491 - and 4 more. Click to view details
# 028
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 029
MPN: 10902124
SCREW
from £0.47
from £0.47
This part replaces part number 10902111 - and 1 more. Click to view details
# 030
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 031
MPN: 14307624
SCREW
from £0.80
from £0.80
# 032
MPN: 14307924
SCREW
from £1.49
from £1.49
This part replaces part number 14307920
# 033
MPN: 101632
DRIVESHAFT BOLT
from £5.00
from £5.00
This part replaces part number 103432 - and 3 more. Click to view details
# 034
MPN: 167884
BELT FOR ALTERNATOR AND COMPRESSORE
- Valid for 456M GTA - Valid till car Ass. Nr. 31523
Supersession
Supersession
# 034
MPN: 201444
BELT FOR ALTERNATOR AND COMPRESSOR
- Not for 456M GTA - Valid from car Ass. Nr. 31663
from £11.58
from £11.58
This part replaces part number 171092
# 034
MPN: 201447
Alternator & Air Con Belt
Use on Exhaustion of 177509
from £16.36
from £16.36
This part replaces part number 177509 - and 1 more. Click to view details
# 034
MPN: 201447
BELT FOR ALTERNATOR AND COMPRESSORE
from £16.36
from £16.36
This part replaces part number 177509 - and 1 more. Click to view details
# 035
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 036
MPN: 156858

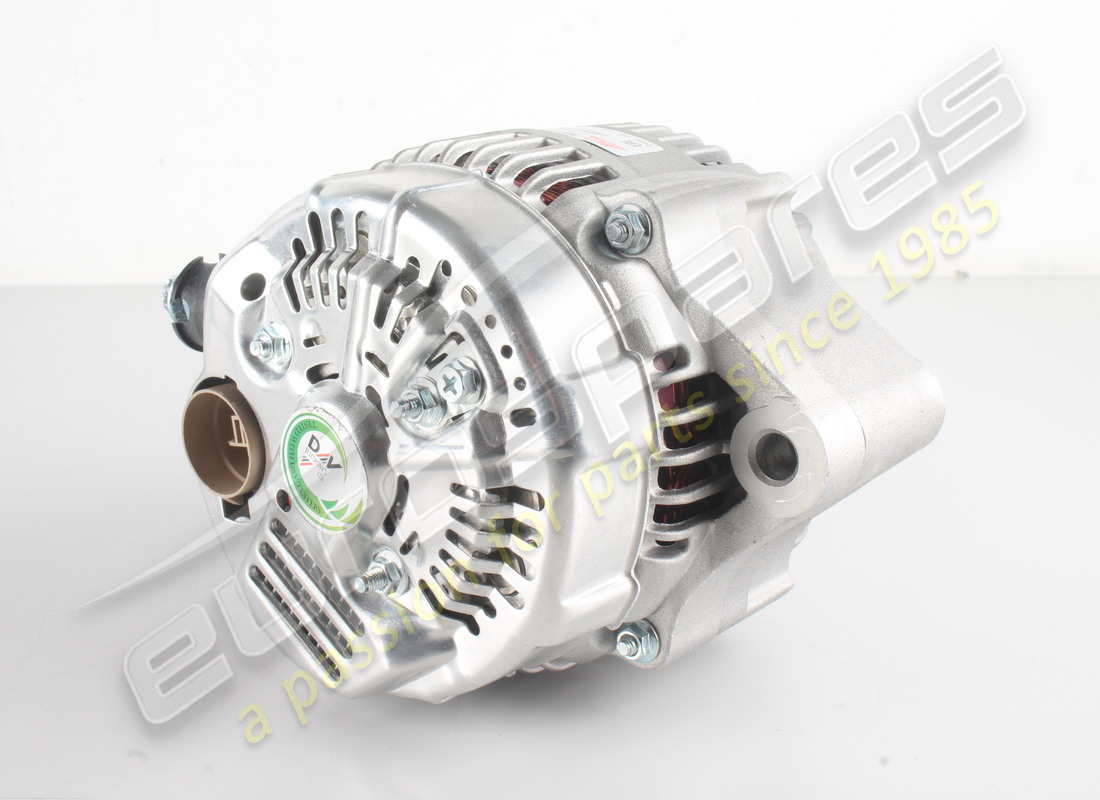

ALTERNATOR
from £476.74
from £476.74
This part replaces part number 154751 - and 1 more. Click to view details
# 037
MPN: 164534
ALTERNATOR SUPPORT
from £196.54
from £196.54
# 038
MPN: 137920
SCREW
from £6.08
from £6.08
# 039
MPN: 123172
BUSHING
from £1.30
from £1.30
# 040
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 041
MPN: 13550401
WASHER
from £0.47
from £0.47
# 042
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 043
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 044
MPN: 154803
PROTECTION BOOT
from £2.68
from £2.68
# 045
MPN: 102825
NUT
from £0.47
from £0.47
This part replaces part number 95900617
# 046
MPN: 13507411
WASHER
from £0.47
from £0.47
# 047
MPN: 164533
BELT TIGHTENING BRACKET
from £42.31
from £42.31
# 048
MPN: 14307524
SCREW
from £0.76
from £0.76
# 049
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 050
MPN: 148629
PIN
from £11.45
from £11.45
# 051
MPN: 102742
NUT
from £0.47
from £0.47
This part replaces part number 12557621 - and 2 more. Click to view details
# 052
MPN: 13550401
WASHER
from £0.47
from £0.47
# 053
MPN: 125668
SCREW
from £0.34
from £0.34
# 054
MPN: 14496524
WASHER
from £0.47
from £0.47
This part replaces part number 14496525 - and 1 more. Click to view details
# 055
MPN: 148632
PULLEY
from £271.17
from £271.17
# 056
MPN: 123350
BEARING
from £24.47
from £24.47
# 057
MPN: 11060076
SEEGER RING
from £0.47
from £0.47
# 058
MPN: 102825
NUT
from £0.47
from £0.47
This part replaces part number 95900617
# 059
MPN: 10730721
WASHER
Supersession
Supersession
# 060
MPN: 165490
BRACKET
from £11.86
from £11.86
# 061
MPN: 14307724
SCREW
from £1.19
from £1.19
This part replaces part number 14307721
