ferrari 456 m gt/m gta air conditioning system parts diagram

067 - air conditioning system

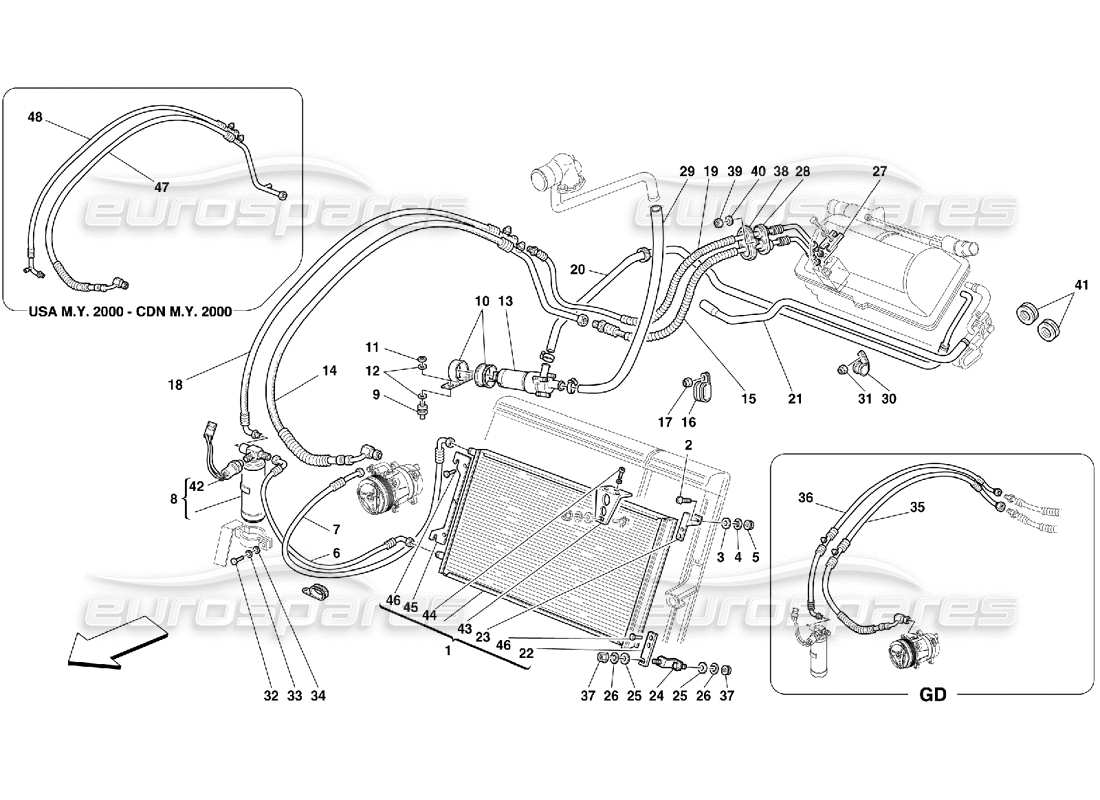

Ferrari 456 M GT/M GTA Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 165563

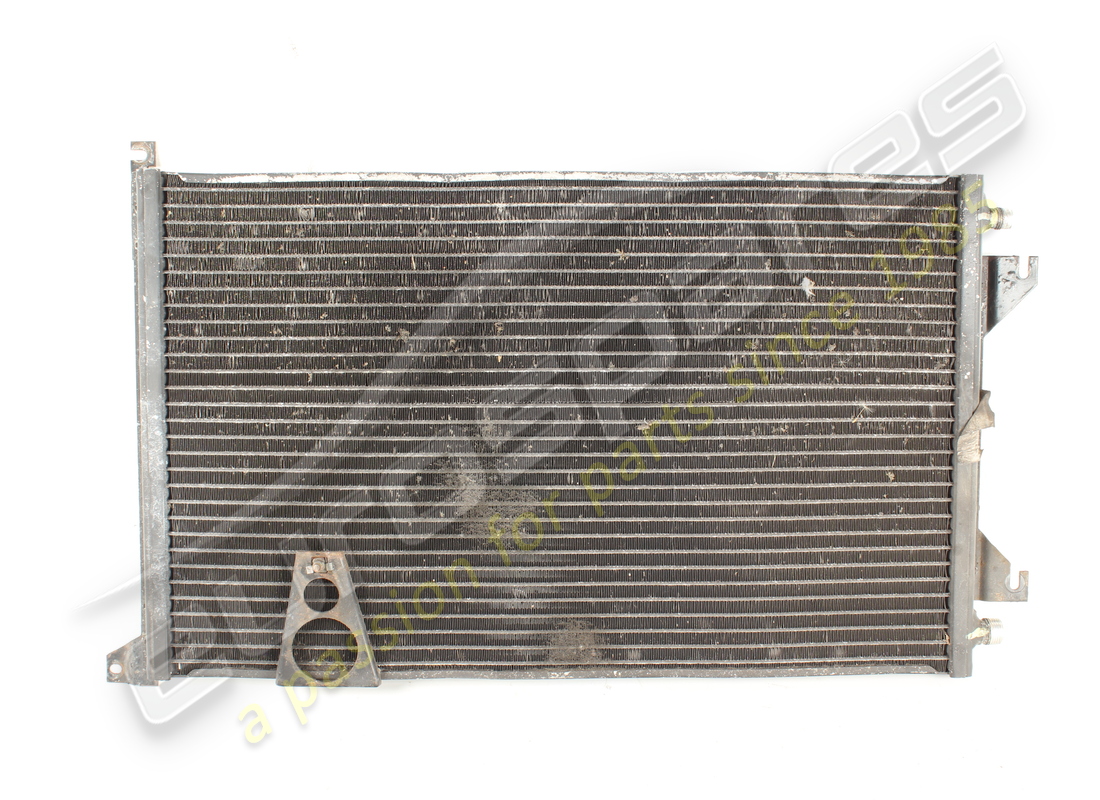

                                                                            AC CONDENSER
                                                                            from £468.86
                                                                            from £468.86
                                                                            # 002
                                                                            MPN: 14778814
                                                                            SCREW
                                                                            from £1.02
                                                                            from £1.02
                                                                            # 003
                                                                            MPN: 14496424
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 14496401 - and 3 more. Click to view details
                                                                            # 004
                                                                            MPN: 127494
                                                                            WASHER
                                                                            (minimum order quantity = 20)
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                            # 005
                                                                            MPN: 15896214
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 15896211
                                                                            # 006
                                                                            MPN: 64827500
                                                                            PIPE FROM CONDENSER TO DEHYDRATOR FILTER
                                                                            from £286.58
                                                                            from £286.58
                                                                            # 007
                                                                            MPN: 64827400
                                                                            PIPE FROM COMPRESSOR TO CONDENSER
                                                                            from £84.71
                                                                            from £84.71
                                                                            # 008
                                                                            MPN: 64799500
                                                                            DEHYDRATOR FILTER WITH PRESSURE SWITCH
                                                                            Supersession
                                                                            Supersession
                                                                            # 009
                                                                            MPN: 142202
                                                                            ANTI-VIBRATION SUPPORT
                                                                            from £14.62
                                                                            from £14.62
                                                                            # 010
                                                                            MPN: 63994900
                                                                            COMPLETE BRACKET
                                                                            from £4.28
                                                                            from £4.28
                                                                            This part replaces part number 64246500
                                                                            # 011
                                                                            MPN: 102741
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                            # 012
                                                                            MPN: 14496424
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 14496401 - and 3 more. Click to view details
                                                                            # 013
                                                                            MPN: 65460300
                                                                            COMPLETE WATER PUMP
                                                                            from £50.00
                                                                            from £50.00
                                                                            This part replaces part number 70000900 - and 4 more. Click to view details
                                                                            # 014
                                                                            MPN: 65419600
                                                                            PIPE FROM HOSE TO COMPRESSOR
                                                                            - Not for GD, USA M.Y. 2000 and CDN M.Y. 2000
                                                                            from £54.34
                                                                            from £54.34
                                                                            # 015
                                                                            MPN: 64791200

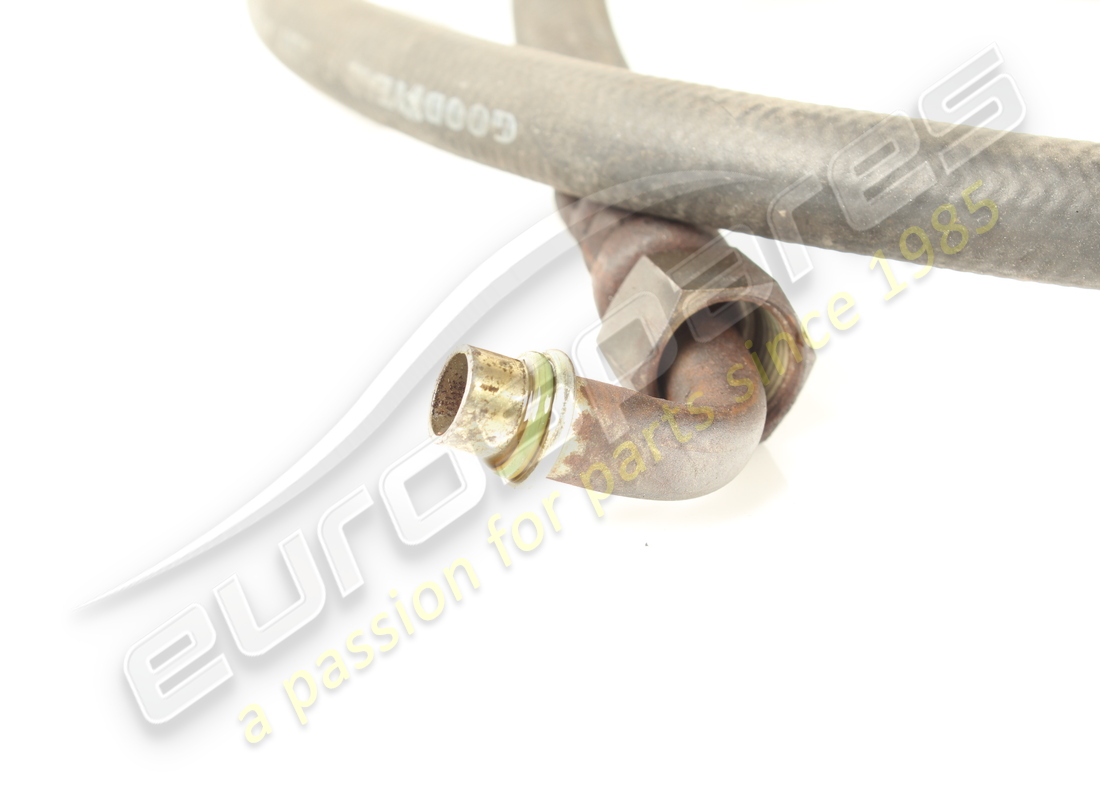

                                                                            HOSE FROM EVAPORATOR TO PIPE
                                                                            from £84.73
                                                                            from £84.73
                                                                            # 016
                                                                            MPN: 61712500
                                                                            BRACKET WITH SHEATH
                                                                            from £0.88
                                                                            from £0.88
                                                                            # 017
                                                                            MPN: 102741
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                            # 018
                                                                            MPN: 64827600
                                                                            PIPE FROM DEHYDRATOR FILTER TO HOSE
                                                                            - Not for GD, USA M.Y. 2000 and CDN M.Y. 2000
                                                                            from £139.32
                                                                            from £139.32
                                                                            # 019
                                                                            MPN: 64791300
                                                                            HOSE FROM PIPE TO EVAPORETOR
                                                                            from £78.34
                                                                            from £78.34
                                                                            # 020
                                                                            MPN: 65674900
                                                                            DELIVERY TUBE FROM WATER PUMP
                                                                            - Not for GD
                                                                            from £148.48
                                                                            from £148.48
                                                                            # 020
                                                                            MPN: 65846100
                                                                            DELIVERY TUBE FROM WATER PUMP
                                                                            - Valid for GD
                                                                            from £120.87
                                                                            from £120.87
                                                                            # 021
                                                                            MPN: 65618300
                                                                            RETURN TUBE FROM VALVE TO NOURICE
                                                                            - Valid for GD
                                                                            from £95.86
                                                                            from £95.86
                                                                            # 021
                                                                            MPN: 65674500
                                                                            RETURN TUBE FROM VALVE TO NOURICE
                                                                            - Not for GD
                                                                            from £55.37
                                                                            from £55.37
                                                                            # 022
                                                                            MPN: 168068
                                                                            BRACKET
                                                                            from £15.44
                                                                            from £15.44
                                                                            # 023
                                                                            MPN: 165561
                                                                            BRACKET
                                                                            from £6.84
                                                                            from £6.84
                                                                            # 024
                                                                            MPN: 156989
                                                                            SMALL PLATE
                                                                            from £4.69
                                                                            from £4.69
                                                                            # 025
                                                                            MPN: 12646601
                                                                            WASHER
                                                                            from £0.71
                                                                            from £0.71
                                                                            # 026
                                                                            MPN: 127494
                                                                            WASHER
                                                                            (minimum order quantity = 20)
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                            # 027
                                                                            MPN: 64281500
                                                                            FLANGE
                                                                            from £2.21
                                                                            from £2.21
                                                                            This part replaces part number 67592000
                                                                            # 028
                                                                            MPN: 63961800
                                                                            RUBBER GASKET
                                                                            from £16.48
                                                                            from £16.48
                                                                            # 029
                                                                            MPN: 65419500
                                                                            DELIVERY TUBE FROM ENGINE TO PUMP
                                                                            from £112.17
                                                                            from £112.17
                                                                            # 030
                                                                            MPN: 61712600
                                                                            CLAMP
                                                                            from £0.85
                                                                            from £0.85
                                                                            # 031
                                                                            MPN: 102948
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                            # 032
                                                                            MPN: 10902324
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                            # 033
                                                                            MPN: 127494
                                                                            WASHER
                                                                            (minimum order quantity = 20)
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                            # 034
                                                                            MPN: 12643724
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                            # 035
                                                                            MPN: 65618200
                                                                            PIPE FROM HOSE TO COMPRESSOR
                                                                            - Valid for GD
                                                                            from £70.00
                                                                            from £70.00
                                                                            # 036
                                                                            MPN: 65655400
                                                                            PIPE FROM DEHYDRATOR FILTER TO HOSE
                                                                            - Valid for GD
                                                                            from £164.34
                                                                            from £164.34
                                                                            # 037
                                                                            MPN: 15896214
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 15896211
                                                                            # 038
                                                                            MPN: 63961900
                                                                            FRAME FOR PIPE BUSHING
                                                                            from £5.64
                                                                            from £5.64
                                                                            # 039
                                                                            MPN: 169180
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12574121
                                                                            # 040
                                                                            MPN: 12638124
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12638101 - and 1 more. Click to view details
                                                                            # 041
                                                                            MPN: 10459087
                                                                            CABLE GROMMET
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10396980 which we have in stock
                                                                            # 042
                                                                            MPN: 64799700
                                                                            PRESSOSTAT
                                                                            Supersession
                                                                            Supersession
                                                                            # 043
                                                                            MPN: 165562
                                                                            BRACKET
                                                                            from £40.18
                                                                            from £40.18
                                                                            # 044
                                                                            MPN: 165136
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 045
                                                                            MPN: 165560
                                                                            BRACKET
                                                                            from £23.60
                                                                            from £23.60
                                                                            # 046
                                                                            MPN: 165137
                                                                            SCREW
                                                                            from £1.35
                                                                            from £1.35
                                                                            # 047
                                                                            MPN: 65990400
                                                                            PIPE FROM HOSE TO COMPRESSOR
                                                                            - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                            from £155.18
                                                                            from £155.18
                                                                            # 048
                                                                            MPN: 65990500
                                                                            PIPE FROM DEHYDRATOR FILTER TO HOSE
                                                                            - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                            from £94.46
                                                                            from £94.46
