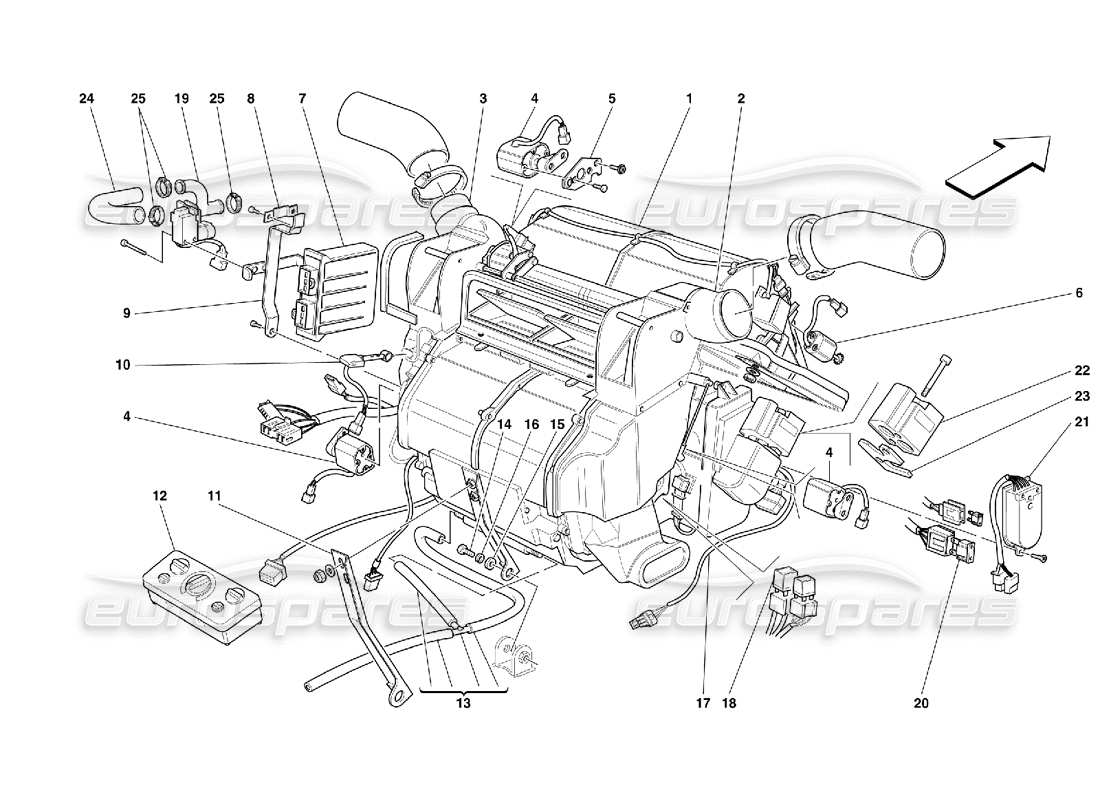

ferrari 456 m gt/m gta evaporator unit and controls parts diagram

068 - Evaporator Unit and Controls

Ferrari 456 M GT/M GTA Evaporator Unit and Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 65433000
                                        COMPLETE EVAPORATOR SET
                                        - Not for GD - Valid till car Ass. Nr. 34807
                                        from £6,734.10
                                        from £6,734.10
                                        # 001
                                        MPN: 65618000
                                        COMPLETE EVAPORATOR SET
                                        - Valid for GD
                                        from £2,919.75
                                        from £2,919.75
                                        # 001
                                        MPN: 65928900
                                        COMPLETE EVAPORATOR SET
                                        - Not for GD - Valid from car Ass. Nr. 34808
                                        from £4,318.02
                                        from £4,318.02
                                        # 002
                                        MPN: 64929800
                                        RH AIR DISTRIBUTOR
                                        - Not for GD
                                        from £70.20
                                        from £70.20
                                        # 002
                                        MPN: 65026000
                                        RH AIR DISTRIBUTOR
                                        - Valid for GD
                                        from £40.46
                                        from £40.46
                                        # 003
                                        MPN: 64680800
                                        LH AIR DISTRIBUTOR
                                        - Not for GD
                                        from £46.00
                                        from £46.00
                                        # 003
                                        MPN: 65026100
                                        LH AIR DISTRIBUTOR
                                        - Valid for GD
                                        from £40.46
                                        from £40.46
                                        # 004
                                        MPN: 64280800
                                        electric motor
                                        from £51.37
                                        from £51.37
                                        # 005
                                        MPN: 64281300
                                        BRACKET
                                        from £4.52
                                        from £4.52
                                        # 006
                                        MPN: 64280700
                                        LH ELECTRIC MOTOR
                                        from £59.69
                                        from £59.69
                                        # 006
                                        MPN: 64280900
                                        RH ELECTRIC MOTOR
                                        from £414.75
                                        from £414.75
                                        This part replaces part number 65229500 - and 2 more. Click to view details
                                        # 007
                                        MPN: 65674800

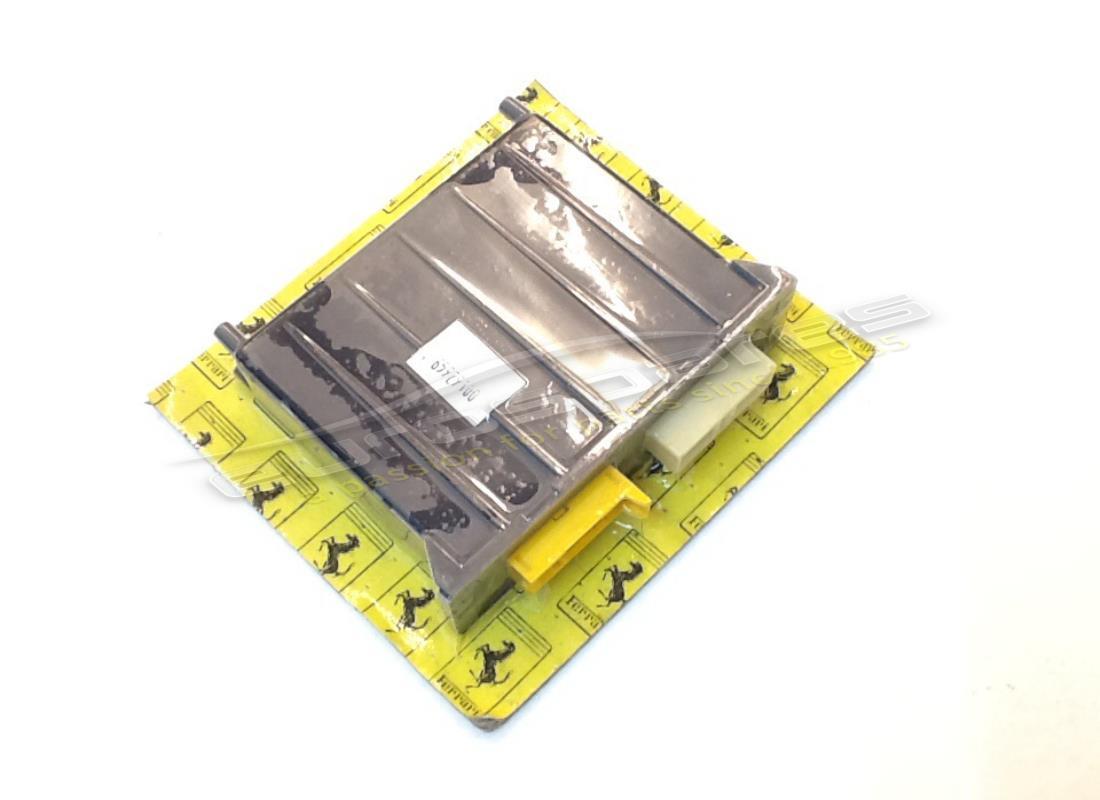

                                        ELECTRONIC CONTROL STATION
                                        - Not for GD - Valid till car Ass. Nr. 34807
                                        from £713.92
                                        from £713.92
                                        # 007
                                        MPN: 65674800
                                        ELECTRONIC CONTROL STATION
                                        - Valid for GD
                                        from £713.92
                                        from £713.92
                                        # 007
                                        MPN: 65929100
                                        ELECTRONIC CONTROL STATION
                                        - Not for GD - Valid from car Ass. Nr. 34808
                                        from £762.52
                                        from £762.52
                                        # 008
                                        MPN: 64298300
                                        SMALL PLATE
                                        from £3.33
                                        from £3.33
                                        # 009
                                        MPN: 64281100
                                        BRACKET
                                        from £3.86
                                        from £3.86
                                        # 010
                                        MPN: 63962000
                                        TREATED AIR FEELER
                                        from £12.77
                                        from £12.77
                                        # 011
                                        MPN: 64689900
                                        BRACKET
                                        from £33.53
                                        from £33.53
                                        # 012
                                        MPN: 65433300

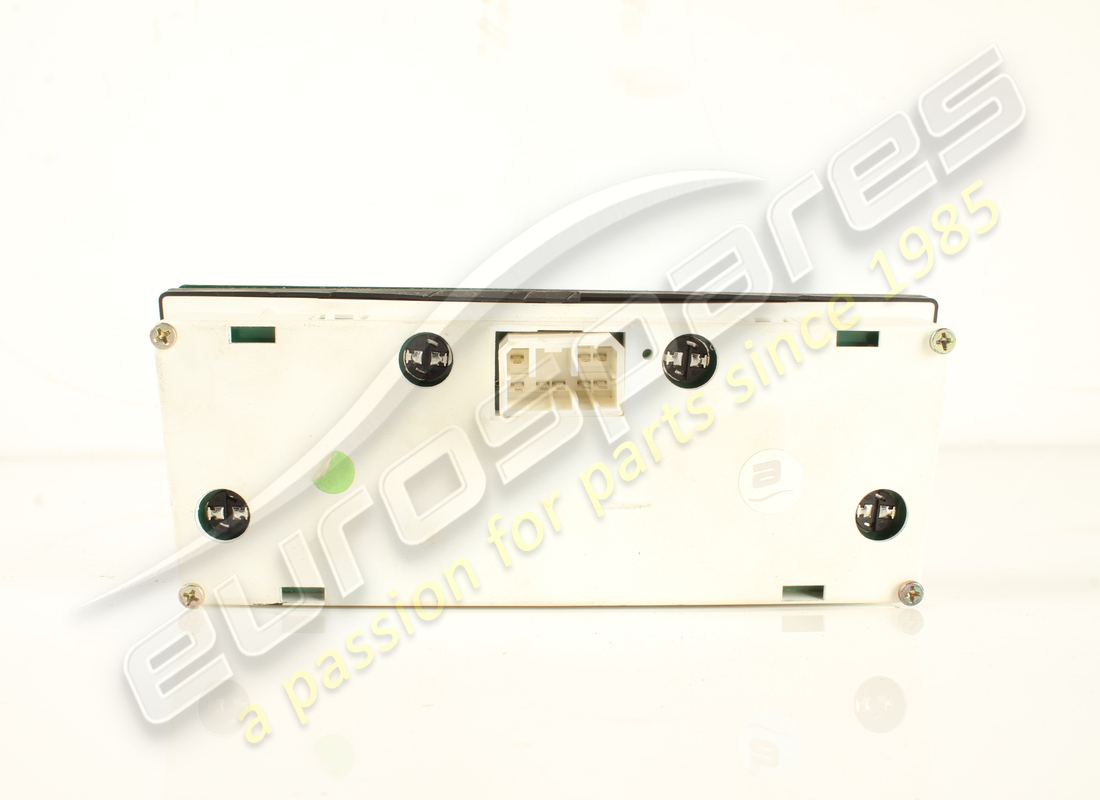

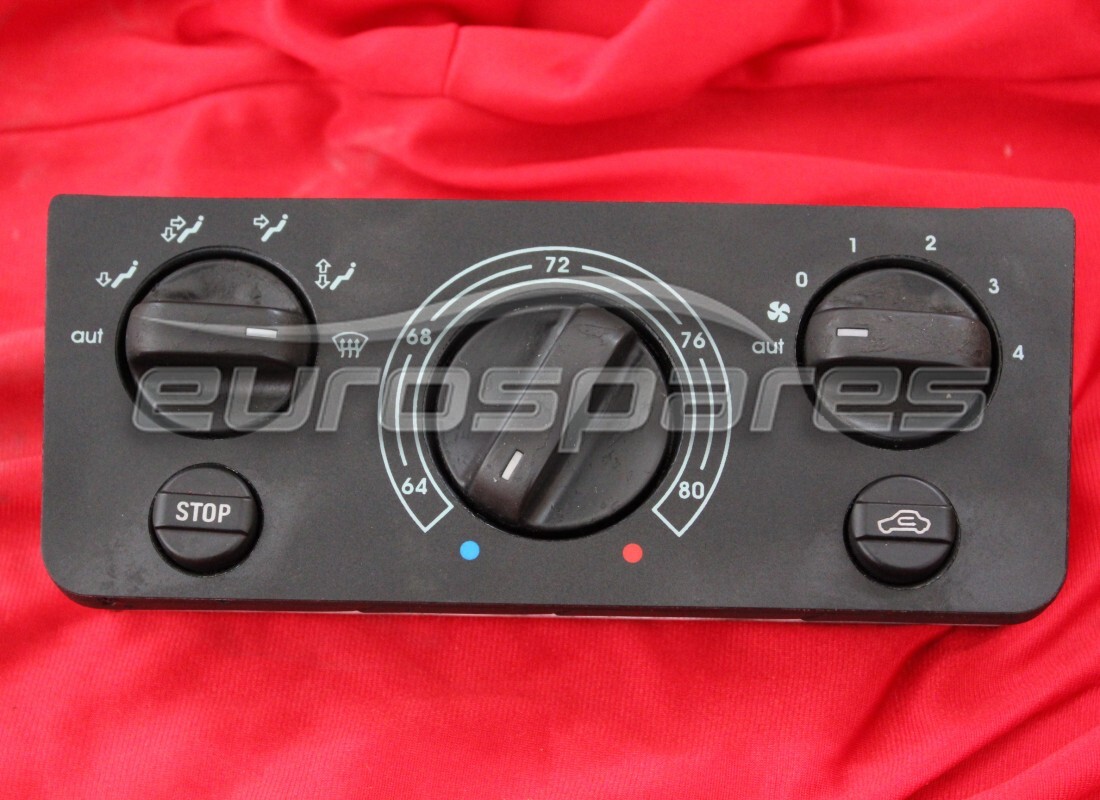

                                        A/C CONTROL PLATE
                                        - Not for USA and GB
                                        from £735.00
                                        from £735.00
                                        # 012
                                        MPN: 65433300/A

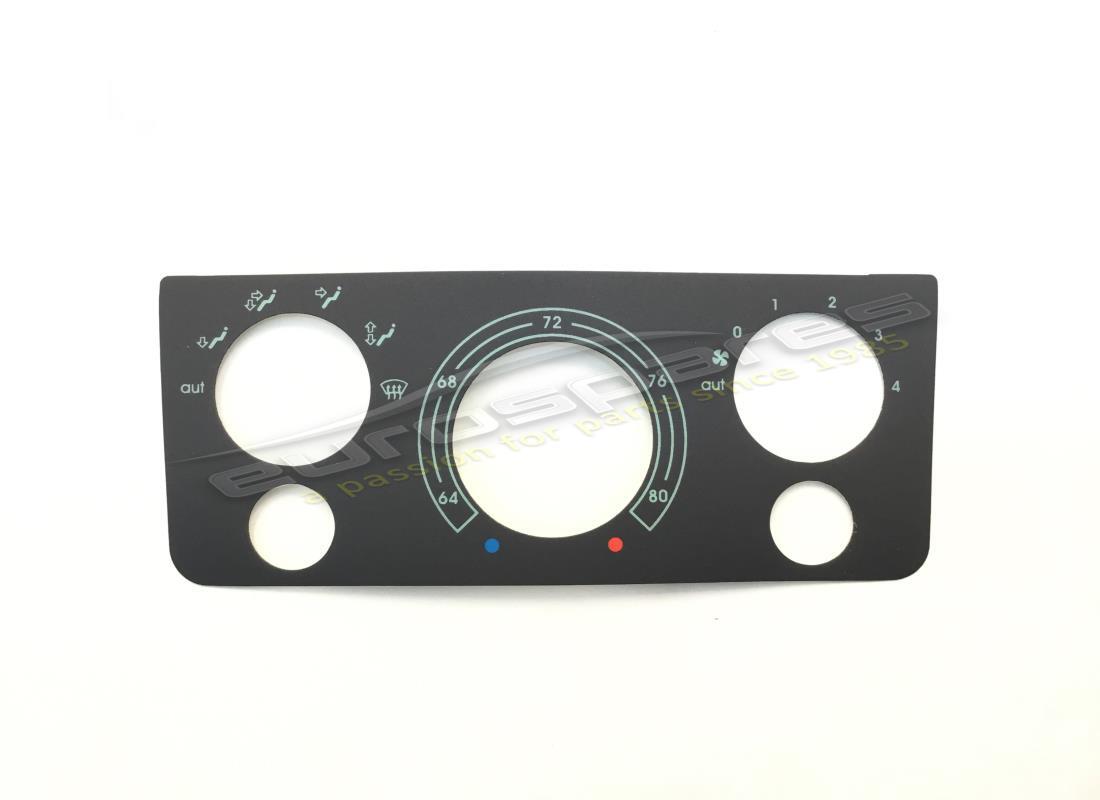

                                        AIR CONDITIONING CONTROL FASCIA IN BLACK
                                        Fahrenheit degrees F
                                        from £44.10
                                        from £44.10
                                        # 012
                                        MPN: 65433400
                                        A/C CONTROL PLATE
                                        - Valid for USA and GB
                                        from £1,001.65
                                        from £1,001.65
                                        # 012
                                        MPN: 65433400/A

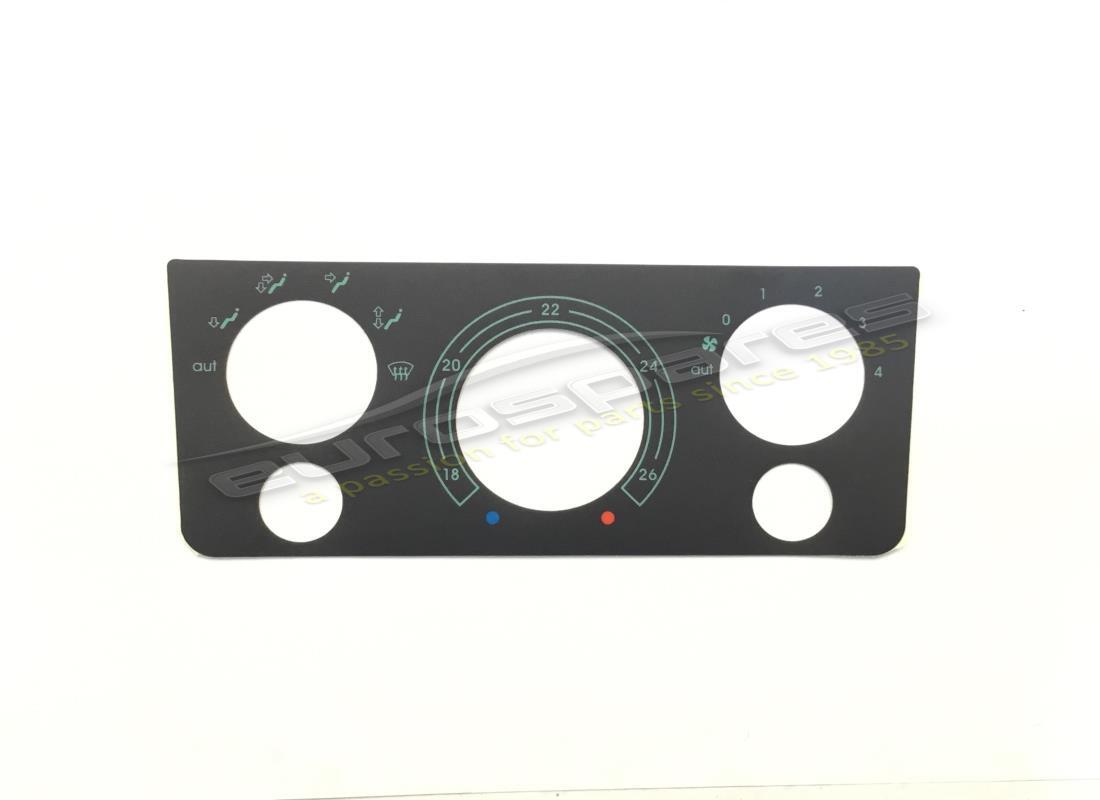

                                        AIR CONDITIONING CONTROL FASCIA (BLACK)
                                        Celsius degrees C
                                        from £44.10
                                        from £44.10
                                        # 013
                                        MPN: 63973900
                                        CONDENSATE OUTLET PIPES ASSEMBLY
                                        from £126.58
                                        from £126.58
                                        This part replaces part number 64471000 - and 11 more. Click to view details
                                        # 014
                                        MPN: 10977524
                                        SCREW
                                        from £0.53
                                        from £0.53
                                        # 015
                                        MPN: 12644424
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 12644401 - and 1 more. Click to view details
                                        # 017
                                        MPN: 65618400
                                        A/C ELECTRIC WIRING
                                        from £427.95
                                        from £427.95
                                        # 018
                                        MPN: 64286100
                                        RELAY
                                        from £40.74
                                        from £40.74
                                        # 019
                                        MPN: 64999000
                                        TGK VALVE
                                        from £82.32
                                        from £82.32
                                        # 020
                                        MPN: 64286200
                                        FUSE 40 A
                                        from £6.35
                                        from £6.35
                                        # 021
                                        MPN: 64280200
                                        ELECTROFAN REGULATOR
                                        from £771.03
                                        from £771.03
                                        This part replaces part number 65230100
                                        # 022
                                        MPN: 63960100
                                        EXPANSION VALVE
                                        from £92.78
                                        from £92.78
                                        This part replaces part number 65230300
                                        # 023
                                        MPN: 64281400
                                        FLANGE
                                        from £9.12
                                        from £9.12
                                        # 024
                                        MPN: 65201000
                                        RETURN TUBE FROM HEATER TO VALVE
                                        from £14.04
                                        from £14.04
                                        # 025
                                        MPN: 13000490
                                        SCREW COLLAR
                                        from £0.52
                                        from £0.52
                                        This part replaces part number 10169090 - and 3 more. Click to view details
                                        # 025
                                        MPN: 65424800
                                        CLAMP
                                        - Not as spare part now - Replaced by 13000490
                                        from £2.42
                                        from £2.42
