ferrari 456 m gt/m gta rear bumper parts diagram

106 - REAR BUMPER

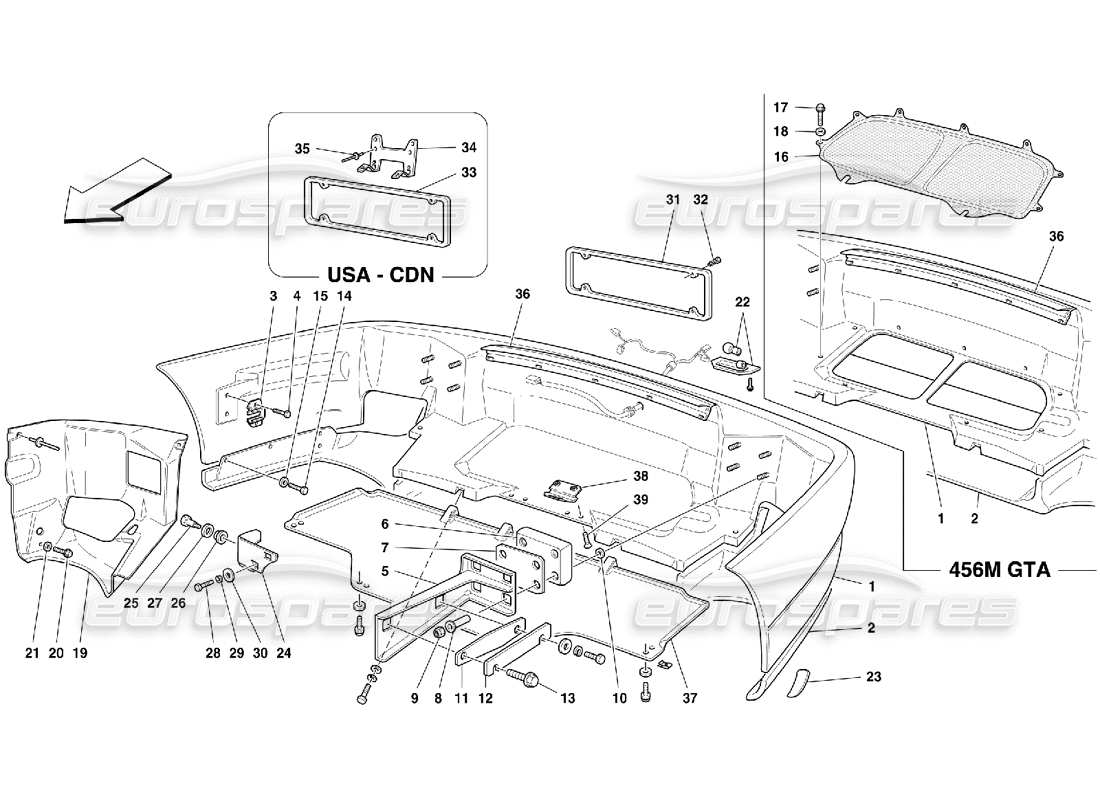

Ferrari 456 M GT/M GTA Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 65431910
                                              REAR BUMPER
                                              - Not for 456M GTA - Not for USA and CDN
                                              from £1,317.43
                                              from £1,317.43
                                              # 001
                                              MPN: 65444610
                                              REAR BUMPER
                                              - Not for 456M GTA - Valid for USA
                                              from £1,805.21
                                              from £1,805.21
                                              # 001
                                              MPN: 65444710
                                              REAR BUMPER
                                              - Valid for 456M GTA - Not for USA and CDN
                                              from £1,750.00
                                              from £1,750.00
                                              # 001
                                              MPN: 65444810
                                              REAR BUMPER
                                              - Valid for 456M GTA - Valid for USA
                                              from £1,683.72
                                              from £1,683.72
                                              # 001
                                              MPN: 65553510
                                              REAR BUMPER
                                              - Not for 456M GTA - Valid for CDN
                                              from £2,458.39
                                              from £2,458.39
                                              # 001
                                              MPN: 65553610
                                              REAR BUMPER
                                              - Valid for 456M GTA - Valid for CDN
                                              from £2,826.34
                                              from £2,826.34
                                              # 002
                                              MPN: 65411010
                                              FIXED STABILIZER
                                              from £1,338.32
                                              from £1,338.32
                                              # 003
                                              MPN: 65282300
                                              BRACKET
                                              from £167.04
                                              from £167.04
                                              # 004
                                              MPN: 16285127
                                              SCREW
                                              (minimum order quantity = 10)
                                              from £0.47
                                              from £0.47
                                              # 005
                                              MPN: 65444200
                                              RH BRACKET FOR BUMPER
                                              - Not for CDN
                                              from £29.50
                                              from £29.50
                                              # 005
                                              MPN: 65444300
                                              LH BRACKET FOR BUMPER
                                              - Not for CDN
                                              from £29.50
                                              from £29.50
                                              # 005
                                              MPN: 65810600
                                              RH BRACKET FOR BUMPER
                                              - Valid for CDN
                                              from £73.64
                                              from £73.64
                                              # 005
                                              MPN: 65810700
                                              LH BRACKET FOR BUMPER
                                              - Valid for CDN
                                              from £86.64
                                              from £86.64
                                              # 006
                                              MPN: 63214100
                                              PAD
                                              from £14.48
                                              from £14.48
                                              # 007
                                              MPN: 63738800
                                              PLATE
                                              from £1.11
                                              from £1.11
                                              # 008
                                              MPN: 65372900
                                              BUSHING
                                              from £1.96
                                              from £1.96
                                              # 009
                                              MPN: 104114
                                              NUT
                                              Supersession
                                              Supersession
                                              This part replaces part number 15503711 - and 1 more. Click to view details
                                              # 010
                                              MPN: 12646821
                                              WASHER
                                              (minimum order quantity = 30)
                                              from £0.47
                                              from £0.47
                                              # 011
                                              MPN: 65444900
                                              PLATE
                                              from £7.33
                                              from £7.33
                                              # 012
                                              MPN: 65431700
                                              SPACER PLATE
                                              - Possible fitting
                                              from £5.83
                                              from £5.83
                                              # 013
                                              MPN: 15970721
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              # 014
                                              MPN: 10978521
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              # 015
                                              MPN: 12643724
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 109684 - and 4 more. Click to view details
                                              # 016
                                              MPN: 65411100
                                              AIR INTAKE GRILLE
                                              - Valid for 456M GTA
                                              from £188.14
                                              from £188.14
                                              # 017
                                              MPN: 10977624
                                              SCREW
                                              - Valid for 456M GTA
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 10977611 - and 1 more. Click to view details
                                              # 018
                                              MPN: 12637824
                                              WASHER
                                              - Valid for 456M GTA
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12637801 - and 1 more. Click to view details
                                              # 019
                                              MPN: 65575000
                                              RH REAR HEAT SHIELD
                                              from £159.24
                                              from £159.24
                                              # 019
                                              MPN: 65575100
                                              LH REAR HEAT SHIELD
                                              from £159.24
                                              from £159.24
                                              # 020
                                              MPN: 10977624
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 10977611 - and 1 more. Click to view details
                                              # 021
                                              MPN: 12637824
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12637801 - and 1 more. Click to view details
                                              # 023
                                              MPN: 65833600
                                              LH REAR WHEELHOUSE PROTECTION
                                              from £4.24
                                              from £4.24
                                              # 023
                                              MPN: 65833700
                                              RH REAR WHEELHOUSE PROTECTION
                                              from £4.24
                                              from £4.24
                                              # 024
                                              MPN: 65236000
                                              LH BRACKET
                                              from £19.94
                                              from £19.94
                                              # 024
                                              MPN: 65236300
                                              RH BRACKET
                                              from £19.94
                                              from £19.94
                                              # 025
                                              MPN: 65228800
                                              PIN
                                              from £4.09
                                              from £4.09
                                              # 026
                                              MPN: 65228700
                                              BUSHING
                                              from £3.48
                                              from £3.48
                                              # 027
                                              MPN: 12646901
                                              WASHER
                                              Supersession
                                              Supersession
                                              # 028
                                              MPN: 10902224
                                              SCREW
                                              from £0.51
                                              from £0.51
                                              # 029
                                              MPN: 127494
                                              WASHER
                                              (minimum order quantity = 20)
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                              # 030
                                              MPN: 12640624
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12640601 - and 1 more. Click to view details
                                              # 031
                                              MPN: 65252700
                                              REAR NUMBER PLATE RIM
                                              - Not for USA, CDN and J
                                              from £23.51
                                              from £23.51
                                              # 032
                                              MPN: 15688075
                                              SCREW
                                              - Not for USA, CDN and J
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                              # 033
                                              MPN: 60987900
                                              REAR NUMBER PLATE RIM
                                              - Valid for USA and CDN
                                              from £38.94
                                              from £38.94
                                              # 034
                                              MPN: 64181600
                                              REAR PLATE FRAME
                                              - Valid for USA and CDN
                                              from £37.13
                                              from £37.13
                                              # 035
                                              MPN: 62556300
                                              RIVET
                                              - Valid for USA and CDN
                                              from £0.71
                                              from £0.71
                                              # 036
                                              MPN: 65469000
                                              GASKET
                                              from £16.72
                                              from £16.72
                                              This part replaces part number 63883800 which we have in stock
                                              # 037
                                              MPN: 65411800
                                              CENTRAL SHIELD
                                              - Not for 456M GTA
                                              from £106.23
                                              from £106.23
                                              # 038
                                              MPN: 65652100
                                              BRACKET FOR SHIELD
                                              - Not for 456M GTA
                                              from £6.23
                                              from £6.23
                                              # 039
                                              MPN: 14440634
                                              SCREW
                                              - Not for 456M GTA
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 13274014 - and 1 more. Click to view details
