109 - Trunk Hood Insulations -Valid for 456M GTA

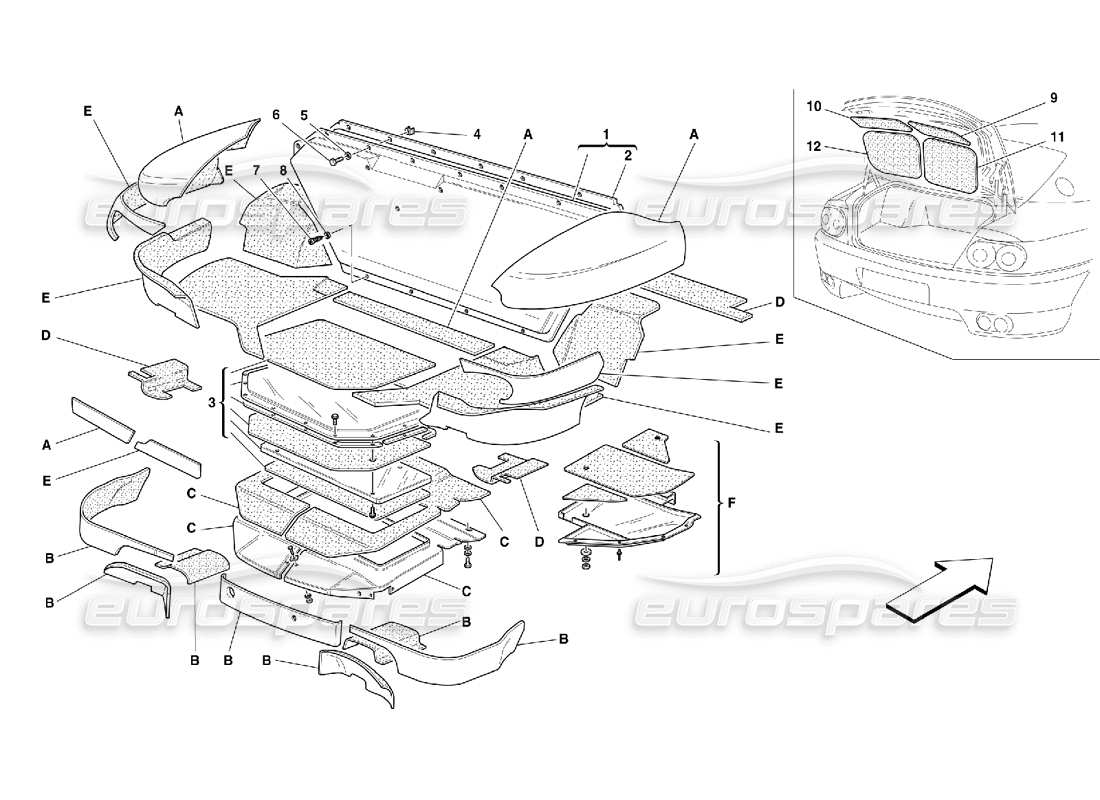

Ferrari 456 M GT/M GTA Trunk Hood Insulations -Valid for 456M GTA Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 64055000
TANK/SPARE WHEEL SHIELD SERIES
- E on Picture -
from £108.14
from £108.14
This part replaces part number 64055100 - and 1 more. Click to view details
# 000
MPN: 64090300
HEAT SHIELD SERIES
- B on Picture -
from £172.38
from £172.38
# 000
MPN: 64721500
HEAT SHIELD SERIES
- F on Picture -
from £160.29
from £160.29

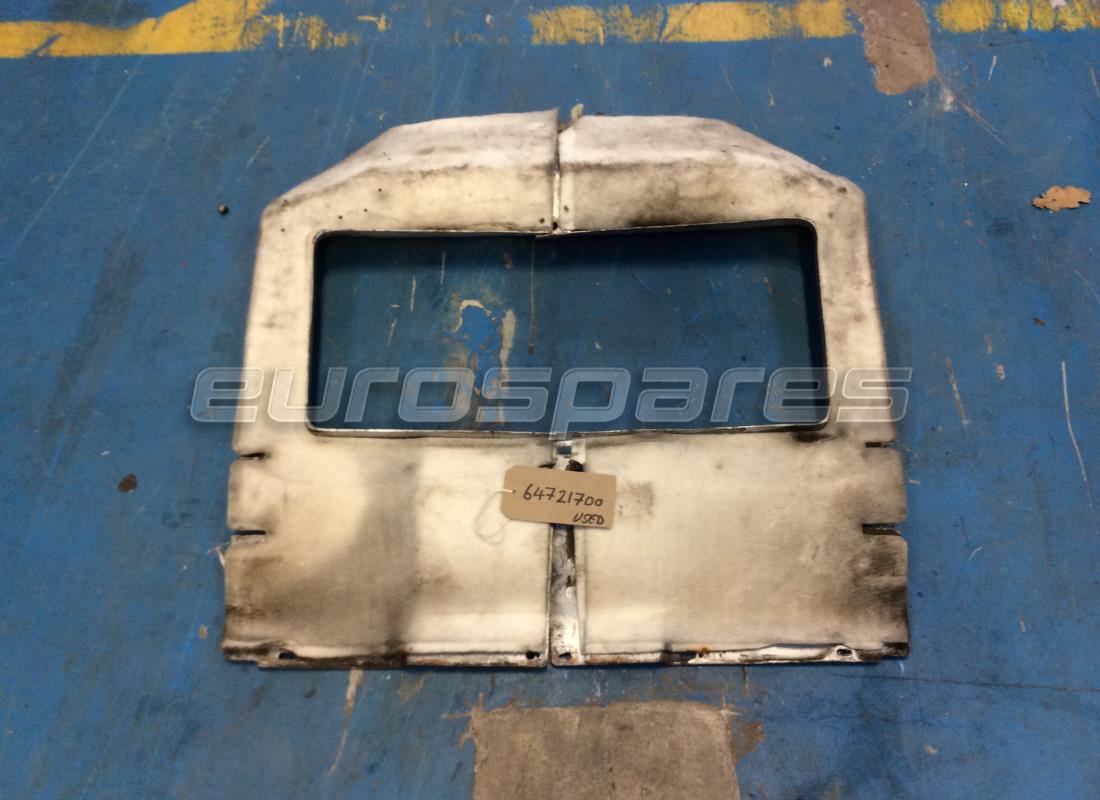

# 000
MPN: 64721700
HEAT SHIELD SERIES
- C on Picture -
from £517.24
from £517.24
# 000
MPN: 65418900
HEAT SHIELD SERIES
- A on Picture -
from £479.21
from £479.21
# 000
MPN: 65809400
RH BOOT HEAT SHIELD
from £435.39
from £435.39
This part replaces part number 63899700 which we have in stock
# 000
MPN: 65809600
LH BOOT HEAT SHIELD
- F on Picture -
from £435.39
from £435.39
This part replaces part number 63899600 which we have in stock
# 001
MPN: 65806900
SHIELD FOR LUGGAGE COMPARTMENT AND FUEL TANK
from £255.33
from £255.33
# 002
MPN: 63761800
GASKET
from £246.05
from £246.05
# 003
MPN: 65773000
COVER FOR LUGGAGE COMPARTMENT
from £199.50
from £199.50
This part replaces part number 65376600
# 004
MPN: 65774200
NUT WITH CAGE
from £0.51
from £0.51
# 005
MPN: 12647701
WASHER
from £0.47
from £0.47
# 006
MPN: 10902821
SCREW
from £1.09
from £1.09
This part replaces part number 10902801 - and 1 more. Click to view details
# 007
MPN: 15687275
SCREW
from £0.47
from £0.47
This part replaces part number 15687206
# 008
MPN: 12642878
WASHER
from £0.47
from £0.47
# 009
MPN: 63494800
RH UPPER HEAT SHIELD
from £105.44
from £105.44
# 010
MPN: 63494900
LH UPPER HEAT SHIELD
from £105.44
from £105.44
# 011
MPN: 63495000
RH LOWER HEAT SHIELD
from £136.65
from £136.65
# 012
MPN: 63495100
LH LOWER HEAT SHIELD
from £136.65
from £136.65
