ferrari 456 m gt/m gta doors - opening control and hinges parts diagram

117 - Doors - Opening Control and Hinges

Ferrari 456 M GT/M GTA Doors - Opening Control and Hinges Parts Diagram

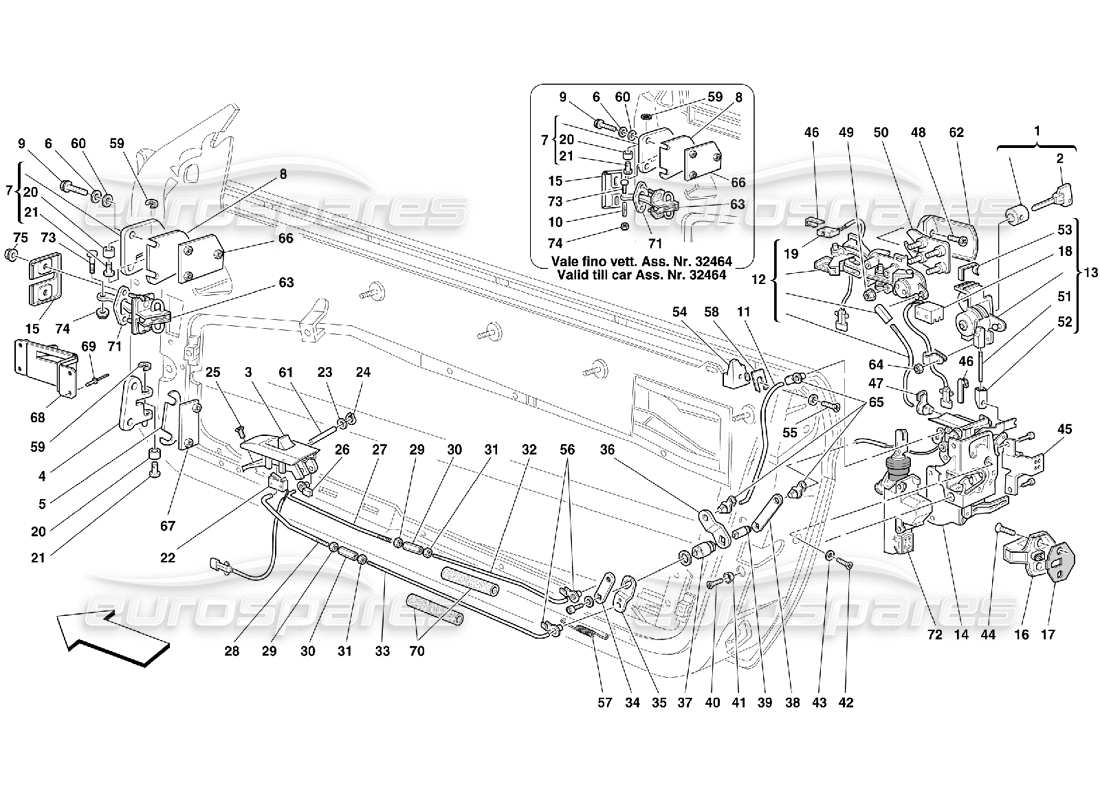

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                        #
                                                                                                                                        Part number
                                                                                                                                        Description
                                                                                                                                        Price
                                                                                                                                        # 001
                                                                                                                                        MPN: 162547
                                                                                                                                        LOCKS SET COMPLETED WITH STEERING LOCK AND KEY
                                                                                                                                        - Not for 456M GTA
                                                                                                                                        from £1,922.60
                                                                                                                                        from £1,922.60
                                                                                                                                        # 001
                                                                                                                                        MPN: 164514
                                                                                                                                        STEERING LOCK WITH KEY
                                                                                                                                        - Valid for 456M GTA
                                                                                                                                        from £195.75
                                                                                                                                        from £195.75
                                                                                                                                        # 002
                                                                                                                                        MPN: 170010
                                                                                                                                        BLANK KEY
                                                                                                                                        from £661.10
                                                                                                                                        from £661.10
                                                                                                                                        This part replaces part number 170010 ASM - and 1 more. Click to view details
                                                                                                                                        # 003
                                                                                                                                        MPN: 65566800
                                                                                                                                        RH INNER HANDLE FOR DOOR OPENING
                                                                                                                                        - Not as spare part now - Replaced by 66217800
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        This part replaces part number 64926000
                                                                                                                                        # 003
                                                                                                                                        MPN: 65566900
                                                                                                                                        LH INNER HANDLE FOR DOOR OPENING
                                                                                                                                        - Not as spare part now - Replaced by 66217500
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        This part replaces part number 64926300

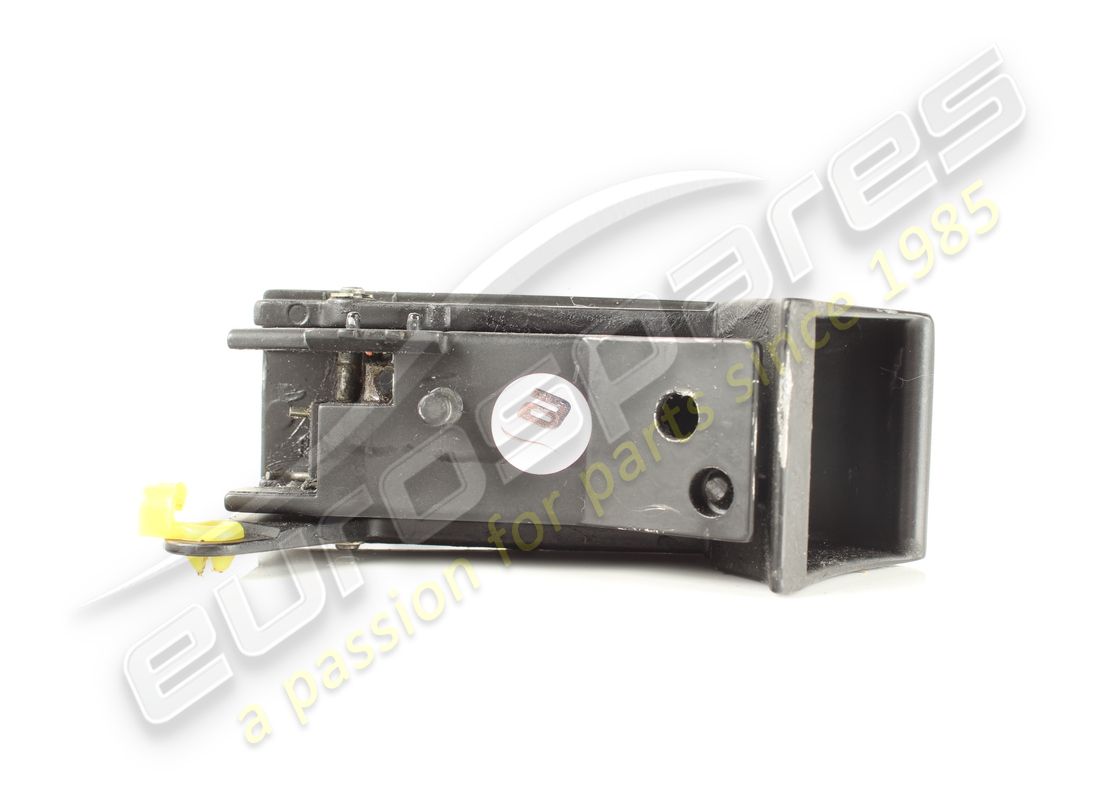

                                                                                                                                        # 003
                                                                                                                                        MPN: 66217500
                                                                                                                                        LH INNER HANDLE FOR DOOR OPENING
                                                                                                                                        from £469.91
                                                                                                                                        from £469.91
                                                                                                                                        This part replaces part number 65566900

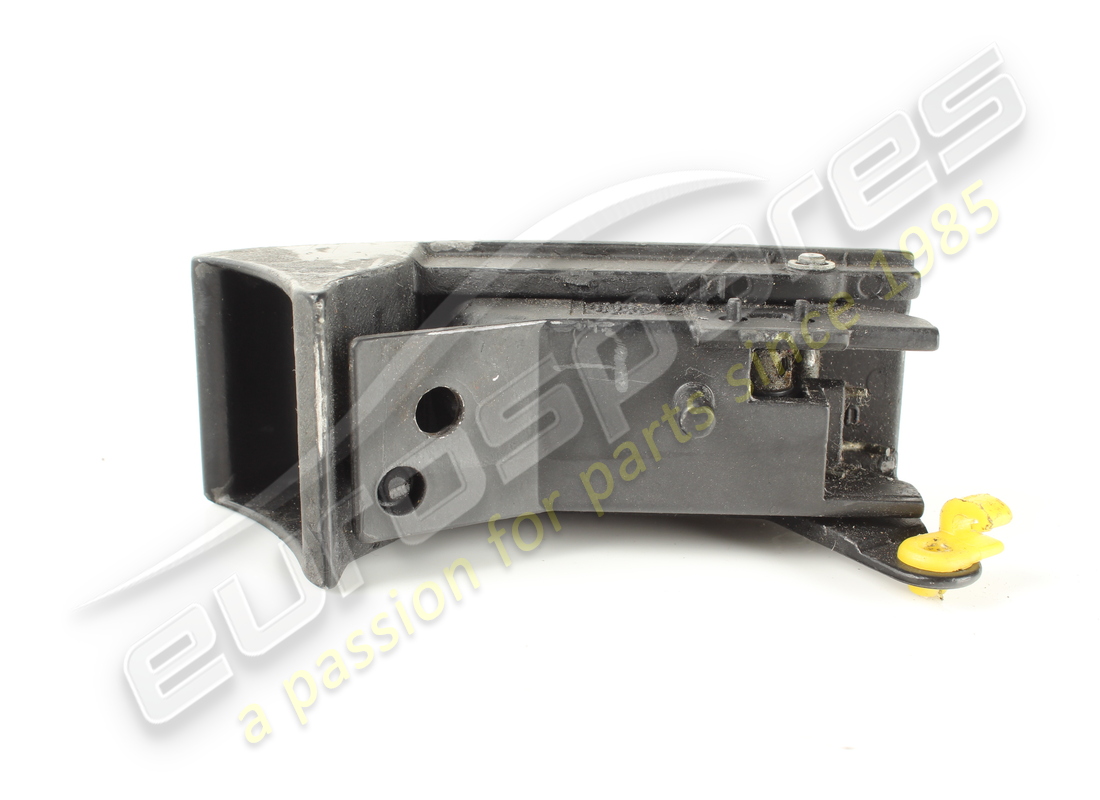

                                                                                                                                        # 003
                                                                                                                                        MPN: 66217800
                                                                                                                                        RH INNER HANDLE FOR DOOR OPENING
                                                                                                                                        from £469.91
                                                                                                                                        from £469.91
                                                                                                                                        This part replaces part number 65566800
                                                                                                                                        # 004
                                                                                                                                        MPN: 63188700
                                                                                                                                        RH LOWER MOBILE HINGE
                                                                                                                                        from £86.66
                                                                                                                                        from £86.66
                                                                                                                                        # 004
                                                                                                                                        MPN: 63188800
                                                                                                                                        LH LOWER MOBILE HINGE
                                                                                                                                        from £86.66
                                                                                                                                        from £86.66
                                                                                                                                        # 005
                                                                                                                                        MPN: 65404200
                                                                                                                                        THICKNESS
                                                                                                                                        from £6.18
                                                                                                                                        from £6.18
                                                                                                                                        This part replaces part number 63747200
                                                                                                                                        # 006
                                                                                                                                        MPN: 127496
                                                                                                                                        WASHER
                                                                                                                                        from £0.53
                                                                                                                                        from £0.53
                                                                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                        # 007
                                                                                                                                        MPN: 63189300
                                                                                                                                        RH UPPER MOBILE HINGE
                                                                                                                                        from £76.19
                                                                                                                                        from £76.19
                                                                                                                                        # 007
                                                                                                                                        MPN: 63189400
                                                                                                                                        LH UPPER MOBILE HINGE
                                                                                                                                        from £76.19
                                                                                                                                        from £76.19
                                                                                                                                        # 008
                                                                                                                                        MPN: 63747100
                                                                                                                                        THICKNESS
                                                                                                                                        from £10.04
                                                                                                                                        from £10.04

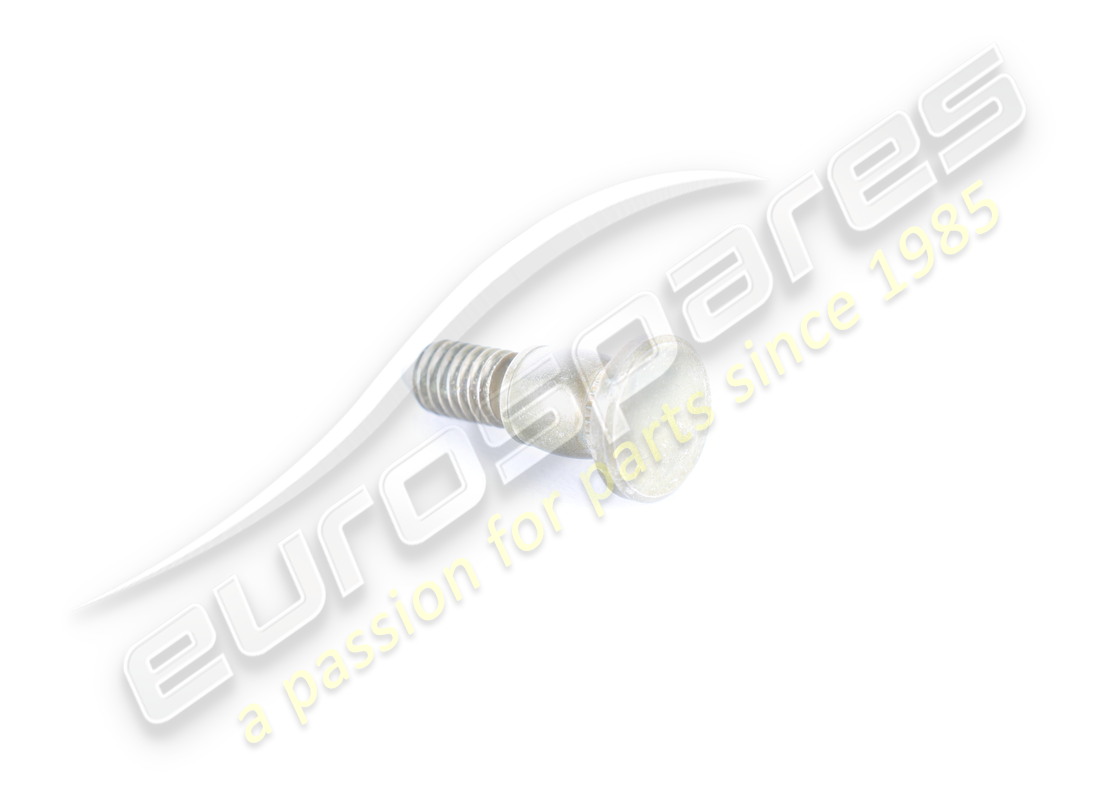

                                                                                                                                        # 009
                                                                                                                                        MPN: 16043934
                                                                                                                                        SCREW
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 16043921 - and 1 more. Click to view details
                                                                                                                                        # 010
                                                                                                                                        MPN: 62791700
                                                                                                                                        PIN
                                                                                                                                        - Valid till car Ass. Nr. 32464
                                                                                                                                        from £6.10
                                                                                                                                        from £6.10
                                                                                                                                        # 011
                                                                                                                                        MPN: 63168000
                                                                                                                                        RH TIE ROD
                                                                                                                                        from £2.44
                                                                                                                                        from £2.44
                                                                                                                                        # 011
                                                                                                                                        MPN: 63888500
                                                                                                                                        LH TIE ROD
                                                                                                                                        from £2.52
                                                                                                                                        from £2.52
                                                                                                                                        # 012
                                                                                                                                        MPN: 65808200
                                                                                                                                        RH COMPLETE OUTER DOOR HANDLE
                                                                                                                                        from £71.25
                                                                                                                                        from £71.25
                                                                                                                                        This part replaces part number 63852400 which we have in stock - and 1 more. Click to view details
                                                                                                                                        # 012
                                                                                                                                        MPN: 65808300
                                                                                                                                        LH COMPLETE OUTER DOOR HANDLE
                                                                                                                                        from £183.77
                                                                                                                                        from £183.77
                                                                                                                                        This part replaces part number 63852500 which we have in stock
                                                                                                                                        # 013
                                                                                                                                        MPN: 63180300
                                                                                                                                        RH COMPLETE LOCK CONTROL BLOCK
                                                                                                                                        from £75.14
                                                                                                                                        from £75.14
                                                                                                                                        # 013
                                                                                                                                        MPN: 63180400
                                                                                                                                        LH COMPLETE LOCK CONTROL BLOCK
                                                                                                                                        from £75.14
                                                                                                                                        from £75.14
                                                                                                                                        # 014
                                                                                                                                        MPN: 63497400

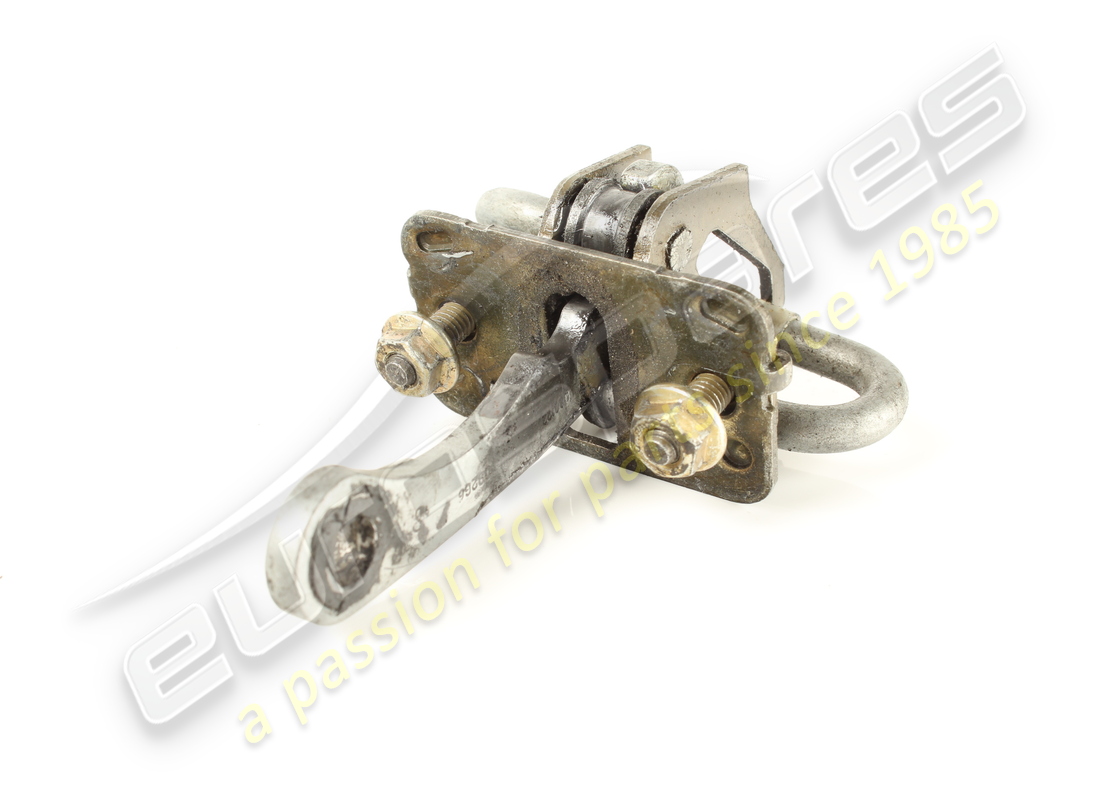

                                                                                                                                        RH COMPLETE DOOR LOCK
                                                                                                                                        from £729.92
                                                                                                                                        from £729.92
                                                                                                                                        # 014
                                                                                                                                        MPN: 63497500
                                                                                                                                        LH COMPLETE DOOR LOCK
                                                                                                                                        from £858.50
                                                                                                                                        from £858.50
                                                                                                                                        # 015
                                                                                                                                        MPN: 63895200
                                                                                                                                        RH SMALL PLATE
                                                                                                                                        from £9.04
                                                                                                                                        from £9.04
                                                                                                                                        This part replaces part number 63895400 - and 1 more. Click to view details
                                                                                                                                        # 015
                                                                                                                                        MPN: 63895300
                                                                                                                                        LH SMALL PLATE
                                                                                                                                        from £16.44
                                                                                                                                        from £16.44
                                                                                                                                        This part replaces part number 63895500
                                                                                                                                        # 016
                                                                                                                                        MPN: 63157000
                                                                                                                                        DOOR CLOSING STRIKER
                                                                                                                                        from £75.24
                                                                                                                                        from £75.24
                                                                                                                                        # 017
                                                                                                                                        MPN: 63877300
                                                                                                                                        PLATE
                                                                                                                                        from £2.00
                                                                                                                                        from £2.00
                                                                                                                                        # 018
                                                                                                                                        MPN: 63859200
                                                                                                                                        DOORS LOCKING MICRO-SWITCH
                                                                                                                                        from £156.44
                                                                                                                                        from £156.44
                                                                                                                                        This part replaces part number 63859300
                                                                                                                                        # 019
                                                                                                                                        MPN: 63859800
                                                                                                                                        OUTER DOOR HANDLE MICRO-SWITCH
                                                                                                                                        from £224.18
                                                                                                                                        from £224.18
                                                                                                                                        # 020
                                                                                                                                        MPN: 63189600
                                                                                                                                        BUSHING
                                                                                                                                        from £10.71
                                                                                                                                        from £10.71
                                                                                                                                        # 021
                                                                                                                                        MPN: 63189800
                                                                                                                                        PIN
                                                                                                                                        from £6.17
                                                                                                                                        from £6.17
                                                                                                                                        # 022
                                                                                                                                        MPN: 171120
                                                                                                                                        INNER DOOR HANDLE MICRO-SWITCH
                                                                                                                                        from £85.18
                                                                                                                                        from £85.18
                                                                                                                                        # 023
                                                                                                                                        MPN: 64203800
                                                                                                                                        WASHER
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 024
                                                                                                                                        MPN: 11087476
                                                                                                                                        FLEXIBLE RING
                                                                                                                                        from £3.00
                                                                                                                                        from £3.00
                                                                                                                                        # 025
                                                                                                                                        MPN: 13274470
                                                                                                                                        SCREW
                                                                                                                                        from £0.71
                                                                                                                                        from £0.71
                                                                                                                                        # 026
                                                                                                                                        MPN: 14578080
                                                                                                                                        TIE ROD RETAINING CLIP
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 40063208

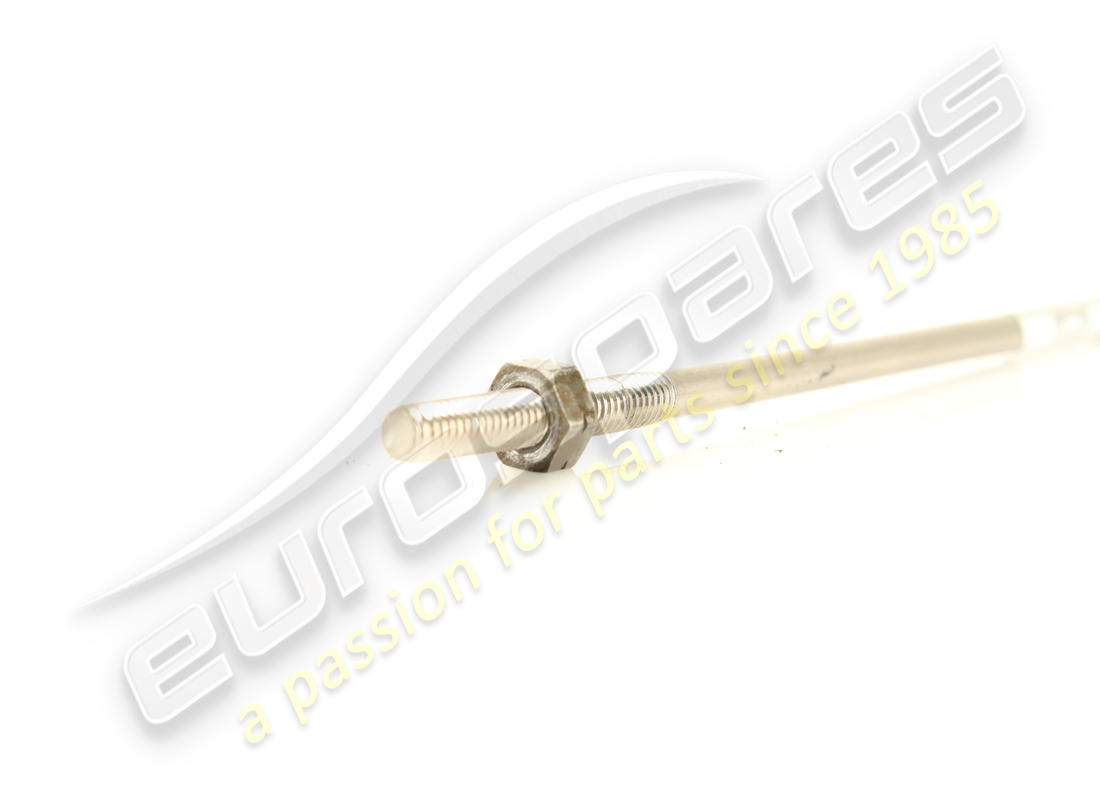

                                                                                                                                        # 027
                                                                                                                                        MPN: 65561600
                                                                                                                                        FRONT TIE ROD
                                                                                                                                        from £8.57
                                                                                                                                        from £8.57
                                                                                                                                        # 028
                                                                                                                                        MPN: 65561900
                                                                                                                                        FRONT TIE ROD
                                                                                                                                        from £6.17
                                                                                                                                        from £6.17
                                                                                                                                        # 029
                                                                                                                                        MPN: 64203300
                                                                                                                                        LH NUT
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        # 030
                                                                                                                                        MPN: 63402100
                                                                                                                                        ADJUSTMENT SLEEVE
                                                                                                                                        from £56.87
                                                                                                                                        from £56.87
                                                                                                                                        # 031
                                                                                                                                        MPN: 10794014
                                                                                                                                        NUT
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 10794034

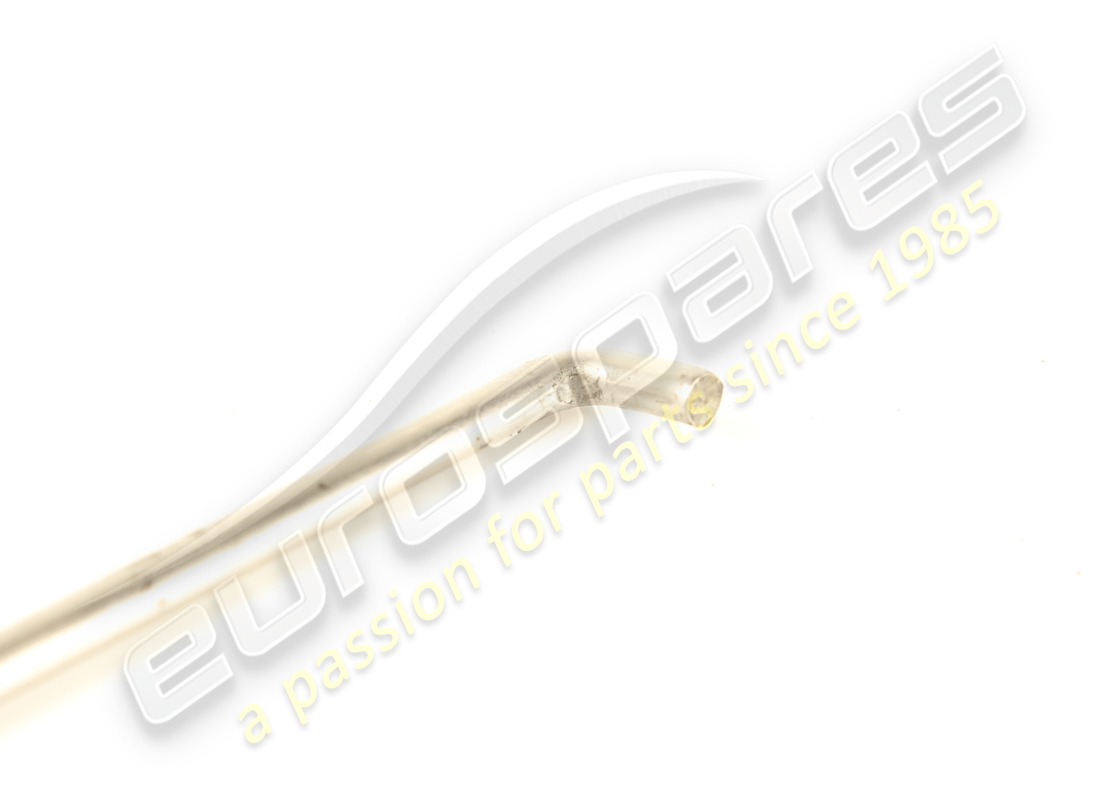

                                                                                                                                        # 032
                                                                                                                                        MPN: 65561700
                                                                                                                                        REAR TIE ROD
                                                                                                                                        from £12.33
                                                                                                                                        from £12.33
                                                                                                                                        # 033
                                                                                                                                        MPN: 65562000
                                                                                                                                        REAR TIE ROD
                                                                                                                                        from £12.33
                                                                                                                                        from £12.33
                                                                                                                                        # 034
                                                                                                                                        MPN: 65100500
                                                                                                                                        HANDLE PRIMARY LEVER
                                                                                                                                        from £5.38
                                                                                                                                        from £5.38
                                                                                                                                        # 035
                                                                                                                                        MPN: 65046000
                                                                                                                                        RH SEFETY DEVICE PRIMARY LEVER
                                                                                                                                        from £10.27
                                                                                                                                        from £10.27
                                                                                                                                        # 035
                                                                                                                                        MPN: 65046100
                                                                                                                                        LH SEFETY DEVICE PRIMARY LEVER
                                                                                                                                        from £41.55
                                                                                                                                        from £41.55
                                                                                                                                        # 036
                                                                                                                                        MPN: 63167900
                                                                                                                                        SEFETY DEVICE SECONDARY LEVER
                                                                                                                                        from £60.12
                                                                                                                                        from £60.12
                                                                                                                                        # 037
                                                                                                                                        MPN: 63168600
                                                                                                                                        SAFETY DEVICE TRANSMISSION PIN
                                                                                                                                        from £10.88
                                                                                                                                        from £10.88
                                                                                                                                        # 038
                                                                                                                                        MPN: 63167500
                                                                                                                                        HANDLE SECONDARY LEVER
                                                                                                                                        from £55.60
                                                                                                                                        from £55.60
                                                                                                                                        # 039
                                                                                                                                        MPN: 65100900
                                                                                                                                        HANDLE TRANSMISSION PIN
                                                                                                                                        Supersession
                                                                                                                                        Supersession
                                                                                                                                        # 040
                                                                                                                                        MPN: 62797600
                                                                                                                                        SCREW
                                                                                                                                        from £0.60
                                                                                                                                        from £0.60
                                                                                                                                        This part replaces part number 68989900
                                                                                                                                        # 041
                                                                                                                                        MPN: 62794700
                                                                                                                                        WASHER
                                                                                                                                        from £0.69
                                                                                                                                        from £0.69
                                                                                                                                        # 042
                                                                                                                                        MPN: 13276077
                                                                                                                                        SCREW
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 043
                                                                                                                                        MPN: 13550277
                                                                                                                                        WASHER
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 13550276
                                                                                                                                        # 044
                                                                                                                                        MPN: 14442134
                                                                                                                                        SCREW
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 045
                                                                                                                                        MPN: 177879
                                                                                                                                        BRACKET FOR MICRO-SWITCH FIXING
                                                                                                                                        from £2.69
                                                                                                                                        from £2.69
                                                                                                                                        This part replaces part number 155323
                                                                                                                                        # 046
                                                                                                                                        MPN: 155978
                                                                                                                                        CLIP FOR PACKARD CONNECTION
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 047
                                                                                                                                        MPN: 64215300
                                                                                                                                        TIE ROD RETAINING CLIP
                                                                                                                                        from £0.53
                                                                                                                                        from £0.53
                                                                                                                                        # 048
                                                                                                                                        MPN: 64214600
                                                                                                                                        SCREW
                                                                                                                                        from £1.36
                                                                                                                                        from £1.36
                                                                                                                                        # 049
                                                                                                                                        MPN: 14084011
                                                                                                                                        NUT
                                                                                                                                        from £0.51
                                                                                                                                        from £0.51
                                                                                                                                        # 050
                                                                                                                                        MPN: 63158010
                                                                                                                                        OUTER HANDLE SUPPORT
                                                                                                                                        from £4.85
                                                                                                                                        from £4.85
                                                                                                                                        This part replaces part number 63485510 - and 3 more. Click to view details

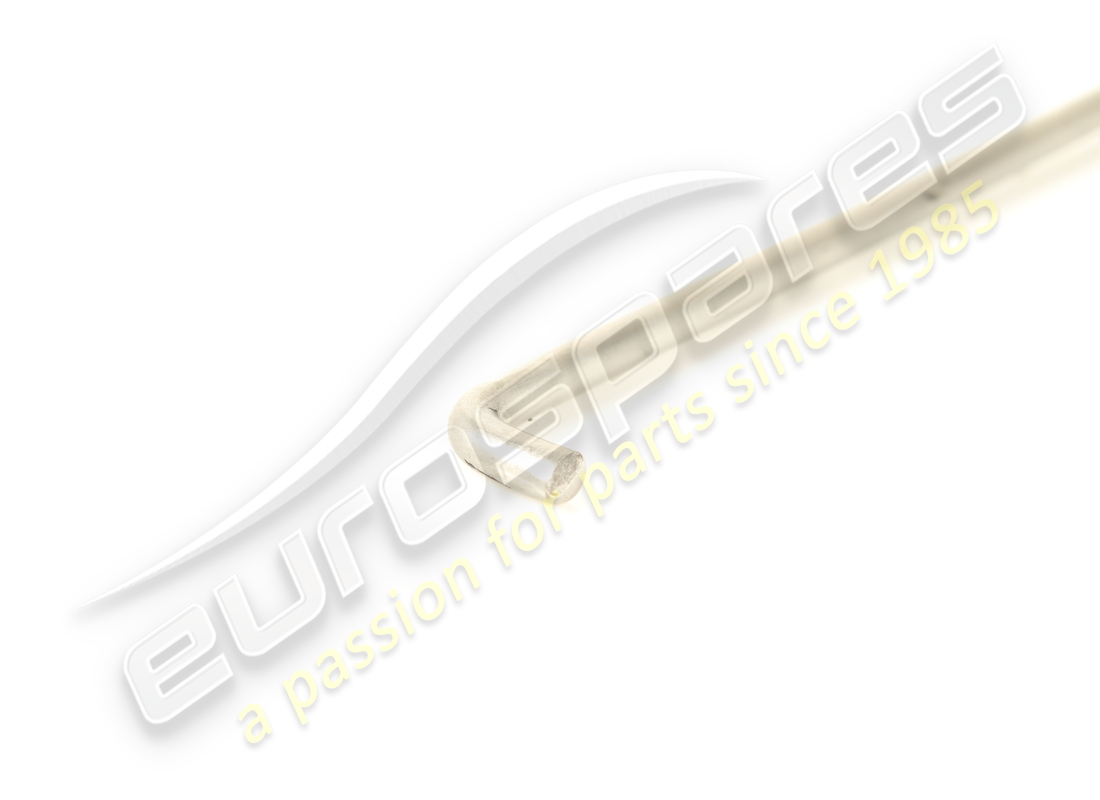

                                                                                                                                        # 051
                                                                                                                                        MPN: 63772500
                                                                                                                                        TIE ROD
                                                                                                                                        from £2.06
                                                                                                                                        from £2.06
                                                                                                                                        # 052
                                                                                                                                        MPN: 62794000
                                                                                                                                        FLEXIBLE JOINT
                                                                                                                                        from £0.74
                                                                                                                                        from £0.74
                                                                                                                                        # 053
                                                                                                                                        MPN: 63179700
                                                                                                                                        FIXING CLIP
                                                                                                                                        from £7.32
                                                                                                                                        from £7.32
                                                                                                                                        # 054
                                                                                                                                        MPN: 65438600
                                                                                                                                        RH SMALL BLOCK
                                                                                                                                        from £3.93
                                                                                                                                        from £3.93
                                                                                                                                        # 054
                                                                                                                                        MPN: 65438700
                                                                                                                                        LH SMALL BLOCK
                                                                                                                                        from £3.93
                                                                                                                                        from £3.93
                                                                                                                                        # 055
                                                                                                                                        MPN: 13271914
                                                                                                                                        SCREW
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 13271911 - and 1 more. Click to view details
                                                                                                                                        # 056
                                                                                                                                        MPN: 14578180
                                                                                                                                        SPRINGS
                                                                                                                                        from £8.99
                                                                                                                                        from £8.99
                                                                                                                                        This part replaces part number 14578283 - and 1 more. Click to view details
                                                                                                                                        # 057
                                                                                                                                        MPN: 64074200
                                                                                                                                        SPRING
                                                                                                                                        from £17.07
                                                                                                                                        from £17.07
                                                                                                                                        # 058
                                                                                                                                        MPN: 65510800
                                                                                                                                        THICKNESS
                                                                                                                                        - Possible fitting
                                                                                                                                        from £0.56
                                                                                                                                        from £0.56
                                                                                                                                        # 059
                                                                                                                                        MPN: 11087974
                                                                                                                                        FLEXIBLE RING
                                                                                                                                        from £0.48
                                                                                                                                        from £0.48
                                                                                                                                        This part replaces part number 11087976
                                                                                                                                        # 060
                                                                                                                                        MPN: 12646724
                                                                                                                                        WASHER
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 12601571 - and 3 more. Click to view details
                                                                                                                                        # 061
                                                                                                                                        MPN: 65582700
                                                                                                                                        PIN
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 64203900
                                                                                                                                        # 062
                                                                                                                                        MPN: 63852610
                                                                                                                                        HANDLE MOVABLE PART
                                                                                                                                        from £133.22
                                                                                                                                        from £133.22
                                                                                                                                        This part replaces part number 63852600 - and 3 more. Click to view details
                                                                                                                                        # 063
                                                                                                                                        MPN: 65195200
                                                                                                                                        TIE ROD
                                                                                                                                        - Valid till car Ass. Nr. 32464
                                                                                                                                        from £94.59
                                                                                                                                        from £94.59
                                                                                                                                        This part replaces part number 63896900 - and 3 more. Click to view details
                                                                                                                                        # 063
                                                                                                                                        MPN: 65897300
                                                                                                                                        TIE ROD
                                                                                                                                        - Valid from car Ass. Nr. 32465
                                                                                                                                        from £26.39
                                                                                                                                        from £26.39
                                                                                                                                        # 064
                                                                                                                                        MPN: 14084011
                                                                                                                                        NUT
                                                                                                                                        from £0.53
                                                                                                                                        from £0.53
                                                                                                                                        # 065
                                                                                                                                        MPN: 14578180
                                                                                                                                        CLIP
                                                                                                                                        from £8.99
                                                                                                                                        from £8.99
                                                                                                                                        This part replaces part number 14578283 - and 1 more. Click to view details
                                                                                                                                        # 066
                                                                                                                                        MPN: 63747700
                                                                                                                                        RH UPPER PLATE
                                                                                                                                        from £8.91
                                                                                                                                        from £8.91
                                                                                                                                        # 066
                                                                                                                                        MPN: 63747800
                                                                                                                                        LH UPPER PLATE
                                                                                                                                        from £8.91
                                                                                                                                        from £8.91
                                                                                                                                        # 067
                                                                                                                                        MPN: 63747900
                                                                                                                                        RH LOWER PLATE
                                                                                                                                        from £39.77
                                                                                                                                        from £39.77
                                                                                                                                        # 067
                                                                                                                                        MPN: 63748000
                                                                                                                                        LH LOWER PLATE
                                                                                                                                        from £41.59
                                                                                                                                        from £41.59
                                                                                                                                        # 068
                                                                                                                                        MPN: 63893000
                                                                                                                                        LH AIR PROTECTION PLATE
                                                                                                                                        from £13.19
                                                                                                                                        from £13.19
                                                                                                                                        # 068
                                                                                                                                        MPN: 63893100
                                                                                                                                        RH AIR PROTECTION PLATE
                                                                                                                                        from £13.19
                                                                                                                                        from £13.19
                                                                                                                                        # 069
                                                                                                                                        MPN: 60643400
                                                                                                                                        RIVET
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 070
                                                                                                                                        MPN: 65498900
                                                                                                                                        TIE ROD PIPE
                                                                                                                                        from £1.01
                                                                                                                                        from £1.01
                                                                                                                                        # 071
                                                                                                                                        MPN: 65321600
                                                                                                                                        SMALL PLATE
                                                                                                                                        from £4.65
                                                                                                                                        from £4.65
                                                                                                                                        # 072
                                                                                                                                        MPN: 63487400
                                                                                                                                        CENTRALIZED LOCKING DEVICE
                                                                                                                                        from £272.25
                                                                                                                                        from £272.25
                                                                                                                                        # 073
                                                                                                                                        MPN: 15210824
                                                                                                                                        SCREW
                                                                                                                                        - Valid till car Ass. Nr. 32464
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 073
                                                                                                                                        MPN: 65716400
                                                                                                                                        SCREW
                                                                                                                                        - Valid from car Ass. Nr. 32465
                                                                                                                                        from £5.64
                                                                                                                                        from £5.64
                                                                                                                                        # 074
                                                                                                                                        MPN: 13046114
                                                                                                                                        NUT
                                                                                                                                        - Valid from car Ass. Nr. 32465
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        # 074
                                                                                                                                        MPN: 62790300
                                                                                                                                        NUT
                                                                                                                                        - Valid till car Ass. Nr. 32464
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
                                                                                                                                        This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                                                        # 075
                                                                                                                                        MPN: 14059211
                                                                                                                                        NUT
                                                                                                                                        - Valid from car Ass. Nr. 32465
                                                                                                                                        from £0.47
                                                                                                                                        from £0.47
