121 - Front Seat Movement System

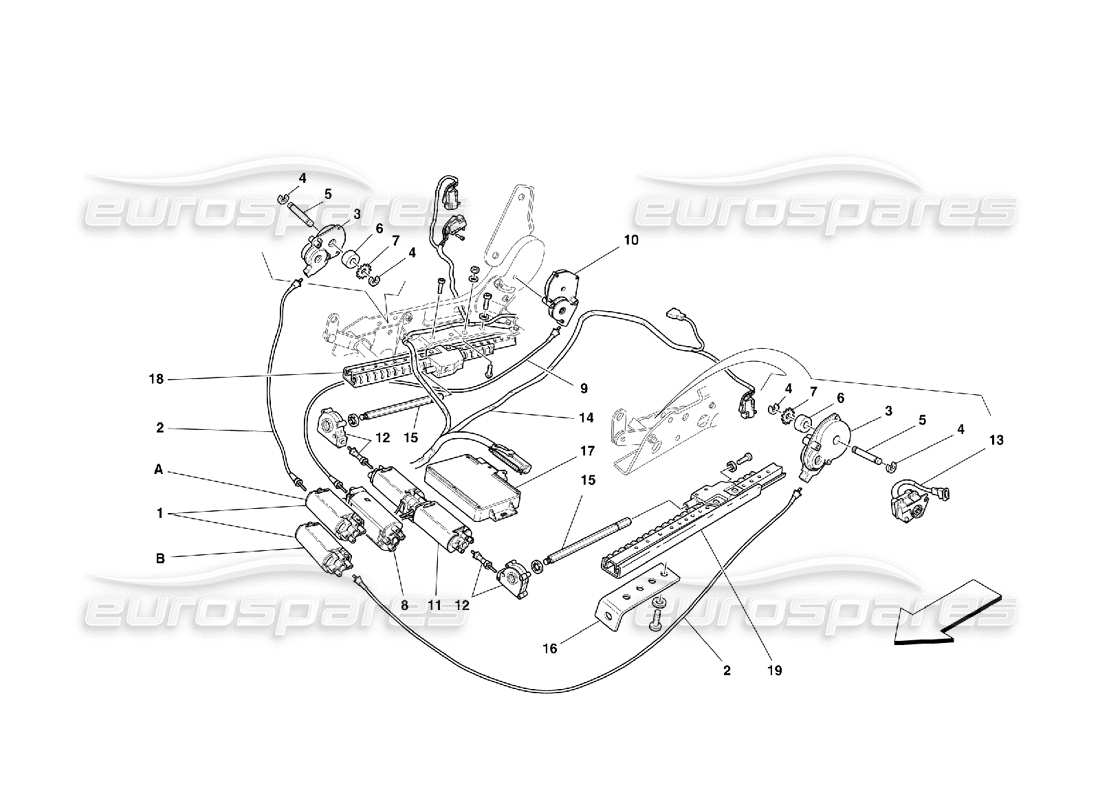

Ferrari 456 M GT/M GTA Front Seat Movement System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65876100
PASSENGER SEAT LIFTING MOTOR
from £472.50
from £472.50
This part replaces part number 65876800 - and 5 more. Click to view details
# 001
MPN: 65913300
DRIVER SEAT LIFTING MOTOR
- A Forward, B Backwards
from £79.02
from £79.02
# 002
MPN: 65876200
SEAT LIFTING MOTOR FLEX
from £73.21
from £73.21
# 003
MPN: 65876300
SEAT LIFTING MOTOR UNION
from £65.92
from £65.92
# 004
MPN: 65876400
SEEGER RING
from £6.93
from £6.93
# 005
MPN: 65876500
PIN
from £296.72
from £296.72
# 006
MPN: 65876600
SPACER
from £20.87
from £20.87
# 007
MPN: 65876700
GEAR
# 008
MPN: 65876100
SEAT BACK MOTOR MOVEMENT
from £472.50
from £472.50
This part replaces part number 65876800 - and 5 more. Click to view details
# 009
MPN: 65876900
FLEX FOR SEAT BACK MOTOR
from £153.89
from £153.89
# 010
MPN: 65877000
SEAT BACK MOVEMENT UNION
from £99.75
from £99.75
# 011
MPN: 65913000
GUIDE MOTOR
Supersession
Supersession
# 012
MPN: 65877200
GUIDE MOVEMENT UNION
from £219.39
from £219.39
# 013
MPN: 65912300
POTENTIOMETER
Supersession
Supersession
# 014
MPN: 65912600
DRIVER SIDE ELECTRIC CABLE
from £57.96
from £57.96
# 014
MPN: 65912700
PASSENGER SIDE ELECTRIC CABLE
from £330.90
from £330.90
# 015
MPN: 65913100
SHAFT
from £98.52
from £98.52
# 016
MPN: 65877600
FRONT BRACKET
from £160.15
from £160.15
# 017
MPN: 65912500
SEAT CONTROL UNIT
from £1,959.36
from £1,959.36
# 018
MPN: 65912800
SEATS GUIDE
- RH side
from £330.59
from £330.59
# 019
MPN: 65912900
SEATS GUIDE
- LH side
from £341.25
from £341.25
