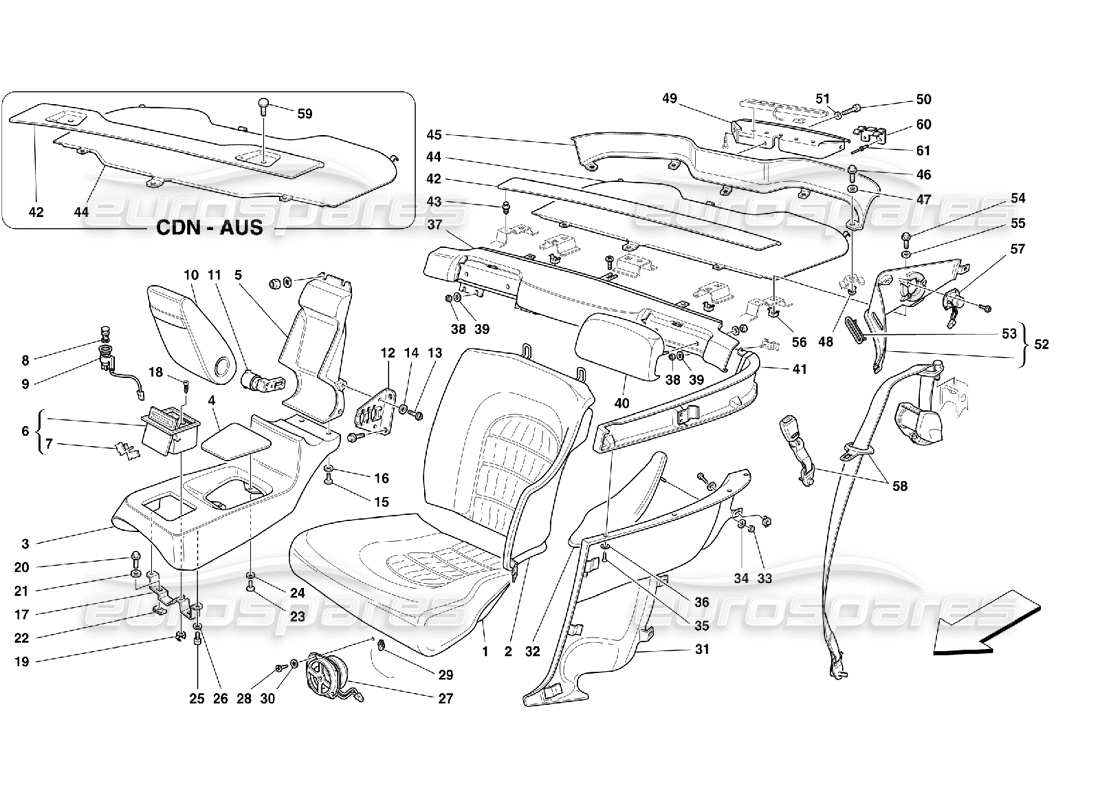

ferrari 456 m gt/m gta rear seats and belts parts diagram

122 - Rear Seats and Belts

Ferrari 456 M GT/M GTA Rear Seats and Belts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 654728..
                                                                                  RH REAR CUSHION
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 001
                                                                                  MPN: 654729..
                                                                                  LH REAR CUSHION
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 001
                                                                                  MPN: 655712..
                                                                                  RH CUSHION UPHOLSTERY
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 001
                                                                                  MPN: 655713..
                                                                                  LH CUSHION UPHOLSTERY
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 002
                                                                                  MPN: 654726..
                                                                                  RH SEAT BACK
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 002
                                                                                  MPN: 654727..
                                                                                  LH SEAT BACK
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 002
                                                                                  MPN: 655508..
                                                                                  RH SEAT BACK TRIM
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 002
                                                                                  MPN: 655509..
                                                                                  LH SEAT BACK TRIM
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 003
                                                                                  MPN: 654139..
                                                                                  REAR LOWER CONSOLE
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 003
                                                                                  MPN: 654140..
                                                                                  CONSOLE TRIM
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 004
                                                                                  MPN: 652873..
                                                                                  COMPLETE MOULDING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 004
                                                                                  MPN: 654152..
                                                                                  LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 005
                                                                                  MPN: 654132..
                                                                                  UPPER LOWER CONSOLE
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 005
                                                                                  MPN: 654137..
                                                                                  CONSOLE TRIM
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 006
                                                                                  MPN: 65471400

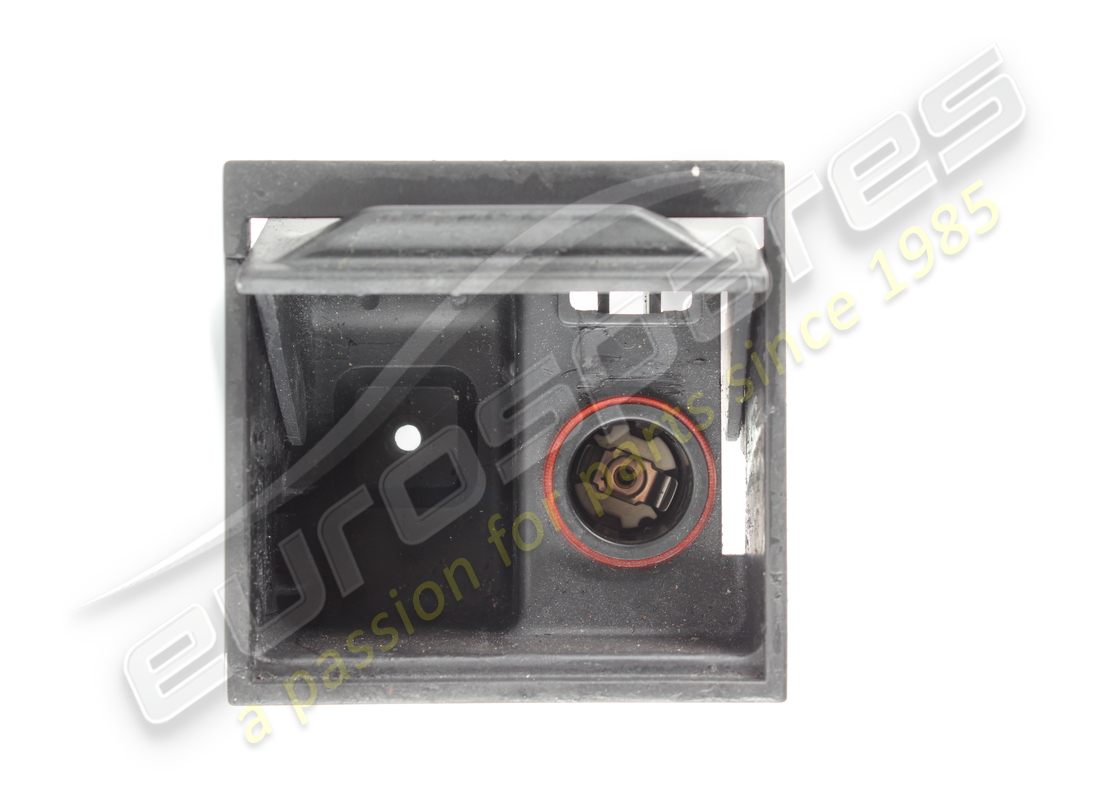

                                                                                  COMPLETE ASH TRAY
                                                                                  from £173.08
                                                                                  from £173.08
                                                                                  # 007
                                                                                  MPN: 64460400
                                                                                  Ferrari-PININFARINA MARK
                                                                                  from £56.51
                                                                                  from £56.51
                                                                                  # 008
                                                                                  MPN: 226942

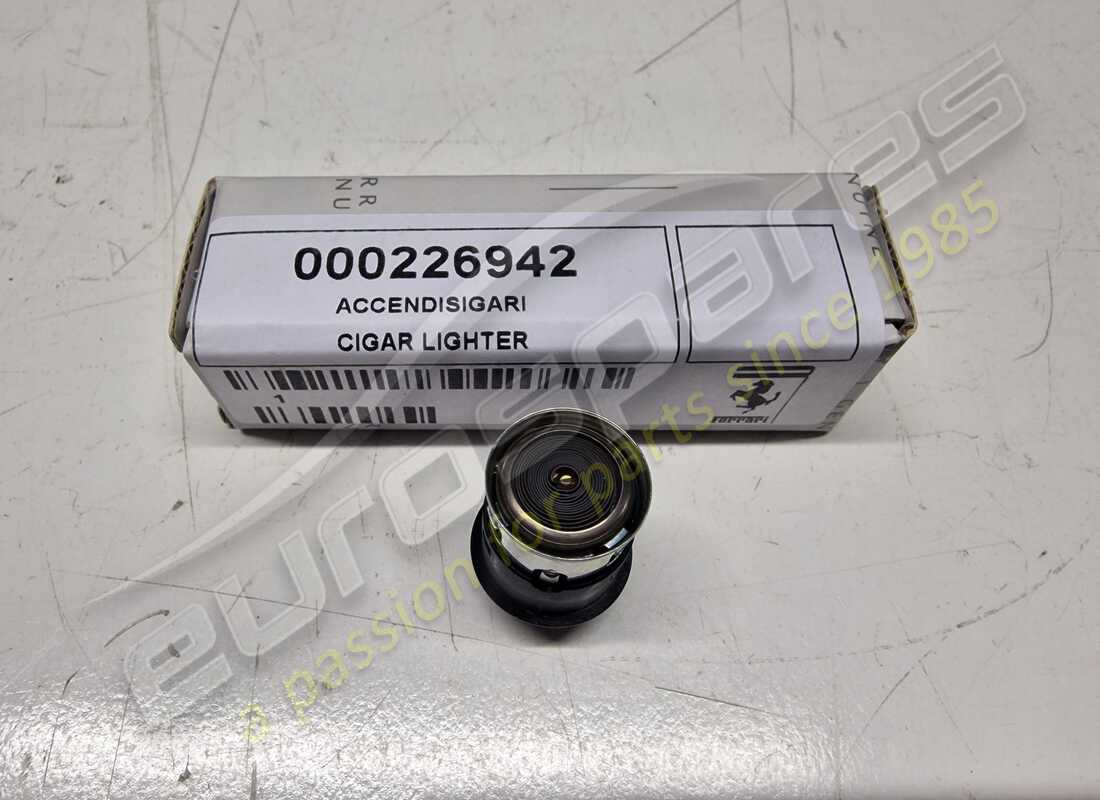

                                                                                  CIGAR LIGHTER
                                                                                  not as spare part - use part number: 226942
                                                                                  from £11.31
                                                                                  from £11.31
                                                                                  This part replaces part number 61107500
                                                                                  # 009
                                                                                  MPN: 226941

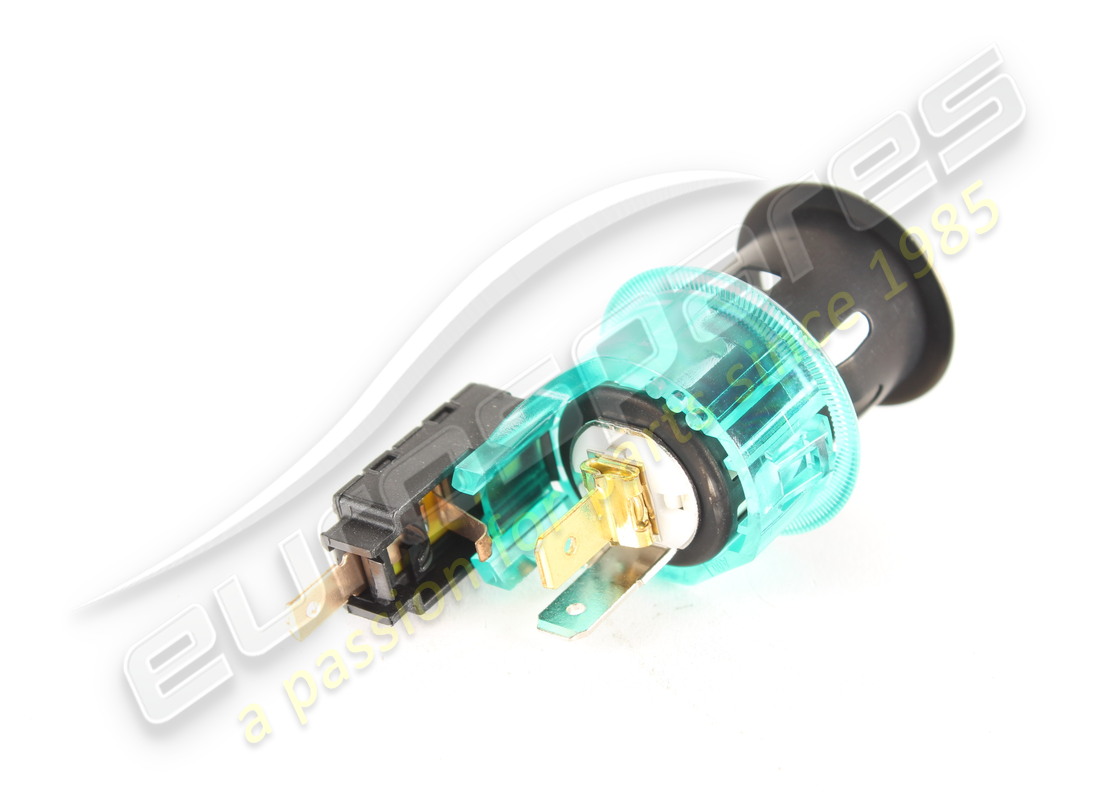

                                                                                  CIGAR LIGHTER BODY
                                                                                  not as spare part - use part number: 226941
                                                                                  from £16.73
                                                                                  from £16.73
                                                                                  This part replaces part number 61107600 - and 2 more. Click to view details
                                                                                  # 010
                                                                                  MPN: 652874..
                                                                                  COMPLETO ARM-REST
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 010
                                                                                  MPN: 654154..
                                                                                  LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 011
                                                                                  MPN: 65559500
                                                                                  PIN
                                                                                  from £9.23
                                                                                  from £9.23
                                                                                  # 012
                                                                                  MPN: 65414200
                                                                                  BRACKET
                                                                                  from £20.55
                                                                                  from £20.55
                                                                                  # 013
                                                                                  MPN: 10977624

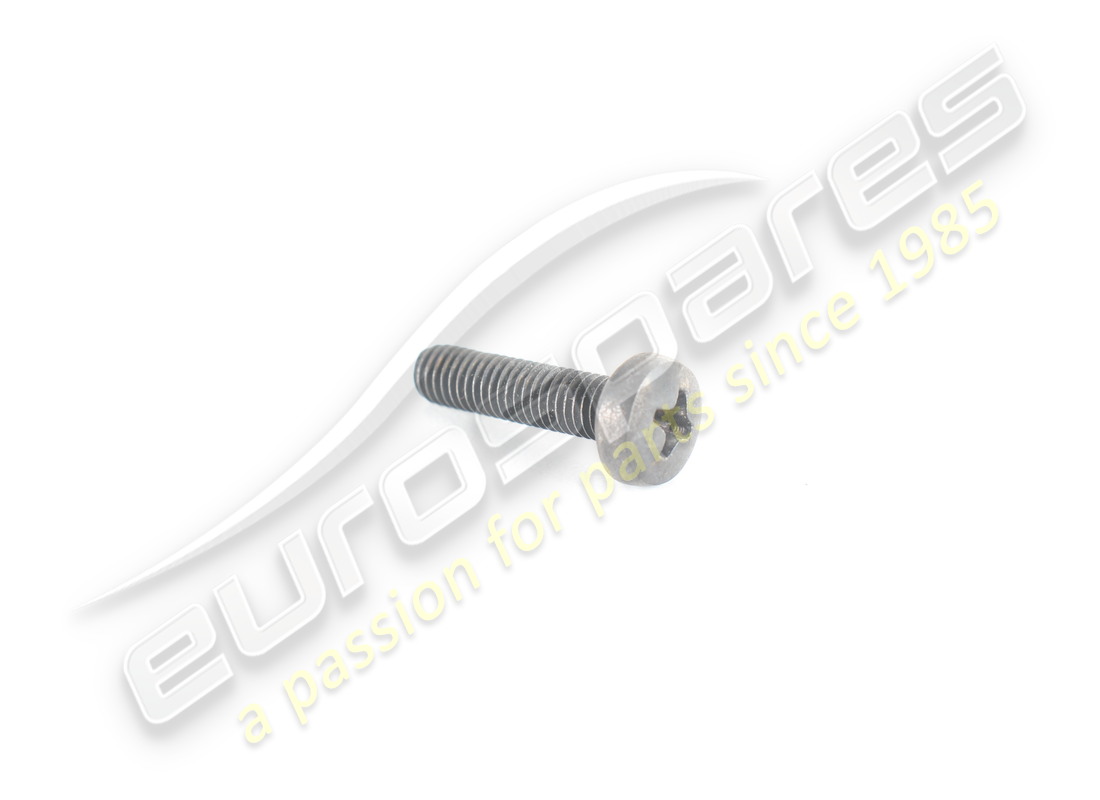

                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                  # 014
                                                                                  MPN: 12638124
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                  # 015
                                                                                  MPN: 14304124
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 016
                                                                                  MPN: 12638124
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                  # 017
                                                                                  MPN: 65287100
                                                                                  LOWER BRACKET
                                                                                  from £32.52
                                                                                  from £32.52
                                                                                  # 018
                                                                                  MPN: 15688175
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 15688108
                                                                                  # 019
                                                                                  MPN: 14372574
                                                                                  BRACKET
                                                                                  from £0.69
                                                                                  from £0.69
                                                                                  # 020
                                                                                  MPN: 16285011
                                                                                  SCREW
                                                                                  from £0.81
                                                                                  from £0.81
                                                                                  # 021
                                                                                  MPN: 12638124
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                  # 022
                                                                                  MPN: 62764200
                                                                                  CLIP
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 14369871
                                                                                  # 023
                                                                                  MPN: 13273872
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 024
                                                                                  MPN: 12638124
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                  # 025
                                                                                  MPN: 13273872
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 026
                                                                                  MPN: 12638124
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                  # 027
                                                                                  MPN: 174807

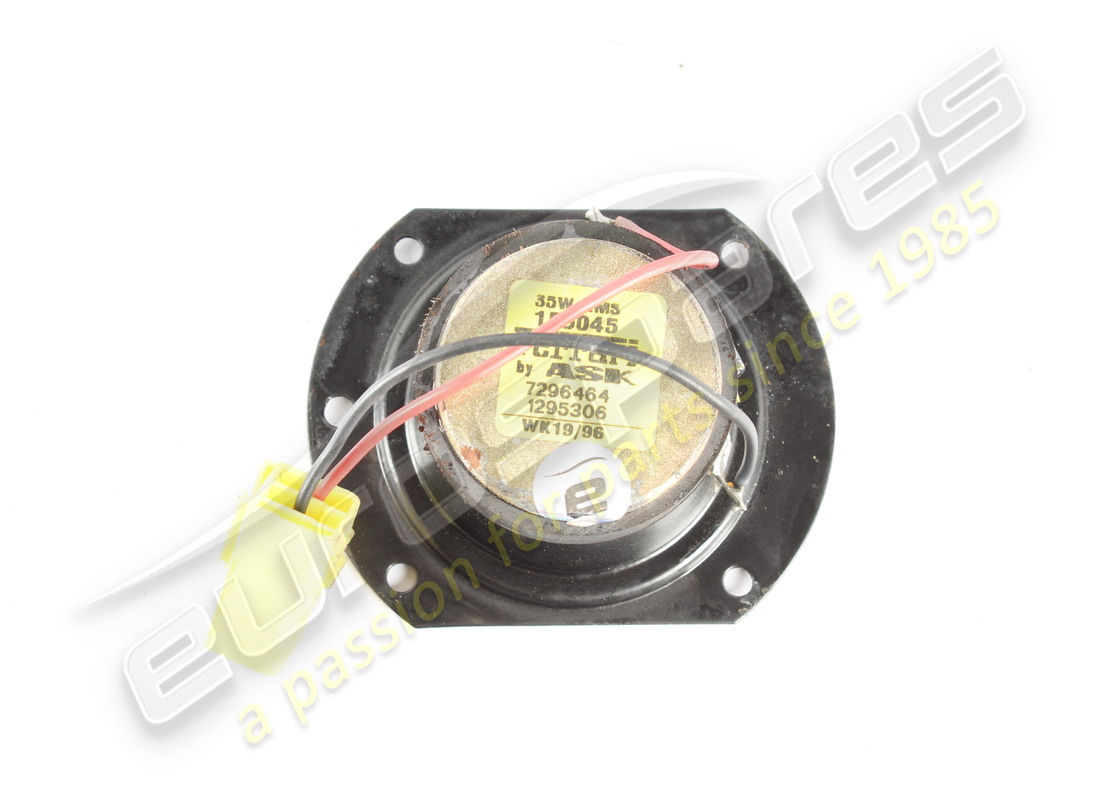

                                                                                  LOUD SPEAKER SUBWOOFER
                                                                                  from £20.37
                                                                                  from £20.37
                                                                                  # 028
                                                                                  MPN: 15687375
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 15687370 - and 1 more. Click to view details
                                                                                  # 029
                                                                                  MPN: 14371971
                                                                                  CLIP
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 030
                                                                                  MPN: 10519278
                                                                                  WASHER
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                  # 031
                                                                                  MPN: 656727..
                                                                                  RH LOWER REAR SIDE PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 031
                                                                                  MPN: 656728..
                                                                                  LH LOWER REAR SIDE PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 031
                                                                                  MPN: 656731..
                                                                                  LH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 031
                                                                                  MPN: 656732..
                                                                                  RH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 032
                                                                                  MPN: 656497..
                                                                                  RH ARM REST SIDE PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 032
                                                                                  MPN: 656498..
                                                                                  LH ARM REST SIDE PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 032
                                                                                  MPN: 657588..
                                                                                  RH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 032
                                                                                  MPN: 657589..
                                                                                  LH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 033
                                                                                  MPN: 14084011
                                                                                  NUT
                                                                                  from £0.51
                                                                                  from £0.51
                                                                                  # 034
                                                                                  MPN: 64222800
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 035
                                                                                  MPN: 13274472
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 13274411 - and 1 more. Click to view details
                                                                                  # 036
                                                                                  MPN: 12601177
                                                                                  WASHER
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 037
                                                                                  MPN: 655511..
                                                                                  REAR PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 037
                                                                                  MPN: 655714..
                                                                                  PANEL LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 038
                                                                                  MPN: 15896470
                                                                                  NUT
                                                                                  (minimum order quantity = 20)
                                                                                  from £0.78
                                                                                  from £0.78
                                                                                  This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                  # 039
                                                                                  MPN: 12638124
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                  # 040
                                                                                  MPN: 637774..
                                                                                  REAR HEAD-REST
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 040
                                                                                  MPN: 640606..
                                                                                  HEAD-REST TRIM
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 041
                                                                                  MPN: 656734..
                                                                                  RH UPPER REAR SIDE PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 041
                                                                                  MPN: 656735..
                                                                                  LH UPPER REAR SIDE PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 041
                                                                                  MPN: 656741..
                                                                                  RH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 041
                                                                                  MPN: 656742..
                                                                                  LH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 042
                                                                                  MPN: 655572..
                                                                                  PANEL LINING
                                                                                  - Not for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 042
                                                                                  MPN: 656187..
                                                                                  FRONT CLAMP UNDER REAR WINDOW
                                                                                  - Not for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 042
                                                                                  MPN: 656188..
                                                                                  FRONT CLAMP UNDER REAR WINDOW
                                                                                  - Valid for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 042
                                                                                  MPN: 656531..
                                                                                  PANEL LINING
                                                                                  - Valid for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 043
                                                                                  MPN: 14188181
                                                                                  RETAINER
                                                                                  from £0.50
                                                                                  from £0.50
                                                                                  This part replaces part number 14188282
                                                                                  # 044
                                                                                  MPN: 655550..
                                                                                  Rear Under Window Panel
                                                                                  - Not for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 044
                                                                                  MPN: 655562..
                                                                                  COVERING REAR UNDER WINDOW PANEL
                                                                                  - Not for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 044
                                                                                  MPN: 656526..
                                                                                  Rear Under Window Panel
                                                                                  - Valid for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 044
                                                                                  MPN: 656528..
                                                                                  COVERING REAR UNDER WINDOW PANEL
                                                                                  - Valid for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 045
                                                                                  MPN: 655551..
                                                                                  UNDER WINDOW REAR COVER
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 045
                                                                                  MPN: 655564..
                                                                                  LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 046
                                                                                  MPN: 16285011
                                                                                  SCREW
                                                                                  from £0.81
                                                                                  from £0.81
                                                                                  # 047
                                                                                  MPN: 13577701
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 048
                                                                                  MPN: 14647590
                                                                                  NUT WITH CAGE
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 049
                                                                                  MPN: 655549..
                                                                                  STOP LAMP MOULDING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 049
                                                                                  MPN: 655574..
                                                                                  LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 050
                                                                                  MPN: 13273911
                                                                                  SCREW
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  # 051
                                                                                  MPN: 13577701
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 052
                                                                                  MPN: 655568..
                                                                                  RH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 052
                                                                                  MPN: 655569..
                                                                                  LH LINING
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 052
                                                                                  MPN: 656185..
                                                                                  RH LATERAL PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 052
                                                                                  MPN: 656186..
                                                                                  LH LATERAL PANEL
                                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 053
                                                                                  MPN: 63734000
                                                                                  PLATE FOR SAFETY BELT
                                                                                  from £8.74
                                                                                  from £8.74
                                                                                  # 054
                                                                                  MPN: 13833614
                                                                                  SCREW
                                                                                  from £0.63
                                                                                  from £0.63
                                                                                  # 054
                                                                                  MPN: 16285011
                                                                                  SCREW
                                                                                  from £0.81
                                                                                  from £0.81
                                                                                  # 055
                                                                                  MPN: 13577701
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 056
                                                                                  MPN: 14647590
                                                                                  NUT WITH CAGE
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 057
                                                                                  MPN: 155045
                                                                                  LOUD SPEAKER MID-RANGE
                                                                                  from £28.58
                                                                                  from £28.58
                                                                                  # 058
                                                                                  MPN: 64999500
                                                                                  SAFETY BELTS
                                                                                  - Not for USA and CDN
                                                                                  from £99.33
                                                                                  from £99.33
                                                                                  # 058
                                                                                  MPN: 64999800
                                                                                  SAFETY BELTS
                                                                                  - Valid for USA and CDN
                                                                                  from £180.60
                                                                                  from £180.60
                                                                                  # 059
                                                                                  MPN: 644881..
                                                                                  COVERED COMPLETE PLUG
                                                                                  - Valid for CDN and AUS - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 060
                                                                                  MPN: 65616300
                                                                                  SUPPORTING BRACKET FOR STOP LAMP
                                                                                  from £9.55
                                                                                  from £9.55
                                                                                  # 061
                                                                                  MPN: 14641191
                                                                                  RIVET
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
