ferrari 456 m gt/m gta air-bags parts diagram

125 - Air-Bags

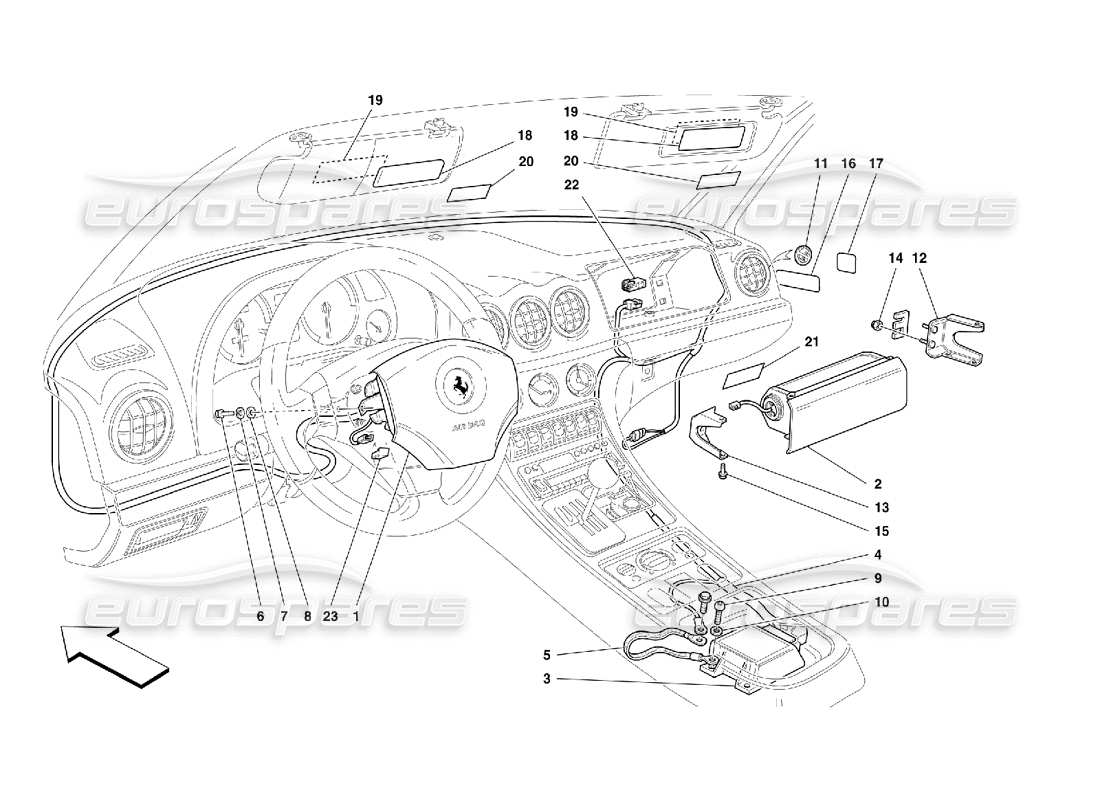

Ferrari 456 M GT/M GTA Air-Bags Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 66120500
                        DRIVER SIDE COMPLETE COVERED AIR BAG
                        Black - use part number: 72019600
                        from £1,200.00
                        from £1,200.00
                        This part replaces part number 165024 - and 1 more. Click to view details
                        # 001
                        MPN: 72019600
                        DRIVER SIDE AIR-BAG
                        from £840.00
                        from £840.00
                        This part replaces part number 66120500 which we have in stock - and 1 more. Click to view details
                        # 001
                        MPN: 72019625
                        DRIVER SIDE AIR-BAG
                        (bordeaux)
                        from £939.75
                        from £939.75
                        This part replaces part number 66120525 - and 1 more. Click to view details
                        # 002
                        MPN: 657592..

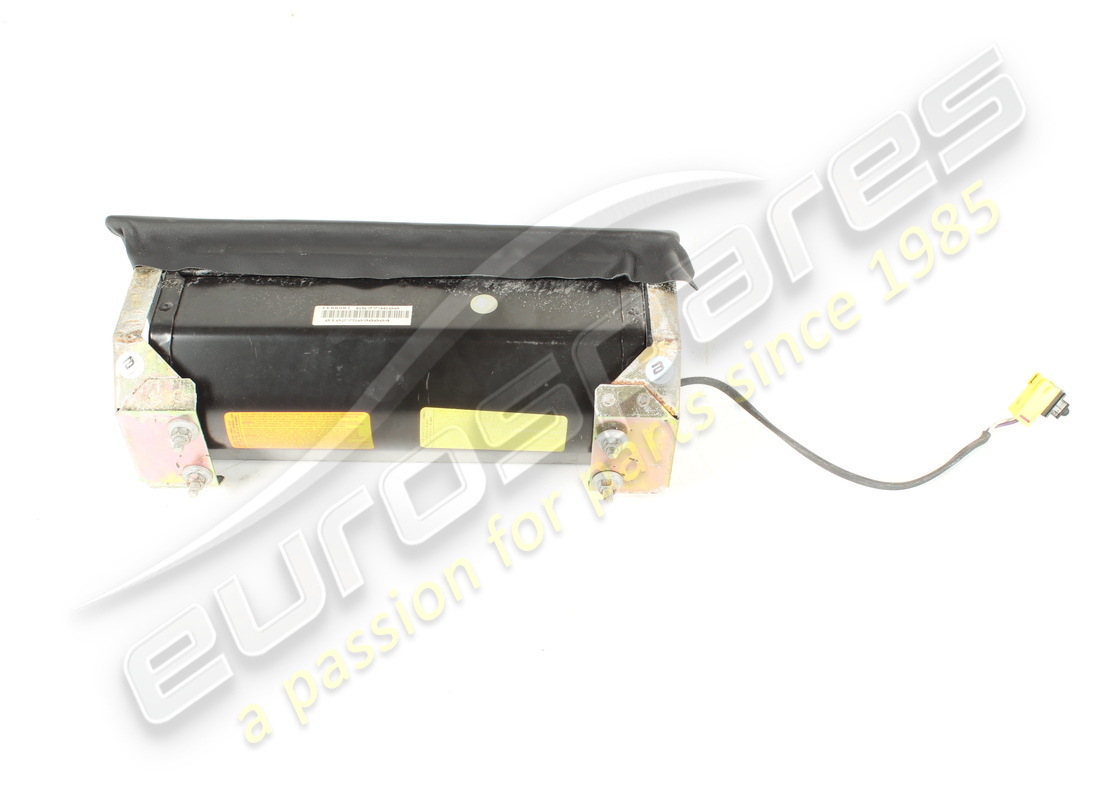

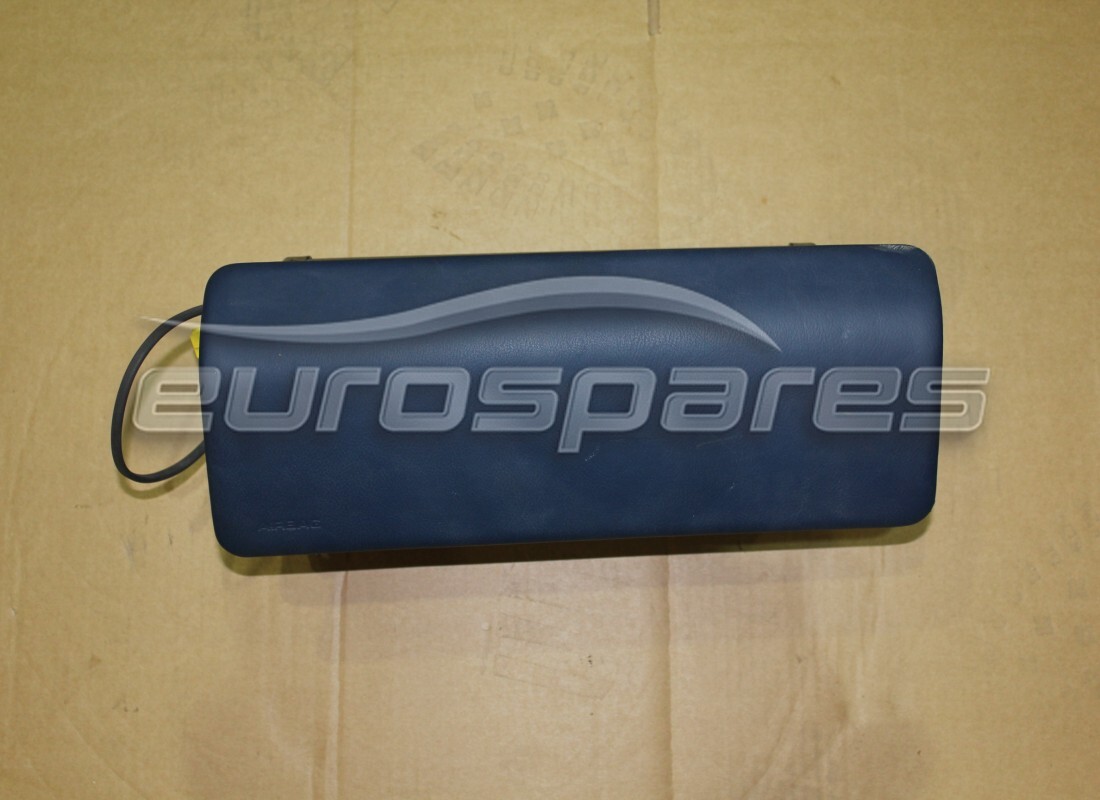

                        PASSENGERS SIDE COMPLETE COVERED AIR BAG
                        - Not for GD
                        Supersession
                        Supersession
                        # 002
                        MPN: 657736..
                        PASSENGERS SIDE COMPLETE COVERED AIR BAG
                        - Valid for GD
                        from £1,176.00
                        from £1,176.00
                        # 002
                        MPN: 72020500
                        PASSENGERS SIDE COMPLETE COVERED AIR BAG
                        - Valid for GD - Black - Please note: (Collection or Shipping by Road ony within Europe)
                        from £2,585.87
                        from £2,585.87
                        This part replaces part number 65773600
                        # 002
                        MPN: 72020500
                        PASSENGERS SIDE COMPLETE COVERED AIR BAG
                        - Valid for GD
                        from £2,585.87
                        from £2,585.87
                        This part replaces part number 65773600
                        # 003
                        MPN: 174765

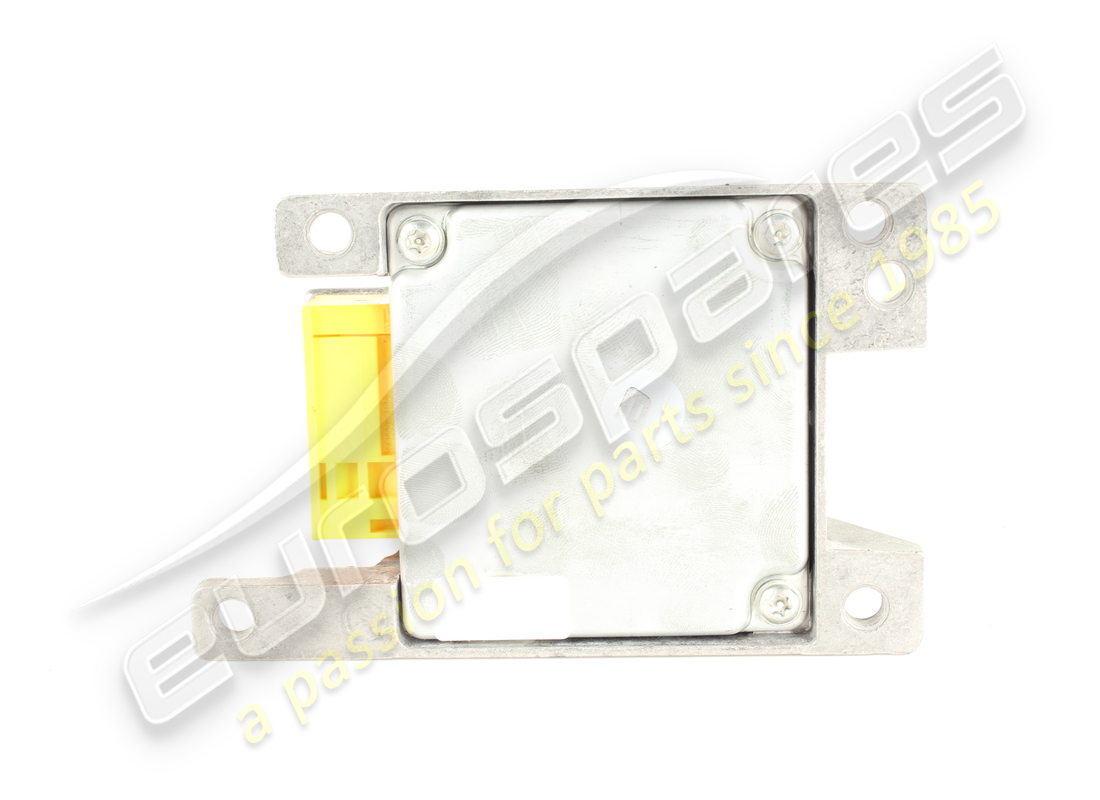

                        AIR BAG SYSTEM CONTROL UNIT
                        from £1,298.53
                        from £1,298.53
                        # 004
                        MPN: 174484
                        AIR BAG SYSTEM CONNECTION CABLES
                        - Not for GD
                        from £133.51
                        from £133.51
                        # 004
                        MPN: 177174
                        AIR BAG SYSTEM CONNECTION CABLES
                        - Valid for GD
                        from £73.43
                        from £73.43
                        # 005
                        MPN: 160855
                        GROUND CABLE
                        from £6.60
                        from £6.60
                        # 006
                        MPN: 64882800
                        SCREW
                        from £0.61
                        from £0.61
                        This part replaces part number 64470000
                        # 007
                        MPN: 127494
                        WASHER
                        (minimum order quantity = 20)
                        from £0.53
                        from £0.53
                        This part replaces part number 10516470 - and 4 more. Click to view details
                        # 008
                        MPN: 14499324
                        WASHER
                        from £0.47
                        from £0.47
                        This part replaces part number 14499301 which we have in stock
                        # 009
                        MPN: 64882800
                        SCREW
                        from £0.61
                        from £0.61
                        This part replaces part number 64470000
                        # 010
                        MPN: 127494
                        WASHER
                        (minimum order quantity = 20)
                        from £0.53
                        from £0.53
                        This part replaces part number 10516470 - and 4 more. Click to view details
                        # 011
                        MPN: 65142000
                        AIR BAG/CHILDREN SEAT INCOMPATIBILITY PLATE
                        - Not for USA and AUS
                        from £2.31
                        from £2.31
                        # 012
                        MPN: 65174600
                        RH BRACKET
                        from £14.64
                        from £14.64
                        # 013
                        MPN: 65174800
                        LH BRACKET
                        from £14.64
                        from £14.64
                        # 014
                        MPN: 14039614
                        NUT
                        from £0.53
                        from £0.53
                        # 015
                        MPN: 62940900
                        SCREW
                        from £0.73
                        from £0.73
                        This part replaces part number 67352400
                        # 016
                        MPN: 12858090
                        AIR-BAG MAINTENANCE AUTO-ADHESIVE PLATE
                        - Not for USA, CDN and AUS - Valid till car Ass. Nr. 31236
                        from £1.14
                        from £1.14
                        # 016
                        MPN: 65910700
                        AIR-BAG MAINTENANCE AUTO-ADHESIVE PLATE
                        - Not for USA, CDN and AUS - Valid from car Ass. Nr. 31237
                        from £2.20
                        from £2.20
                        # 017
                        MPN: 64499400
                        AIR-BAG MAINTENANCE AUTO-ADHESIVE PLATE
                        - Valid for USA, CDN and AUS
                        from £4.50
                        from £4.50
                        # 018
                        MPN: 64764500
                        AIR-BAG SYSTEM USE PLATE
                        - Not for USA, CDN and AUS
                        from £3.10
                        from £3.10
                        # 019
                        MPN: 65423900
                        AIR-BAG SYSTEM USE PLATE
                        - Valid for USA, CDN and AUS
                        from £4.04
                        from £4.04
                        # 020
                        MPN: 65423700
                        AIR-BAG PRESENCE AUTO-ADHESIVE PLATE
                        - Valid for USA, CDN and AUS
                        from £4.04
                        from £4.04
                        # 021
                        MPN: 65424100
                        AIR-BAG SYSTEM PRESENCE PLATE
                        - Valid for USA, CDN and AUS
                        from £3.42
                        from £3.42
                        # 022
                        MPN: 163826
                        PASSENGER SIDE AIR-BAG RESISTOR
                        from £38.01
                        from £38.01
                        # 023
                        MPN: 163816
                        RESISTOR FOR SPIRAL CONTACT
                        from £8.95
                        from £8.95
