050 - ROLL BAR

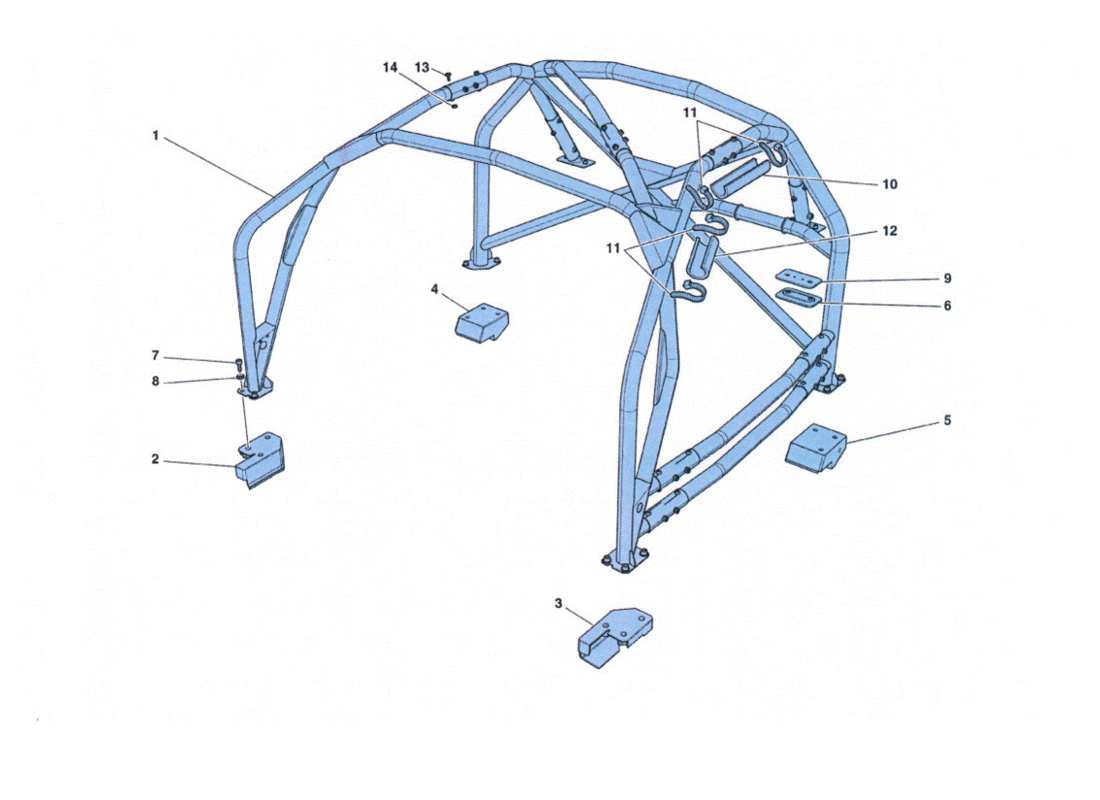

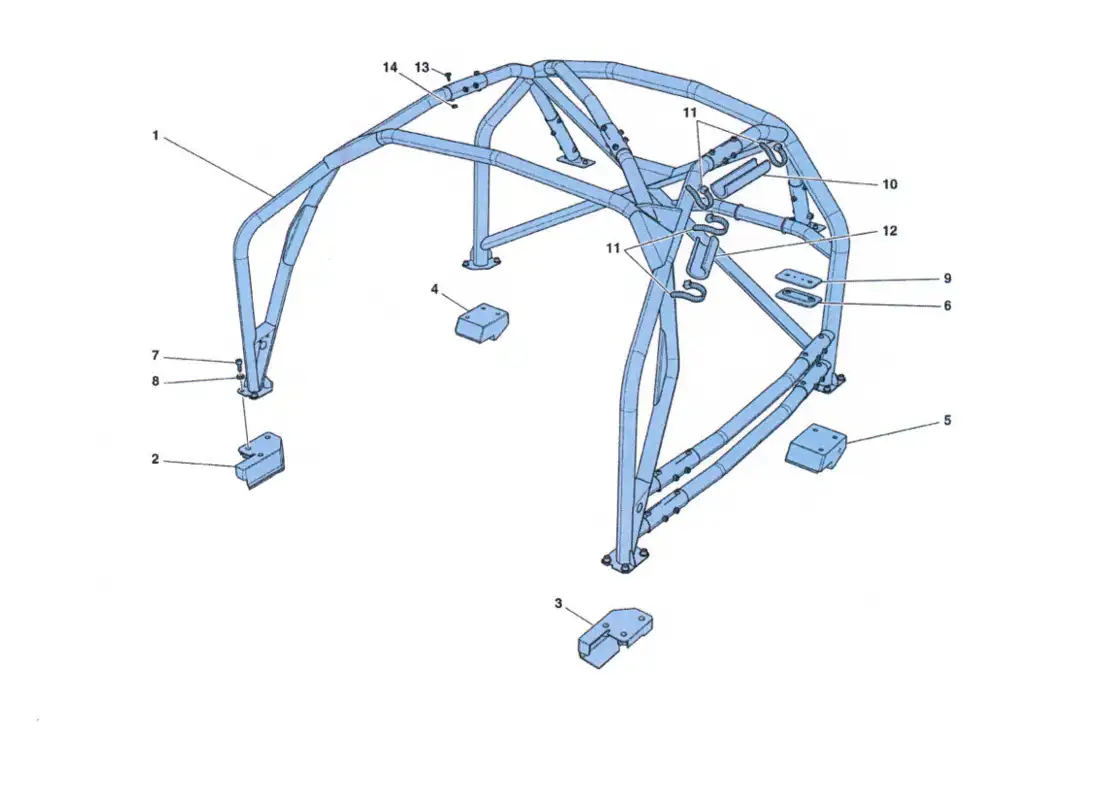

Ferrari 458 Challenge Roll Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 83109100
ROLL-BAR CPL. -VERSIONE CON PASSEGGERO-
from £2,861.74
from £2,861.74
# 001
MPN: 83451000
ROLL-BAR CPL.
from £4,264.08
from £4,264.08
# 002
MPN: 83109200
STAFFA FISSAGGIO ROLL-BAR ANT. DX.
from £245.38
from £245.38
# 003
MPN: 83109300
STAFFA FISSAGGIO ROLL-BAR ANT. SX.
from £245.38
from £245.38
# 004
MPN: 83109400
RIGHT SEAT ROLL-BAR FIXING BRACKET.
from £212.09
from £212.09
# 005
MPN: 83109500
STAFFA FISSAGGIO ROLL-BAR POSTO SX.
from £212.09
from £212.09
# 006
MPN: 83109600
PLATE FOR FIXING STRUTS IN PLACE
from £36.47
from £36.47
# 007
MPN: 14307424
VITE
from £0.54
from £0.54
# 008
MPN: 14496624
ROSETTA
from £0.48
from £0.48
This part replaces part number 14496601 - and 2 more. Click to view details
# 009
MPN: 83628500
THICKNESS -Q.TY 4 FOR VERSION WITH PASSENGER-
from £28.83
from £28.83
# 009
MPN: 83628600
THICKNESS -THICKNESS 2 MM- -ADJUSTABLE-
from £32.23
from £32.23
# 010
MPN: 69651700
FOAM PROTECTION -Q.TY 6 FOR VERSION WITH PASSENGER-
from £2.37
from £2.37
# 011
MPN: 196655
CLAMP - QUANTITY 28 FOR VERSION WITH PASSENGER-
from £0.73
from £0.73
# 012
MPN: 1002178
ROLL-BAR COVERING - VERSION WITHOUT PASSENGER -
from £377.51
from £377.51
This part replaces part number 1002115
# 012
MPN: 1002179
ROLL-BAR COVERING - Passenger version -
from £500.20
from £500.20
# 013
MPN: 66154000
SCREW -Q. THERE 52 FOR PASSENGER VERSION-
from £3.19
from £3.19
# 013
MPN: 66656900
VITE
from £6.91
from £6.91
# 014
MPN: 101139
NUT -Q.THRE 52 FOR VERSION WITH PASSENGER-
from £0.50
from £0.50
This part replaces part number 16104425
# 014
MPN: 12574521
NUT
from £0.58
from £0.58
This part replaces part number 12574511
