ferrari 458 italia (europe) timing system - drive parts diagram

0006 - timing system - drive

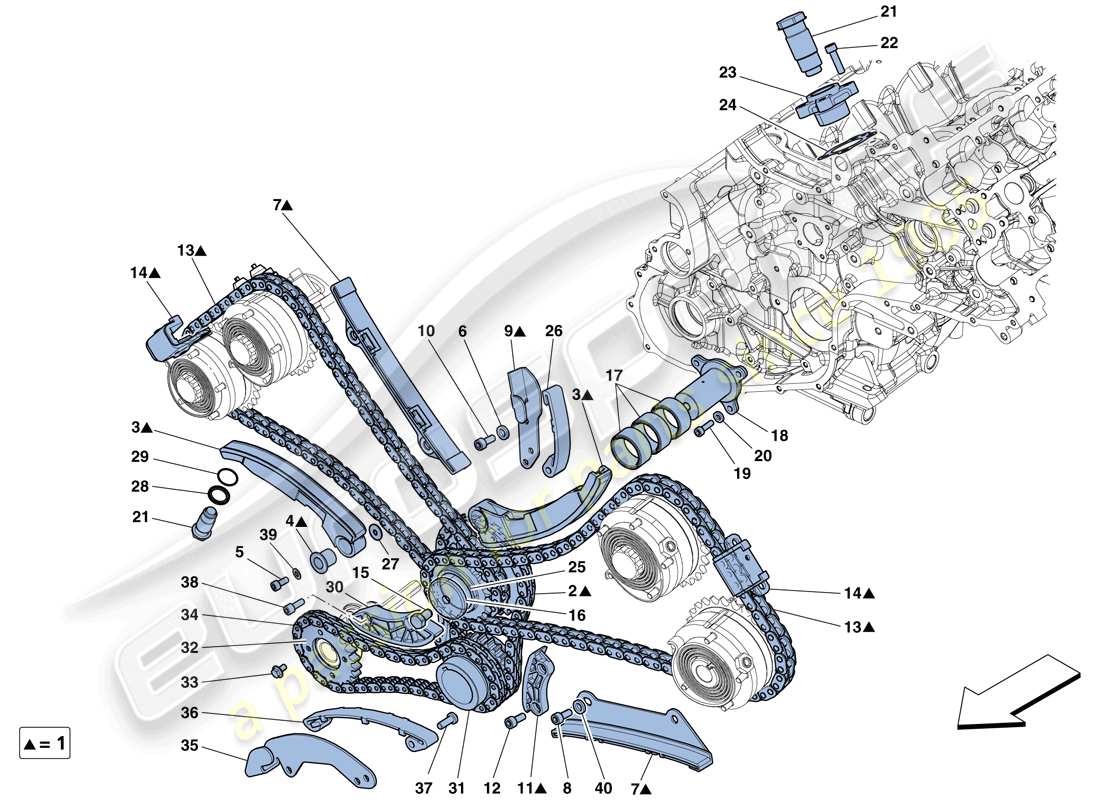

Ferrari 458 Italia (Europe) TIMING SYSTEM - DRIVE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 253292
                                                        VALVE TIMING AND PUMP DRIVE SYSTEM
                                                        -No longer supplied- -Replaced by 279065-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 279065
                                                        VALVE TIMING AND PUMP DRIVE SYSTEM
                                                        -No longer supplied- -Replaced by 284514-
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 253292
                                                        # 001
                                                        MPN: 284514
                                                        VALVE TIMING AND PUMP DRIVE SYSTEM
                                                        -No longer supplied- -Replaced by 315694-
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 279065
                                                        # 001
                                                        MPN: 315694
                                                        VALVE TIMING AND PUMP DRIVE SYSTEM
                                                        from £384.17
                                                        from £384.17
                                                        This part replaces part number 284514 - and 1 more. Click to view details
                                                        # 002

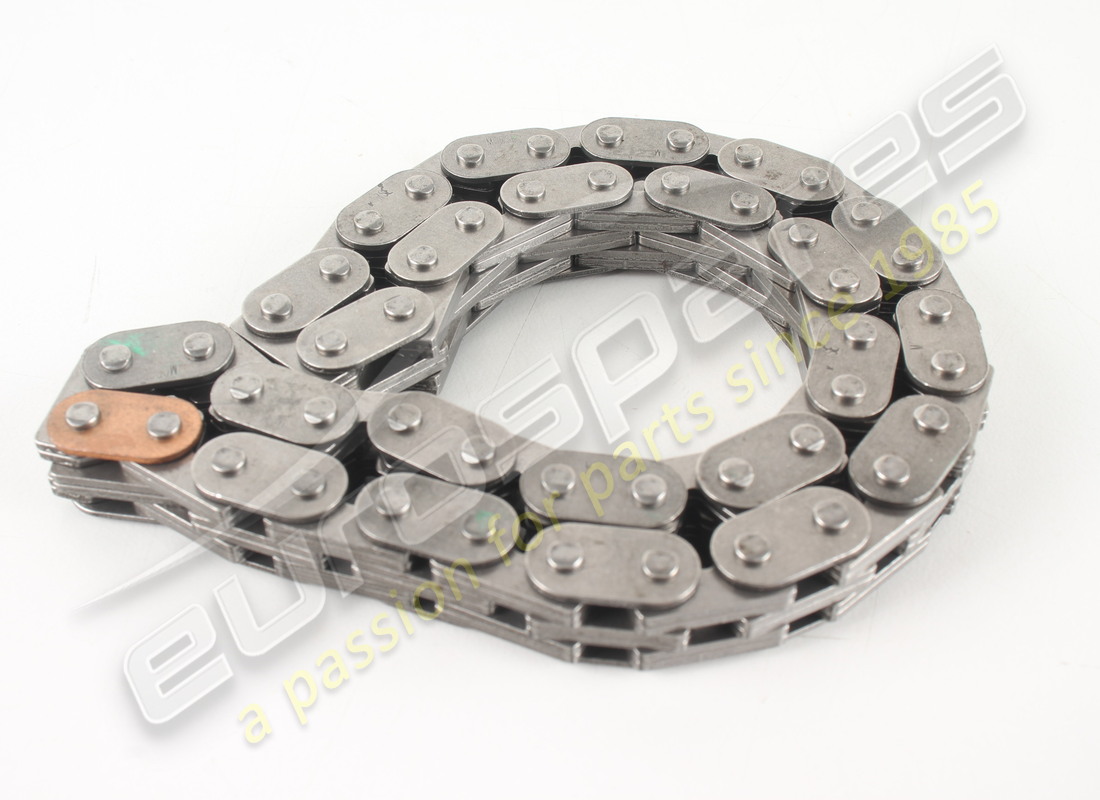

                                                        MPN: 175286
                                                        CHAIN
                                                        from £24.10
                                                        from £24.10
                                                        # 003
                                                        MPN: 186184
                                                        MOBILE SHOE
                                                        from £69.63
                                                        from £69.63
                                                        # 004
                                                        MPN: 175303
                                                        BUSHING
                                                        from £13.13
                                                        from £13.13
                                                        # 005
                                                        MPN: 14306424
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 14306324 - and 2 more. Click to view details
                                                        # 006
                                                        MPN: 12647624
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 12647611
                                                        # 007
                                                        MPN: 186185
                                                        FIXED SHOE
                                                        from £34.09
                                                        from £34.09
                                                        # 008
                                                        MPN: 14306224
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 14306221 - and 1 more. Click to view details
                                                        # 008
                                                        MPN: 231627
                                                        SCREW
                                                        -No longer supplied- -Replaced by 14306224-
                                                        from £0.53
                                                        from £0.53
                                                        # 010
                                                        MPN: 231616
                                                        SCREW
                                                        -M6 X 14- -No longer supplied- -Replaced by 282392-
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 14305724 which we have in stock
                                                        # 010
                                                        MPN: 282392
                                                        SCREW
                                                        -M6 X 14-
                                                        from £0.47
                                                        from £0.47
                                                        # 011
                                                        MPN: 186181
                                                        FIXED SHOE
                                                        -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 011
                                                        MPN: 306094
                                                        FIXED SHOE
                                                        -Applicable after depletion of 186181-
                                                        from £21.56
                                                        from £21.56
                                                        This part replaces part number 186181
                                                        # 012
                                                        MPN: 231620
                                                        SCREW
                                                        -M6 X 25- -No longer supplied- -Replaced by 282397-
                                                        from £0.53
                                                        from £0.53
                                                        # 012
                                                        MPN: 282397
                                                        SCREW
                                                        -M6 X 25-
                                                        from £0.53
                                                        from £0.53
                                                        # 013
                                                        MPN: 193616
                                                        CHAIN
                                                        from £53.12
                                                        from £53.12
                                                        # 014
                                                        MPN: 222310
                                                        FIXED SHOE
                                                        -Applicable up to engine No. 175732-
                                                        from £18.02
                                                        from £18.02
                                                        # 015
                                                        MPN: 16043124
                                                        SCREW
                                                        from £0.30
                                                        from £0.30
                                                        This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                        SCREW Genuine Ferrari Part - Used In stock
                                                        Removed from 458 engine 178999
                                                        # 016
                                                        MPN: 194262
                                                        SHOULDER
                                                        from £10.46
                                                        from £10.46
                                                        # 017
                                                        MPN: 175282
                                                        ROLLER BEARING CAGE
                                                        from £3.48
                                                        from £3.48
                                                        # 019
                                                        MPN: 14304224
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        # 020
                                                        MPN: 11181574
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        # 021
                                                        MPN: 197880
                                                        HYDRAULIC TENSIONER
                                                        from £43.38
                                                        from £43.38
                                                        # 022
                                                        MPN: 231619
                                                        SCREW
                                                        -M6 X 22-
                                                        from £0.53
                                                        from £0.53
                                                        # 024
                                                        MPN: 247147
                                                        GASKET
                                                        -Applicable until depletion-
                                                        from £2.55
                                                        from £2.55
                                                        This part replaces part number 185854
                                                        # 024
                                                        MPN: 323282
                                                        GASKET
                                                        -Applicable after depletion of 247147-
                                                        from £1.15
                                                        from £1.15
                                                        This part replaces part number 247147 which we have in stock
                                                        # 026
                                                        MPN: 196683
                                                        SHOE
                                                        from £24.12
                                                        from £24.12
                                                        # 027
                                                        MPN: 175306
                                                        SHOULDER
                                                        from £2.55
                                                        from £2.55
                                                        # 028
                                                        MPN: 190171
                                                        SHIM
                                                        from £4.00
                                                        from £4.00
                                                        # 029
                                                        MPN: 192069
                                                        GASKET
                                                        from £0.54
                                                        from £0.54
                                                        # 030
                                                        MPN: 249844
                                                        FIXED SHOE
                                                        from £31.14
                                                        from £31.14
                                                        # 031
                                                        MPN: 244214
                                                        CRANKSHAFT GEAR
                                                        -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 031
                                                        MPN: 291034
                                                        CRANKSHAFT GEAR
                                                        -Applicable after depletion of 244214-
                                                        from £181.05
                                                        from £181.05
                                                        This part replaces part number 244214 - and 4 more. Click to view details
                                                        # 032
                                                        MPN: 255815
                                                        PUMP DRIVE GEAR
                                                        from £111.91
                                                        from £111.91
                                                        # 033
                                                        MPN: 255780
                                                        SCREW
                                                        from £0.68
                                                        from £0.68
                                                        # 034
                                                        MPN: 253294
                                                        CHAIN
                                                        from £301.04
                                                        from £301.04
                                                        # 035
                                                        MPN: 253293
                                                        MOUNTING
                                                        from £19.30
                                                        from £19.30
                                                        # 036
                                                        MPN: 249904
                                                        MOBILE SHOE
                                                        -No longer supplied- -Replaced by 272014-
                                                        from £33.97
                                                        from £33.97
                                                        # 036
                                                        MPN: 272014
                                                        MOBILE SHOE
                                                        from £38.46
                                                        from £38.46
                                                        This part replaces part number 249904 which we have in stock
                                                        # 037
                                                        MPN: 231616
                                                        SCREW
                                                        -M6 X 14- -No longer supplied- -Replaced by 282392-
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 14305724 which we have in stock
                                                        # 037
                                                        MPN: 282392
                                                        SCREW
                                                        -M6 X 14-
                                                        from £0.47
                                                        from £0.47
                                                        # 038
                                                        MPN: 231619
                                                        SCREW
                                                        -M6 X 22- -No longer supplied- -Replaced by 282396-
                                                        from £0.53
                                                        from £0.53
                                                        # 038
                                                        MPN: 282396
                                                        SCREW
                                                        -M6 X 22-
                                                        from £0.53
                                                        from £0.53
                                                        # 039
                                                        MPN: 255527
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        This part replaces part number 10569373
                                                        # 040
                                                        MPN: 163759
                                                        WASHER
                                                        from £7.85
                                                        from £7.85
