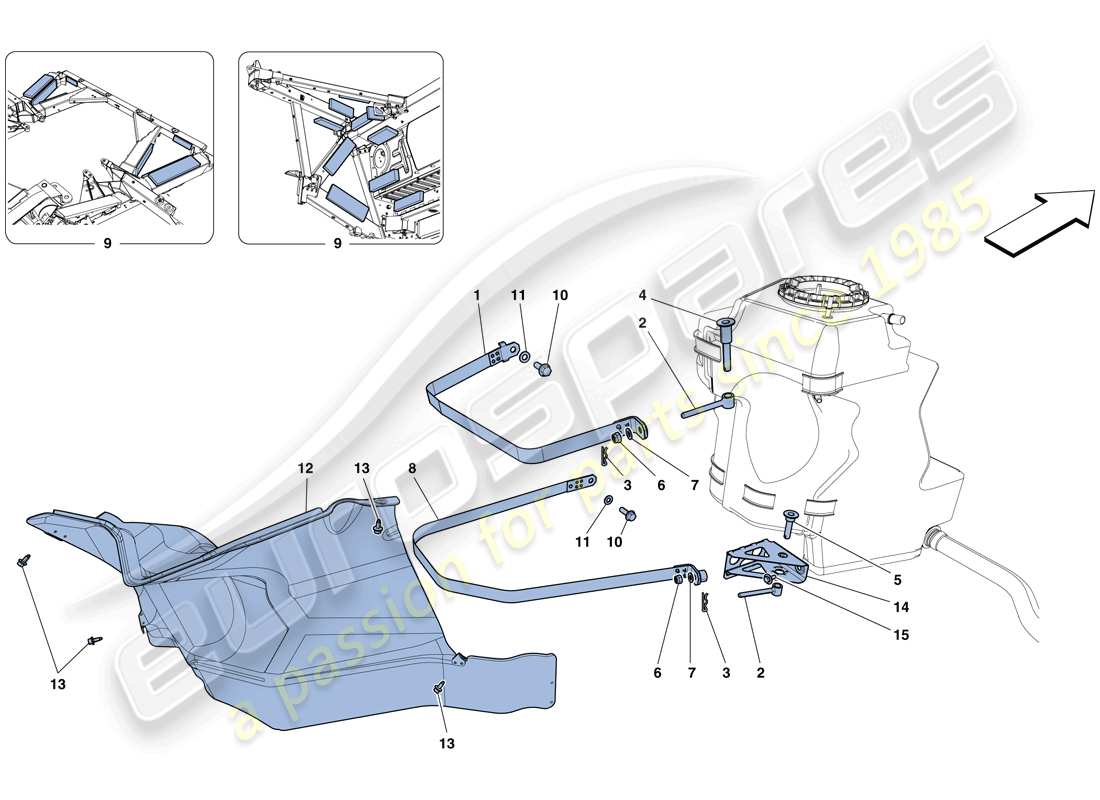

0011 - FUEL TANKS - FASTENERS AND GUARDS

Ferrari 458 Italia (Europe) FUEL TANKS - FASTENERS AND GUARDS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 256028
            UPPER TANK RETAINER STRAP
            -Applicable up to Ass. No. 89228-
            from £29.15
            from £29.15
            UPPER TANK RETAINER STRAP Genuine Ferrari Part - New (to order)
            UPPER TANK RETAINER STRAP Genuine Ferrari Part - Used In stock
            # 001
            MPN: 263506
            UPPER RH TANK RETAINER STRAP
            -Applicable from Ass. No. 89229-
            from £27.33
            from £27.33
            UPPER RH TANK RETAINER STRAP Genuine Ferrari Part - New In stock
            UPPER RH TANK RETAINER STRAP Genuine Ferrari Part - Used In stock
            # 001
            MPN: 263507
            UPPER LH TANK RETAINER STRAP
            -Applicable from Ass. No. 89229-
            from £27.33
            from £27.33
            UPPER LH TANK RETAINER STRAP Genuine Ferrari Part - New In stock
            UPPER LH TANK RETAINER STRAP Genuine Ferrari Part - Used In stock
            # 002
            MPN: 250516
            TANK STRAP TIE-ROD
            -Applicable up to Ass. No. 89228-
            from £11.55
            from £11.55
            TANK STRAP TIE-ROD Genuine Ferrari Part - New (to order)
            TANK STRAP TIE-ROD Genuine Ferrari Part - Used In stock
            complete with n 4
            # 002
            MPN: 263505
            TANK STRAP TIE-ROD
            -Applicable from Ass. No. 89229- -Applicable until depletion-
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 002
            MPN: 275074
            TANK STRAP TIE-ROD
            -Applicable after depletion of 263505- -Applicable until depletion-
            Supersession
            Supersession
            This part replaces part number 263505
            Genuine Ferrari Part (no longer available to order)
            # 002
            MPN: 298222
            TANK STRAP TIE-ROD
            -Applicable after depletion of 275074-
            from £48.28
            from £48.28
            This part replaces part number 275074
            TANK STRAP TIE-ROD Genuine Ferrari Part - New (to order)
            # 003
            MPN: 10796440
            SPLIT PIN
            -No longer supplied- -Replaced by 264555-
            Supersession
            Supersession
            This part replaces part number 264555
            Genuine Ferrari Part (no longer available to order)
            # 003
            MPN: 10796440
            SPLIT PIN
            Supersession
            Supersession
            This part replaces part number 264555
            Genuine Ferrari Part (no longer available to order)
            # 003
            MPN: 264555
            SPLIT PIN
            -No longer supplied- -Replaced by 10796440-
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 004
            MPN: 256037
            UPPER PIN
            -Applicable up to Ass. No. 105420-
            from £7.34
            from £7.34
            UPPER PIN Genuine Ferrari Part - New (to order)
            # 004
            MPN: 271055
            UPPER PIN
            -Applicable from Ass. No. 105421-
            from £7.01
            from £7.01
            UPPER PIN Genuine Ferrari Part - New (to order)
            # 005
            MPN: 256055
            LOWER PIN
            from £6.51
            from £6.51
            LOWER PIN Genuine Ferrari Part - New (to order)
            # 006
            MPN: 104030
            NUT
            -Applicable up to Ass. No. 89228-
            from £0.47
            from £0.47
            This part replaces part number 16104125
            NUT Genuine Ferrari Part - New In stock
            DADO E NYLON STOP M 8X9,5 (104030) Genuine Maserati Part - New (to order)
            # 006
            MPN: 14058511
            NUT
            -Applicable from Ass. No. 89229-
            from £0.47
            from £0.47
            NUT Genuine Ferrari Part - New In stock
            CUP (14058511) Genuine Maserati Part - New (to order)
            # 007
            MPN: 14496524
            WASHER
            from £0.47
            from £0.47
            This part replaces part number 14496525 - and 1 more. Click to view details
            WASHER Genuine Ferrari Part - New In stock
            WASHER (14496524) Genuine Maserati Part - New In stock
            # 008
            MPN: 256038
            LOWER RH TANK RETAINER STRAP
            -Applicable up to Ass. No. 89228-
            from £163.32
            from £163.32
            LOWER RH TANK RETAINER STRAP Genuine Ferrari Part - New (to order)
            LOWER RH TANK RETAINER STRAP Genuine Ferrari Part - Used In stock
            # 008
            MPN: 256040
            LOWER LH TANK RETAINER STRAP
            -Applicable up to Ass. No. 89228-
            from £65.32
            from £65.32
            LOWER LH TANK RETAINER STRAP Genuine Ferrari Part - New (to order)
            LOWER LH TANK RETAINER STRAP Genuine Ferrari Part - Used In stock
            # 008
            MPN: 263508
            LOWER RH TANK RETAINER STRAP
            -Applicable from Ass. No. 89229-
            from £27.33
            from £27.33
            LOWER RH TANK RETAINER STRAP Genuine Ferrari Part - New In stock
            LOWER RH TANK RETAINER STRAP Genuine Ferrari Part - Used In stock
            # 008
            MPN: 263509
            LOWER LH TANK RETAINER STRAP
            -Applicable from Ass. No. 89229-
            from £27.33
            from £27.33
            LOWER LH TANK RETAINER STRAP Genuine Ferrari Part - New In stock
            LOWER LH TANK RETAINER STRAP Genuine Ferrari Part - Used In stock
            # 009
            MPN: 262732
            FUEL TANK ANTI-VIBRATION PAD KIT
            -Applicable up to Ass. No. 104100- -Applicable until depletion-
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 009
            MPN: 278256
            FUEL TANK ANTI-VIBRATION PAD KIT
            -Applicable from Ass. No. 104101- -No longer supplied- -Replaced by 296446-
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 009
            MPN: 296446
            FUEL TANK ANTI-VIBRATION PAD KIT
            -Applicable from Ass. No. 104101-
            from £88.29
            from £88.29
            This part replaces part number 278256
            FUEL TANK ANTI-VIBRATION PAD Genuine Ferrari Part - New (to order)
            # 009
            MPN: 323939
            FUEL TANK ANTI-VIBRATION PAD KIT
            -Applicable up to Ass. No. 104100- -Applicable after depletion of 262732-
            from £186.37
            from £186.37
            This part replaces part number 262732
            FUEL TANK ANTI-VIBRATION PAD Genuine Ferrari Part - New (to order)
            # 010
            MPN: 68984500
            SCREW
            from £1.51
            from £1.51
            SCREW -M 10X30X1.25- Genuine Ferrari Part - New (to order)
            # 011
            MPN: 11190574
            WASHER
            from £0.47
            from £0.47
            This part replaces part number 14499504
            WASHER Genuine Ferrari Part - New In stock
            TAPERED RUBBER WASHER 10.5-2 (11190574) Genuine Maserati Part - New (to order)
            # 012
            MPN: 262784
            LH TANK HEAT INSULATION
            -Applicable until depletion-
            from £273.00
            from £273.00
            Genuine Ferrari Part (no longer available to order)
            LH TANK HEAT INSULATION Genuine Ferrari Part - Used In stock
            # 012
            MPN: 262785
            RH TANK HEAT INSULATION
            -Applicable until depletion-
            from £273.00
            from £273.00
            Genuine Ferrari Part (no longer available to order)
            RH TANK HEAT INSULATION Genuine Ferrari Part - Used In stock
            # 012
            MPN: 268568
            LH TANK HEAT INSULATION
            -Applicable up to Ass. No. 104671- -Applicable after depletion of 262784- -Applicable until depletion-
            Supersession
            Supersession
            This part replaces part number 262784 which we have in stock
            Genuine Ferrari Part (no longer available to order)
            # 012
            MPN: 268570
            RH TANK HEAT INSULATION
            -Applicable up to Ass. No. 104671- -Applicable after depletion of 262785- -Applicable until depletion-
            Supersession
            Supersession
            This part replaces part number 262785 which we have in stock
            Genuine Ferrari Part (no longer available to order)
            # 012
            MPN: 278374
            LH TANK HEAT INSULATION
            -Applicable from Ass. No. 104672 up to Ass. No. 106095- -Applicable after depletion of 268568-
            from £557.77
            from £557.77
            This part replaces part number 268568 - and 1 more. Click to view details
            LH TANK HEAT INSULATION Genuine Ferrari Part - New In stock
            LH TANK HEAT INSULATION Genuine Ferrari Part - Used In stock
            # 012
            MPN: 278375
            RH TANK HEAT INSULATION
            -Applicable from Ass. No. 104672 up to Ass. No. 106095- -Applicable after depletion of 268570-
            from £321.08
            from £321.08
            This part replaces part number 268570 - and 1 more. Click to view details
            RH TANK HEAT INSULATION Genuine Ferrari Part - New (to order)
            RH TANK HEAT INSULATION Genuine Ferrari Part - Used In stock
            # 012
            MPN: 283260
            LH TANK HEAT INSULATION
            -Applicable from Ass. No. 106096-
            from £438.00
            from £438.00
            LH TANK HEAT INSULATION Genuine Ferrari Part - New (to order)
            # 012
            MPN: 283261
            RH TANK HEAT INSULATION
            -Applicable from Ass. No. 106096-
            from £438.00
            from £438.00
            RH TANK HEAT INSULATION Genuine Ferrari Part - New (to order)
            # 013
            MPN: 11585024
            SCREW
            -M5 X 14-
            from £0.47
            from £0.47
            SCREW Genuine Ferrari Part - New In stock
            SCREW WITH WASHER (11585024) Genuine Maserati Part - New (to order)
            # 014
            MPN: 256047
            RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
            -Applicable up to Ass. No. 89228-
            from £36.39
            from £36.39
            RH MOUNTING BRACKET Genuine Ferrari Part - New (to order)
            # 014
            MPN: 256050
            LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
            -Applicable up to Ass. No. 89228-
            from £36.39
            from £36.39
            LH MOUNTING BRACKET Genuine Ferrari Part - New (to order)
            # 014
            MPN: 263510
            RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
            -Applicable from Ass. No. 89229-
            from £26.25
            from £26.25
            RH MOUNTING BRACKET Genuine Ferrari Part - New In stock
            RH MOUNTING BRACKET Genuine Ferrari Part - Used In stock
            Complete
            # 014
            MPN: 263513
            LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
            -Applicable from Ass. No. 89229-
            from £26.25
            from £26.25
            LH MOUNTING BRACKET Genuine Ferrari Part - New In stock
            LH MOUNTING BRACKET Genuine Ferrari Part - Used In stock
            Complete
            # 015
            MPN: 81591700
            SCREW
            from £1.15
            from £1.15
            SCREW Genuine Ferrari Part - New In stock
            SCREW, M6 X 18 (81591700) Genuine Maserati Part - New In stock
