0016 - Exhaust System

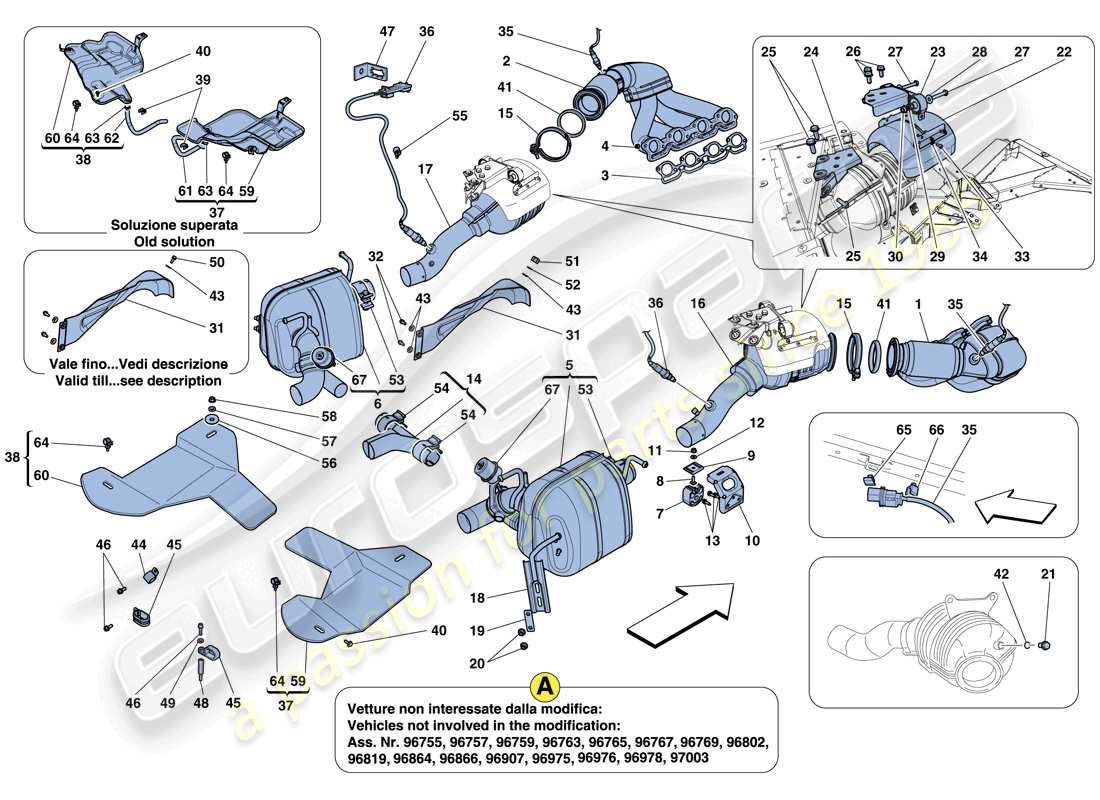

Ferrari 458 Italia (Europe) EXHAUST SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

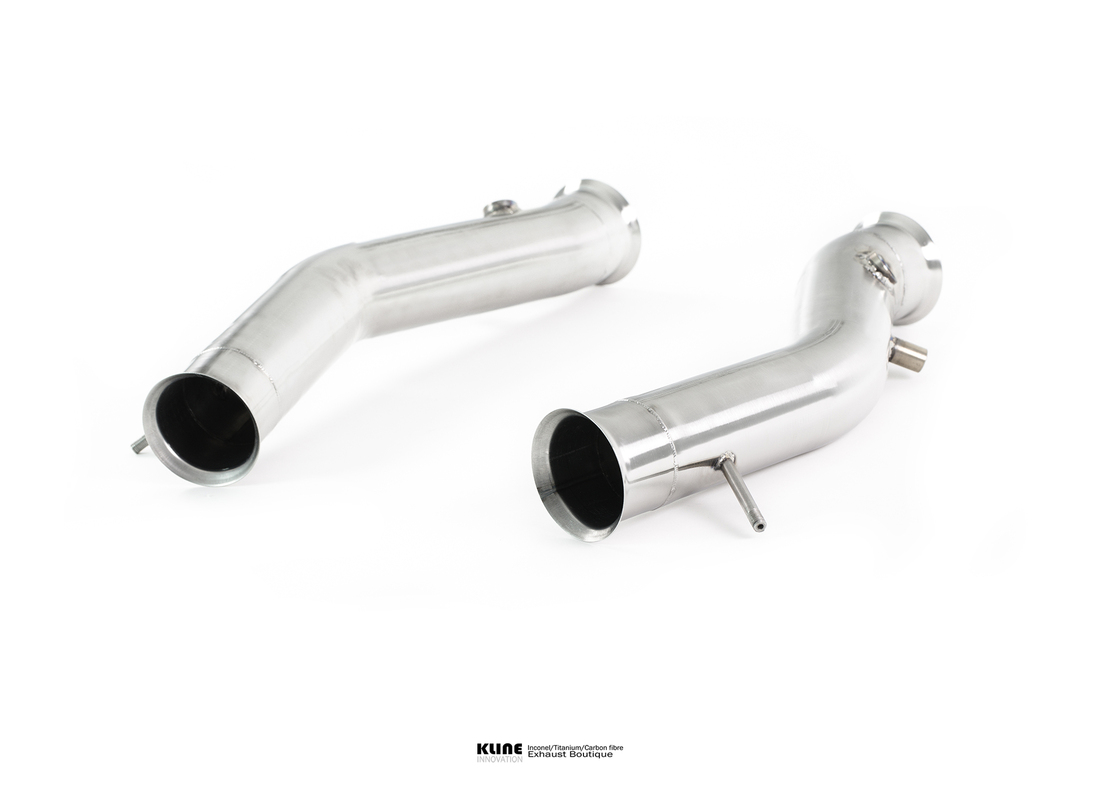

# 000
MPN: 362731

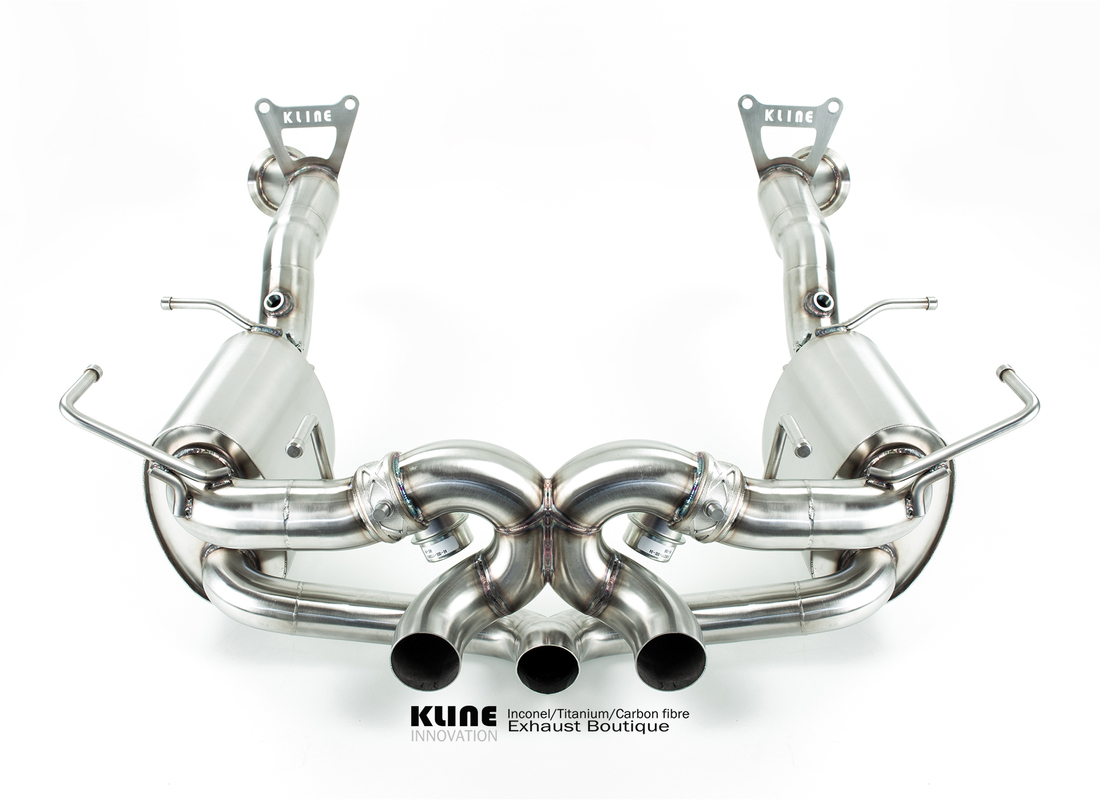

Tubi STRAIGHT THROUGH PIPES & MANIFOLDS KIT
# 001
MPN: 262728

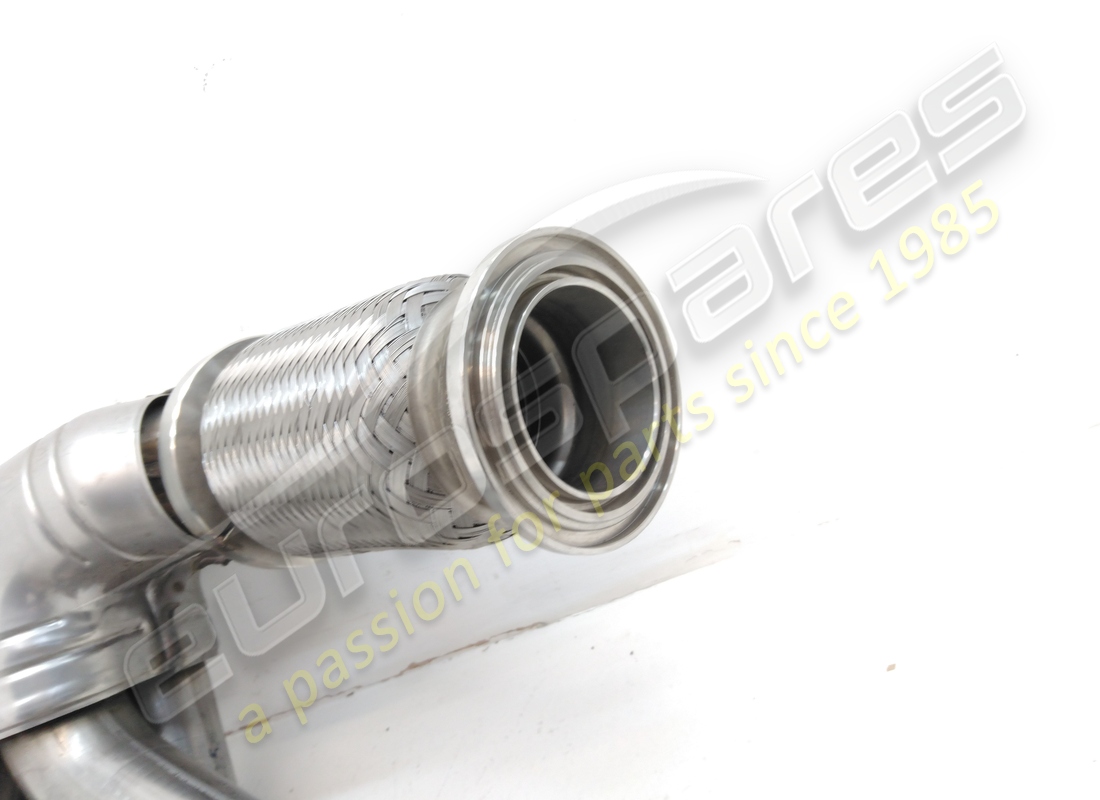

COMPL. RH EXHAUST MANIFOLD
-No longer supplied- -Replaced by 264390-
Supersession
Supersession
# 001
MPN: 264390
COMPL. RH EXHAUST MANIFOLD
-Replaces 262728- -No longer supplied- -Replaced by 279322-
from £2,360.46
from £2,360.46
This part replaces part number 262728
# 001
MPN: 279322
COMPL. RH EXHAUST MANIFOLD
-Replaces 264390-
from £1,042.86
from £1,042.86
This part replaces part number 264390 which we have in stock - and 2 more. Click to view details

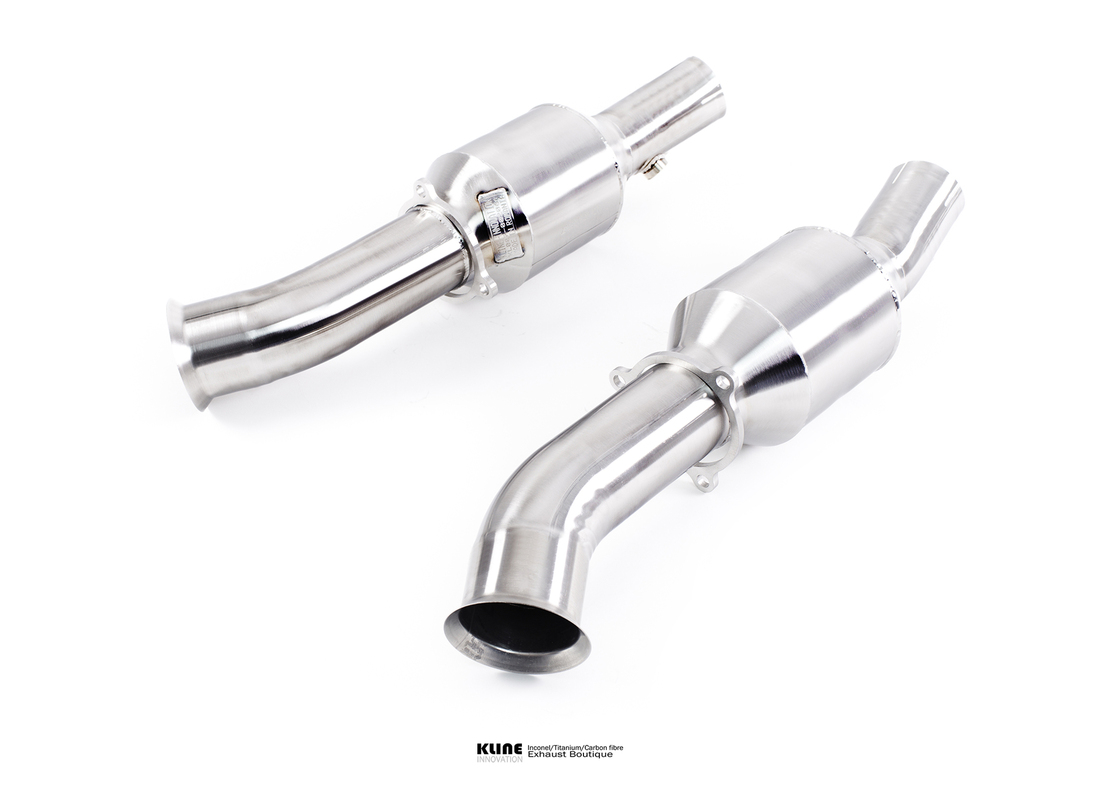

# 001
MPN: 279322/PAIR

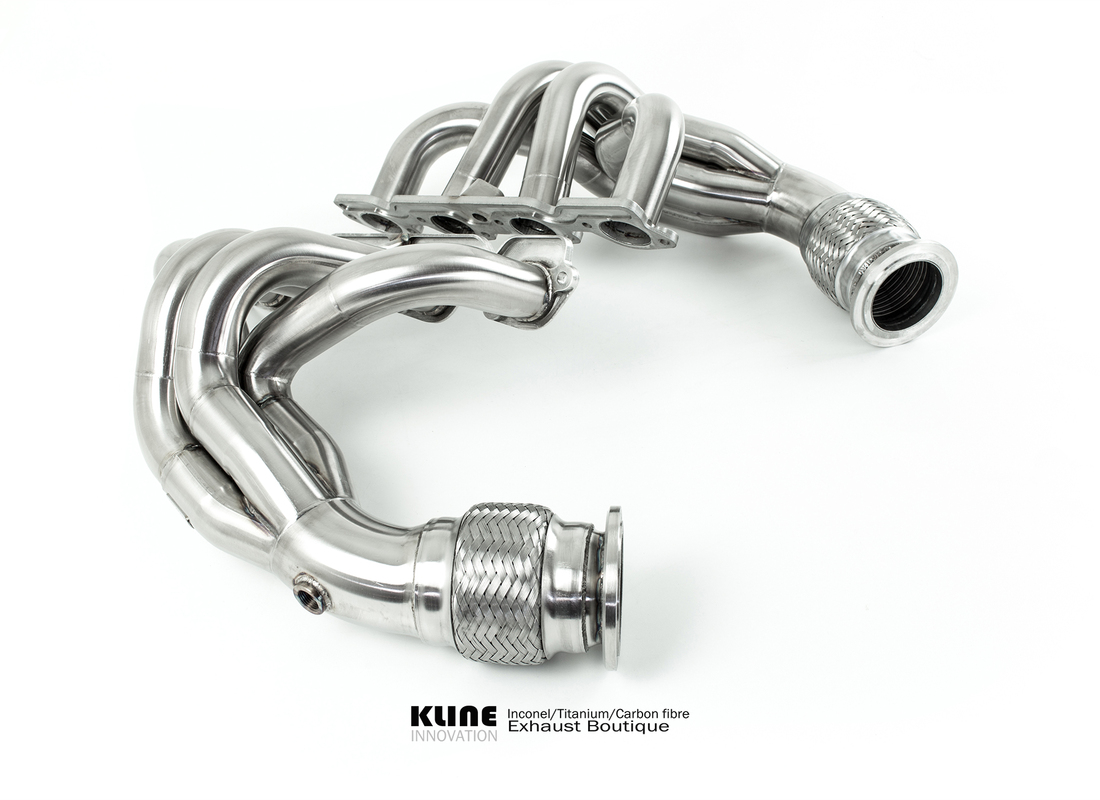

RH & LH Exhaust Manifold Set (Stainless Steel)
# 002
MPN: 262729
COMPL. LH EXHAUST MANIFOLD
-No longer supplied- -Replaced by 264391-
Supersession
Supersession
# 002
MPN: 264391
COMPL. LH EXHAUST MANIFOLD
-Replaces 262729- -No longer supplied- -Replaced by 279323-
Supersession
Supersession
This part replaces part number 262729
# 002
MPN: 279323
COMPL. LH EXHAUST MANIFOLD
-Replaces 264391-
from £1,042.86
from £1,042.86
This part replaces part number 264391 - and 1 more. Click to view details
# 003
MPN: 235756

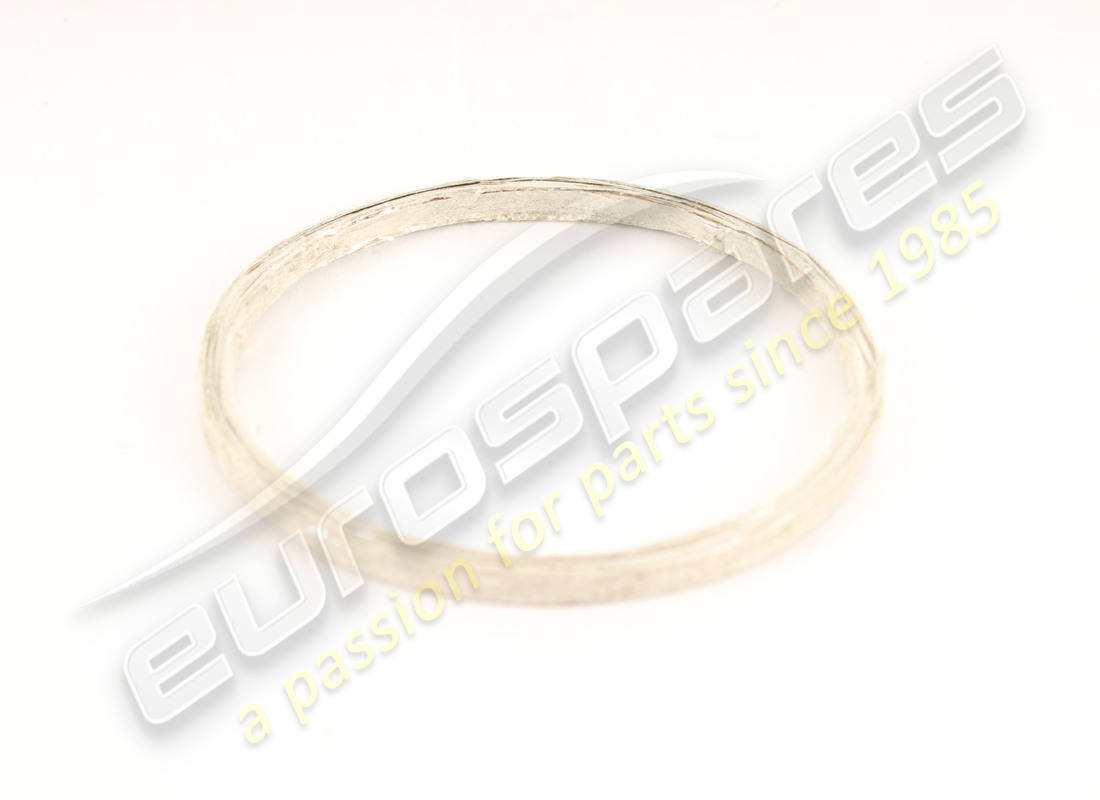

GASKET
-No longer supplied- -Replaced by 259360-
from £7.93
from £7.93
This part replaces part number 205144
# 003
MPN: 259360
GASKET
-No longer supplied- -Replaced by 268256-
Supersession
Supersession
This part replaces part number 235756
# 003
MPN: 268256
GASKET
from £8.64
from £8.64
This part replaces part number 259360
# 004
MPN: 210971
NUT
from £0.92
from £0.92
# 005
MPN: 260103

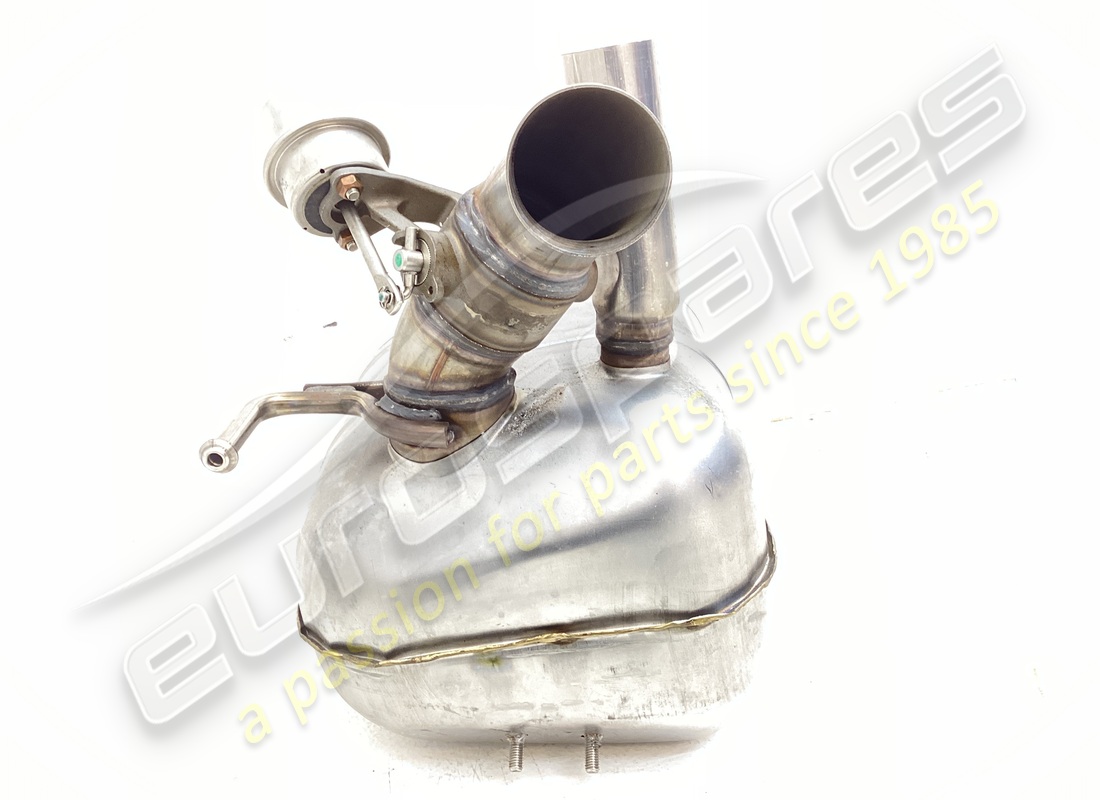

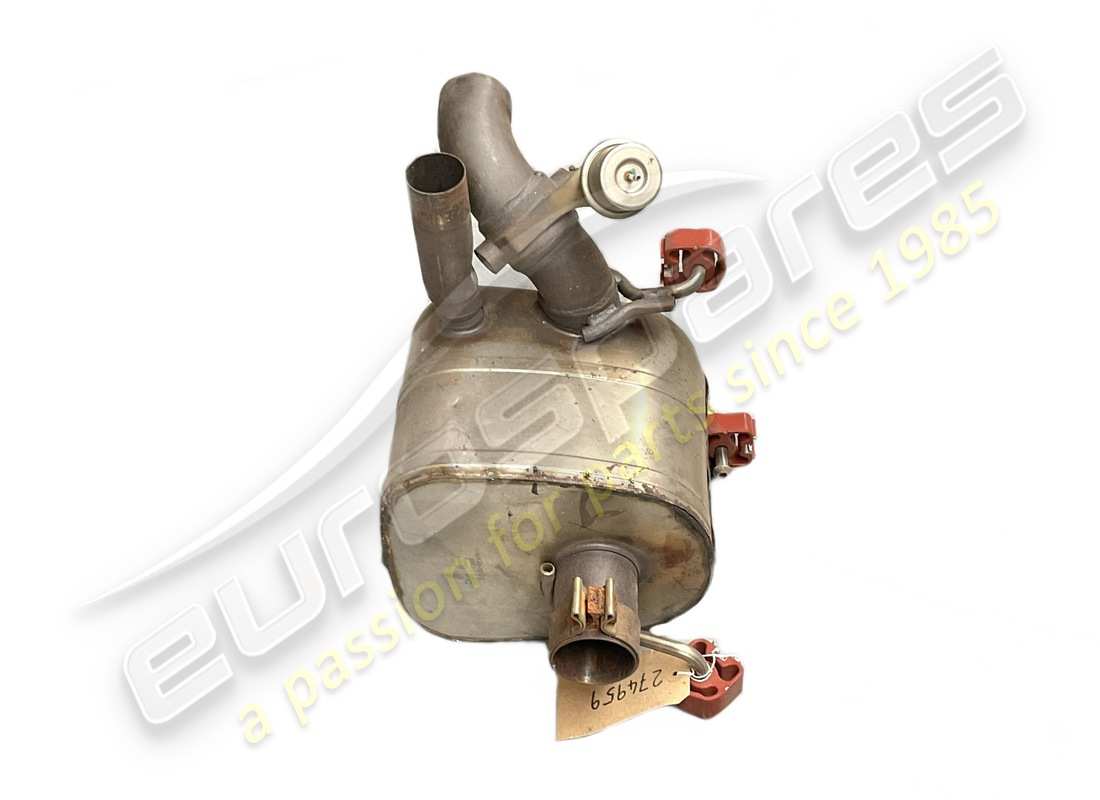

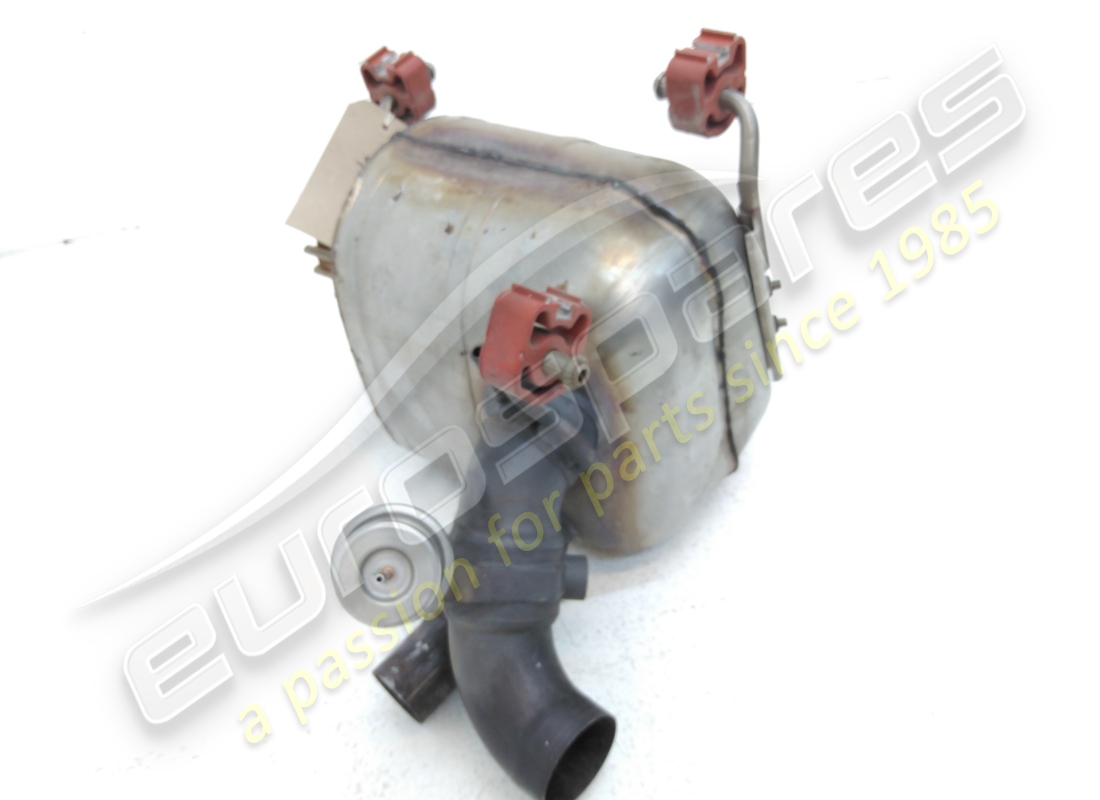

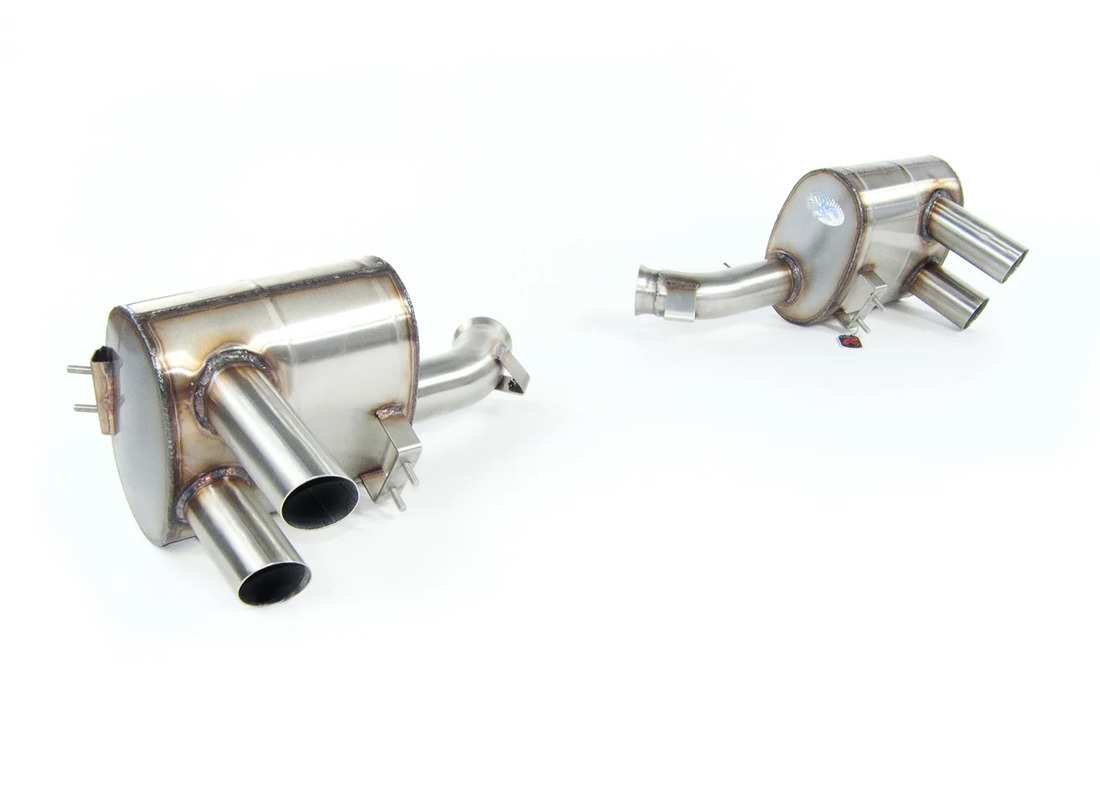

REAR RH SILENCER
-Not for Taiwan-
from £523.95
from £523.95
# 005
MPN: 274957
REAR RH SILENCER
-Applicable for Taiwan-
from £844.61
from £844.61
# 006
MPN: 263065
REAR LH SILENCER
-Not for Taiwan-
from £713.62
from £713.62
This part replaces part number 260104 - and 1 more. Click to view details
# 006
MPN: 274959
REAR LH SILENCER
-Applicable for Taiwan-
from £844.61
from £844.61
# 007
MPN: 239798
FLEXIBLE SILENCER MOUNTING BUSH
from £41.07
from £41.07
# 008
MPN: 250222
SQUARE HEADED SCREW
-No longer supplied- -Replaced by 283425-
from £1.52
from £1.52
# 008
MPN: 283425
SQUARE HEADED SCREW
from £1.33
from £1.33
# 009
MPN: 240598
PLATE
from £7.84
from £7.84
This part replaces part number 799014
# 010
MPN: 252764

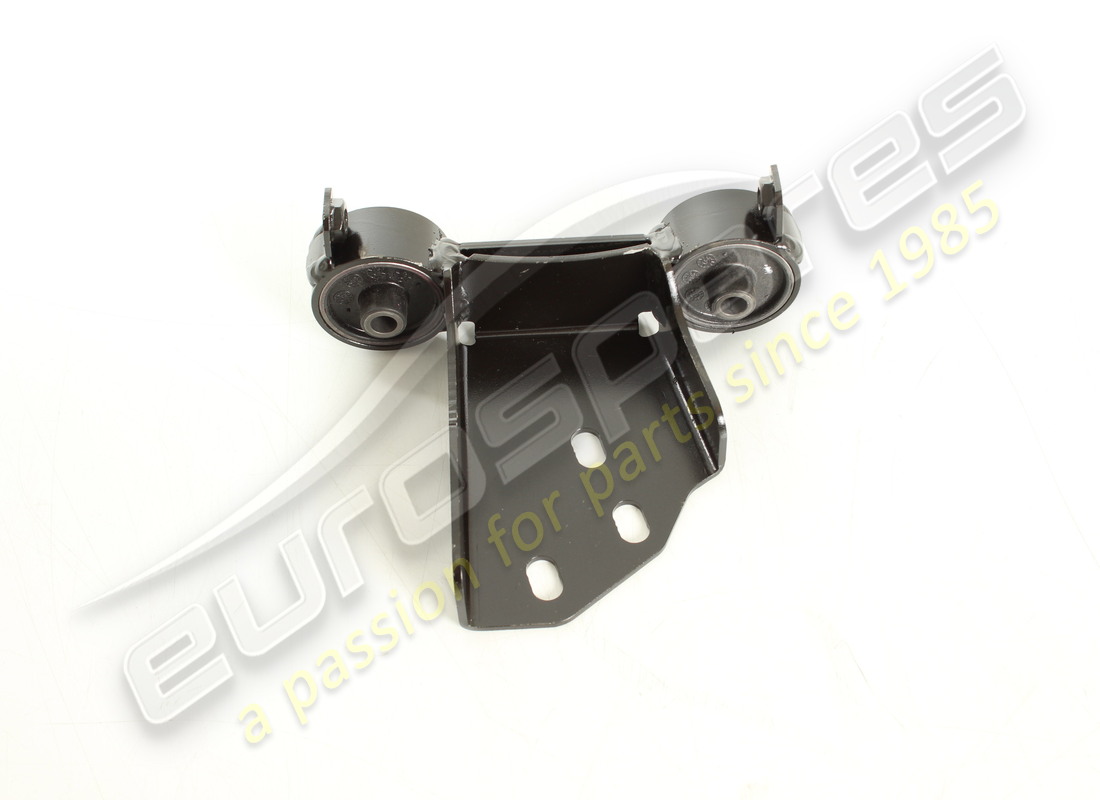

SILENCER MOUNTING BRACKET
from £63.39
from £63.39
# 010
MPN: 252765
OUTER REAR SILENCER BRACKET
from £61.25
from £61.25
# 011
MPN: 14059214
NUT
from £0.47
from £0.47
# 012
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 012
MPN: 13578405
WASHER
from £0.48
from £0.48
# 013
MPN: 11585024
SCREW
-M5 X 14-
from £0.47
from £0.47
# 014
MPN: 258108
CENTRAL OUTLET PIPE
from £65.95
from £65.95
# 015
MPN: 256884
RING CLAMP
Supersession
Supersession
# 016
MPN: 261686

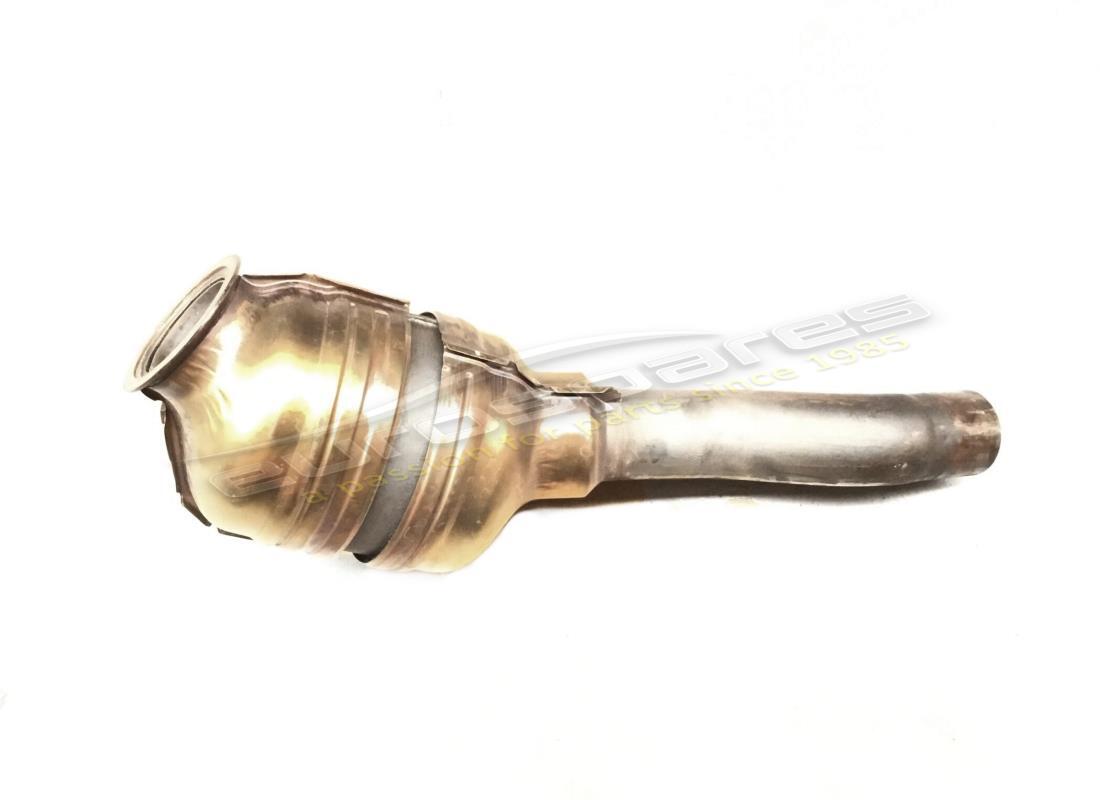

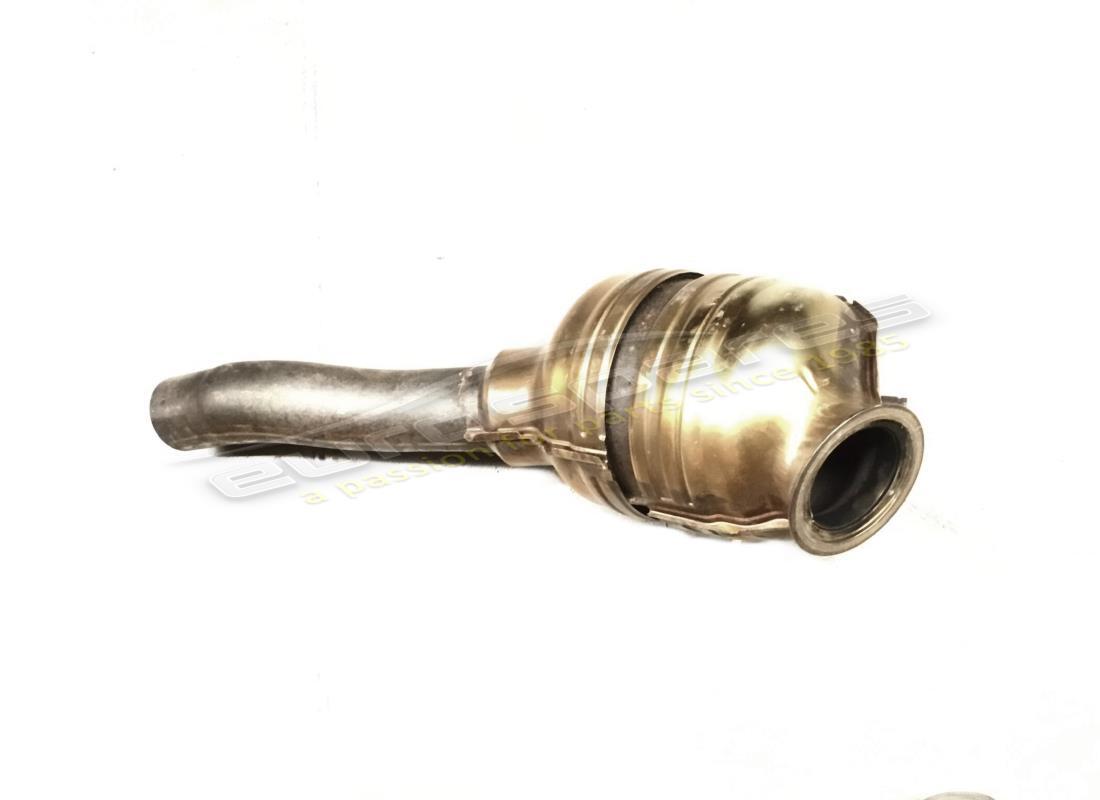

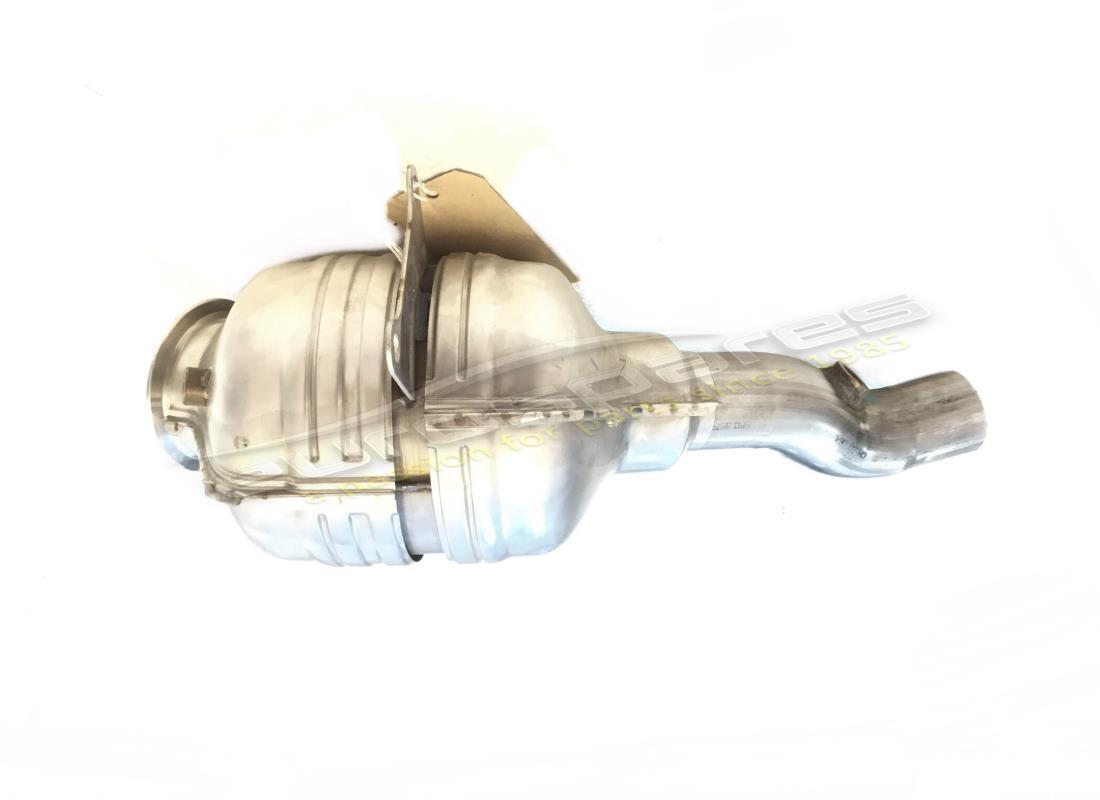

RH CATALYTIC CONVERTER
from £1,552.68
from £1,552.68
# 017
MPN: 261687

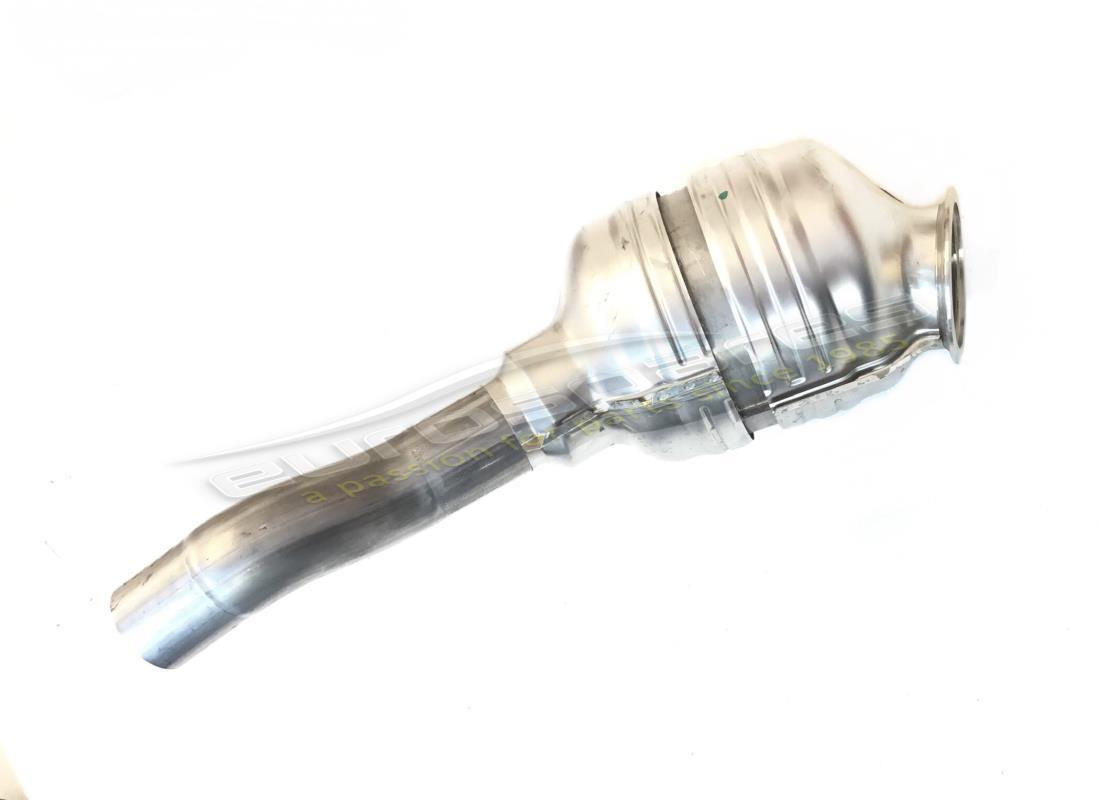

LH CATALYTIC CONVERTER
from £1,552.68
from £1,552.68
# 018
MPN: 253857
RH SILENCER BRACKET
from £31.70
from £31.70
# 018
MPN: 253858
LH SILENCER BRACKET
from £31.70
from £31.70
# 019
MPN: 240597
PLATE
from £5.88
from £5.88
# 020
MPN: 14059311
NUT
from £0.26
from £0.26
# 021
MPN: 110860
THREADED PLUG
from £7.65
from £7.65
This part replaces part number 11903240
# 022
MPN: 260563
RH CATALYTIC CONVERTER SHIELD
-No longer supplied- -Replaced by 263588-
Supersession
Supersession
# 022
MPN: 260564
LH CATALYTIC CONVERTER SHIELD
-No longer supplied- -Replaced by 263589-
Supersession
Supersession
# 022
MPN: 263588

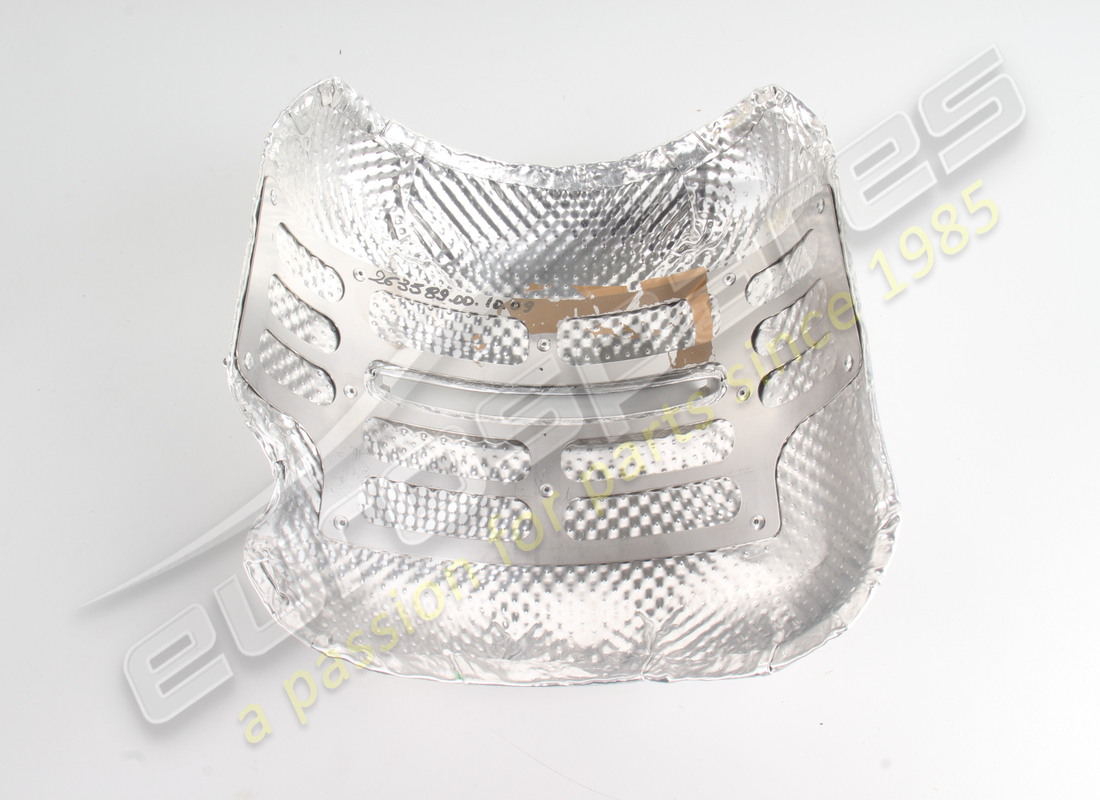

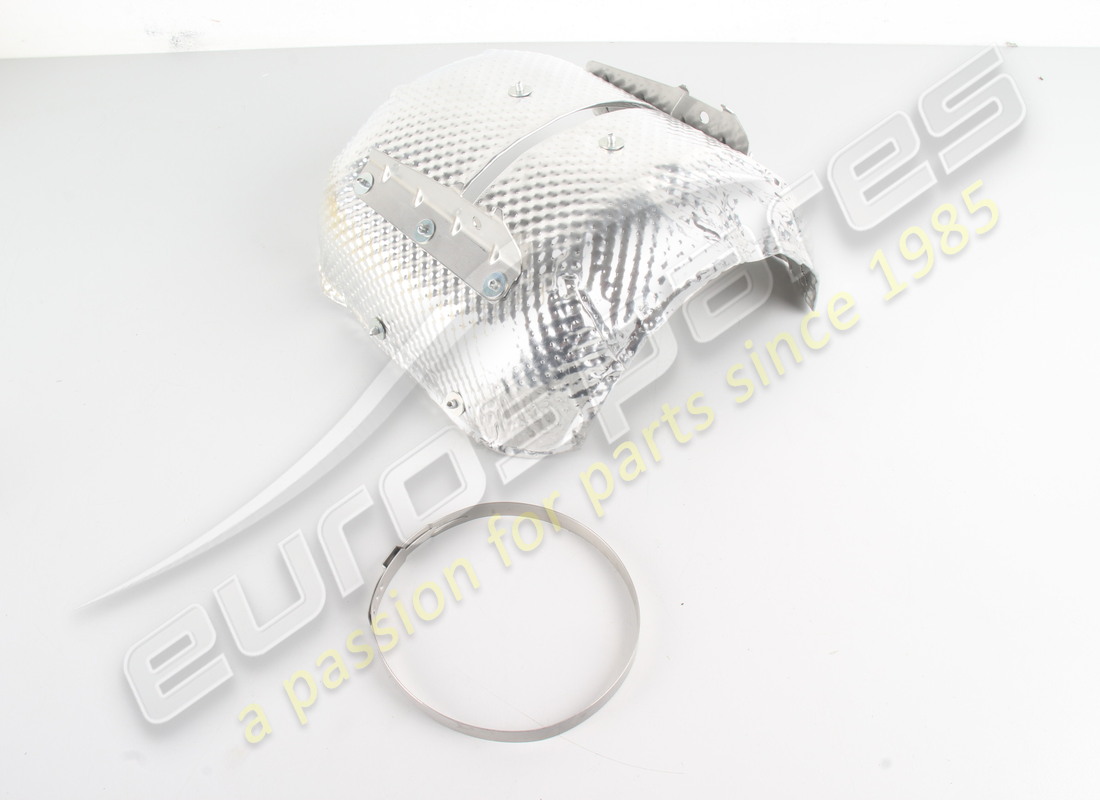

RH CATALYTIC CONVERTER SHIELD
from £75.45
from £75.45
This part replaces part number 260563 - and 1 more. Click to view details
# 022
MPN: 263589
LH CATALYTIC CONVERTER SHIELD
from £75.45
from £75.45
This part replaces part number 260564 - and 1 more. Click to view details
# 023
MPN: 260561

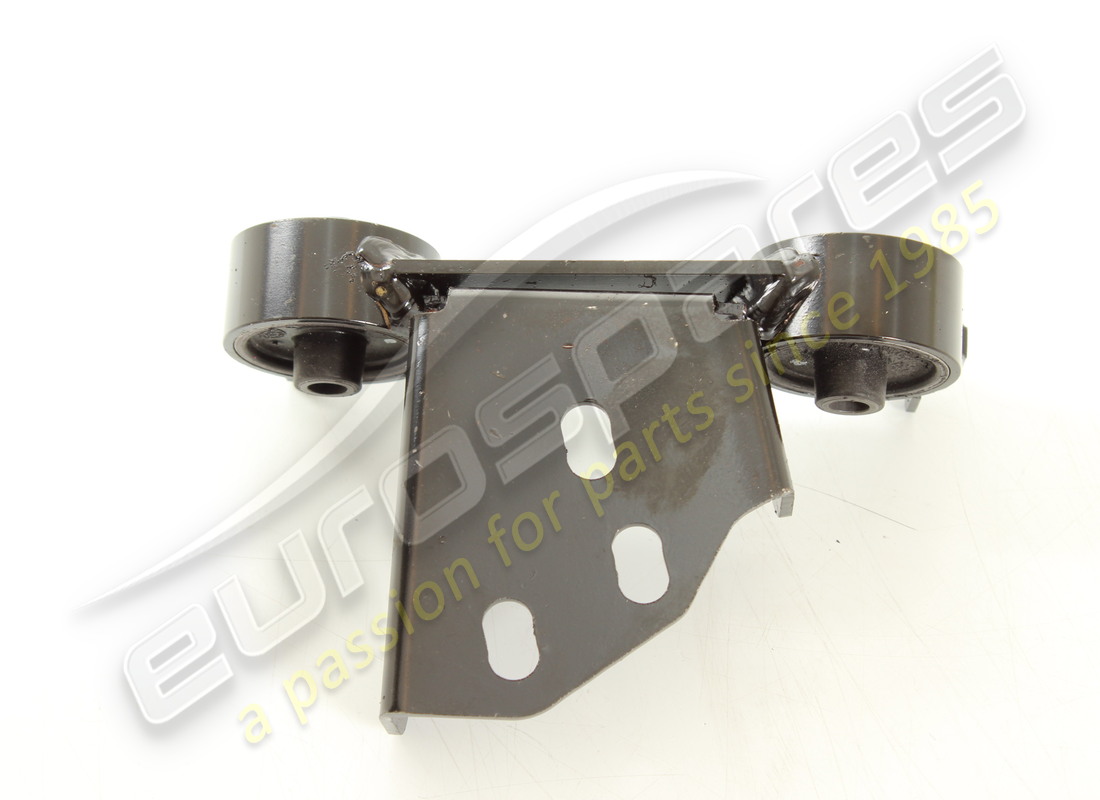

RH BRACKET COMPL. WITH BUSHES
from £102.91
from £102.91
# 023
MPN: 260562
LH BRACKET COMPL. WITH BUSHES
from £102.91
from £102.91
# 024
MPN: 260559
RH CATALYTIC CONVERTER BRACKET
from £56.60
from £56.60
# 024
MPN: 260560
LH CATALYTIC CONVERTER BRACKET
from £56.60
from £56.60
# 025
MPN: 11628124
SCREW
from £0.47
from £0.47
# 026
MPN: 11627824
SCREW
from £0.52
from £0.52
# 027
MPN: 16044321
SCREW
from £0.26
from £0.26
# 028
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 029
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 030
MPN: 14059311
NUT
from £0.26
from £0.26
# 031
MPN: 260774
SHIELD
-No longer supplied- -Replaced by 264535-
Supersession
Supersession
# 031
MPN: 264535
SHIELD
-No longer supplied- -Replaced by 267332-
from £48.30
from £48.30
This part replaces part number 260774 - and 1 more. Click to view details
# 031

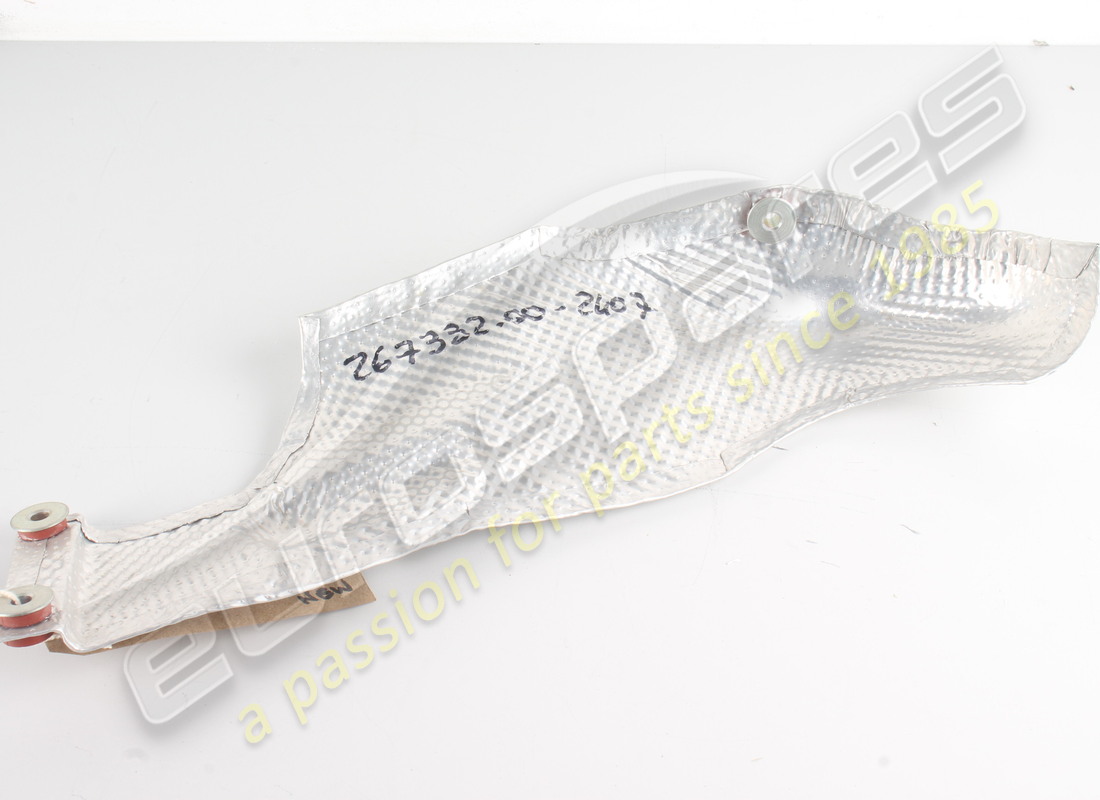

MPN: 267332
SHIELD
from £42.47
from £42.47
This part replaces part number 264535 which we have in stock - and 1 more. Click to view details
# 032
MPN: 231620
SCREW
-M6 X 25-
from £0.47
from £0.47
# 032
MPN: 248334
SCREW
-No longer supplied- -Replaced by 231620-
from £0.47
from £0.47
# 033
MPN: 14304021
SCREW
from £0.47
from £0.47
This part replaces part number 14304024
# 034
MPN: 14446624
WASHER
from £0.47
from £0.47
# 035
MPN: 217447
FRONT OXYGEN SENSOR
from £86.61
from £86.61
# 036
MPN: 180915
REAR OXYGEN SENSOR
from £26.25
from £26.25
This part replaces part number 177674 - and 1 more. Click to view details
# 037
MPN: 260626
COMPL. RH GUARD
-No longer supplied- -Replaced by 264112-
Supersession
Supersession
# 037
MPN: 264112
COMPL. RH SHIELD
-Applicable up to Ass. No. 96749-
from £163.32
from £163.32
This part replaces part number 260626
# 037
MPN: 271707
COMPL. RH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 103617-
from £806.14
from £806.14
# 037
MPN: 283920
COMPL. RH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103618-
from £171.51
from £171.51
This part replaces part number 306196
# 038
MPN: 260627
COMPL. LH GUARD
-No longer supplied- -Replaced by 264113-
Supersession
Supersession
# 038
MPN: 264113
COMPL. LH SHIELD
-Applicable up to Ass. No. 96749-
from £163.32
from £163.32
This part replaces part number 260627
# 038
MPN: 271708
COMPL. LH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 103617-
from £878.70
from £878.70
# 038
MPN: 283919
COMPL. LH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103618-
from £171.51
from £171.51
This part replaces part number 306197
# 039
MPN: 140730
CLIP
-No longer supplied-
from £0.47
from £0.47
This part replaces part number 179357 which we have in stock
# 040
MPN: 11625824
SCREW
-M6 X 18-
from £0.47
from £0.47
# 041
MPN: 257360
GASKET
from £17.97
from £17.97
# 042
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 043
MPN: 12647704
WASHER
from £0.47
from £0.47
# 044
MPN: 264409
BRACKET WITH SHEATH
from £1.92
from £1.92
# 045
MPN: 263901
BRACKET WITH SHEATH
from £2.88
from £2.88
# 046
MPN: 248334
SCREW
from £0.47
from £0.47
# 047
MPN: 178366
CONNECTOR FASTENER BRACKET
-No longer supplied- -Replaced by 185408-
from £2.38
from £2.38
# 047
MPN: 185408
CONNECTOR FASTENER BRACKET
from £9.35
from £9.35
# 048
MPN: 182363
STUD BOLT
from £15.90
from £15.90
# 049
MPN: 12620477
WASHER
from £0.47
from £0.47
This part replaces part number 12648207
# 050
MPN: 231620
SCREW
-M6 X 25- -Applicable up to Ass. No. 104675-
from £0.47
from £0.47
# 051
MPN: 14039614
NUT
from £0.54
from £0.54
# 051
MPN: 15896214
NUT
-Applicable from Ass. No. 104676- -No longer supplied- -Replaced by 14039614-
from £0.54
from £0.54
This part replaces part number 15896211
# 052
MPN: 12601274
WASHER
-Applicable from Ass. No. 104676- -No longer supplied-
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 053
MPN: 185307
RING CLAMP
from £15.25
from £15.25
This part replaces part number 173896
# 054
MPN: 292091
RING CLAMP
from £15.15
from £15.15
# 055
MPN: 10441290
BRACKET WITH SHEATH
from £0.47
from £0.47
# 056
MPN: 13578405
WASHER
from £0.48
from £0.48
# 057
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 058
MPN: 14059214
NUT
from £0.47
from £0.47
# 059
MPN: 263888
RH SHIELD
-No longer supplied- -Replaced by 271704-
Supersession
Supersession
# 059
MPN: 271704
RH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable up to Ass. No. 103617-
from £1,336.27
from £1,336.27
This part replaces part number 263888
# 059
MPN: 281762
RH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103618-
from £184.50
from £184.50
# 060
MPN: 263889
LH SHIELD
-No longer supplied- -Replaced by 271706-
Supersession
Supersession
# 060
MPN: 271706
LH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable up to Ass. No. 103617-
from £1,336.27
from £1,336.27
This part replaces part number 263889
# 060
MPN: 281761
LH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103618-
from £184.50
from £184.50
# 061
MPN: 264114
RUBBER PIPE FOR RH SHIELD
-Applicable up to Ass. No. 96749-
from £68.74
from £68.74
# 061
MPN: 271898
RUBBER PIPE FOR RH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 103617-
from £68.74
from £68.74
# 062
MPN: 264115
RUBBER PIPE FOR LH SHIELD
-Applicable up to Ass. No. 96749-
from £68.74
from £68.74
# 062
MPN: 271900
RUBBER PIPE FOR LH SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 103617-
from £68.74
from £68.74
# 063
MPN: 13125970
CLAMP
-Applicable up to Ass. No. 103617-
from £18.55
from £18.55
# 064
MPN: 191904
CLIP
-Applicable from Ass. No. 96750-
from £0.53
from £0.53
# 064
MPN: 226603
CLIP
-Applicable up to Ass. No. 96749-
from £0.47
from £0.47
# 065
MPN: 291283
CLIP
from £0.53
from £0.53
# 066
MPN: 199589
CLIP
from £0.83
from £0.83
# 067
MPN: 70003133
BYPASS VALVE ACTUATOR KIT
-Also order collar, part number 241986-
from £252.42
from £252.42
-part-diagram-0017.webp "FERRARI 458 ITALIA (EUROPE) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI 458 ITALIA (EUROPE) LUBRICATION SYSTEM: TANK, PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI 458 ITALIA (EUROPE) COOLING - WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI 458 ITALIA (EUROPE) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI 458 ITALIA (EUROPE) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI 458 ITALIA (EUROPE) GEARBOX OIL COOLING RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI 458 ITALIA (EUROPE) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI 458 ITALIA (EUROPE) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI 458 ITALIA (EUROPE) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI 458 ITALIA (EUROPE) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI 458 ITALIA (EUROPE) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI 458 ITALIA (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI 458 ITALIA (EUROPE) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI 458 ITALIA (EUROPE) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI 458 ITALIA (EUROPE) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI 458 ITALIA (EUROPE) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI 458 ITALIA (EUROPE) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI 458 ITALIA (EUROPE) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI 458 ITALIA (EUROPE) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI 458 ITALIA (EUROPE) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI 458 ITALIA (EUROPE) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI 458 ITALIA (EUROPE) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI 458 ITALIA (EUROPE) WHEELS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI 458 ITALIA (EUROPE) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI 458 ITALIA (EUROPE) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI 458 ITALIA (EUROPE) BATTERY PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI 458 ITALIA (EUROPE) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI 458 ITALIA (EUROPE) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI 458 ITALIA (EUROPE) AC SYSTEM - WATER PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI 458 ITALIA (EUROPE) AC SYSTEM - FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI 458 ITALIA (EUROPE) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI 458 ITALIA (EUROPE) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI 458 ITALIA (EUROPE) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI 458 ITALIA (EUROPE) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI 458 ITALIA (EUROPE) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI 458 ITALIA (EUROPE) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI 458 ITALIA (EUROPE) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI 458 ITALIA (EUROPE) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI 458 ITALIA (EUROPE) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI 458 ITALIA (EUROPE) INSULATION PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI 458 ITALIA (EUROPE) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI 458 ITALIA (EUROPE) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI 458 ITALIA (EUROPE) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI 458 ITALIA (EUROPE) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI 458 ITALIA (EUROPE) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI 458 ITALIA (EUROPE) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI 458 ITALIA (EUROPE) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI 458 ITALIA (EUROPE) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI 458 ITALIA (EUROPE) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI 458 ITALIA (EUROPE) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI 458 ITALIA (EUROPE) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI 458 ITALIA (EUROPE) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI 458 ITALIA (EUROPE) SEATS - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI 458 ITALIA (EUROPE) SEATS - UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI 458 ITALIA (EUROPE) RACING SEAT PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI 458 ITALIA (EUROPE) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI 458 ITALIA (EUROPE) DASHBOARD PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI 458 ITALIA (EUROPE) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI 458 ITALIA (EUROPE) AIRBAGS PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI 458 ITALIA (EUROPE) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI 458 ITALIA (EUROPE) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI 458 ITALIA (EUROPE) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI 458 ITALIA (EUROPE) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI 458 ITALIA (EUROPE) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI 458 ITALIA (EUROPE) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI 458 ITALIA (EUROPE) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI 458 ITALIA (EUROPE) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI 458 ITALIA (EUROPE) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI 458 ITALIA (EUROPE) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI 458 ITALIA (EUROPE) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI 458 ITALIA (EUROPE) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI 458 ITALIA (EUROPE) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI 458 ITALIA (EUROPE) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI 458 ITALIA (EUROPE) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI 458 ITALIA (EUROPE) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI 458 ITALIA (EUROPE) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI 458 ITALIA (EUROPE) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI 458 ITALIA (EUROPE) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI 458 ITALIA (EUROPE) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI 458 ITALIA (EUROPE) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI 458 ITALIA (EUROPE) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI 458 ITALIA (EUROPE) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI 458 ITALIA (EUROPE) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI 458 ITALIA (EUROPE) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI 458 ITALIA (EUROPE) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI 458 ITALIA (EUROPE) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI 458 ITALIA (EUROPE) INTAKE MANIFOLD COVER PARTS DIAGRAM")
