0024 - COMPLETE PEDAL BOARD ASSEMBLY

Ferrari 458 Speciale (USA) COMPLETE PEDAL BOARD ASSEMBLY Parts Diagram

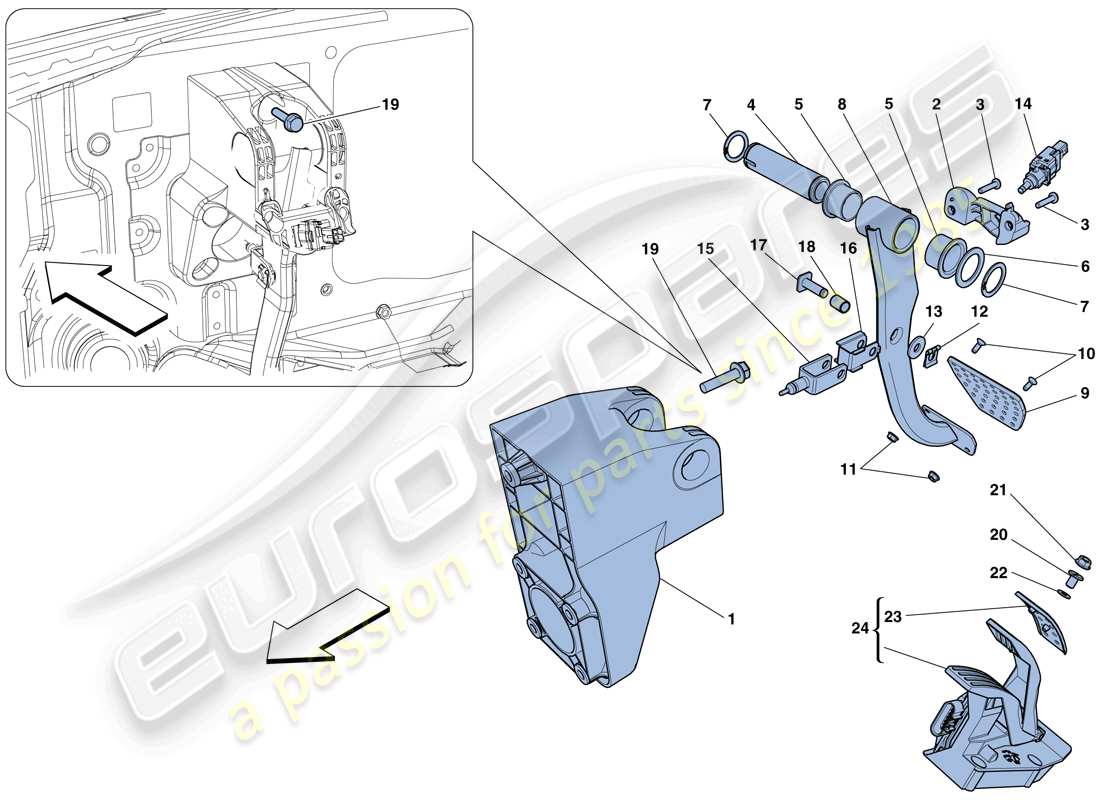

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 003
                                            MPN: 240931
                                            SCREW
                                            from £2.55
                                            from £2.55
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 006
                                            MPN: 240929
                                            RUBBER WASHER
                                            from £3.07
                                            from £3.07
                                            RUBBER PIVOT WASHER Genuine Ferrari Part - New (to order)
                                            RUBBER PIVOT WASHER Genuine Ferrari Part - Used In stock
                                            # 008
                                            MPN: 228972
                                            BRAKE PEDAL
                                            -Applicable for GD-
                                            from £243.96
                                            from £243.96
                                            BRAKE PEDAL Genuine Ferrari Part - New (to order)
                                            BRAKE PEDAL Genuine Ferrari Part - Used In stock
                                            BRAKE PEDAL Genuine Ferrari Part - Used In stock
                                            Alternative (#EAP1490499) COMPLETE BRAKE PEDAL ASSEMBLY Eurospares Approved Part - New (to order)
                                            Alternative (#EAP1490499) COMPLETE BRAKE PEDAL ASSEMBLY Eurospares Approved Part - Used In stock
                                            # 008
                                            MPN: 256426
                                            BRAKE PEDAL
                                            -Not for GD-
                                            from £313.95
                                            from £313.95
                                            This part replaces part number 272085 which we have in stock - and 1 more. Click to view details
                                            BRAKE PEDAL Genuine Ferrari Part - New (to order)
                                            BRAKE PEDAL Genuine Ferrari Part - Used In stock
                                            Complete with the box
                                            # 010
                                            MPN: 14441324
                                            SCREW
                                            from £0.53
                                            from £0.53
                                            SCREW Genuine Ferrari Part - New In stock
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 011
                                            MPN: 12578111
                                            NUT
                                            from £0.47
                                            from £0.47
                                            NUT Genuine Ferrari Part - New In stock
                                            NUT Genuine Maserati Part - New (to order)
                                            # 012
                                            MPN: 11064176
                                            SAFETY CLIP
                                            from £0.86
                                            from £0.86
                                            SAFETY CLIP Genuine Ferrari Part - New (to order)
                                            SAFETY CLIP Genuine Ferrari Part - Used In stock
                                            # 013
                                            MPN: 245181
                                            RUBBER WASHER
                                            from £2.41
                                            from £2.41
                                            RUBBER WASHER Genuine Ferrari Part - New (to order)
                                            RUBBER WASHER Genuine Ferrari Part - Used In stock
                                            # 014
                                            MPN: 201957
                                            PUSHBUTTON SWITCH
                                            from £13.49
                                            from £13.49
                                            This part replaces part number 187869 - and 8 more. Click to view details
                                            PUSH-BUTTON SWITCH Genuine Ferrari Part - New In stock
                                            PUSH-BUTTON SWITCH Genuine Maserati Part - New (to order)
                                            PUSH-BUTTON SWITCH Genuine Ferrari Part - Used In stock
                                            # 015
                                            MPN: 245178
                                            BRAKE SERVO LINKAGE YOKE
                                            from £23.87
                                            from £23.87
                                            BRAKE SERVO LINKAGE YOKE Genuine Ferrari Part - New (to order)
                                            BRAKE SERVO LINKAGE YOKE Genuine Ferrari Part - Used In stock
                                            # 016
                                            MPN: 245179
                                            CAGE
                                            from £6.04
                                            from £6.04
                                            CAGE Genuine Ferrari Part - New (to order)
                                            CAGE Genuine Ferrari Part - Used In stock
                                            # 017
                                            MPN: 245180
                                            PIN
                                            from £25.43
                                            from £25.43
                                            PIN Genuine Ferrari Part - New (to order)
                                            PIN Genuine Ferrari Part - Used In stock
                                            # 018
                                            MPN: 260639
                                            BUSHING
                                            -Not for GD-
                                            from £7.68
                                            from £7.68
                                            BUSHING Genuine Ferrari Part - New (to order)
                                            # 019
                                            MPN: 16287421
                                            SCREW
                                            -No longer supplied- -Replaced by 16287524-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            Genuine Maserati Part (no longer available to order)
                                            # 019
                                            MPN: 16287524
                                            SCREW
                                            from £0.86
                                            from £0.86
                                            This part replaces part number 16287521
                                            SCREW Genuine Ferrari Part - New In stock
                                            # 020
                                            MPN: 69855300
                                            PRESS-FIT BUTTON
                                            from £0.53
                                            from £0.53
                                            button Genuine Ferrari Part - New In stock
                                            # 022
                                            MPN: 12646624
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            WASHER Genuine Ferrari Part - New In stock
                                            WASHER Genuine Maserati Part - New In stock
                                            # 023
                                            MPN: 243120
                                            ACCELERATOR PEDAL PLATE
                                            from £160.43
                                            from £160.43
                                            ACCELERATOR PEDAL PLATE Genuine Ferrari Part - New (to order)
                                            # 024
                                            MPN: 243117
                                            COMPLETE FLOOR-HINGED ACCELERATOR PEDAL
                                            from £196.83
                                            from £196.83
                                            COMPLETE ACCELERATOR PEDAL Genuine Ferrari Part - New (to order)
                                            COMPLETE ACCELERATOR PEDAL Genuine Ferrari Part - Used In stock
