0024 - COMPLETE PEDAL BOARD ASSEMBLY

Ferrari 458 Speciale Aperta (USA) COMPLETE PEDAL BOARD ASSEMBLY Parts Diagram

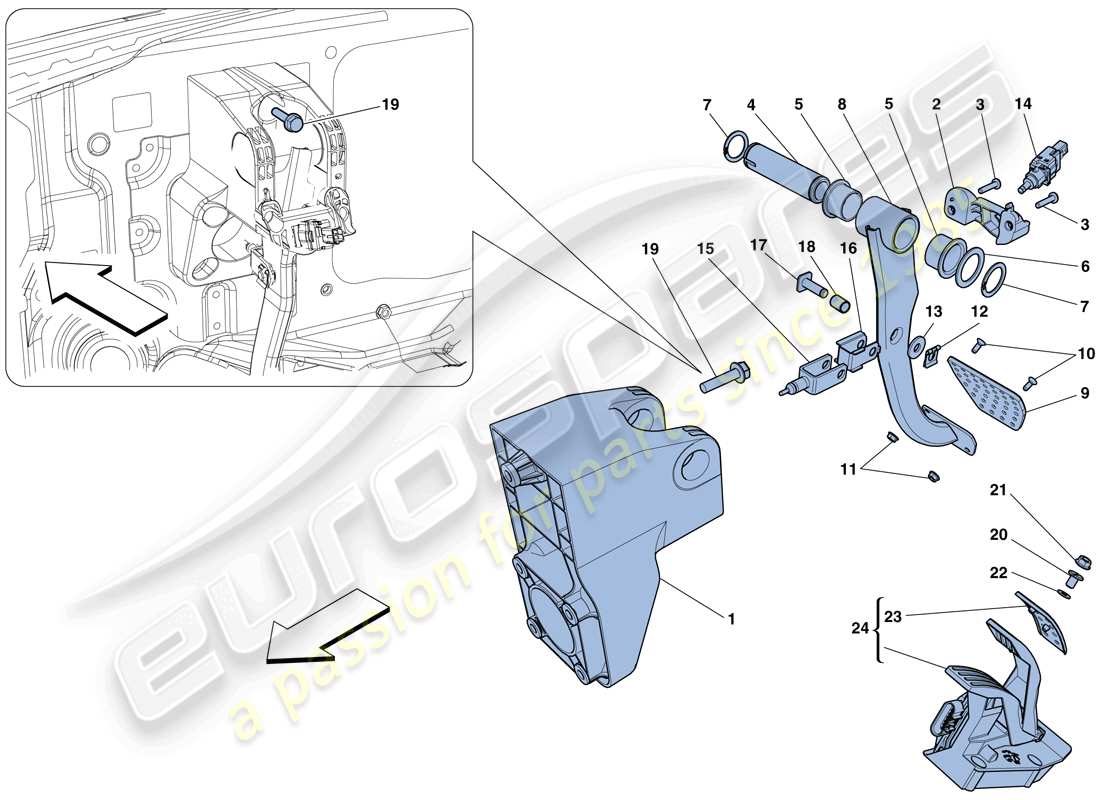

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 003
                                              MPN: 240931
                                              SCREW
                                              from £2.55
                                              from £2.55
                                              SCREW Genuine Ferrari Part - New (to order)
                                              # 006
                                              MPN: 240929
                                              RUBBER WASHER
                                              from £3.07
                                              from £3.07
                                              RUBBER PIVOT WASHER Genuine Ferrari Part - New (to order)
                                              RUBBER PIVOT WASHER Genuine Ferrari Part - Used In stock
                                              # 008
                                              MPN: 228972
                                              BRAKE PEDAL
                                              -Applicable for GD-
                                              from £243.96
                                              from £243.96
                                              BRAKE PEDAL Genuine Ferrari Part - New (to order)
                                              BRAKE PEDAL Genuine Ferrari Part - Used In stock
                                              BRAKE PEDAL Genuine Ferrari Part - Used In stock
                                              Alternative (#EAP1490499) COMPLETE BRAKE PEDAL ASSEMBLY Eurospares Approved Part - New (to order)
                                              Alternative (#EAP1490499) COMPLETE BRAKE PEDAL ASSEMBLY Eurospares Approved Part - Used In stock
                                              # 008
                                              MPN: 256426
                                              BRAKE PEDAL
                                              -Not for GD-
                                              from £313.95
                                              from £313.95
                                              This part replaces part number 272085 which we have in stock - and 1 more. Click to view details
                                              BRAKE PEDAL Genuine Ferrari Part - New (to order)
                                              BRAKE PEDAL Genuine Ferrari Part - Used In stock
                                              Complete with the box
                                              # 010
                                              MPN: 14441324
                                              SCREW
                                              from £0.53
                                              from £0.53
                                              SCREW Genuine Ferrari Part - New In stock
                                              SCREW Genuine Maserati Part - New (to order)
                                              # 011
                                              MPN: 12578111
                                              NUT
                                              from £0.47
                                              from £0.47
                                              NUT Genuine Ferrari Part - New In stock
                                              NUT Genuine Maserati Part - New (to order)
                                              # 012
                                              MPN: 11064176
                                              SAFETY CLIP
                                              from £0.86
                                              from £0.86
                                              SAFETY CLIP Genuine Ferrari Part - New (to order)
                                              SAFETY CLIP Genuine Ferrari Part - Used In stock
                                              # 013
                                              MPN: 245181
                                              RUBBER WASHER
                                              from £2.41
                                              from £2.41
                                              RUBBER WASHER Genuine Ferrari Part - New (to order)
                                              RUBBER WASHER Genuine Ferrari Part - Used In stock
                                              # 014
                                              MPN: 201957
                                              PUSHBUTTON SWITCH
                                              from £13.49
                                              from £13.49
                                              This part replaces part number 187869 - and 8 more. Click to view details
                                              PUSH-BUTTON SWITCH Genuine Ferrari Part - New In stock
                                              PUSH-BUTTON SWITCH Genuine Maserati Part - New (to order)
                                              PUSH-BUTTON SWITCH Genuine Ferrari Part - Used In stock
                                              # 015
                                              MPN: 245178
                                              BRAKE SERVO LINKAGE YOKE
                                              from £23.87
                                              from £23.87
                                              BRAKE SERVO LINKAGE YOKE Genuine Ferrari Part - New (to order)
                                              BRAKE SERVO LINKAGE YOKE Genuine Ferrari Part - Used In stock
                                              # 016
                                              MPN: 245179
                                              CAGE
                                              from £6.04
                                              from £6.04
                                              CAGE Genuine Ferrari Part - New (to order)
                                              CAGE Genuine Ferrari Part - Used In stock
                                              # 017
                                              MPN: 245180
                                              PIN
                                              from £25.43
                                              from £25.43
                                              PIN Genuine Ferrari Part - New (to order)
                                              PIN Genuine Ferrari Part - Used In stock
                                              # 018
                                              MPN: 260639
                                              BUSHING
                                              -Not for GD-
                                              from £7.68
                                              from £7.68
                                              BUSHING Genuine Ferrari Part - New (to order)
                                              # 019
                                              MPN: 16287524
                                              SCREW
                                              from £0.86
                                              from £0.86
                                              This part replaces part number 16287521
                                              SCREW Genuine Ferrari Part - New In stock
                                              # 020
                                              MPN: 69855300
                                              PRESS-FIT BUTTON
                                              from £0.53
                                              from £0.53
                                              button Genuine Ferrari Part - New In stock
                                              # 022
                                              MPN: 12646624
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              WASHER Genuine Ferrari Part - New In stock
                                              WASHER Genuine Maserati Part - New In stock
                                              # 023
                                              MPN: 243120
                                              ACCELERATOR PEDAL PLATE
                                              from £160.43
                                              from £160.43
                                              ACCELERATOR PEDAL PLATE Genuine Ferrari Part - New (to order)
                                              # 024
                                              MPN: 243117
                                              COMPLETE FLOOR-HINGED ACCELERATOR PEDAL
                                              from £196.83
                                              from £196.83
                                              COMPLETE ACCELERATOR PEDAL Genuine Ferrari Part - New (to order)
                                              COMPLETE ACCELERATOR PEDAL Genuine Ferrari Part - Used In stock
