0038 - REAR SUSPENSION - ARMS

Ferrari 458 Spider (USA) REAR SUSPENSION - ARMS Parts Diagram

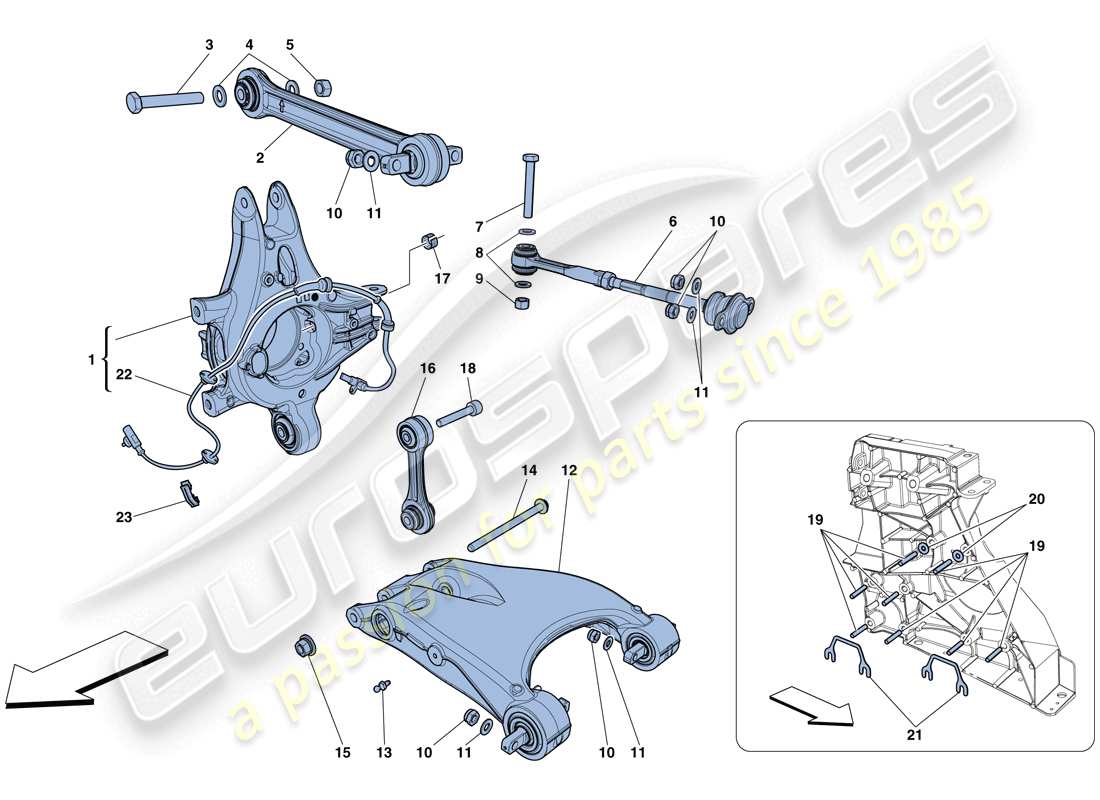

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 268379
                                      LH HUB CARRIER
                                      -Applicable up to Ass. No. 107295- -Applicable until depletion-
                                      Supersession
                                      Supersession
                                      This part replaces part number 238469
                                      # 001
                                      MPN: 268380
                                      RH HUB CARRIER
                                      -Applicable up to Ass. No. 107295- -Applicable until depletion-
                                      Supersession
                                      Supersession
                                      This part replaces part number 238471
                                      # 001
                                      MPN: 276809
                                      LH HUB CARRIER
                                      -Applicable from Ass. No. 107296- -Applicable after depletion of 268379- -No longer supplied- -Replaced by 299933-
                                      Supersession
                                      Supersession
                                      This part replaces part number 268379
                                      # 001
                                      MPN: 276810
                                      RH HUB CARRIER
                                      -Applicable from Ass. No. 107296- -Applicable after depletion of 268380-
                                      from £1,313.63
                                      from £1,313.63
                                      This part replaces part number 268380
                                      # 001
                                      MPN: 299933
                                      COMPL. LH REAR HUB CARRIER
                                      -Applicable from Ass. No. 107296-
                                      from £1,313.63
                                      from £1,313.63
                                      This part replaces part number 276809
                                      # 002
                                      MPN: 259687
                                      REAR UPPER LEVER
                                      from £133.65
                                      from £133.65
                                      This part replaces part number 259014 - and 2 more. Click to view details
                                      # 003
                                      MPN: 15541434
                                      SCREW
                                      from £1.22
                                      from £1.22
                                      # 004
                                      MPN: 14496721
                                      WASHER
                                      from £0.51
                                      from £0.51
                                      # 005
                                      MPN: 203666
                                      NUT
                                      from £0.53
                                      from £0.53
                                      # 006
                                      MPN: 245161
                                      COMPLETE TIE-ROD
                                      from £94.93
                                      from £94.93
                                      # 007
                                      MPN: 15541434
                                      SCREW
                                      from £1.22
                                      from £1.22
                                      # 008
                                      MPN: 14496721
                                      WASHER
                                      from £0.51
                                      from £0.51
                                      # 009
                                      MPN: 203666
                                      NUT
                                      from £0.53
                                      from £0.53
                                      # 010
                                      MPN: 104114
                                      NUT
                                      Supersession
                                      Supersession
                                      This part replaces part number 15503711 - and 1 more. Click to view details
                                      # 011
                                      MPN: 14496624
                                      WASHER
                                      from £0.48
                                      from £0.48
                                      This part replaces part number 14496601 - and 2 more. Click to view details
                                      # 012
                                      MPN: 262594
                                      LH REAR LOWER LEVER
                                      -No longer supplied- -Replaced by 305679-
                                      Supersession
                                      Supersession
                                      This part replaces part number 261002
                                      # 012
                                      MPN: 262595
                                      LOWER RH ARM
                                      -No longer supplied- -Replaced by 305680-
                                      Supersession
                                      Supersession
                                      This part replaces part number 261003
                                      # 012
                                      MPN: 305679
                                      LOWER LH ARM
                                      Supersession
                                      Supersession
                                      This part replaces part number 262594
                                      # 012
                                      MPN: 305680
                                      RH REAR LOWER LEVER
                                      from £326.64
                                      from £326.64
                                      This part replaces part number 262595 - and 2 more. Click to view details
                                      # 013
                                      MPN: 216973
                                      BALL JOINT
                                      from £2.26
                                      from £2.26
                                      # 014
                                      MPN: 238656
                                      SCREW
                                      from £8.05
                                      from £8.05
                                      # 015
                                      MPN: 238063
                                      NUT
                                      from £1.53
                                      from £1.53
                                      # 016
                                      MPN: 259688
                                      ANTI-ROTATION LINKAGE
                                      from £56.95
                                      from £56.95
                                      This part replaces part number 236783 which we have in stock - and 8 more. Click to view details
                                      # 017
                                      MPN: 222956
                                      COMPENSATOR RING
                                      from £8.68
                                      from £8.68
                                      # 018
                                      MPN: 238258
                                      SCREW
                                      from £16.29
                                      from £16.29
                                      # 019
                                      MPN: 264528
                                      THREADED ROD
                                      from £1.94
                                      from £1.94
                                      This part replaces part number 249294 which we have in stock
                                      # 020
                                      MPN: 12646821
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      # 021
                                      MPN: 262539
                                      ADJUSTMENT SHIM
                                      -Th. 2 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 021
                                      MPN: 262540
                                      ADJUSTMENT SHIM
                                      -Th. 2.5 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 021
                                      MPN: 262541
                                      ADJUSTMENT SHIM
                                      -Th. 3 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 021
                                      MPN: 262542
                                      ADJUSTMENT SHIM
                                      -Th. 3.5 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 021
                                      MPN: 262543
                                      ADJUSTMENT SHIM
                                      -Th. 4 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 021
                                      MPN: 262544
                                      ADJUSTMENT SHIM
                                      -Th. 0.5 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 021
                                      MPN: 262545
                                      ADJUSTMENT SHIM
                                      -Th. 1 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 021
                                      MPN: 262546
                                      ADJUSTMENT SHIM
                                      -Th. 1.5 mm- -Installed if necessary-
                                      from £4.83
                                      from £4.83
                                      # 022
                                      MPN: 252510
                                      ABS SENSOR
                                      -Applicable up to Ass. No. 107295- -Applicable until depletion-
                                      from £99.56
                                      from £99.56
                                      This part replaces part number 240892
                                      # 022
                                      MPN: 252514
                                      ABS SENSOR
                                      from £109.06
                                      from £109.06
                                      # 023
                                      MPN: 251744
                                      CLIP
                                      -Applicable for sensor Part No. 252514, ref. 22- -Applicable from Ass. No. 107296-
                                      from £0.87
                                      from £0.87
                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
