Ferrari 488 Challenge RH cylinder head Parts Diagram

004 - RH cylinder head

Ferrari 488 Challenge Rh Cylinder Head Parts Diagram

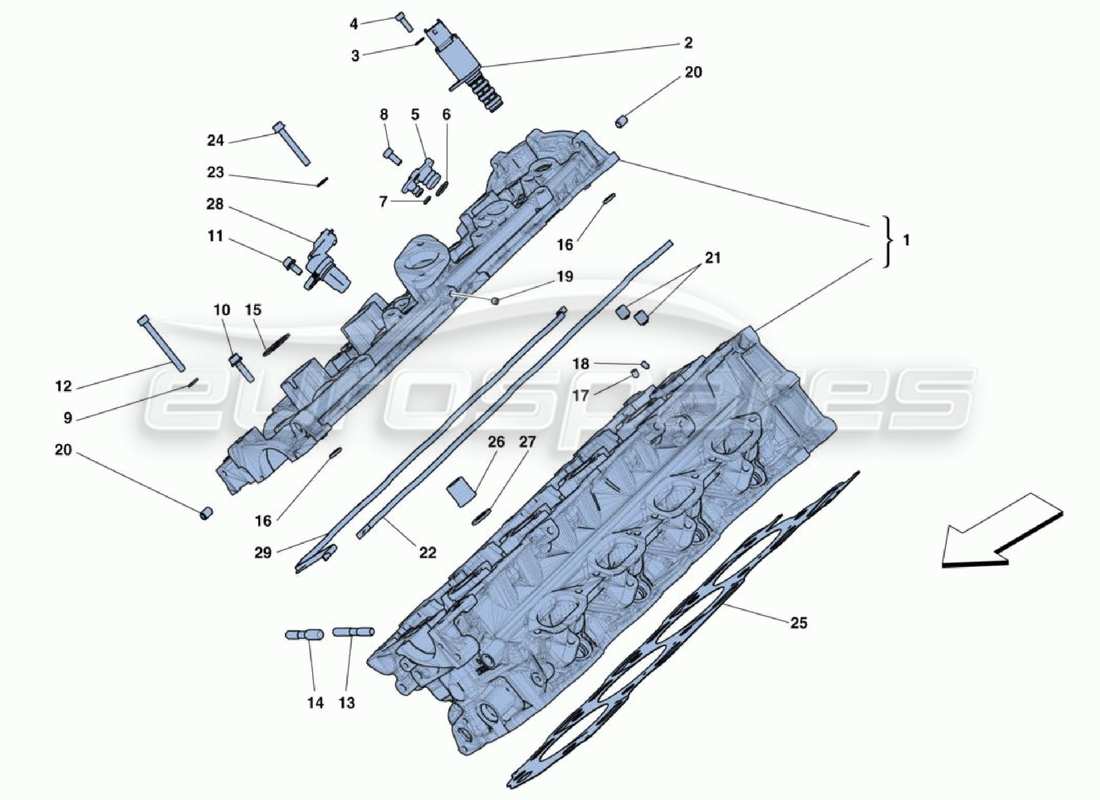

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 329563
                                                            TESTA CILINDRI DX.
                                                            Supersession
                                                            Supersession
                                                            # 002
                                                            MPN: 296017
                                                            VALVOLA CONTROLLO PRESSIONE OLIO
                                                            from £60.98
                                                            from £60.98
                                                            This part replaces part number 269227 - and 3 more. Click to view details
                                                            # 003
                                                            MPN: 11181574
                                                            ROSETTA
                                                            from £0.54
                                                            from £0.54
                                                            # 004
                                                            MPN: 14304224
                                                            VITE
                                                            from £0.47
                                                            from £0.47
                                                            # 005
                                                            MPN: 287233
                                                            TAPPO
                                                            from £4.02
                                                            from £4.02
                                                            # 006
                                                            MPN: 14453281
                                                            Guarnizione
                                                            from £0.71
                                                            from £0.71
                                                            # 007
                                                            MPN: 14452781
                                                            Guarnizione
                                                            from £0.47
                                                            from £0.47
                                                            # 008
                                                            MPN: 13026924
                                                            VITE
                                                            from £0.47
                                                            from £0.47
                                                            # 009
                                                            MPN: 11197774
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                            # 010
                                                            MPN: 231620
                                                            VITE -M6 X 25-
                                                            from £0.47
                                                            from £0.47
                                                            # 011
                                                            MPN: 231617
                                                            VITE -M6 X 18-
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 14433124
                                                            # 012
                                                            MPN: 14303821
                                                            VITE
                                                            from £0.53
                                                            from £0.53
                                                            # 013
                                                            MPN: 307168
                                                            PRIGIONIERO
                                                            from £1.23
                                                            from £1.23
                                                            # 014
                                                            MPN: 306320
                                                            PRIGIONIERO
                                                            from £1.69
                                                            from £1.69
                                                            # 015
                                                            MPN: 166657
                                                            Guarnizione
                                                            from £0.47
                                                            from £0.47
                                                            # 016
                                                            MPN: 127816
                                                            GUARNIZIONE O.R.
                                                            from £1.41
                                                            from £1.41
                                                            # 017
                                                            MPN: 256827
                                                            GRANO
                                                            from £3.07
                                                            from £3.07
                                                            # 019
                                                            MPN: 199760
                                                            TAPPO FILETTATO
                                                            from £0.47
                                                            from £0.47
                                                            # 020
                                                            MPN: 277903
                                                            TAPPO
                                                            from £0.47
                                                            from £0.47
                                                            # 021
                                                            MPN: 200458
                                                            VALVOLA DI NON RITORNO
                                                            from £5.32
                                                            from £5.32
                                                            # 022
                                                            MPN: 339986
                                                            GUARNIZIONE COPERCHIO TESTA LATO ASPIRAZIONE
                                                            Supersession
                                                            Supersession
                                                            # 023
                                                            MPN: 296075
                                                            WASHER
                                                            from £0.68
                                                            from £0.68
                                                            # 024
                                                            MPN: 296759
                                                            VITE
                                                            from £0.47
                                                            from £0.47
                                                            # 024
                                                            MPN: 330601
                                                            VITE -FORATA PER PIOMBATURA-
                                                            from £3.88
                                                            from £3.88
                                                            # 025
                                                            MPN: 319511
                                                            GUARNIZIONE TESTA BASAMENTO DX.
                                                            from £85.81
                                                            from £85.81
                                                            # 026
                                                            MPN: 271125
                                                            NUT
                                                            from £4.07
                                                            from £4.07
                                                            # 027
                                                            MPN: 271129
                                                            ROSETTA
                                                            from £0.68
                                                            from £0.68
                                                            # 028
                                                            MPN: 224573
                                                            SENSORE DI FASE
                                                            from £11.13
                                                            from £11.13
                                                            # 029
                                                            MPN: 339987
                                                            GUARNIZIONE COPERCHIO TESTA LATO SCARICO
                                                            Supersession
                                                            Supersession
