Ferrari 488 Challenge LH cylinder head Parts Diagram

005 - LH cylinder head

Ferrari 488 Challenge Lh Cylinder Head Parts Diagram

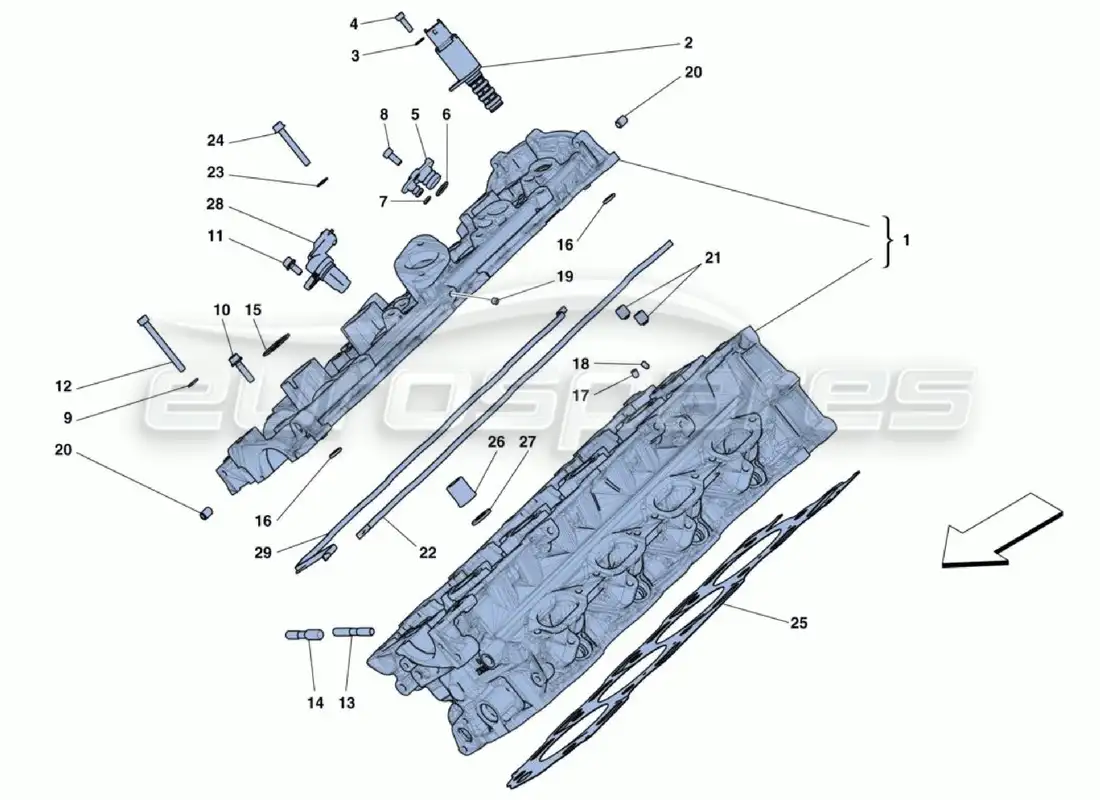

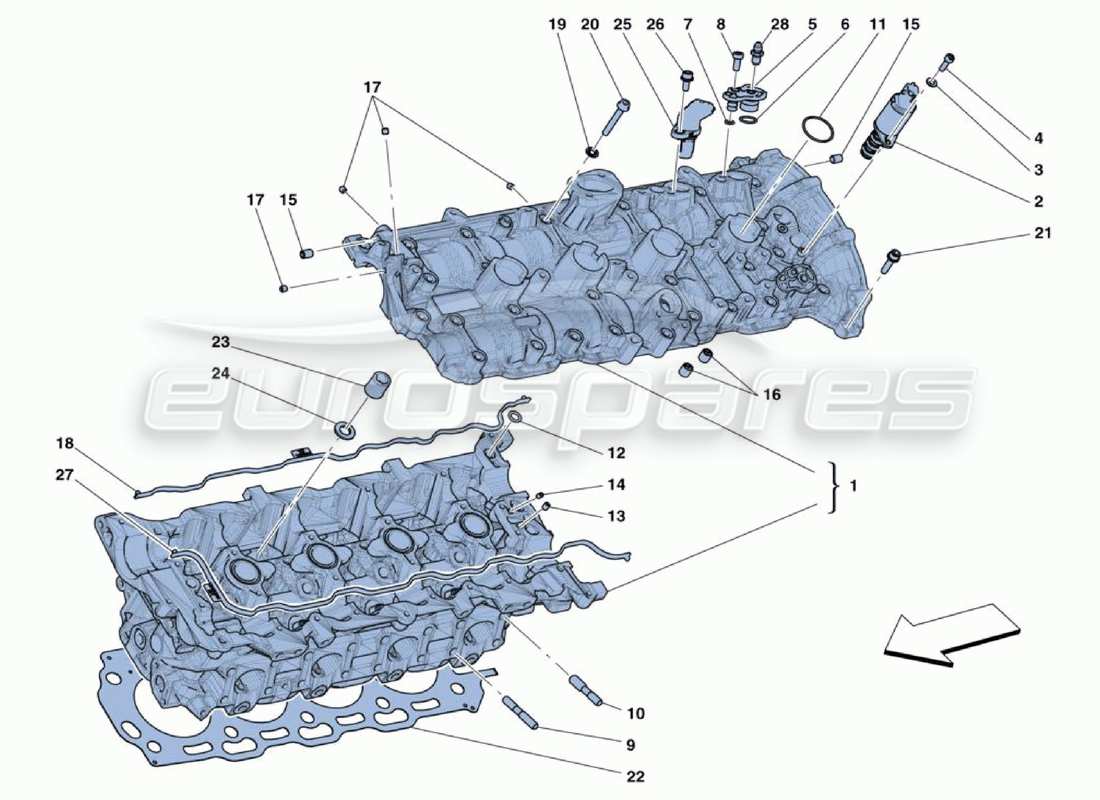

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 329564
                                                          TESTA CILINDRI SX.
                                                          Supersession
                                                          Supersession
                                                          # 002
                                                          MPN: 296017
                                                          VALVOLA CONTROLLO PRESSIONE OLIO
                                                          from £60.98
                                                          from £60.98
                                                          This part replaces part number 269227 - and 3 more. Click to view details
                                                          # 003
                                                          MPN: 11181574
                                                          ROSETTA
                                                          from £0.54
                                                          from £0.54
                                                          # 004
                                                          MPN: 14304224
                                                          VITE
                                                          from £0.47
                                                          from £0.47
                                                          # 005
                                                          MPN: 287024
                                                          TAPPO
                                                          from £4.02
                                                          from £4.02
                                                          # 005
                                                          MPN: 337145
                                                          TAPPO -PER RACCORDO-
                                                          # 006
                                                          MPN: 14453281
                                                          Guarnizione
                                                          from £0.71
                                                          from £0.71
                                                          # 007
                                                          MPN: 14452781
                                                          Guarnizione
                                                          from £0.47
                                                          from £0.47
                                                          # 008
                                                          MPN: 13026924
                                                          VITE
                                                          from £0.47
                                                          from £0.47
                                                          # 009
                                                          MPN: 307168
                                                          PRIGIONIERO
                                                          from £1.23
                                                          from £1.23
                                                          # 010
                                                          MPN: 306320
                                                          PRIGIONIERO
                                                          from £1.69
                                                          from £1.69
                                                          # 011
                                                          MPN: 166657
                                                          Guarnizione
                                                          from £0.47
                                                          from £0.47
                                                          # 012
                                                          MPN: 127816
                                                          GUARNIZIONE O.R.
                                                          from £1.41
                                                          from £1.41
                                                          # 013
                                                          MPN: 256827
                                                          GRANO
                                                          from £3.07
                                                          from £3.07
                                                          # 015
                                                          MPN: 277903
                                                          TAPPO
                                                          from £0.47
                                                          from £0.47
                                                          # 016
                                                          MPN: 200458
                                                          VALVOLA DI NON RITORNO
                                                          from £5.32
                                                          from £5.32
                                                          # 017
                                                          MPN: 199760
                                                          TAPPO FILETTATO
                                                          from £0.47
                                                          from £0.47
                                                          # 018
                                                          MPN: 339988
                                                          GUARNIZIONE COPERCHIO TESTA LATO ASPIRAZIONE
                                                          Supersession
                                                          Supersession
                                                          # 019
                                                          MPN: 296075
                                                          WASHER
                                                          from £0.68
                                                          from £0.68
                                                          # 020
                                                          MPN: 296759
                                                          VITE
                                                          from £0.47
                                                          from £0.47
                                                          # 020
                                                          MPN: 330601
                                                          VITE -FORATA PER PIOMBATURA-
                                                          from £3.88
                                                          from £3.88
                                                          # 021
                                                          MPN: 231620
                                                          VITE -M6 X 25-
                                                          from £0.47
                                                          from £0.47
                                                          # 022
                                                          MPN: 319512
                                                          GUARNIZIONE TESTA BASAMENTO SX.
                                                          from £85.81
                                                          from £85.81
                                                          # 023
                                                          MPN: 271125
                                                          NUT
                                                          from £4.07
                                                          from £4.07
                                                          # 024
                                                          MPN: 271129
                                                          ROSETTA
                                                          from £0.68
                                                          from £0.68
                                                          # 025
                                                          MPN: 224573
                                                          SENSORE DI FASE
                                                          from £11.13
                                                          from £11.13
                                                          # 026
                                                          MPN: 231617
                                                          VITE -M6 X 18-
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 14433124
                                                          # 027
                                                          MPN: 339989
                                                          GUARNIZIONE COPERCHIO TESTA LATO SCARICO
                                                          Supersession
                                                          Supersession
                                                          # 028
                                                          MPN: 337141
                                                          RACCORDO
                                                          from £34.20
                                                          from £34.20
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
