Ferrari 488 Challenge TIMING GEAR Parts Diagram

007 - TIMING GEAR

Ferrari 488 Challenge Timing Gear Parts Diagram

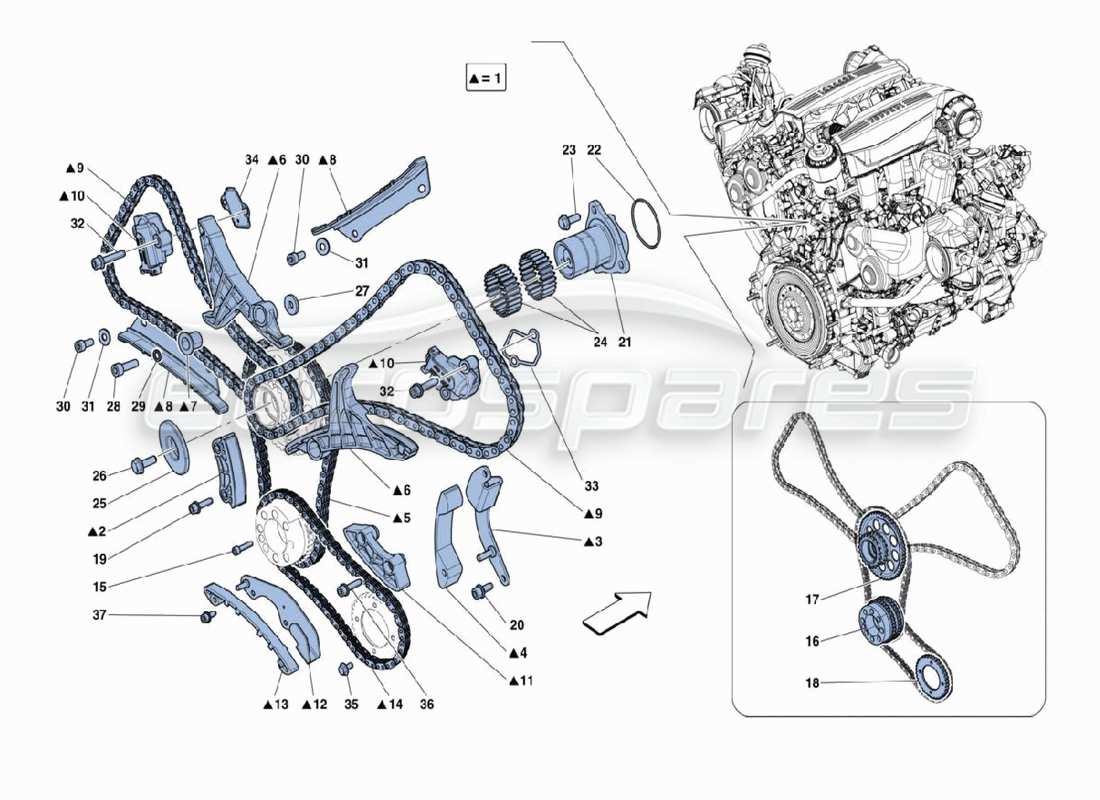

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 325944
                                                                            COMANDO DISTRIBUZIONE CPL.
                                                                            from £853.59
                                                                            from £853.59
                                                                            # 002
                                                                            MPN: 306094
                                                                            Pattino Fisso
                                                                            from £22.21
                                                                            from £22.21
                                                                            This part replaces part number 186181
                                                                            # 003
                                                                            MPN: 271856
                                                                            SUPPORTO PATTINO MOBILE
                                                                            from £14.59
                                                                            from £14.59
                                                                            # 004
                                                                            MPN: 257626
                                                                            PATTINO
                                                                            from £41.89
                                                                            from £41.89
                                                                            # 005
                                                                            MPN: 271880
                                                                            CATENA
                                                                            from £40.67
                                                                            from £40.67
                                                                            # 006
                                                                            MPN: 318677
                                                                            PATTINO
                                                                            from £59.11
                                                                            from £59.11
                                                                            This part replaces part number 286807
                                                                            # 007
                                                                            MPN: 175303
                                                                            BOCCOLA
                                                                            from £13.54
                                                                            from £13.54
                                                                            # 008
                                                                            MPN: 307544
                                                                            PATTINO
                                                                            from £43.33
                                                                            from £43.33
                                                                            # 009
                                                                            MPN: 272094
                                                                            CATENA
                                                                            from £91.59
                                                                            from £91.59
                                                                            # 011
                                                                            MPN: 311057
                                                                            PATTINO
                                                                            from £42.36
                                                                            from £42.36
                                                                            # 012
                                                                            MPN: 276463
                                                                            SUPPORTO CPL.
                                                                            from £13.65
                                                                            from £13.65
                                                                            # 013
                                                                            MPN: 272014
                                                                            PATTINO
                                                                            from £39.29
                                                                            from £39.29
                                                                            This part replaces part number 249904 which we have in stock
                                                                            # 014
                                                                            MPN: 311058
                                                                            CATENA
                                                                            from £559.57
                                                                            from £559.57
                                                                            # 015
                                                                            MPN: 245914
                                                                            VITE
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 016
                                                                            MPN: 304689
                                                                            RUOTA DENTATA ALBERO MOTORE
                                                                            from £220.85
                                                                            from £220.85
                                                                            # 017
                                                                            MPN: 304687
                                                                            RUOTA DENTATA RINVIO
                                                                            from £275.87
                                                                            from £275.87
                                                                            # 018
                                                                            MPN: 310416
                                                                            RUOTA DENTATA COMANDO POMPE
                                                                            from £144.32
                                                                            from £144.32
                                                                            This part replaces part number 311060
                                                                            # 019
                                                                            MPN: 282396
                                                                            VITE
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 020
                                                                            MPN: 282393
                                                                            VITE -M6 X 16-
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 021
                                                                            MPN: 318595
                                                                            SUPPORTO RINVIO
                                                                            from £119.61
                                                                            from £119.61
                                                                            This part replaces part number 306686
                                                                            # 022
                                                                            MPN: 154191
                                                                            GASKET
                                                                            from £0.68
                                                                            from £0.68
                                                                            # 023
                                                                            MPN: 284898
                                                                            VITE
                                                                            from £1.80
                                                                            from £1.80
                                                                            # 024
                                                                            MPN: 267808
                                                                            GABBIA A RULLINI
                                                                            from £8.03
                                                                            from £8.03
                                                                            # 025
                                                                            MPN: 304699
                                                                            SPALLAMENTO
                                                                            from £20.40
                                                                            from £20.40
                                                                            This part replaces part number 287802
                                                                            # 026
                                                                            MPN: 284898
                                                                            VITE
                                                                            from £1.80
                                                                            from £1.80
                                                                            # 027
                                                                            MPN: 288341
                                                                            ROSETTA
                                                                            from £1.52
                                                                            from £1.52
                                                                            # 028
                                                                            MPN: 14306421
                                                                            VITE
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 029
                                                                            MPN: 284900
                                                                            ROSETTA
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 030
                                                                            MPN: 14302821
                                                                            VITE
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 031
                                                                            MPN: 163759
                                                                            ROSETTA
                                                                            from £6.44
                                                                            from £6.44
                                                                            # 032
                                                                            MPN: 282398
                                                                            VITE
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 033
                                                                            MPN: 322518
                                                                            Guarnizione
                                                                            from £4.53
                                                                            from £4.53
                                                                            This part replaces part number 272291
                                                                            # 034
                                                                            MPN: 306440
                                                                            Guarnizione
                                                                            from £1.19
                                                                            from £1.19
                                                                            # 035
                                                                            MPN: 284899
                                                                            VITE
                                                                            from £2.15
                                                                            from £2.15
                                                                            # 036
                                                                            MPN: 282397
                                                                            VITE
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 037
                                                                            MPN: 282393
                                                                            VITE -M6 X 16-
                                                                            from £0.47
                                                                            from £0.47
