Ferrari 488 Challenge Fuel Rail Parts Diagram

008 - Fuel Rail

Ferrari 488 Challenge Fuel Rail Parts Diagram

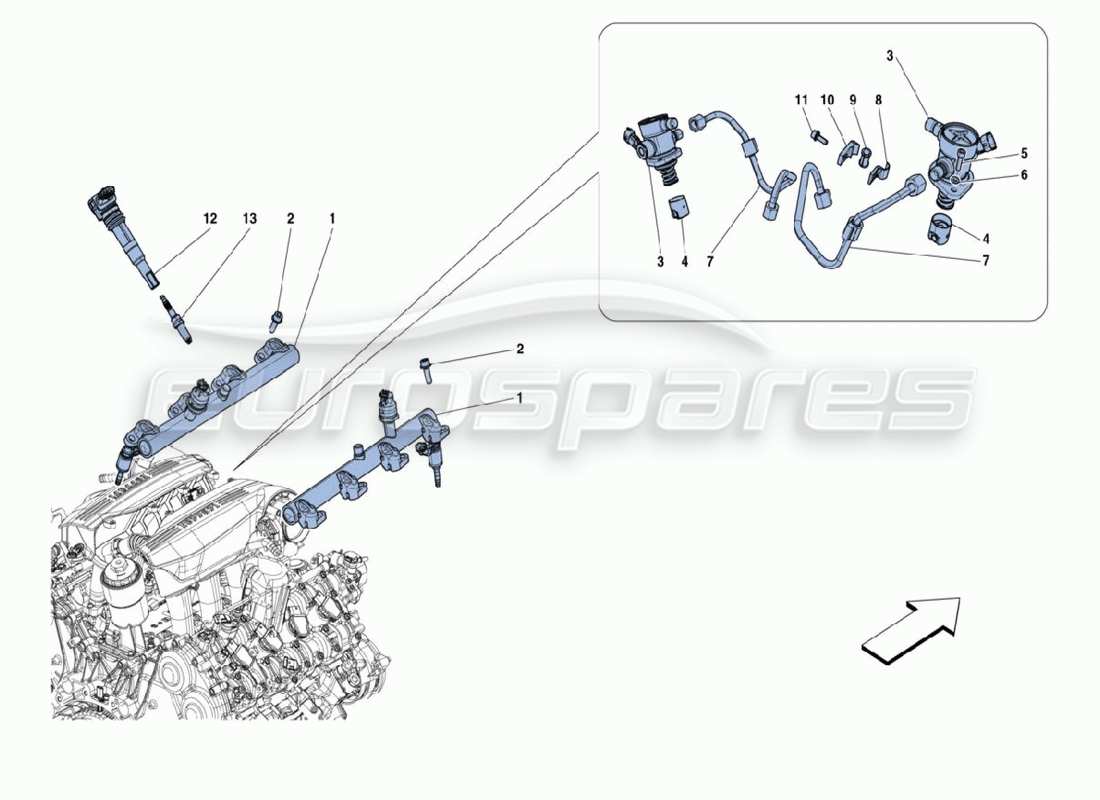

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 298077
                            TUBO BENZINA CPL. DI INIETTORI
                            from £1,087.44
                            from £1,087.44
                            This part replaces part number 323326
                            # 002
                            MPN: 231628
                            VITE -M8 X 25-
                            from £0.47
                            from £0.47
                            # 003
                            MPN: 330624
                            POMPA BENZINA
                            from £162.80
                            from £162.80
                            # 004
                            MPN: 270601
                            BICCHIERINO
                            from £20.06
                            from £20.06
                            # 005
                            MPN: 14305334
                            VITE
                            from £0.47
                            from £0.47
                            # 006
                            MPN: 12639724
                            ROSETTA
                            from £0.47
                            from £0.47
                            This part replaces part number 12639725 - and 1 more. Click to view details
                            # 007
                            MPN: 321485
                            TUBO BENZINA
                            from £60.08
                            from £60.08
                            # 008
                            MPN: 322042
                            STAFFA
                            from £145.38
                            from £145.38
                            # 009
                            MPN: 319850
                            GOMMINO
                            from £13.89
                            from £13.89
                            # 010
                            MPN: 322041
                            STAFFA
                            from £63.55
                            from £63.55
                            # 011
                            MPN: 231617
                            VITE -M6 X 18-
                            from £0.47
                            from £0.47
                            This part replaces part number 14433124
                            # 012
                            MPN: 337714
                            BOBINA DI ACCENSIONE SINGOLA
                            from £84.00
                            from £84.00
                            # 013
                            MPN: 310840
                            CANDELA ACCENSIONE
                            from £20.35
                            from £20.35
                            This part replaces part number 281983
