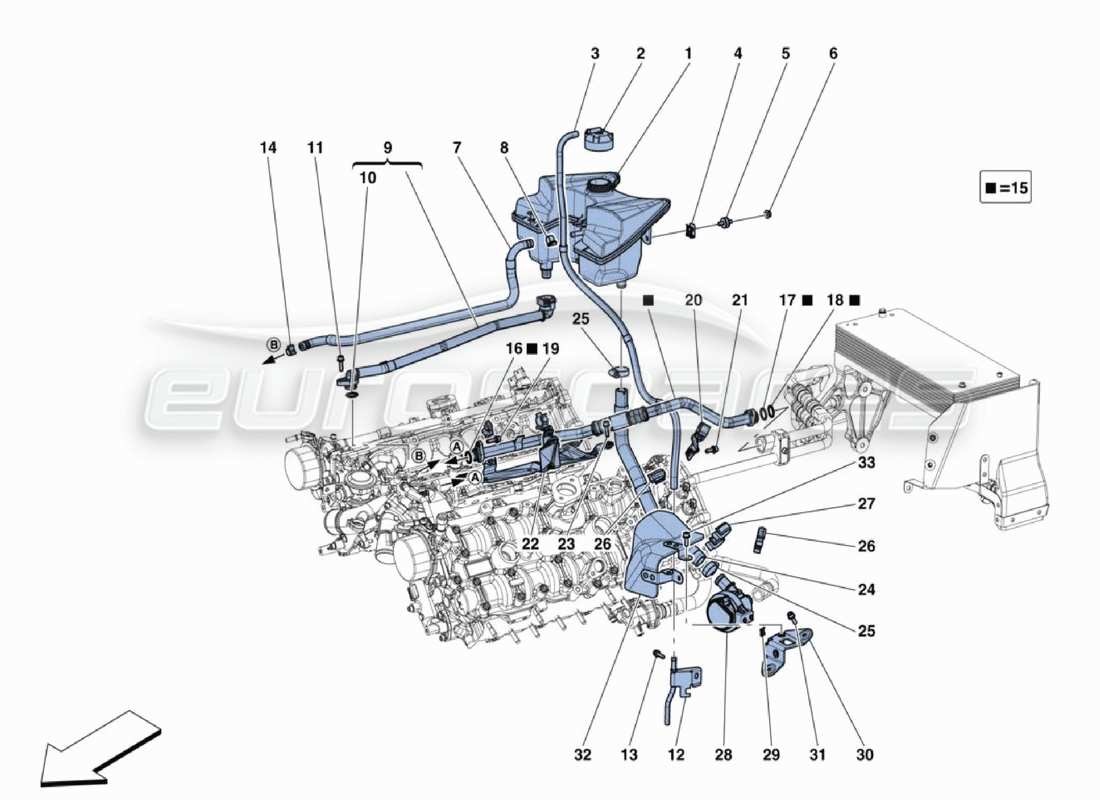

Ferrari 488 Challenge Cooling Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 342528

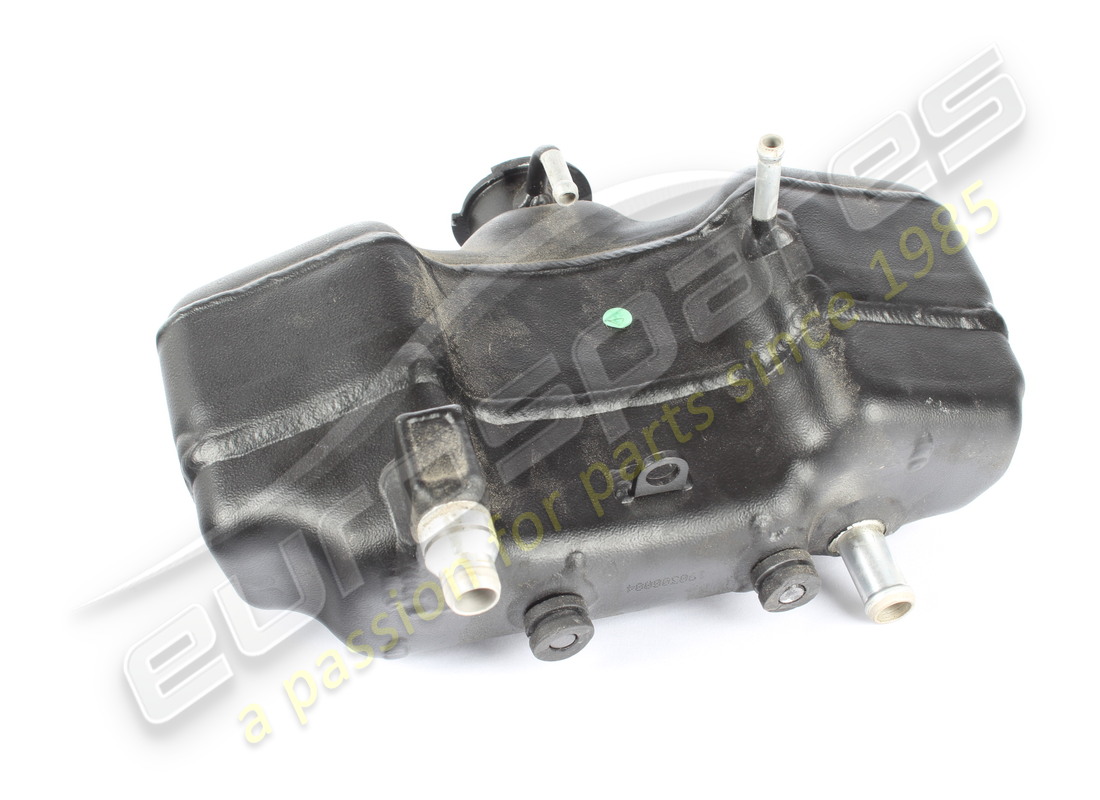

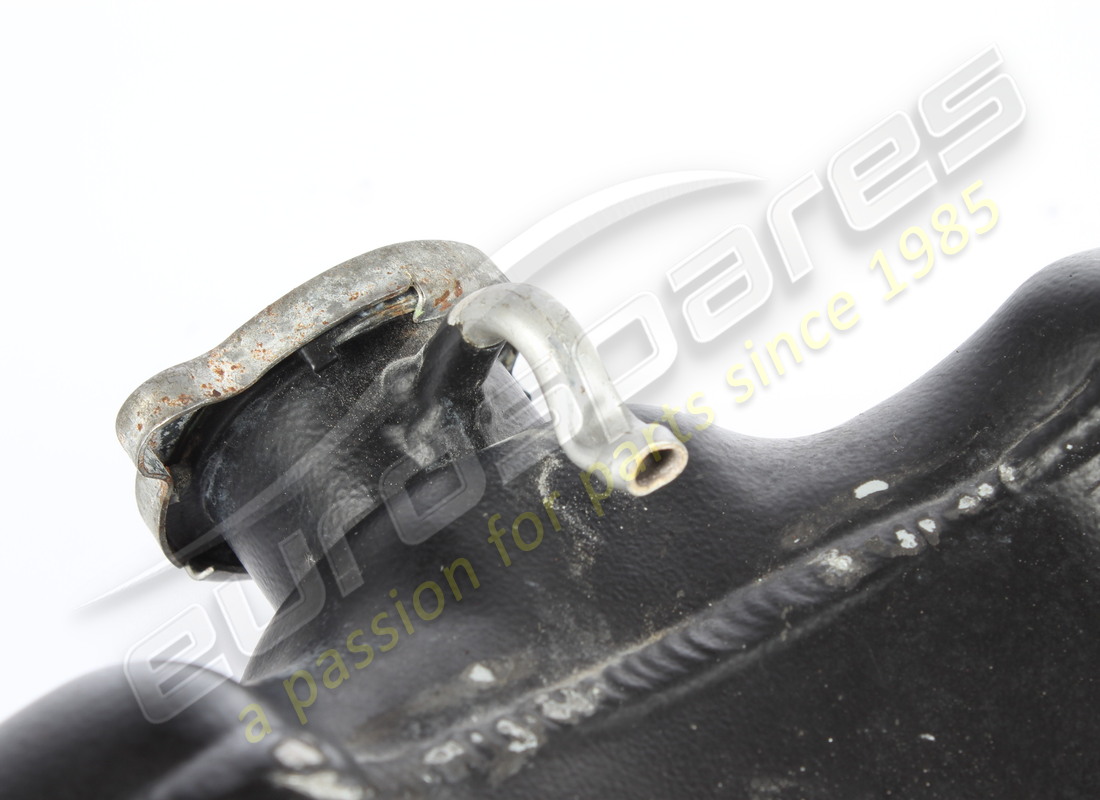

SERBATOIO LIQUIDO REFRIGERANTE
# 002
MPN: 342795

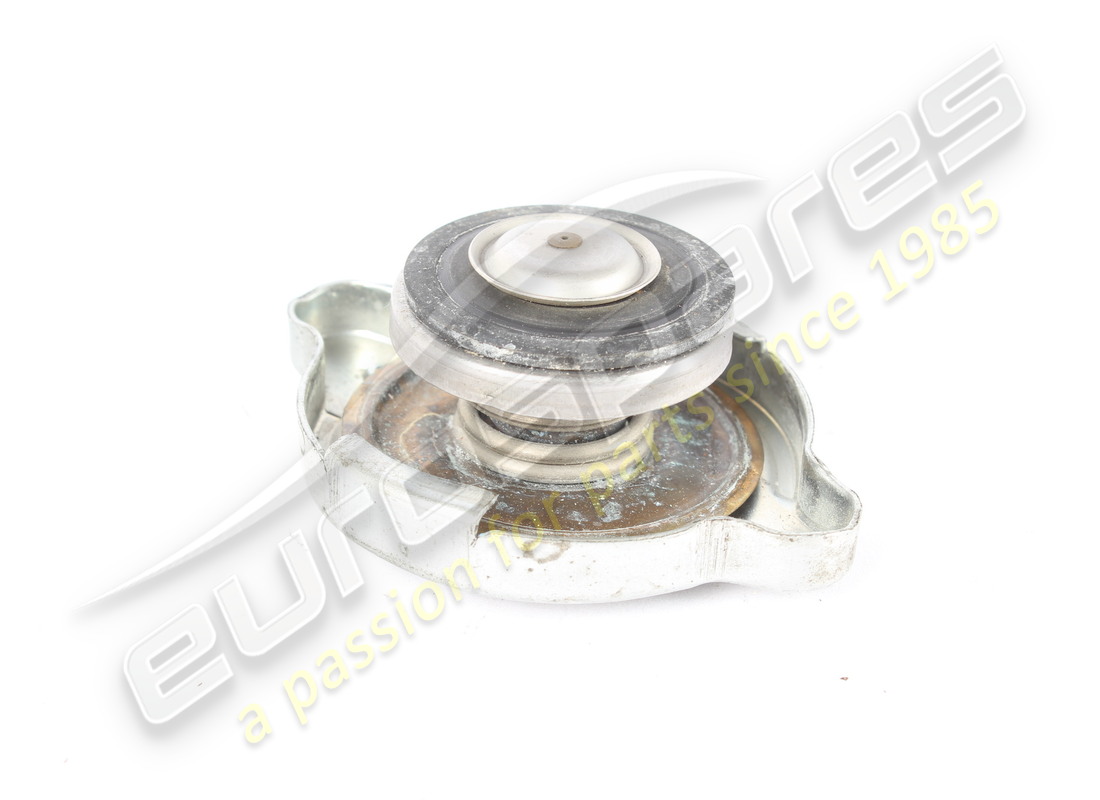

TAPPO CON SFIATO
Supersession
Supersession
# 003
MPN: 321090
TUBO GOMMA DRENAGGIO NOURICE CPL.
from £22.46
from £22.46
# 004
MPN: 333881
MOLLETTA
from £2.07
from £2.07
# 005
MPN: 225408
TAMPONE CILINDRICO
from £4.39
from £4.39
# 006
MPN: 14039614
NUT
from £0.53
from £0.53
# 007
MPN: 323681
TUBO GOMMA SFIATO NOURICE
from £69.65
from £69.65
This part replaces part number 317487
# 008
MPN: 13125470
COLLARE
from £0.53
from £0.53
# 009
MPN: 317021
TUBAZIONE NOURICE
from £76.02
from £76.02
# 010
MPN: 130295
GUARNIZIONE O.R
from £0.73
from £0.73
# 011
MPN: 231617
VITE -M6 X 18-
from £0.47
from £0.47
This part replaces part number 14433124
# 012
MPN: 320347
TUBO RIGIDO DRENAGGIO NOURICE
from £18.88
from £18.88
# 013
MPN: 231619
VITE -M6 X 22-
from £0.47
from £0.47
# 014
MPN: 13126970
COLLARE
from £0.80
from £0.80
# 015
MPN: 318109
TUBO RITORNO H2O DA MONOSCAMBIATORE
from £148.61
from £148.61
# 016
MPN: 287632
GUARNIZIONE O.R
from £1.66
from £1.66
# 017
MPN: 318989
GUARNIZIONE O.R
from £2.88
from £2.88
# 018
MPN: 318329
GUARNIZIONE O.R
from £20.70
from £20.70
# 019
MPN: 231618
VITE -M6 X 20-
from £0.47
from £0.47
# 020
MPN: 310680
STAFFA FISSAGGIO TUBO RITORNO MONOSCAMBIATORE
Supersession
Supersession
# 021
MPN: 248334
VITE -M6 X 18-
from £0.47
from £0.47
# 022
MPN: 312851
STAFFA TUBO NOURICE E SEZIONAMENTO CPL.
from £61.80
from £61.80
This part replaces part number 318194
# 023
MPN: 231622
VITE -M6 X 22-
from £0.47
from £0.47
# 024
MPN: 320947
TUBO MANDATA POMPA
from £48.74
from £48.74
# 025
MPN: 296778
COLLARE A VITE
Supersession
Supersession
# 026
MPN: 303560
MOLLETTA ROTANTE
from £0.61
from £0.61
# 027
MPN: 160013
MOLLETTA
from £0.48
from £0.48
# 028
MPN: 291349
POMPA RICIRCOLO ACQUA DI MINIMO
from £1,107.03
from £1,107.03
# 029
MPN: 291645
MOLLETTA
from £2.17
from £2.17
# 030
MPN: 320964
STAFFA FISSAGGIO POMPA
from £13.49
from £13.49
# 031
MPN: 231617
VITE -M6 X 18-
from £0.47
from £0.47
This part replaces part number 14433124
# 032
MPN: 324937
RIPARO CALORE POMPA
from £46.43
from £46.43
This part replaces part number 320965 - and 1 more. Click to view details
# 033
MPN: 231617
VITE -M6 X 18-
from £0.47
from £0.47
This part replaces part number 14433124
