017 - clutch release control

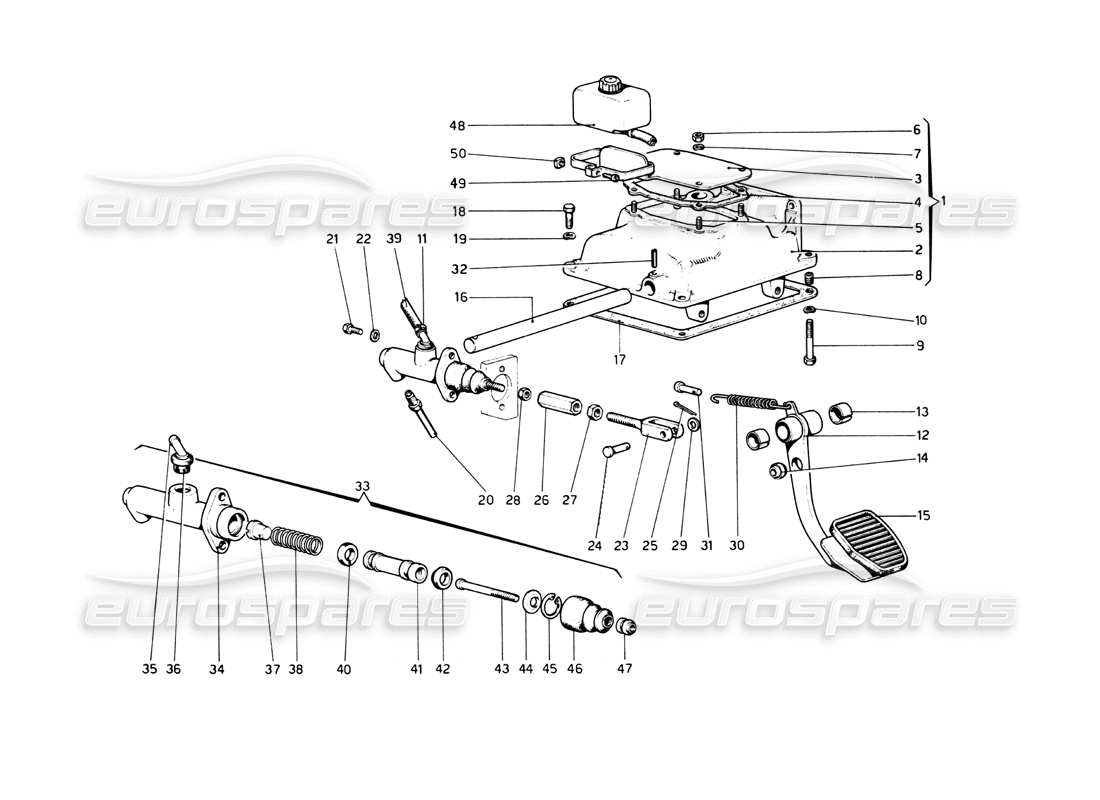

Ferrari 512 BB Clutch Release Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 108022
PEDAL BOX SUPPORT, COMPLETE
LHD
from £1,795.45
from £1,795.45
This part replaces part number 106187 - and 2 more. Click to view details
# 002
MPN: 106187
SUPPORT
Supersession
Supersession
# 003
MPN: 111135
COVER
from £45.13
from £45.13
This part replaces part number 50359108
# 004
MPN: 104905
GASKET
from £8.59
from £8.59
# 005
MPN: 11500021
THREADED STUD
from £9.50
from £9.50
# 006
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 007
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 008
MPN: 106188
BUSH
from £33.92
from £33.92
# 009
MPN: 16044421
BOLT
from £1.31
from £1.31
# 010
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 011
MPN: 102604
JUBILEE CLIP
Supersession
Supersession
# 012
MPN: 107917
PEDALE FRIZIONE COMPLETO
from £196.77
from £196.77
# 013
MPN: 103163
BUSH
from £2.85
from £2.85
# 014
MPN: 100424
SNOTLO SFERICO
from £41.51
from £41.51
# 015
MPN: 106949
GOMMINO PROTEZIONE PEDALE
from £18.10
from £18.10
# 016
MPN: 104900
PIVOT SUPPORT
from £58.10
from £58.10
# 017
MPN: 104899
GASKET
Supersession
Supersession
# 018
MPN: 16139021
BOLT
from £2.27
from £2.27
# 019
MPN: 12601471
WASHER
Supersession
Supersession
# 020
MPN: 108864
CLUTCH CONTROL HOSE
from £86.56
from £86.56
# 021
MPN: 16043421
SCREW
from £2.69
from £2.69
This part replaces part number 95524
# 022
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 023
MPN: 10008571
FORK
Supersession
Supersession
# 024
MPN: 10033410
PIVOT
from £1.47
from £1.47
# 025
MPN: 10734401
SPLIT PIN
# 026
MPN: 107921
SLEEVE
from £62.91
from £62.91
# 027
MPN: 10791011
LOCKNUT
from £0.47
from £0.47
# 028
MPN: 16102311
LOCKNUT
from £0.43
from £0.43
This part replaces part number 16102315
# 029
MPN: 103167
WASHER
from £2.04
from £2.04
# 030
MPN: 104895
SPRING
from £2.96
from £2.96
# 031
MPN: 104896
PIVOT SPRING
from £15.22
from £15.22
# 032
MPN: 104901
PIN
from £0.97
from £0.97
# 033
MPN: 175211
PUMP Ø 11/16 COMPLETE CLUTCH HYDRAULIC CONTROL
from £88.42
from £88.42
This part replaces part number 123416 - and 2 more. Click to view details
# 034
MPN: 175211
CORPO POMPA
from £88.42
from £88.42
This part replaces part number 123416 - and 2 more. Click to view details
# 035
MPN: 111255
TUBE
# 036
MPN: 175189
RUBBER GROMMET
from £13.26
from £13.26
This part replaces part number 106625
# 037
MPN: 111256
CILINDRETTO
from £3.81
from £3.81
# 038
MPN: 111258
SPRING
from £13.34
from £13.34
# 039
MPN: 111138
HOSE FROM THE TANK TO THE PUMP
from £8.70
from £8.70
# 040
MPN: 111259
SEALING RING
from £59.76
from £59.76
# 041
MPN: 111260
CILINDRETTO
from £41.02
from £41.02
# 042
MPN: 111261
SEALING RING
from £25.73
from £25.73
# 043
MPN: 111268
PUNTALINO PER CILINDRETTO
from £9.72
from £9.72
# 044
MPN: 111267
RING
from £1.18
from £1.18
# 045
MPN: 111266
SEEGER RING
from £1.42
from £1.42
# 046
MPN: 111269
PROTECTION HEADSET
from £25.86
from £25.86
# 047
MPN: 111270
RING
from £8.25
from £8.25
# 048
MPN: 103168
VASCHETTA
from £68.08
from £68.08
This part replaces part number 660442 - and 1 more. Click to view details
# 049
MPN: 10374911
SCREW
from £0.47
from £0.47
# 050
MPN: 10196911
NUT
from £0.47
from £0.47
