036 - engine ignition

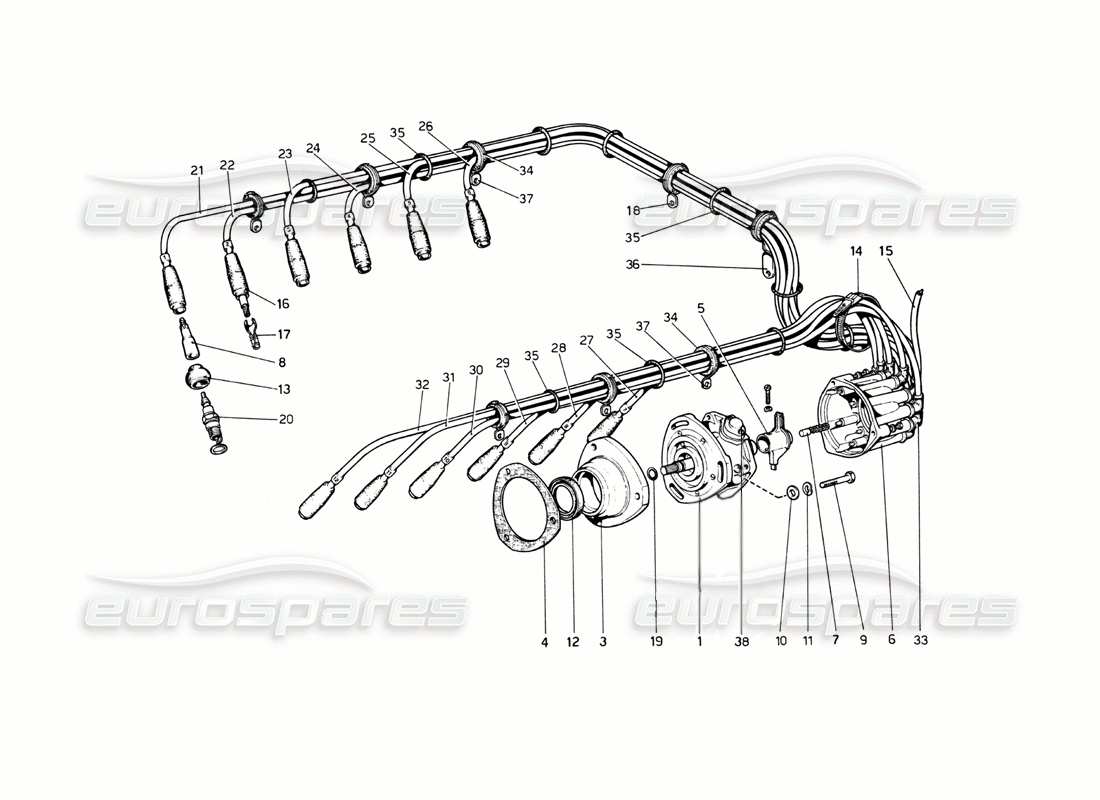

Ferrari 512 BB Engine Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: FHT006

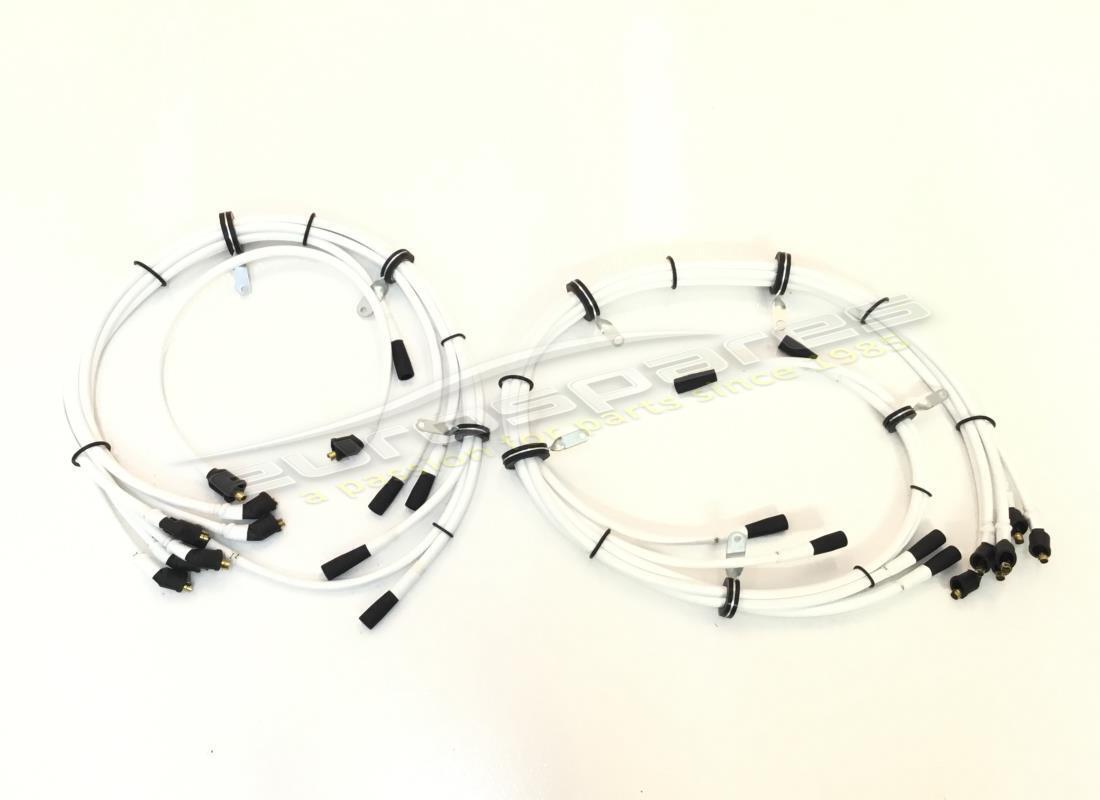

COMPLETE HT LEADS SET
from £504.28
from £504.28
# 001
MPN: 108638

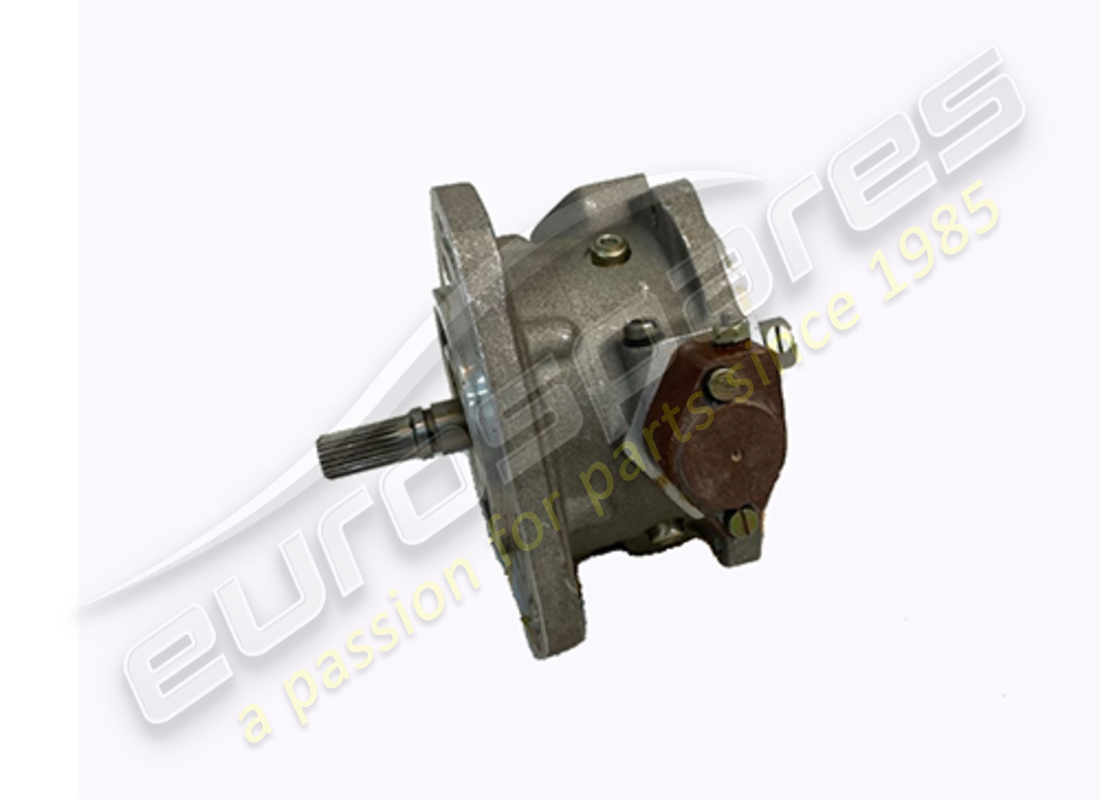

DISTRIBUTORE DI ACCENSIONE AD IMPULSORI - MARELLI S158B
from £4,306.93
from £4,306.93
# 002
MPN: 103816
SPACER
from £51.17
from £51.17
This part replaces part number 4146864 - and 1 more. Click to view details
# 003
MPN: 107992
SUPPORT
from £180.69
from £180.69
# 004
MPN: 147642
GASKET
from £3.97
from £3.97
This part replaces part number 103815
# 005
MPN: 95300313

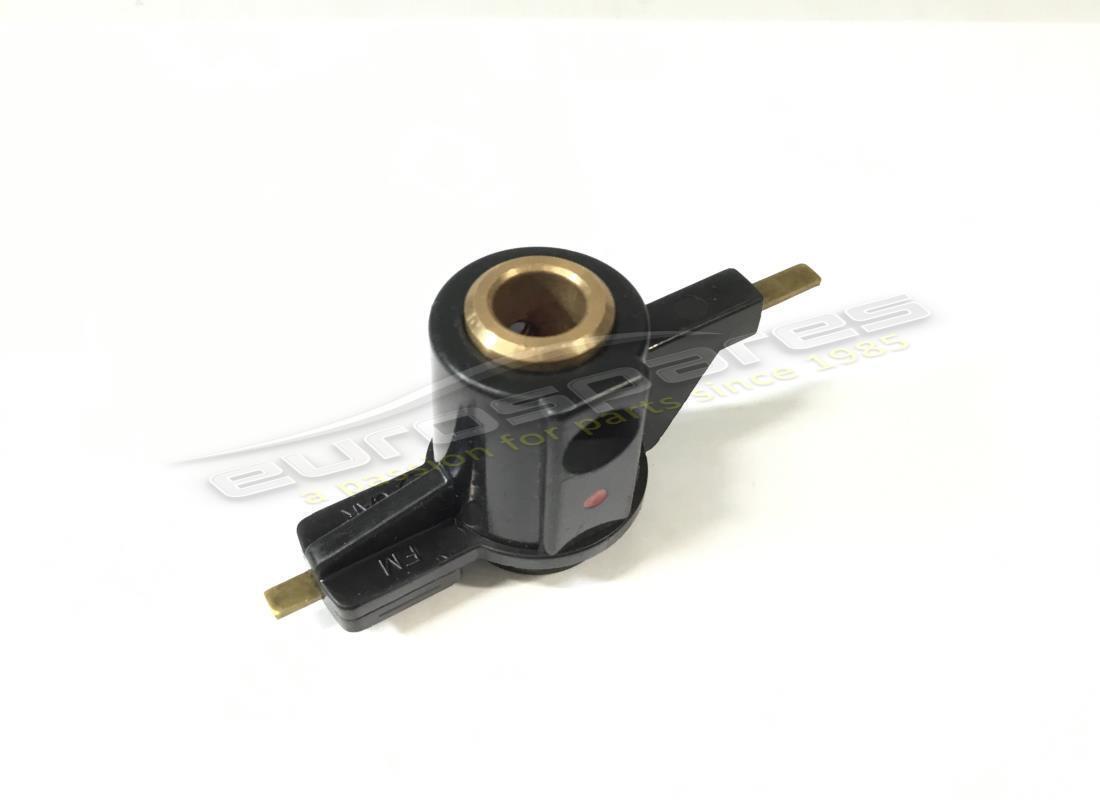

ROTOR ARM
with brass bush
from £217.95
from £217.95
# 005
MPN: 95300313/A

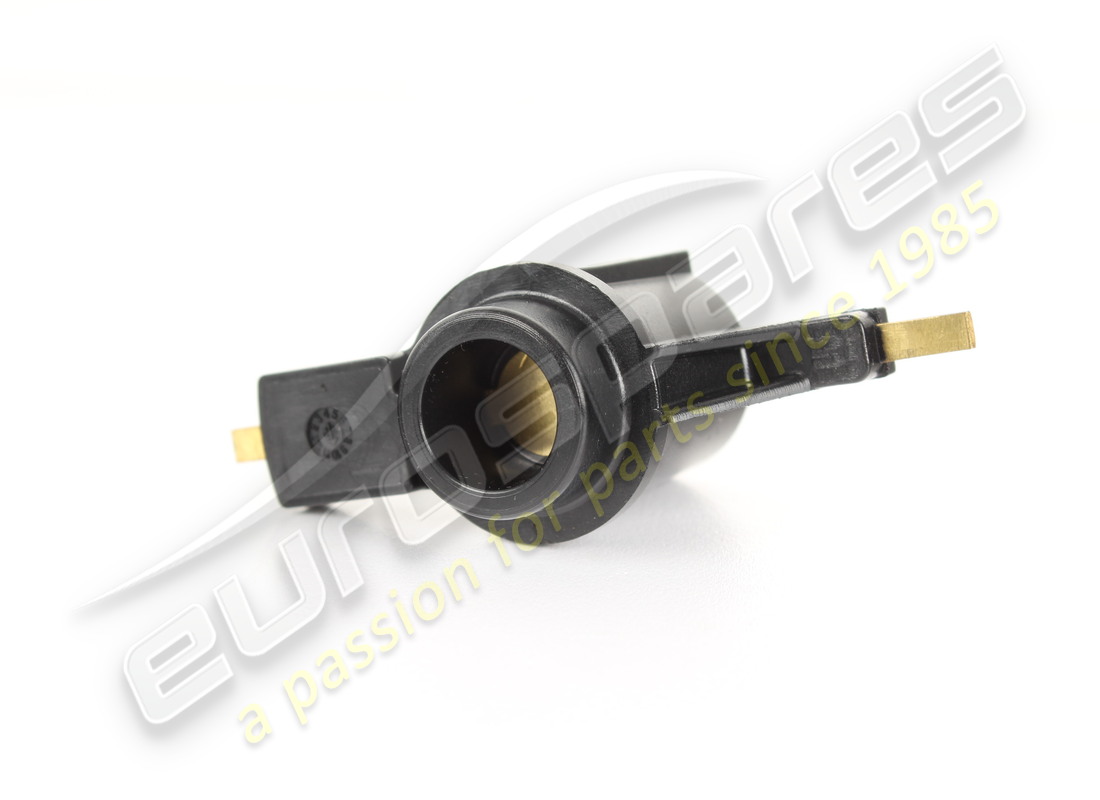

ROTOR ARM
Without inner brass Bush
from £196.16
from £196.16
# 006
MPN: 95300043
DISTRIBUTOR CAP
(12 Cylinder - Single Distributor - Single Coil)
from £325.00
from £325.00
This part replaces part number 95300047 - and 1 more. Click to view details
# 007
MPN: 140567/A
CARBON BRUSH
# 008
MPN: 109357

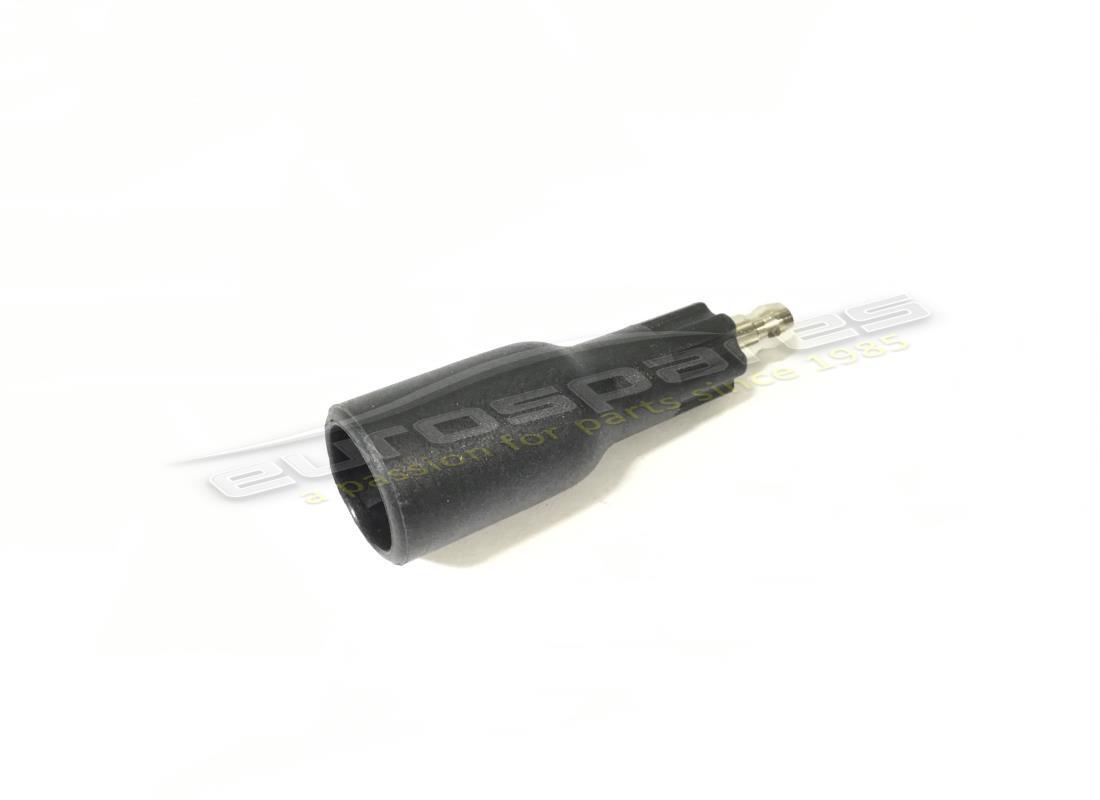

PROLUNGA PER CAVI
from £10.70
from £10.70
This part replaces part number 107309
# 009
MPN: 16043921
SCREW
from £1.43
from £1.43
# 010
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 011
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 012
MPN: 108009
SEALING RING
from £12.14
from £12.14
# 013
MPN: 108333
CAPPUCCIO PROTEZIONE CANDELE
from £11.62
from £11.62
This part replaces part number 61605900
# 014
MPN: 103755
CABLE HOLDING CLAMP
from £0.71
from £0.71
This part replaces part number 680994
# 015
MPN: 110908
COIL-DISPENSER CONNECTION CABLE
from £16.48
from £16.48
# 016
-
TERMINALE
# 017
MPN: 12056340
CAPOCORDA
from £0.47
from £0.47
# 018
MPN: 105903
BRACKET / SUPPORT
from £2.40
from £2.40
# 019
MPN: 100015
RING
from £1.21
from £1.21
# 020
MPN: 100604
SPARK PLUG
(champion)
Supersession
Supersession
# 020
MPN: 100604/A
Spark Plug (NGK)
from £3.38
from £3.38
This part replaces part number 100604 - and 1 more. Click to view details
# 021
-
CAVO ALLA CANDELA N. 1 (LMM. 1570)
# 021
MPN: 105624

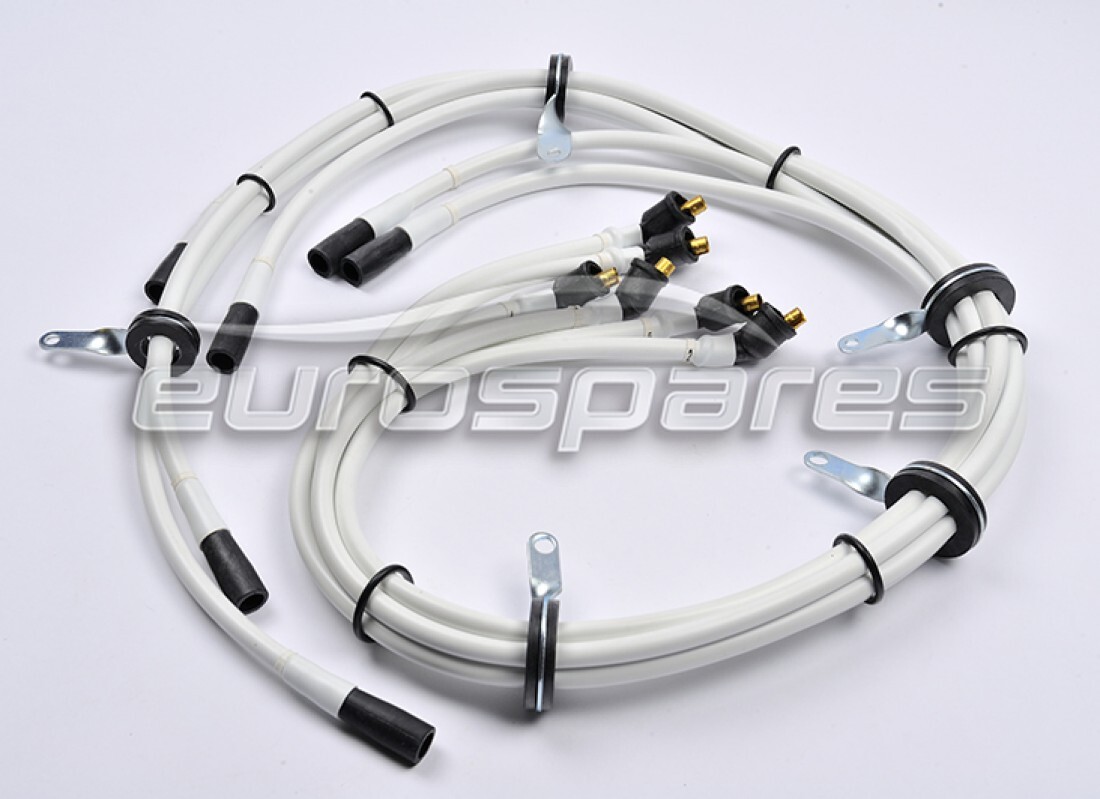

RH HT LEADS (BANK 1-6)
from £303.75
from £303.75
This part replaces part number 117877
# 021
MPN: 105627
LH HT LEADS (BANK 7-12)
Supersession
Supersession
This part replaces part number 117876 which we have in stock
# 022
-
CAVO ALLA CANDELA N. 2 (LMM. 1410)
# 023
-
CAVO ALLA CANDELA N. 3 (LMM. 1310)
# 024
-
CAVO ALLA CANDELA N. 4 (LMM. 1285)
# 025
-
CAVO ALLA CANDELA N. 5 (LMM. 1165)
# 026
-
CAVO ALLA CANDELA N. 6 (LMM. 1015)
# 027
-
CAVO ALLA CANDELA N. 7 (LMM. 500)
# 028
-
CAVO ALLA CANDELA N. 8 (LMM. 690)
# 029
-
CAVO ALLA CANDELA N. 9 (LMM. 710)
# 030
-
CAVO ALLA CANDELA N. 10 (LMM. 850)
# 031
-
CAVO ALLA CANDELA N. 11 (LMM. 860)
# 032
-
CAVO ALLA CANDELA N. 12 (LMM. 1035)
# 033
MPN: 100284
CAPPUCCIO DI PROTEZIONE
from £6.10
from £6.10
This part replaces part number 29288
# 034
MPN: 10396580
CABLE GROMMET
from £1.08
from £1.08
This part replaces part number 100286
# 035
MPN: 103702
CABLE HOLDING RING
from £6.84
from £6.84
This part replaces part number 29265
# 036
MPN: 105625
BRACKET / SUPPORT
from £1.99
from £1.99
# 037
MPN: 105626
BRACKET / SUPPORT
from £2.99
from £2.99
# 038
MPN: 95300028
PICK UP SENSOR
from £477.54
from £477.54
