105 - Insulating Material and Bulkheads

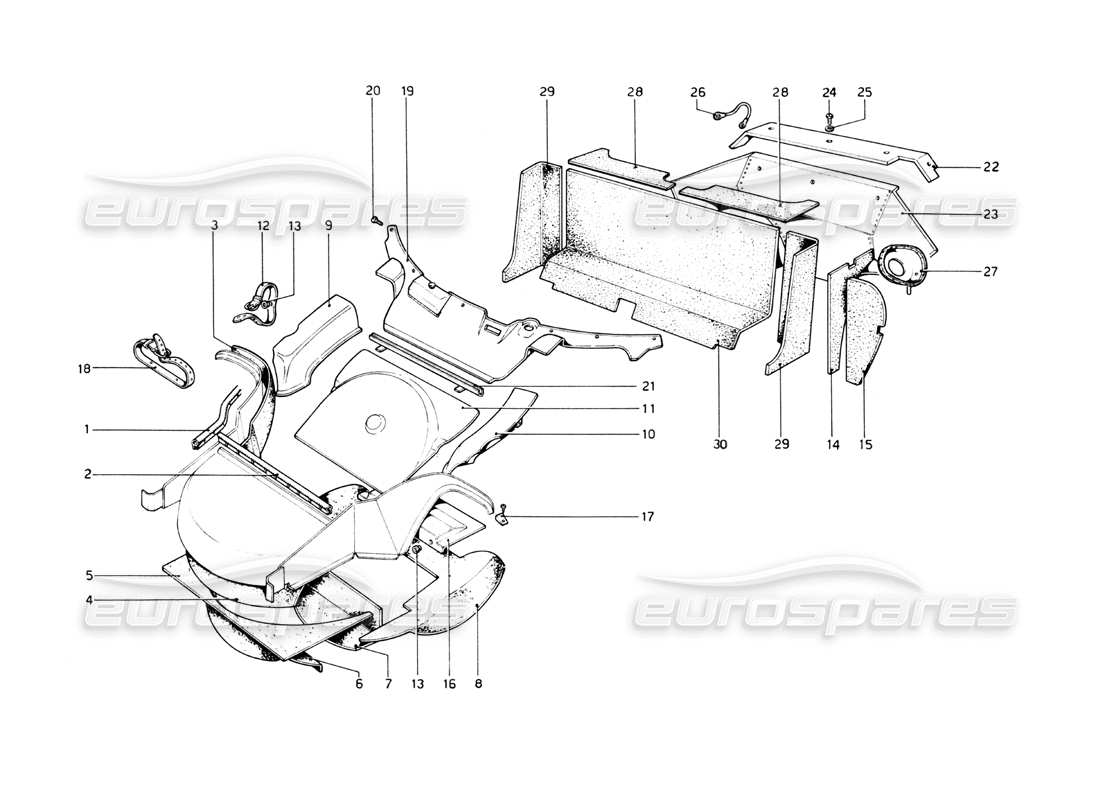

Ferrari 512 BB Insulating Material and Bulkheads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 50046200
SIDE COVERING
from £54.36
from £54.36
This part replaces part number 50046309
# 002
MPN: 50046309
GASKET OR SEAL
Supersession
Supersession
# 003
MPN: 50042308
GASKET OR SEAL
from £77.06
from £77.06
# 003
MPN: 50214600
SERIE TAPPETI ANT. VANO RUOTA
# 004
MPN: 50042407
CENTRAL COVERING
from £122.19
from £122.19
# 005
MPN: 50100700
SPARE WHEEL COMPARTMENT COVERING
from £81.85
from £81.85
# 006
MPN: 50100403
CUSHION FOR TROUSSE COMPARTMENT
from £80.92
from £80.92
# 007
MPN: 50100809
COVER FOR TROUSSE COMPARTMENT
from £129.99
from £129.99
# 008
MPN: 50042100
TRUNK COMPARTMENT COVERING
from £113.62
from £113.62
# 009
MPN: 500993
PROTECTION FOR Tubi HEATING
# 009
MPN: 50099307
PROTECTION FOR Tubi HEATING
# 010
MPN: 50099406
PROTECTION FOR Tubi HEATING
# 011
MPN: 50101302
COVER
Non vale per GD
from £543.71
from £543.71
# 011
MPN: 50319904
COVER
Supersession
Supersession
# 012
MPN: 50101500
WHEEL LOCKING STRAP
Vale per GD
# 013
MPN: 30062608
BELT FIXING RING
from £13.97
from £13.97
# 014
MPN: 50072008
ISOLANTE DX
# 014
MPN: 50072107
ISOLANTE SX
# 015
MPN: 50072206
RH INSULATION
# 015
MPN: 50072305
ISOLANTE SX
# 016
MPN: 50332600
COVER
from £254.03
from £254.03
# 017
MPN: 50155100
TERMINAL FOR GASKET
from £2.37
from £2.37
# 018
MPN: 50137306
STRAP FOR SUITCASE
from £128.45
from £128.45
# 019
MPN: 50309509
REAR BULKHEAD, TRUNK COMPARTMENT
from £507.09
from £507.09
This part replaces part number 50309400
# 019
MPN: 50348002
PARATIA POST, VANO BAULE - BULKHEAD POST TRUNK COMPARTMENT
Non vale per GD
from £386.51
from £386.51
# 020
MPN: 20033007
SCREW
Vale per GD
Supersession
Supersession
# 021
MPN: 50157106
CORNER FOR TRUNK BULKHEAD
from £19.45
from £19.45
# 022
MPN: 50093608
SUPERIOR PROTECTION
from £503.82
from £503.82
# 023
MPN: 50341809
LOWER PROTECTION
from £684.05
from £684.05
# 024
MPN: 10902411
SCREW
from £1.61
from £1.61
# 025
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 026
MPN: 50161603
CAVO MASSA
from £21.66
from £21.66
# 027
MPN: 50043009
CONTENITORE BOCCHETTONE BENZINA
from £219.53
from £219.53
# 028
MPN: 50117605
ISOLANTE PIANETTO LUNOTTO
# 029
MPN: 50117704
ISOLANTE LATERALE
# 030
MPN: 50205509
ISOLANTE CENTRALE
