106 - Front Compartment Lid

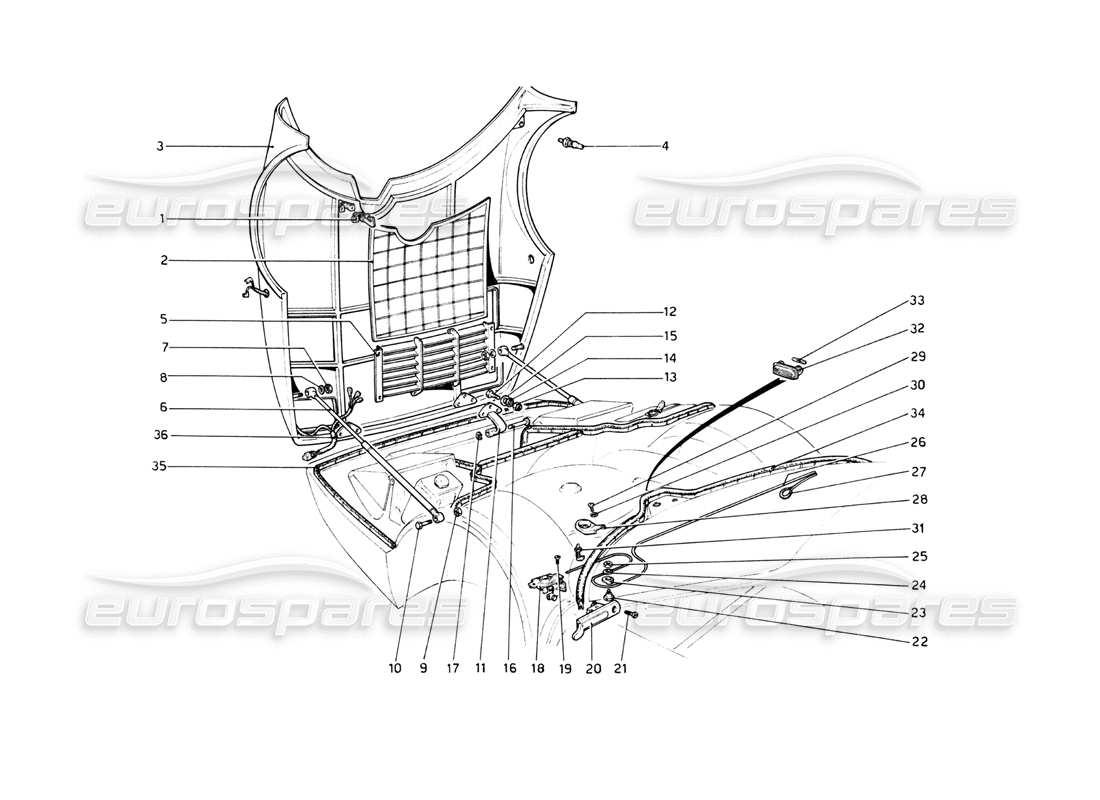

Ferrari 512 BB Front Compartment Lid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 50097509
SAFETY HOOK
# 002
MPN: 50200807
BONNET CARPET
Non vale per GD
# 002
MPN: 50201201
BONNET CARPET
Valid For RHD
from £438.36
from £438.36
# 003
MPN: 50012400
FRONT SECTION
valid for LHD
from £4,194.75
from £4,194.75
# 003
MPN: 50165000
FRONT NOSE SECTION
Valid For RHD
Supersession
Supersession
# 004
MPN: 50035708
PIVOT
from £230.56
from £230.56
# 005
MPN: 50006204
FRONT HOOD GRILLE
from £767.71
from £767.71
# 006
MPN: 50014604/A
AMMORTIZZATORE
75 cm long
from £317.21
from £317.21
This part replaces part number 253-28-550-00
# 007
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 008
MPN: 20149100
WASHER
# 009
MPN: 12574221
NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 010
MPN: 10903026
SCREW
# 011
MPN: 50028208
CERNIERA
Supersession
Supersession
# 012
MPN: 16043211
SCREW
from £0.47
from £0.47
# 013
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 014
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 015
MPN: 10519621
WASHER
Supersession
Supersession
# 016
MPN: 50097707
PIVOT
Supersession
Supersession
# 017
MPN: 11065675
SEEGER RING
Supersession
Supersession
# 018
MPN: 50112507
FRONT BONNET LOCK
from £450.77
from £450.77
# 019
MPN: 20148201
SCREW
# 020
MPN: 30195903
BOOT PULL ASSY
from £336.62
from £336.62
This part replaces part number 253-34-330-02
# 021
MPN: 13274006
SCREW
# 022
MPN: 50093509
PIVOT
from £5.98
from £5.98
# 023
MPN: 50093400
BUSH
from £2.95
from £2.95
# 024
MPN: 11196270
WASHER
# 025
MPN: 10794011
NUT
from £0.30
from £0.30
# 026
MPN: 50036805
CAVO
from £15.39
from £15.39
# 027
MPN: 50036904
CAVO EMERGENZA
# 028
MPN: 50097400
BRACKET / SUPPORT
from £73.45
from £73.45
# 029
MPN: 10979411
SCREW
from £0.47
from £0.47
# 030
MPN: 10615470
WASHER
Supersession
Supersession
# 031
MPN: 20069704
Ceiling light button
Supersession
Supersession
# 032
MPN: 20144309
INTERIOR LAMP
from £95.00
from £95.00
This part replaces part number 253-80-814-00 - and 1 more. Click to view details
# 033
MPN: 50100205
LAMP
from £1.14
from £1.14
# 034
MPN: MC3477/1
GASKET
from £11.42
from £11.42
This part replaces part number 20101101 - and 38 more. Click to view details
# 035
MPN: MC3478/3
GASKET
PRICE PER METRE
from £9.35
from £9.35
# 036
MPN: 50145002
CAVO COLLEGAMENTO LUCI ANT. DX
Non vale per GD-D
from £29.96
from £29.96
# 036
MPN: 50145101
CAVO COLLEGAMENTO LUCI ANT. SX
Non vale per GD-D
# 036
MPN: 50179407
CAVO COLLEGAMENTO LUCI ANT. DX
Vale per GD-D
from £75.66
from £75.66
# 036
MPN: 50179506
CAVO COLLEGAMENTO LUCI ANT. SX
Vale per GD-D
from £78.39
from £78.39
