007 - fuel injection system - fuel distributors, lines

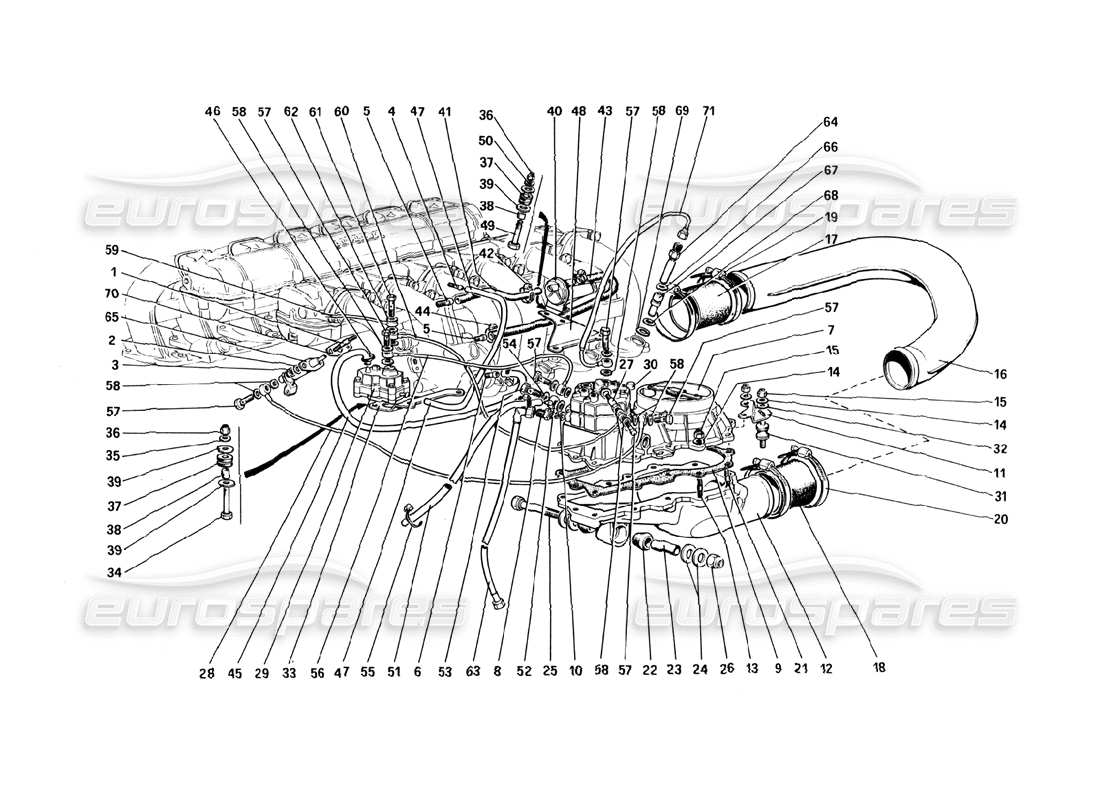

Ferrari 512 BBi Fuel Injection System - Fuel Distributors, Lines Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 13540821
THREADED STUD
Supersession
Supersession
# 002
MPN: 10519401
WASHER
from £0.71
from £0.71
# 003
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 004
MPN: 113652
UNION
from £2.90
from £2.90
# 005
MPN: 113636
UNION
from £14.29
from £14.29
# 006
MPN: 113637
UNION
from £5.79
from £5.79
# 007
MPN: 70000636
DOSATORE
from £1,627.50
from £1,627.50
This part replaces part number 113972/A - and 11 more. Click to view details
# 008
MPN: 115498
UNION
from £189.93
from £189.93
# 009
MPN: 147750
GASKET
from £17.44
from £17.44
This part replaces part number 117312
# 010
MPN: 11270160
WASHER
from £0.91
from £0.91
# 011
MPN: 118107
BRACKET / SUPPORT
from £22.57
from £22.57
# 011
MPN: 118108
BRACKET / SUPPORT
from £20.61
from £20.61
# 012
MPN: 117106
SUPPORT
from £486.50
from £486.50
# 013
MPN: 13540921
THREADED STUD
Supersession
Supersession
# 014
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 015
MPN: 101239
NUT
from £1.60
from £1.60
This part replaces part number 92310
# 016
MPN: 117361
CONDOTTO SX.
from £135.40
from £135.40
# 016
MPN: 117375
RIGHT DUCT.
from £130.22
from £130.22
# 017
MPN: 117306
SLEEVE
from £58.03
from £58.03
# 018
MPN: 117405
SLEEVE
from £80.38
from £80.38
# 019
MPN: 12174890
JUBILEE CLIP
from £3.14
from £3.14
# 020
MPN: 12174990
JUBILEE CLIP
Supersession
Supersession
# 021
MPN: 13541124
THREADED STUD
from £11.72
from £11.72
This part replaces part number 13541121
# 022
MPN: 107335
RUBBER GROMMET
from £11.33
from £11.33
# 023
MPN: 108052
TUBETTO DISTANZIALE
from £17.33
from £17.33
# 024
MPN: 108051
WASHER
from £1.98
from £1.98
# 025
MPN: 15888821
SCREW
Supersession
Supersession
# 026
MPN: 12574511
NUT
from £0.47
from £0.47
# 027
MPN: 113660
UNION
from £10.00
from £10.00
# 028
MPN: 117871
DOSING HOSE - RIGHT STARTING INJECTOR
from £58.49
from £58.49
# 028
MPN: 118661
TUBO DOSATORE - INIETTORE AVVIAMENTO SX
from £69.15
from £69.15
# 029
MPN: 117671
REGOLATORE FASE RISCALDAMENTO
from £729.75
from £729.75
# 030
MPN: 114480
CAPPUCCIO INVIOLABILITA
from £2.05
from £2.05
# 031
MPN: 102947
SUPPORT
from £6.17
from £6.17
This part replaces part number 102007 - and 14 more. Click to view details
# 032
MPN: 10519401
WASHER
from £0.71
from £0.71
# 033
MPN: 118271
SUPPORT
from £5.53
from £5.53
# 033
MPN: 118272
SUPPORT
from £5.45
from £5.45
# 034
MPN: 10903821
SCREW
from £0.71
from £0.71
# 035
MPN: 12604274
WASHER
from £0.47
from £0.47
This part replaces part number 12604271 - and 1 more. Click to view details
# 036
MPN: 12574221
NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 037
MPN: 103549
RUBBER BUSH
from £0.66
from £0.66
# 038
MPN: 103550
SPACER
from £1.78
from £1.78
This part replaces part number 4130913
# 039
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 040
MPN: 113974
VALVOLA ARIA SUPPLEMENTARE
from £309.75
from £309.75
This part replaces part number 125880 - and 2 more. Click to view details
# 041
MPN: 118390
HOSE FOR RIGHT VALVE.
from £16.34
from £16.34
# 041
MPN: 118391
TUBO PER VALVOLA SX.
from £8.62
from £8.62
# 042
MPN: 13000390
JUBILEE CLIP
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 043
MPN: 113824
TUBO DX.
from £49.47
from £49.47
# 043
MPN: 113825
TUBO SX.
from £49.47
from £49.47
# 044
MPN: 13000390
JUBILEE CLIP
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 045
MPN: 118281
PIPE / TUBE / HOSE
Supersession
Supersession
# 046
MPN: 12179190
JUBILEE CLIP
Supersession
Supersession
This part replaces part number 102604
# 047
MPN: 118282
PIPE / TUBE / HOSE
Supersession
Supersession
# 048
MPN: 118388
SUPPORT
from £66.28
from £66.28
# 048
MPN: 118389
SUPPORT
from £5.26
from £5.26
# 049
MPN: 10902621
SCREW
Supersession
Supersession
This part replaces part number 10902611 which we have in stock
# 050
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 051
MPN: 118283
TUBO DI RIFLUSSO SX.
from £22.98
from £22.98
# 051
MPN: 154709
RIGHT REFLUX TUBE.
Supersession
Supersession
This part replaces part number 120441 - and 1 more. Click to view details
# 052
MPN: 106200
UNION
from £5.21
from £5.21
This part replaces part number 4148775
# 053
MPN: 111644
BANJO BOLT
from £6.17
from £6.17
# 054
MPN: 11270160
GASKET
from £0.88
from £0.88
# 055
MPN: 13000190
JUBILEE CLIP
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 056
MPN: 117868
HOSE FROM REGULATOR TO DOSER
from £28.55
from £28.55
# 057
MPN: 113664
UNION
Supersession
Supersession
# 058
MPN: 14330260
GASKET
from £0.47
from £0.47
# 059
MPN: 117869
REGULATOR CONNECTION HOSE
from £64.47
from £64.47
# 060
MPN: 117870
HOSE FROM REGULATOR TO DOSER
from £215.40
from £215.40
# 061
MPN: 114018
UNION
from £21.96
from £21.96
# 062
MPN: 10260160
GASKET
from £0.50
from £0.50
This part replaces part number 10260170
# 063
MPN: 117848
DELIVERY PIPE
from £49.41
from £49.41
# 064
MPN: 113975
INIETTORE
from £62.13
from £62.13
This part replaces part number 113975/OE - and 2 more. Click to view details
# 065
MPN: 113979
STARTING INJECTOR
from £253.40
from £253.40
# 066
MPN: 113570
SEALING RING
from £3.36
from £3.36
# 067
MPN: 113309
CENTERING DOWEL
from £199.02
from £199.02
This part replaces part number 123936
# 068
MPN: 101031
RING
from £1.41
from £1.41
# 069
MPN: 103326
SEEGER RING
from £0.26
from £0.26
# 070
MPN: 118382
GASKET
Supersession
Supersession
# 071
MPN: 117856
IDEM CILINDRO N. 1
from £149.12
from £149.12
# 071
MPN: 117856/SET

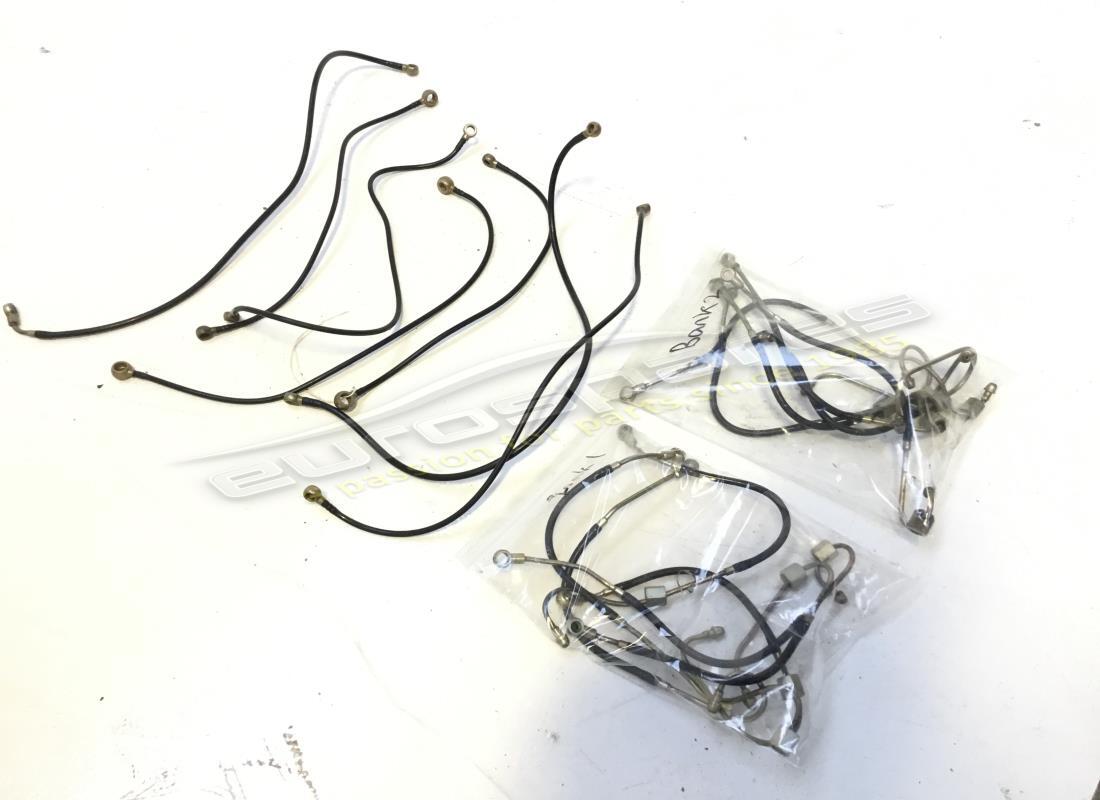

COMPLETE FUEL INJECTION PIPES SET
from £1,254.75
from £1,254.75
COMPLETE FUEL INJECTION PIPES SET Genuine Ferrari Part - Used In stock
19 PIPES IN THIS SET X2 METERING UNITS (X6 EACH UNIT) AND X7 OTHER PIPES
19 PIPES IN THIS SET X2 METERING UNITS (X6 EACH UNIT) AND X7 OTHER PIPES
# 071
MPN: 117857
IDEM CILINDRO N. 2
from £223.68
from £223.68
# 071
MPN: 117858
IDEM CILINDRO N. 3
from £176.34
from £176.34
# 071
MPN: 117859
IDEM CILINDRO N' 4
from £88.67
from £88.67
# 071
MPN: 117860
IDEM CILINDRO N. 5
from £85.16
from £85.16
# 071
MPN: 117861
IDEM CILINDRO N. 6
from £99.51
from £99.51
# 071
MPN: 117862
IDEM CILINDRO N. 7
from £176.34
from £176.34
# 071
MPN: 117863
IDEM CILINDRO N. 8
from £61.58
from £61.58
# 071
MPN: 117864
IDEM CILINDRO N. 9
from £61.58
from £61.58
# 071
MPN: 117865
IDEM CILINDRO N. 10
from £176.34
from £176.34
# 071
MPN: 117866
IDEM CILINDRO N. 11
from £62.59
from £62.59
# 071
MPN: 117867
HOSE FROM DOSER TO INJECTOR CYLINDER N. 12
from £152.25
from £152.25
