ferrari 512 m crankshaft - connecting rods and pistons parts diagram

002 - crankshaft - connecting rods and pistons

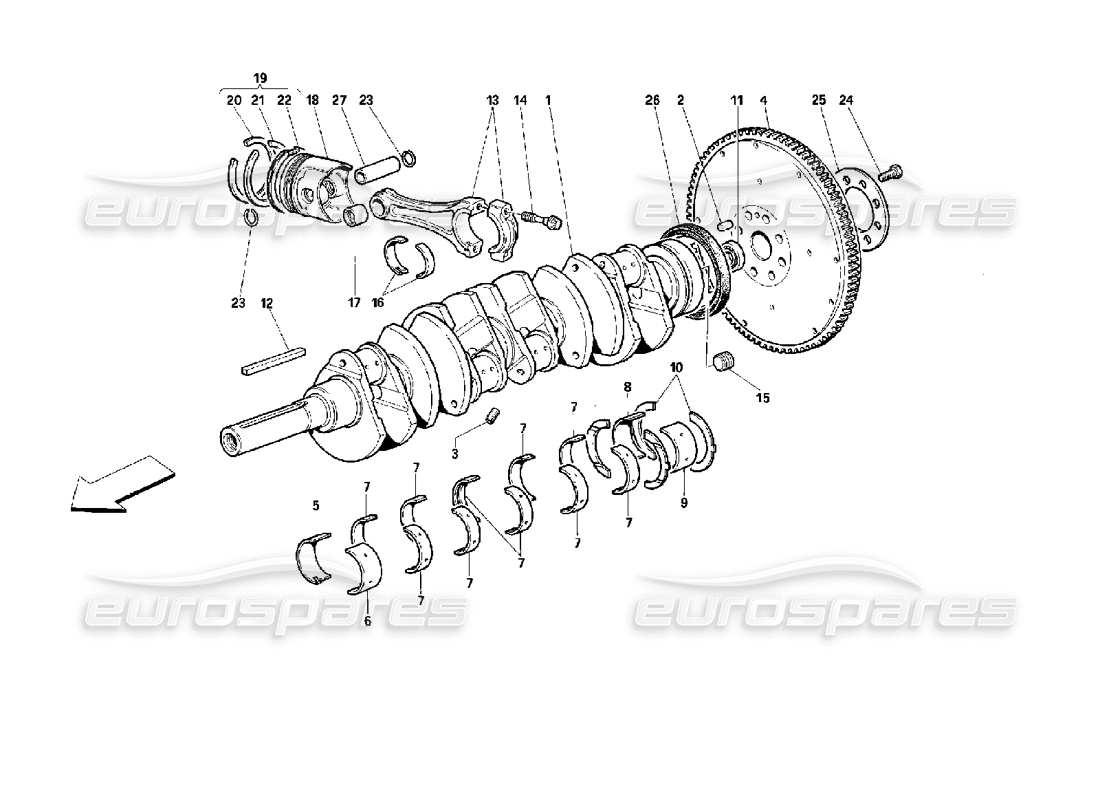

Ferrari 512 M Crankshaft - Connecting Rods and Pistons Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 000
                                MPN: 108603
                                HALF BEARING SET
                                - Standard
                                from £899.55
                                from £899.55
                                # 000
                                MPN: 108604
                                HALF BEARING SET
                                - 1st undersize 0.254 mm
                                from £1,004.99
                                from £1,004.99
                                # 000
                                MPN: 108605
                                HALF BEARING SET
                                - 2nd undersize 0.508 mm
                                from £1,022.03
                                from £1,022.03
                                # 000
                                MPN: 161495

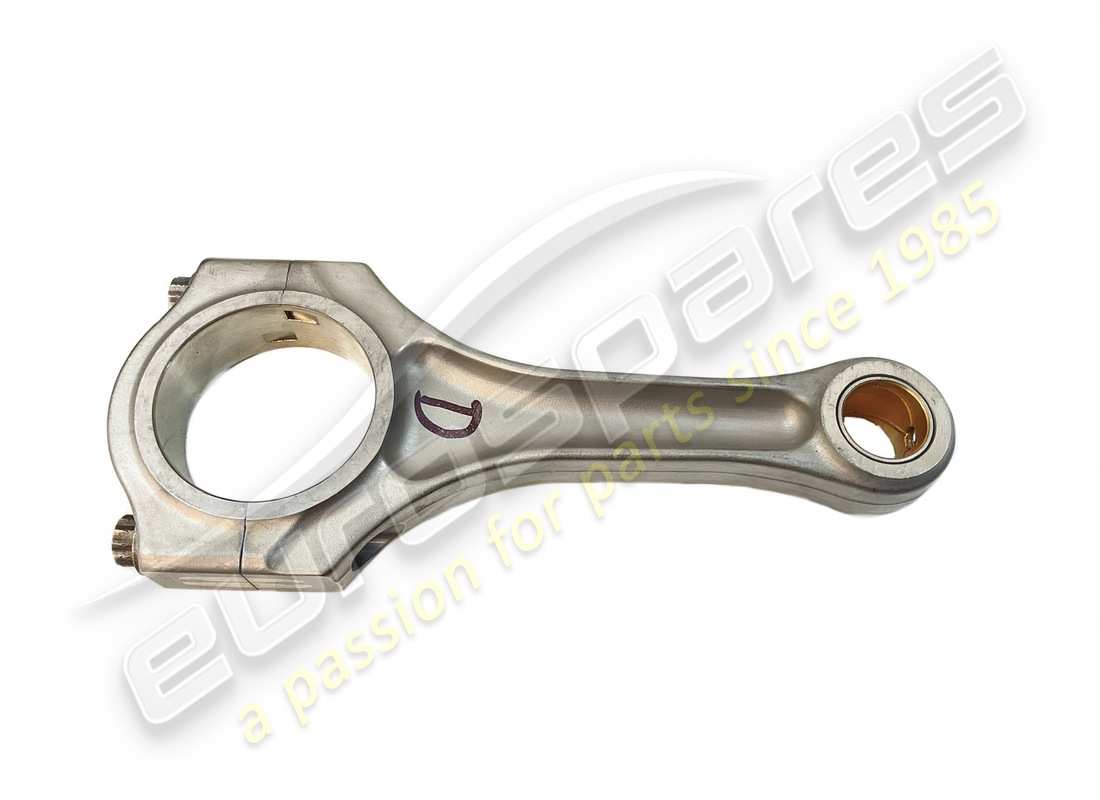

                                CONNECTING ROD, COMPLETE
                                from £281.54
                                from £281.54
                                This part replaces part number 161523
                                # 001
                                MPN: 155591
                                crankshaft
                                from £7,792.11
                                from £7,792.11
                                # 002
                                MPN: 100185
                                DOWEL
                                from £21.05
                                from £21.05
                                This part replaces part number 94129
                                # 003
                                MPN: 14326150
                                PLUG
                                from £0.48
                                from £0.48
                                This part replaces part number 12326150
                                # 004
                                MPN: 138900
                                FLYWHEEL COMPL.
                                from £2,100.09
                                from £2,100.09
                                This part replaces part number 138899
                                # 005
                                -
                                RIGHT FRONT HALF BEARING
                                # 006
                                -
                                LEFT FRONT HALF BEARING
                                # 007
                                -
                                RIGHT AND LEFT INTERM. HALF BEARING
                                # 008
                                -
                                RIGHT REAR HALF BEARING
                                # 009
                                -
                                LEFT REAR HALF BEARING
                                # 010
                                MPN: 100146
                                THRUST WASHERS SET
                                sold in pairs -
                                from £22.19
                                from £22.19
                                This part replaces part number 10345 - and 1 more. Click to view details
                                # 010
                                MPN: 100147
                                THRUST WASHERS (2ND OVERSIZE)
                                from £17.78
                                from £17.78
                                This part replaces part number 4153187/C
                                # 010
                                MPN: 113984
                                1ST OVERSIZE 0.127 MM
                                from £48.31
                                from £48.31
                                # 011
                                MPN: 103877
                                PILOT BEARING
                                from £18.43
                                from £18.43
                                This part replaces part number 24940440
                                # 012
                                MPN: 159139
                                FEATHER KEY ON CRANKSHAFT
                                from £2.36
                                from £2.36
                                # 013
                                MPN: 161523
                                CONNECTING ROD, AND CAP
                                - Not as spare part - With assembly 161495
                                Supersession
                                Supersession
                                # 014
                                MPN: 158186
                                CONNECTING ROD TIGHTENING SCREW
                                from £117.67
                                from £117.67
                                # 015
                                MPN: 163528
                                THREADED PLUG
                                from £2.39
                                from £2.39
                                This part replaces part number 10268450 - and 1 more. Click to view details
                                # 016
                                MPN: 146889

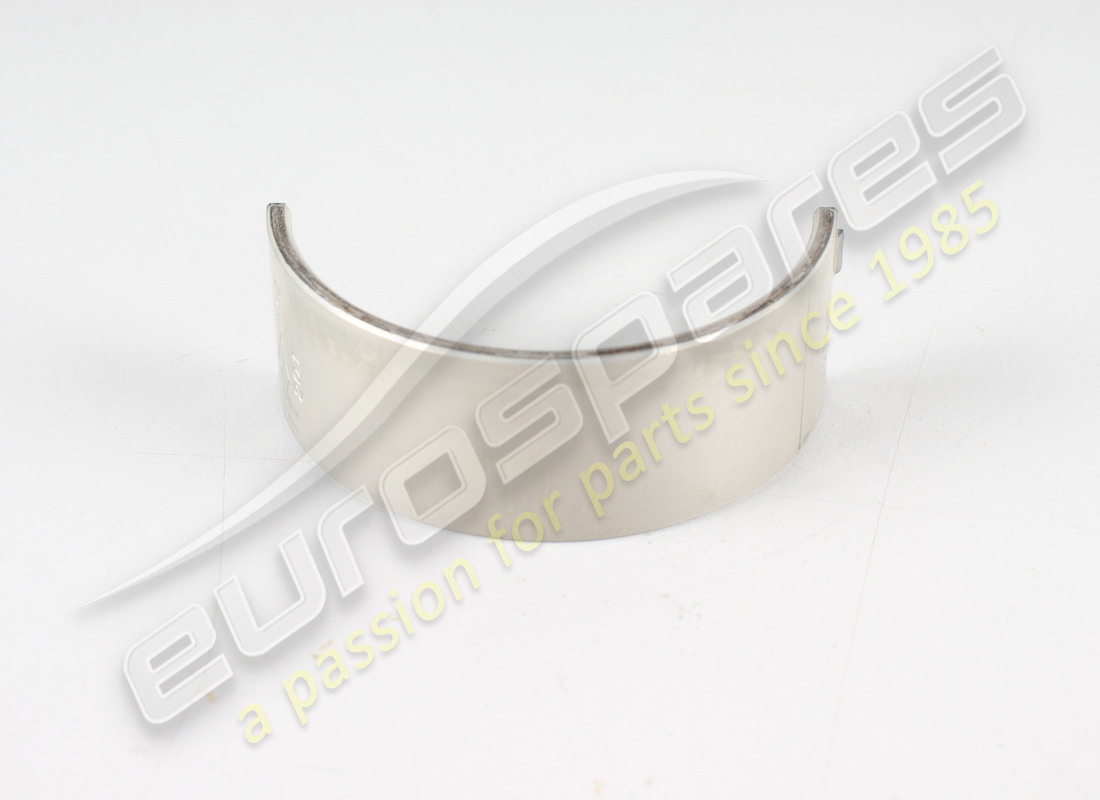

                                CONNECTING ROD HALF BEARING
                                - Valid till stock exhaustion
                                Supersession
                                Supersession
                                # 016
                                MPN: 148349
                                1ST UNDERSIZE 0.254 MM ON Ø
                                - Valid till stock exhaustion
                                Supersession
                                Supersession
                                # 016
                                MPN: 166564
                                1ST UNDERSIZE 0.254 MM ON Ø
                                - Valid after stock exhaustion of 148349
                                from £52.56
                                from £52.56
                                This part replaces part number 148349
                                # 016
                                MPN: 166565
                                2ND UNDERSIZE 0.508 MM ON Ø
                                from £58.62
                                from £58.62
                                This part replaces part number 148348
                                # 016
                                MPN: 166565
                                2ND UNDERSIZE 0.508 MM ON Ø
                                - Valid after stock exhaustion of 148348
                                from £58.62
                                from £58.62
                                This part replaces part number 148348
                                # 016
                                MPN: 166566
                                3RD UNDERSIZE 0.762 MM ON Ø
                                from £57.86
                                from £57.86
                                # 016
                                MPN: 202389
                                CONNECTING ROD HALF BEARING
                                from £27.05
                                from £27.05
                                This part replaces part number 166561
                                # 017
                                MPN: 107100
                                SMALL END BUSH
                                from £25.36
                                from £25.36
                                This part replaces part number 100155 - and 2 more. Click to view details
                                # 018
                                MPN: 158107
                                PISTON COMPLETE WITH RINGS
                                from £1,737.48
                                from £1,737.48
                                # 019
                                MPN: 165354
                                SET OF PISTON RINGS
                                from £106.04
                                from £106.04
                                This part replaces part number 163990
                                # 020
                                MPN: 163990
                                AC SEAL RING (1ST GROOVE)
                                - Not as spare part - With set 165354
                                Supersession
                                Supersession
                                # 021
                                MPN: 121531
                                PISTON RINGS SET
                                (price for 1 piston)
                                from £112.00
                                from £112.00
                                This part replaces part number 119850
                                # 022
                                MPN: 119851
                                ROF SCRAPER RING (3RD GROOVE)
                                - Not as spare part - With set 165354
                                # 023
                                MPN: 100174
                                GUDGEON PIN CIRCLIP
                                from £3.47
                                from £3.47
                                This part replaces part number 14594
                                # 024
                                MPN: 201755
                                FLYWHEEL SECURING SCREW
                                from £1.16
                                from £1.16
                                This part replaces part number 103875
                                # 025
                                MPN: 108662
                                SAFETY PLATE
                                from £48.05
                                from £48.05
                                # 026
                                MPN: 138391
                                SEALING RING
                                (100x120x13)
                                from £31.80
                                from £31.80
                                This part replaces part number 100014
                                # 027
                                MPN: 119537
                                GUDGEON PIN
                                from £34.44
                                from £34.44
