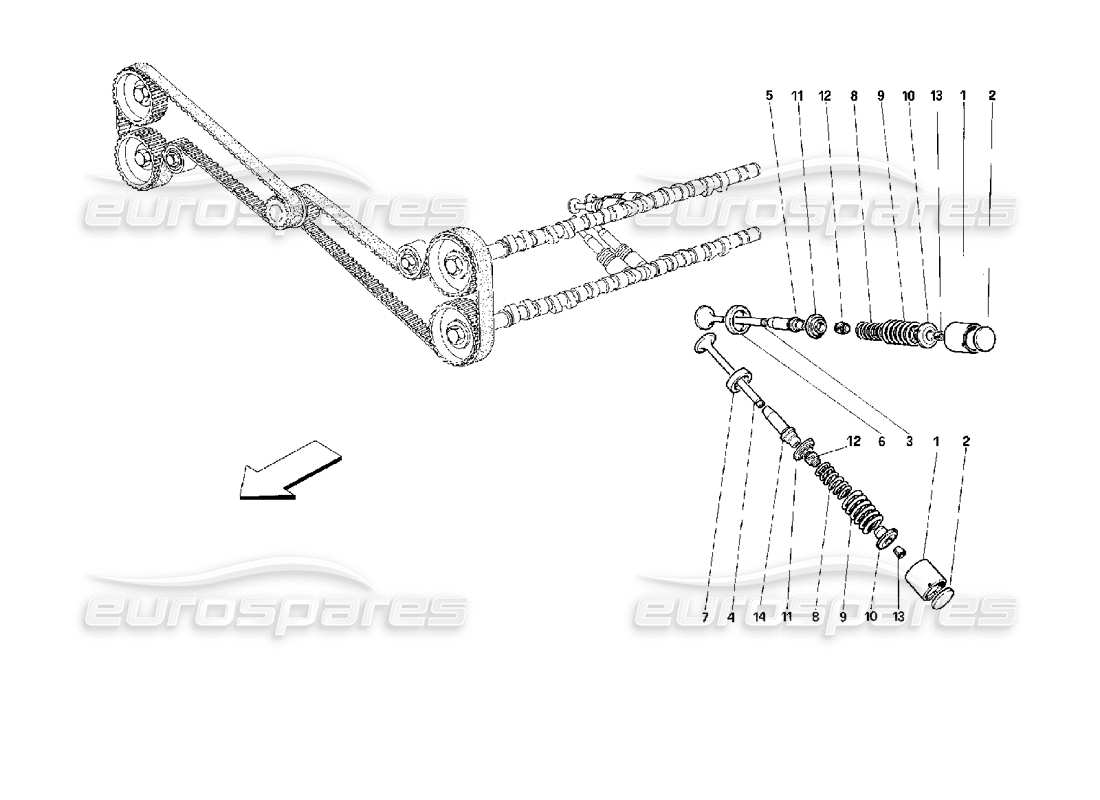

007 - timing system - valves
Ferrari 512 M Timing System - Valves Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 149863
TAPPET FOR VALVE CONTROL
from £11.86
from £11.86
# 002
MPN: 117569
SHIM FOR VALVE ADJUSTMENT THICKNESS 3,25 MM.
from £11.11
from £11.11
# 002
MPN: 117570
DITTO, THICKNESS 3.30 MM
from £11.11
from £11.11
# 002
MPN: 117571
DITTO, THICKNESS 3.35 MM
from £11.11
from £11.11
# 002
MPN: 117572
DITTO, THICKNESS 3.40 MM
from £11.11
from £11.11
# 002
MPN: 117573
DITTO, THICKNESS 3.45 MM
from £11.11
from £11.11
# 002
MPN: 117574
DITTO, THICKNESS 3.50 MM
from £11.11
from £11.11
# 002
MPN: 117575
DITTO, THICKNESS 3.55 MM
from £23.16
from £23.16
# 002
MPN: 117576
DITTO, THICKNESS 3.60 MM
from £27.77
from £27.77
# 002
MPN: 117577
DITTO, THICKNESS 3.65 MM
from £9.18
from £9.18
# 002
MPN: 117578
DITTO, THICKNESS 3.70 MM
from £27.77
from £27.77
# 002
MPN: 117579
SHIM 3,75 MM.
from £9.70
from £9.70
# 002
MPN: 117580
DITTO, THICKNESS 3.80 MM
from £27.77
from £27.77
# 002
MPN: 117581
DITTO, THICKNESS 3.85 MM
from £27.77
from £27.77
# 002
MPN: 117582
DITTO, THICKNESS 3.90 MM
from £27.77
from £27.77
# 002
MPN: 117583
DITTO, THICKNESS 3.95 MM
from £23.16
from £23.16
# 002
MPN: 117584
DITTO, THICKNESS 4.00 MM
from £27.77
from £27.77
# 002
MPN: 117585
DITTO, THICKNESS 4.05 MM
from £23.16
from £23.16
# 002
MPN: 117586
DITTO, THICKNESS 4.10 MM
from £15.27
from £15.27
# 002
MPN: 117587
DITTO, THICKNESS 4.15 MM
from £15.27
from £15.27
# 002
MPN: 117588
DITTO, THICKNESS 4.20 MM
from £21.16
from £21.16
# 002
MPN: 117589
DITTO, THICKNESS 4.25 MM
from £21.16
from £21.16
# 002
MPN: 117590
DITTO, THICKNESS 4.30 MM
from £11.64
from £11.64
# 002
MPN: 117591
DITTO, THICKNESS 4.35 MM
from £6.11
from £6.11
# 002
MPN: 117592
DITTO, THICKNESS 4.40 MM
from £6.11
from £6.11
# 002
MPN: 117593
DITTO, THICKNESS 4.45 MM
from £6.11
from £6.11
# 002
MPN: 117594
DITTO, THICKNESS 4.50 MM
from £11.11
from £11.11
# 002
MPN: 117595
DITTO, THICKNESS 4.55 MM
from £11.11
from £11.11
# 002
MPN: 117596
DITTO, THICKNESS 4.60 MM
from £11.11
from £11.11
# 002
MPN: 153731
DITTO, THICKNESS 3.725 MM
from £7.38
from £7.38
# 002
MPN: 153732
DITTO, THICKNESS 3.775 MM
from £7.38
from £7.38
# 002
MPN: 153733
DITTO, THICKNESS 3.825 MM
from £7.38
from £7.38
# 002
MPN: 153734
DITTO, THICKNESS 3.875 MM
from £7.38
from £7.38
# 002
MPN: 153735
DITTO, THICKNESS 3.925 MM
from £7.38
from £7.38
# 002
MPN: 153736
DITTO, THICKNESS 3.975 MM
from £23.16
from £23.16
# 002
MPN: 153737
DITTO, THICKNESS 4.025 MM
from £22.28
from £22.28
# 002
MPN: 153738
DITTO, THICKNESS 4.075 MM
from £22.28
from £22.28
# 002
MPN: 153739
DITTO, THICKNESS 4.125 MM
from £17.08
from £17.08
# 002
MPN: 153740
DITTO, THICKNESS 4.175 MM
from £23.16
from £23.16
# 002
MPN: 153741
DITTO, THICKNESS 4.225 MM
from £7.38
from £7.38
# 002
MPN: 153742
DITTO, THICKNESS 4.275 MM
from £7.38
from £7.38
# 003
MPN: 139855
INTAKE VALVE
from £65.22
from £65.22
# 004
MPN: 149217
EXHAUST VALVE
from £50.68
from £50.68
# 005
MPN: 117565
INTAKE VALVE GUIDE
from £67.42
from £67.42
# 005
MPN: 117566
INTAKE VALVE GUIDE OVERSIZED BY 0.2 MM.
from £69.75
from £69.75
# 006
MPN: 148313
INTAKE VALVE SEAT
from £8.34
from £8.34
# 007
MPN: 148312
EXHAUST VALVE SEAT
from £10.86
from £10.86
# 008
MPN: 156648
VALVE RETURN INNER SPRING
from £35.35
from £35.35
# 009
MPN: 160049
VALVE RETURN OUTER SPRING
from £35.35
from £35.35
# 010
MPN: 117567
SPRING RETAINING UPPER CUP
from £21.89
from £21.89
# 011
MPN: 117568
SPRING RETAINING LOWER CUP
from £5.37
from £5.37
# 012
MPN: 141565
OIL SEAL FOR VALVES GUIDE
Supersession
Supersession
This part replaces part number 119051 - and 1 more. Click to view details
# 013
MPN: 117283
COTTER FOR VALVE SPRING CUP
from £1.27
from £1.27
# 014
MPN: 117565
EXHAUST VALVE GUIDE
from £67.42
from £67.42
# 014
MPN: 117566
EXHAUST VALVE GUIDE OVERSIZED BY 0.2 MM.
from £69.75
from £69.75
