ferrari 512 m fuel pump and pipes parts diagram

008 - fuel pump and pipes

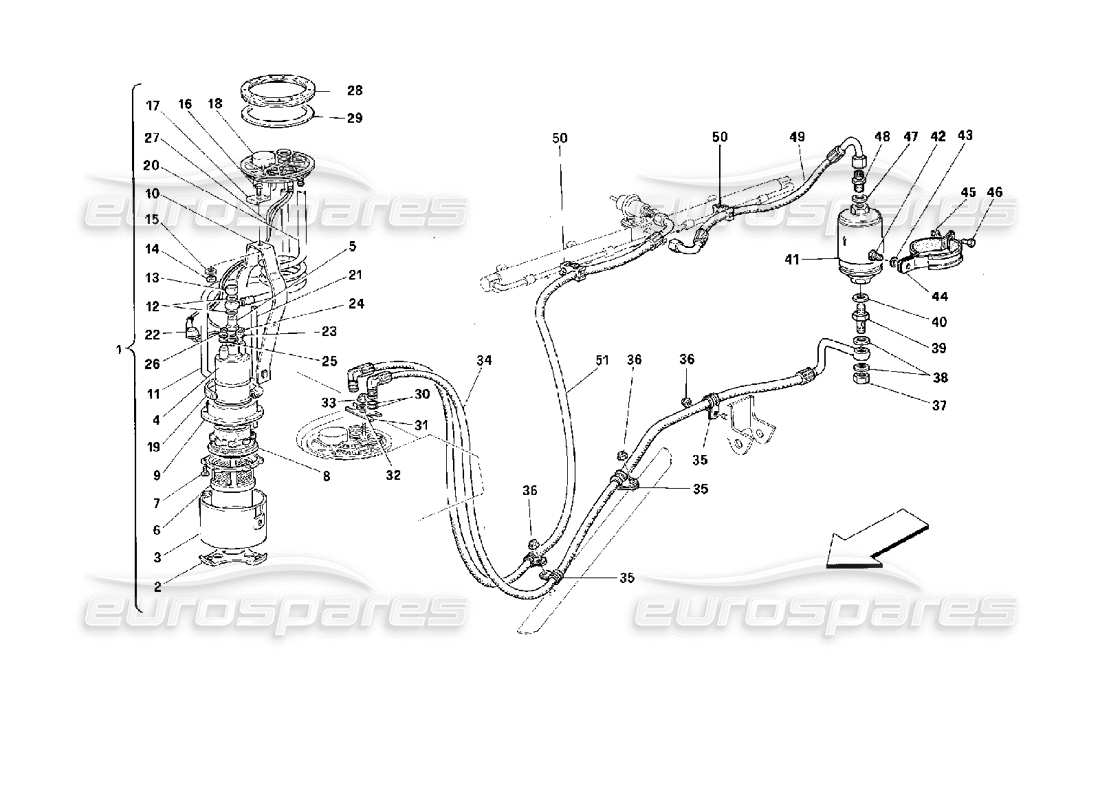

Ferrari 512 M Fuel Pump and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 161561
                                                                                                    FUEL PUMP ASSY
                                                                                                    from £517.61
                                                                                                    from £517.61
                                                                                                    # 002
                                                                                                    MPN: 126807
                                                                                                    ANTI VIBRATION PAD
                                                                                                    from £20.98
                                                                                                    from £20.98
                                                                                                    # 003
                                                                                                    MPN: 126806
                                                                                                    CHAMBER
                                                                                                    from £41.90
                                                                                                    from £41.90
                                                                                                    # 005
                                                                                                    MPN: 120098
                                                                                                    NOT RETURN VALVE
                                                                                                    from £90.67
                                                                                                    from £90.67
                                                                                                    # 006
                                                                                                    MPN: 126808
                                                                                                    FILTER INSIDE CHAMBER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 007
                                                                                                    MPN: 15671101
                                                                                                    SCREW
                                                                                                    from £1.37
                                                                                                    from £1.37
                                                                                                    # 008
                                                                                                    MPN: 144232
                                                                                                    RUBBER GASKET (50 MM)
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 153188 which we have in stock
                                                                                                    # 009
                                                                                                    MPN: 126810
                                                                                                    FILTER COVER
                                                                                                    from £24.27
                                                                                                    from £24.27
                                                                                                    # 010
                                                                                                    MPN: 142822
                                                                                                    SPRING
                                                                                                    from £12.85
                                                                                                    from £12.85

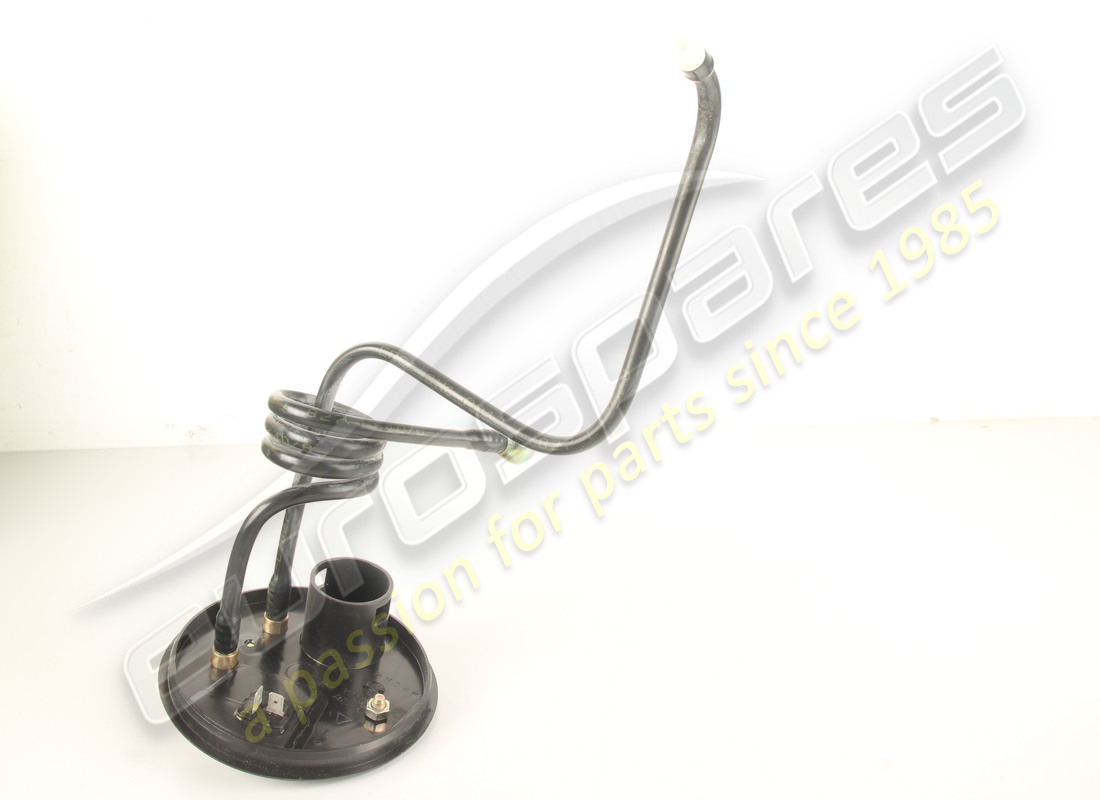

                                                                                                    # 011
                                                                                                    MPN: 146952
                                                                                                    RECOVER PIPE
                                                                                                    from £164.70
                                                                                                    from £164.70
                                                                                                    # 012
                                                                                                    MPN: 11270160
                                                                                                    GASKET
                                                                                                    from £0.87
                                                                                                    from £0.87
                                                                                                    # 013
                                                                                                    MPN: 10183217
                                                                                                    PLUG
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 014
                                                                                                    MPN: 14084211
                                                                                                    NUT
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 015
                                                                                                    MPN: 12647624
                                                                                                    WASHER
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    This part replaces part number 12647611
                                                                                                    # 016
                                                                                                    MPN: 10902011
                                                                                                    SCREW
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    This part replaces part number 10902411
                                                                                                    # 017
                                                                                                    MPN: 146955
                                                                                                    SPACER
                                                                                                    from £18.54
                                                                                                    from £18.54
                                                                                                    # 018
                                                                                                    MPN: 173890
                                                                                                    COVER
                                                                                                    from £139.83
                                                                                                    from £139.83
                                                                                                    # 019
                                                                                                    MPN: 13000890
                                                                                                    CLAMP
                                                                                                    from £0.63
                                                                                                    from £0.63
                                                                                                    This part replaces part number 12173290 - and 2 more. Click to view details
                                                                                                    # 020
                                                                                                    MPN: 146948
                                                                                                    FEEDING PIPE
                                                                                                    from £164.70
                                                                                                    from £164.70
                                                                                                    # 021
                                                                                                    MPN: 126827
                                                                                                    EXHAUST PIPE
                                                                                                    from £49.67
                                                                                                    from £49.67
                                                                                                    # 022
                                                                                                    MPN: 130146
                                                                                                    CAP
                                                                                                    from £5.42
                                                                                                    from £5.42
                                                                                                    This part replaces part number 137612
                                                                                                    # 023
                                                                                                    MPN: 149951
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                    # 024
                                                                                                    MPN: 15896470
                                                                                                    NUT
                                                                                                    (minimum order quantity = 20)
                                                                                                    from £0.77
                                                                                                    from £0.77
                                                                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                    # 025
                                                                                                    MPN: 10615270
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 026
                                                                                                    MPN: 10794011
                                                                                                    NUT
                                                                                                    from £0.30
                                                                                                    from £0.30

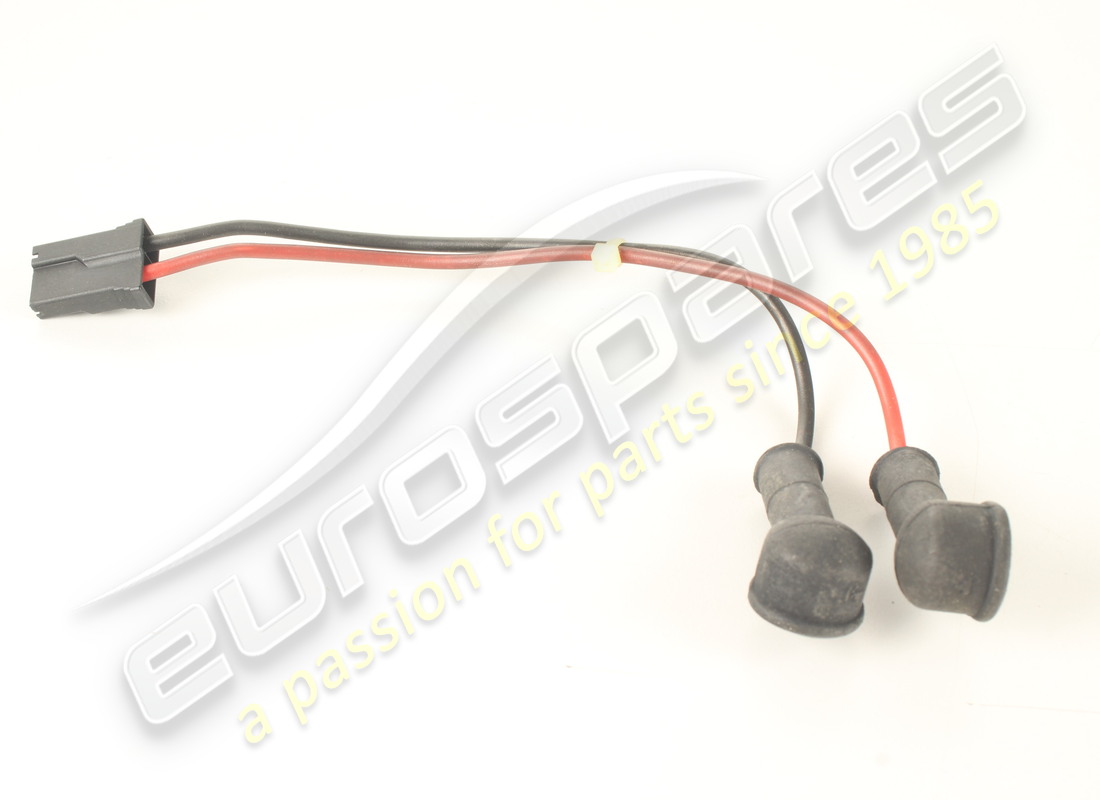

                                                                                                    # 027
                                                                                                    MPN: 142795
                                                                                                    FUEL PUMP CABLES ASSY
                                                                                                    from £90.59
                                                                                                    from £90.59
                                                                                                    # 028
                                                                                                    MPN: 126838
                                                                                                    RING NUT
                                                                                                    from £47.29
                                                                                                    from £47.29
                                                                                                    # 029
                                                                                                    MPN: 897696
                                                                                                    GASKET
                                                                                                    alternative 126835
                                                                                                    from £47.37
                                                                                                    from £47.37
                                                                                                    This part replaces part number 126835
                                                                                                    # 030
                                                                                                    MPN: 127816
                                                                                                    GASKET
                                                                                                    from £1.41
                                                                                                    from £1.41
                                                                                                    # 031
                                                                                                    MPN: 129316
                                                                                                    PLATE
                                                                                                    from £3.02
                                                                                                    from £3.02
                                                                                                    # 032
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                    # 033
                                                                                                    MPN: 14084211
                                                                                                    NUT
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 034
                                                                                                    MPN: 148843
                                                                                                    FUEL PIPE FROM PUMP TO RH FILTER
                                                                                                    from £304.66
                                                                                                    from £304.66
                                                                                                    # 034
                                                                                                    MPN: 148844
                                                                                                    FUEL PIPE FROM PUMP TO LH FILTER
                                                                                                    from £298.12
                                                                                                    from £298.12
                                                                                                    # 035
                                                                                                    MPN: 10441490
                                                                                                    BRACKET
                                                                                                    from £0.48
                                                                                                    from £0.48
                                                                                                    # 036
                                                                                                    MPN: 14059211
                                                                                                    NUT
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    # 037
                                                                                                    MPN: 10183217
                                                                                                    UNION
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 038
                                                                                                    MPN: 11270160
                                                                                                    GASKET
                                                                                                    from £0.87
                                                                                                    from £0.87
                                                                                                    # 039
                                                                                                    MPN: 148834
                                                                                                    UNION
                                                                                                    from £7.93
                                                                                                    from £7.93
                                                                                                    # 040
                                                                                                    MPN: 10280060
                                                                                                    GASKET
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                    # 041
                                                                                                    MPN: 152212
                                                                                                    FUEL FILTER
                                                                                                    from £19.60
                                                                                                    from £19.60
                                                                                                    # 042
                                                                                                    MPN: 16043124
                                                                                                    SCREW
                                                                                                    from £0.30
                                                                                                    from £0.30
                                                                                                    This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                                                    SCREW Genuine Ferrari Part - Used In stock
                                                                                                    Removed from 458 engine 178999
                                                                                                    # 043
                                                                                                    MPN: 14496501
                                                                                                    WASHER
                                                                                                    from £0.85
                                                                                                    from £0.85
                                                                                                    # 044
                                                                                                    MPN: 153389
                                                                                                    BRACKET
                                                                                                    from £109.33
                                                                                                    from £109.33
                                                                                                    # 046
                                                                                                    MPN: 10902324
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                    # 047
                                                                                                    MPN: 11270160
                                                                                                    GASKET
                                                                                                    from £0.90
                                                                                                    from £0.90
                                                                                                    # 048
                                                                                                    MPN: 109797
                                                                                                    UNION
                                                                                                    from £9.91
                                                                                                    from £9.91
                                                                                                    # 049
                                                                                                    MPN: 148841
                                                                                                    FUEL PIPE FROM FILTER TO RH FLUTE
                                                                                                    from £491.93
                                                                                                    from £491.93
                                                                                                    # 049
                                                                                                    MPN: 148842
                                                                                                    FUEL PIPE FROM FILTER TO LH FLUTE
                                                                                                    from £359.74
                                                                                                    from £359.74
                                                                                                    # 050
                                                                                                    MPN: 149906
                                                                                                    SPRING
                                                                                                    from £2.29
                                                                                                    from £2.29
                                                                                                    # 051
                                                                                                    MPN: 148845
                                                                                                    FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP
                                                                                                    from £478.88
                                                                                                    from £478.88
                                                                                                    # 051
                                                                                                    MPN: 148846
                                                                                                    FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP
                                                                                                    from £478.88
                                                                                                    from £478.88
