009 - Fuel Tanks

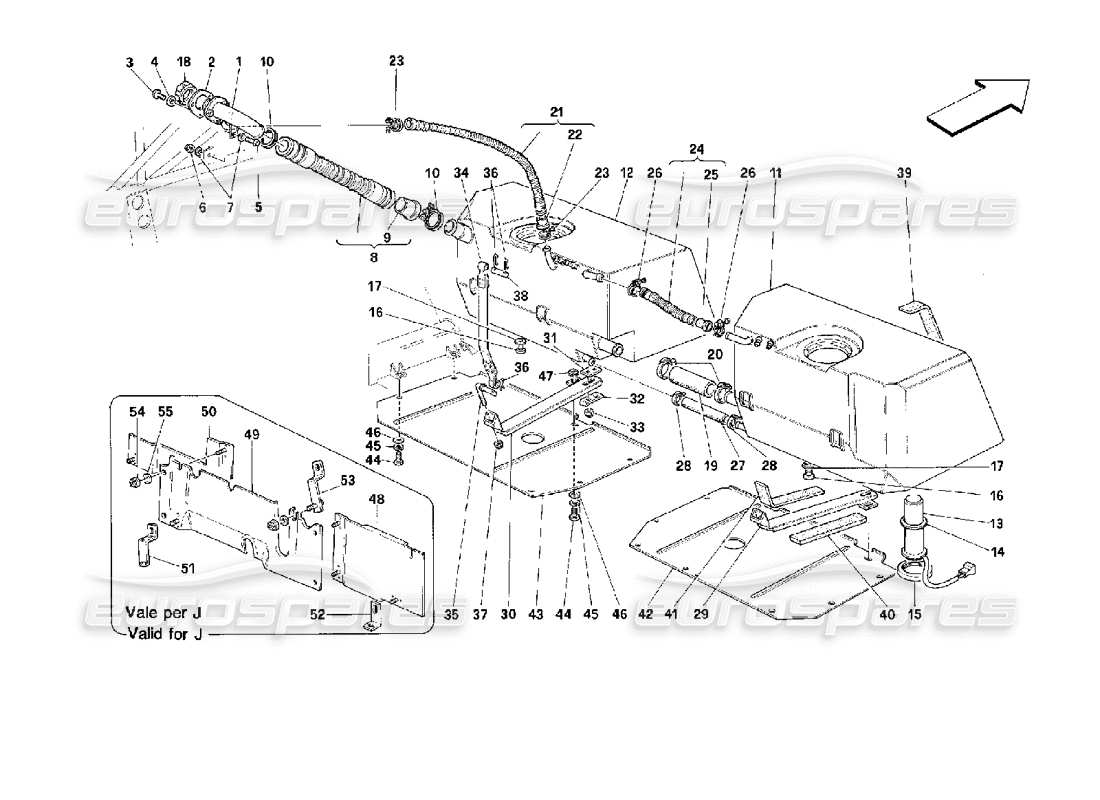

Ferrari 512 M Fuel Tanks Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 146946
                                                                                    FILL TUBE
                                                                                    - Not for SA and ZA
                                                                                    from £103.77
                                                                                    from £103.77
                                                                                    # 001
                                                                                    MPN: 151611
                                                                                    FILL TUBE
                                                                                    - Valid for SA and ZA
                                                                                    from £280.45
                                                                                    from £280.45
                                                                                    # 002
                                                                                    MPN: 123897
                                                                                    GASKET
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 003
                                                                                    MPN: 62926700
                                                                                    SCREW
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
                                                                                    # 004
                                                                                    MPN: 12601274
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                    # 005
                                                                                    MPN: 10902421
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 006
                                                                                    MPN: 14058411
                                                                                    NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 007
                                                                                    MPN: 12646601
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 008
                                                                                    MPN: 146943
                                                                                    TUBE
                                                                                    from £45.36
                                                                                    from £45.36
                                                                                    # 009
                                                                                    MPN: 141033
                                                                                    GASKET
                                                                                    from £12.08
                                                                                    from £12.08
                                                                                    # 010
                                                                                    MPN: 165398
                                                                                    CLAMP
                                                                                    from £0.67
                                                                                    from £0.67
                                                                                    # 011
                                                                                    MPN: 146967
                                                                                    RH FUEL TANK
                                                                                    from £776.25
                                                                                    from £776.25
                                                                                    # 012
                                                                                    MPN: 148095
                                                                                    LH FUEL TANK
                                                                                    from £862.83
                                                                                    from £862.83
                                                                                    This part replaces part number 146968 - and 1 more. Click to view details
                                                                                    # 013
                                                                                    MPN: 144849
                                                                                    GAUGE
                                                                                    from £425.00
                                                                                    from £425.00
                                                                                    This part replaces part number 132134
                                                                                    # 014
                                                                                    MPN: 154802
                                                                                    GASKET
                                                                                    from £17.11
                                                                                    from £17.11
                                                                                    This part replaces part number 116792 - and 2 more. Click to view details
                                                                                    # 015
                                                                                    MPN: 121435
                                                                                    RING NUT
                                                                                    from £44.76
                                                                                    from £44.76
                                                                                    This part replaces part number 116012 - and 6 more. Click to view details
                                                                                    # 016
                                                                                    MPN: 148045
                                                                                    CAP
                                                                                    from £9.18
                                                                                    from £9.18
                                                                                    # 017
                                                                                    MPN: 123622
                                                                                    GASKET
                                                                                    from £0.79
                                                                                    from £0.79
                                                                                    # 018
                                                                                    MPN: 180320
                                                                                    FUEL CAP
                                                                                    from £95.00
                                                                                    from £95.00
                                                                                    # 019
                                                                                    MPN: 154023
                                                                                    TUBE
                                                                                    from £61.79
                                                                                    from £61.79
                                                                                    This part replaces part number 150384
                                                                                    # 020
                                                                                    MPN: 13000590
                                                                                    CLAMP
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 105622 - and 2 more. Click to view details
                                                                                    # 021
                                                                                    MPN: 147244
                                                                                    TUBE
                                                                                    from £19.17
                                                                                    from £19.17
                                                                                    # 022
                                                                                    MPN: 142106
                                                                                    GASKET
                                                                                    from £4.59
                                                                                    from £4.59
                                                                                    # 023
                                                                                    MPN: 13432870
                                                                                    SCREW COLLAR
                                                                                    from £5.88
                                                                                    from £5.88
                                                                                    This part replaces part number 164015
                                                                                    # 023
                                                                                    MPN: 164015
                                                                                    CLAMP
                                                                                    - Valid after stock exhaustion of 12181290
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 12181290
                                                                                    # 024
                                                                                    MPN: 147246
                                                                                    TUBE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 147247
                                                                                    # 025
                                                                                    MPN: 142106
                                                                                    GASKET
                                                                                    from £4.59
                                                                                    from £4.59
                                                                                    # 026
                                                                                    MPN: 13432870
                                                                                    SCREW COLLAR
                                                                                    from £5.88
                                                                                    from £5.88
                                                                                    This part replaces part number 164015
                                                                                    # 026
                                                                                    MPN: 164015
                                                                                    CLAMP
                                                                                    - Valid after stock exhaustion of 12181290
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 12181290
                                                                                    # 027
                                                                                    MPN: 117873
                                                                                    TUBE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 150462
                                                                                    # 028
                                                                                    MPN: 13000390
                                                                                    CLAMP
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                    # 029
                                                                                    MPN: 147946
                                                                                    RH BRACKET
                                                                                    from £45.65
                                                                                    from £45.65
                                                                                    # 030
                                                                                    MPN: 147947
                                                                                    LH BRACKET
                                                                                    from £47.31
                                                                                    from £47.31
                                                                                    # 031
                                                                                    MPN: 147948
                                                                                    SPACER
                                                                                    from £1.37
                                                                                    from £1.37
                                                                                    # 032
                                                                                    MPN: 115734
                                                                                    PLATE
                                                                                    from £2.00
                                                                                    from £2.00
                                                                                    # 033
                                                                                    MPN: 14058411
                                                                                    NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 034
                                                                                    MPN: 122797
                                                                                    STRAP FUEL TANK
                                                                                    from £11.08
                                                                                    from £11.08
                                                                                    # 035
                                                                                    MPN: 127529
                                                                                    TIE ROD
                                                                                    from £121.44
                                                                                    from £121.44
                                                                                    This part replaces part number 12311271 - and 15 more. Click to view details
                                                                                    # 036
                                                                                    MPN: 10796440
                                                                                    SPLIT PIN
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 264555
                                                                                    # 037
                                                                                    MPN: 104030
                                                                                    SELF LOCKING NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 16104125
                                                                                    # 038
                                                                                    MPN: 103447
                                                                                    PIN
                                                                                    from £12.86
                                                                                    from £12.86
                                                                                    # 039
                                                                                    MPN: 125036
                                                                                    SPACER
                                                                                    from £4.07
                                                                                    from £4.07
                                                                                    # 040
                                                                                    MPN: 125037
                                                                                    SPACER
                                                                                    from £2.00
                                                                                    from £2.00
                                                                                    # 041
                                                                                    MPN: 125035
                                                                                    SPACER
                                                                                    from £1.37
                                                                                    from £1.37
                                                                                    This part replaces part number 141261
                                                                                    # 042
                                                                                    MPN: 146974
                                                                                    RH PANEL
                                                                                    - Not for GD
                                                                                    from £80.40
                                                                                    from £80.40
                                                                                    # 042
                                                                                    MPN: 150381
                                                                                    RH PANEL
                                                                                    - Valid for GD
                                                                                    from £105.10
                                                                                    from £105.10
                                                                                    # 043
                                                                                    MPN: 146975
                                                                                    LH PANEL
                                                                                    - Not for GD
                                                                                    from £80.40
                                                                                    from £80.40
                                                                                    # 043
                                                                                    MPN: 150382
                                                                                    LH PANEL
                                                                                    - Valid for GD
                                                                                    from £105.10
                                                                                    from £105.10
                                                                                    # 044
                                                                                    MPN: 10902124
                                                                                    SCREW
                                                                                    from £0.48
                                                                                    from £0.48
                                                                                    This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                    # 045
                                                                                    MPN: 127494
                                                                                    WASHER
                                                                                    (minimum order quantity = 20)
                                                                                    from £0.48
                                                                                    from £0.48
                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                    # 046
                                                                                    MPN: 12643701
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                    # 047
                                                                                    MPN: 60758600
                                                                                    GAGED NUT
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    # 048
                                                                                    MPN: 153150
                                                                                    RH SHIELD
                                                                                    - Valid for J
                                                                                    from £192.04
                                                                                    from £192.04
                                                                                    # 049
                                                                                    MPN: 153151
                                                                                    CENTRAL SHIELD
                                                                                    - Valid for J
                                                                                    from £532.82
                                                                                    from £532.82
                                                                                    # 050
                                                                                    MPN: 153152
                                                                                    LH SHIELD
                                                                                    - Valid for J
                                                                                    from £800.50
                                                                                    from £800.50
                                                                                    # 051
                                                                                    MPN: 153155
                                                                                    LOWER BRACKET
                                                                                    - Valid for J
                                                                                    from £9.42
                                                                                    from £9.42
                                                                                    # 052
                                                                                    MPN: 153156
                                                                                    RH LOWER BRACKET
                                                                                    - Valid for J
                                                                                    from £10.59
                                                                                    from £10.59
                                                                                    # 053
                                                                                    MPN: 153154
                                                                                    UPPER BRACKET
                                                                                    - Valid for J
                                                                                    from £9.42
                                                                                    from £9.42
                                                                                    # 054
                                                                                    MPN: 14058411
                                                                                    NUT
                                                                                    - Valid for J
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 055
                                                                                    MPN: 12644401
                                                                                    WASHER
                                                                                    - Valid for J
                                                                                    from £0.47
                                                                                    from £0.47
